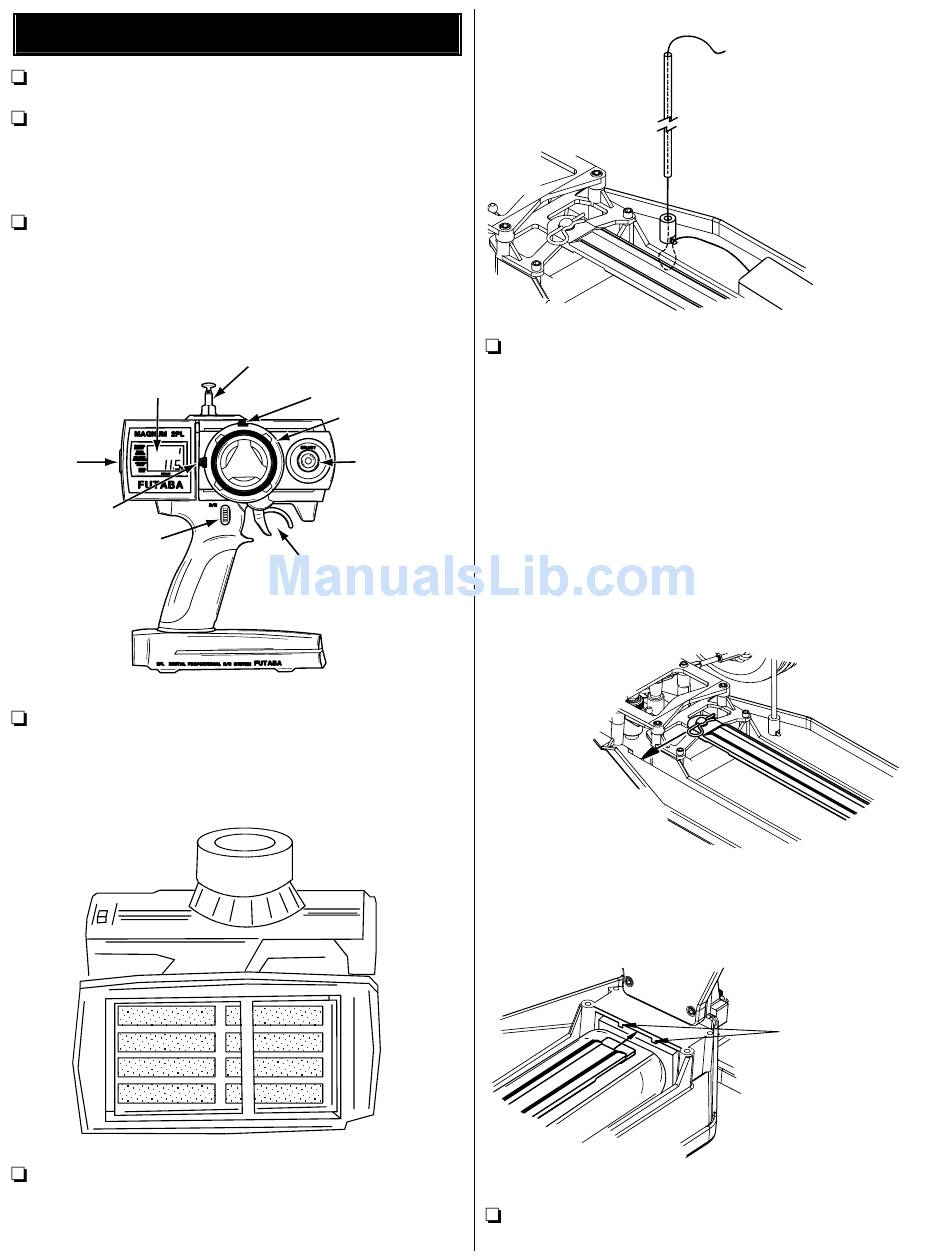

FINISHING

1. Remove the Evader BX Pro and radio system from the box.
2. Charge the 6- or 7-cell battery (not included) on the
charger (not included). See Safety Precautions before
charging and charge the battery according to the
instructions that came with your charger.
3. Please refer to the included 2PL instruction manual for
detailed information on setting up and changing settings on
the radio.
LCD
On/Off
Switch
Throttle Trim
Dual Rate
4. Install the transmitter antenna by screwing it into the
hole on the top of the transmitter. Give a light tug on the
antenna to be sure it is seated properly.
5. Slide open the battery door on the bottom of the
transmitter. Install eight (8) "AA" batteries into the transmitter
in the configuration molded into the plastic on the battery
holder. Re-install the battery door.
Antenna
Steering Trim
Steering Wheel
Programming
Button
Throttle/Brake
Trigger
6. Straighten the receiver antenna. Route the receiver
antenna through the holes in the chassis as shown above.
Locate the antenna tube and thread the receiver antenna
through the antenna tube. The antenna will be longer than the
antenna tube. DO NOT CUT OR COIL THE ANTENNA WIRE.
Press fit the antenna tube into the hole in the chassis. Tip:
Run the antenna wire through your fingers to straighten
out the kinks before running through the antenna tube.
Also, applying a small amount of soap and water to the
antenna wire will help lubricate the wire for threading into
the antenna tube. Use a piece of tape to hold the excess
antenna wire to the antenna tube.
Remove the clip
and lift the strap
to install/remove
the battery pack
7. Remove the body pin from the battery strap post and
remove the battery strap from the Evader BX Pro.
4
Route the antenna
through the chassis
and then through the tube.
Install the strap
between the bumps.
