Slipper Clutch; Rear Hub, Rear Axles - Duratrax Evader bx Pro Owner's Manual

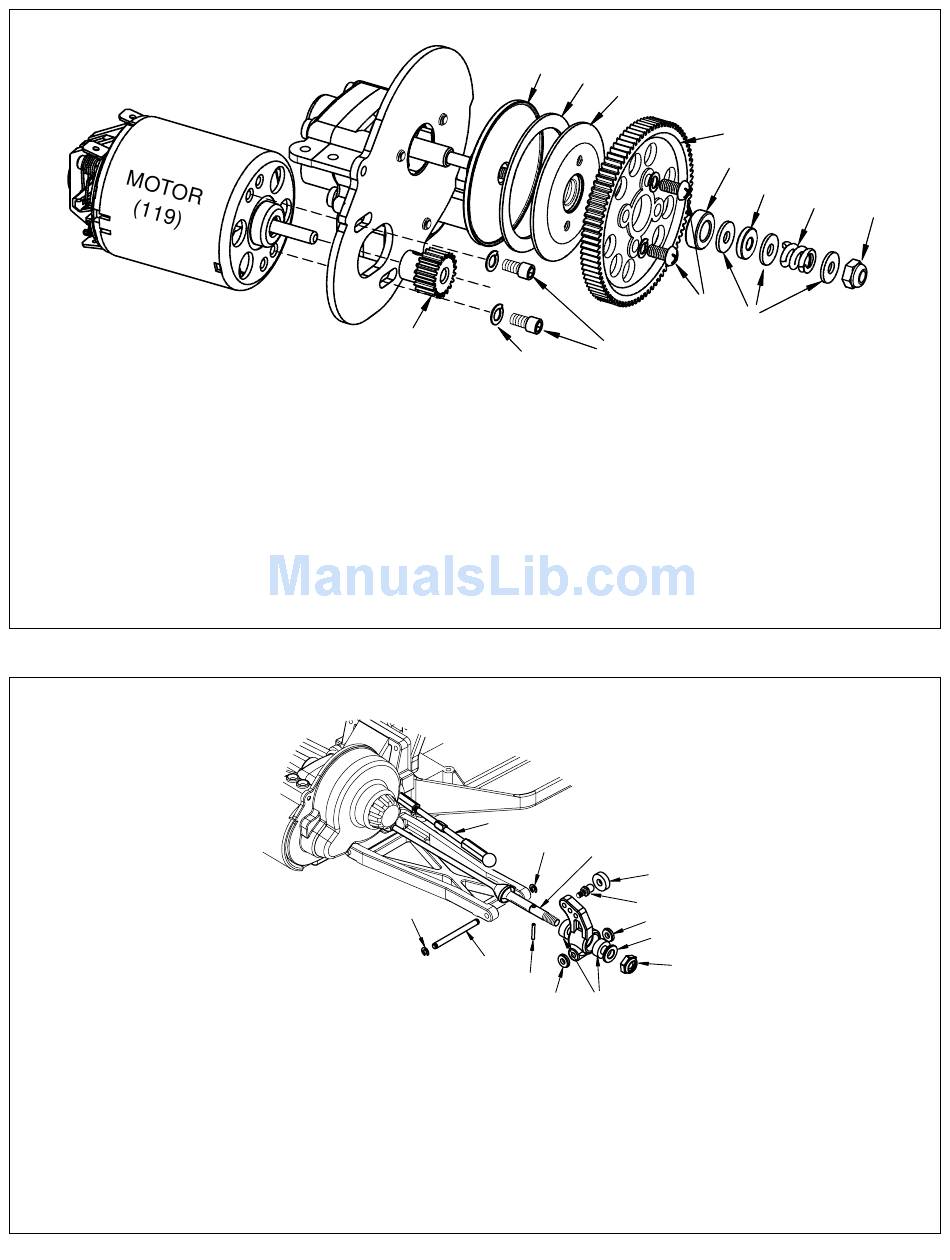

1. Install the inner slipper plate (86) onto the top shaft (83). Make sure the notch in the inner slipper plate keys onto the
2x10 spring pin in the top shaft.
2. Place the slipper pad (64) and outer slipper plate (85) onto the top shaft (83). Make sure the slipper pad (64) is properly
centered between the two plates (85 & 86).
3. Install a slipper bushing (86) into the spur gear (16).
4. Slide the spur gear (16) onto the top shaft (83) and secure it to the outer slipper plate (85) using (2) 3x6mm screws (J)
and (2) 3mm lock washers (P).
5. Slide a 3mm flat washer (V), 3mm brass washer (W), and then another 3mm washer (V) onto the top shaft.
6. Install the slipper spring (87), 3mm washer (V), and then the 3mm lock nut (O). Refer to page 16 for adjusting the slipper.
1. Install the bearing spacer (88) and two 5x10mm bearings (108) in both of the rear hubs (26L or 27R).
2. Install a ball stud (81) into the center hole of the rear hubs.
3. Place a 3mm plastic spacer (58) on each side of the rear hubs. Secure the rear hubs (26L or 27R) to the rear suspension
arms (36L or 37R) with the 3mm outer rear hinge pins (107).
4. Secure the outer rear hinge pins (107) with 2.5mm e-clips (S).
5. Install the rear axles (79) through the bearings in the hubs.
6. Slide a rear axle washer (82) onto the axle and then install a 2.5x12mm spring pin (117) into the rear axle.
86
80
P

Slipper Clutch

74
S
S
107
117
58

Rear Hub, Rear Axles

12
64
85
16
86
J
Q
H
79
67
81
58
82
M
108
W
87
O
