Summary of Contents for Brilix XHP 40

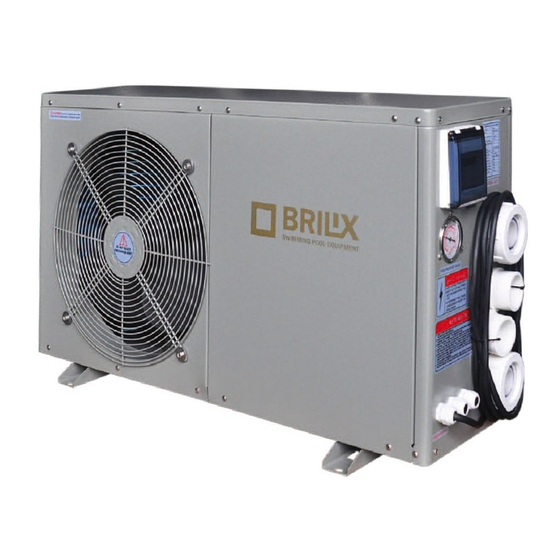

- Page 1 Swimming Pool Heat Pump XHP INSTALLATION AND USER GUIDE Read the instructions Illustrative photo...
-
Page 2: Table Of Contents
Contents 1. Specification ..............................3 2. Performance curves ............................4 3. Dimensions ..............................5 4. Installation ..............................5 5. Electrical connection ..........................9 6. Initial heat pump start-up and its winterization ..................12 7. Setting operating data ..........................14 8. Troubleshooting ............................20 9. Schematic representation and list of parts ....................22 10. -
Page 3: Specification
1. Specification 1.1 Horizontal EU design, R410A ,HEATING AND COOLING Models XHP 40 XHP 60 XHP 100 XHP 140 XHP 160 XHP 200 * Capacity at 25 °C/Water27 °C Heat Output (kW) Power Consumption (kW) 0,56 1,44 1,92 2,88 6,25... -
Page 4: Performance Curves
2. Performance curves HEAT OUTPUT CURVE XHP 40 XHP 60 XHP 100 XHP 140 XHP 200 Air temperature INPUT curve XHP 40 XHP 60 XHP 100 XHP 140 XHP 200 Air temperature COP curve Swimming pool water temperature °C Air temperature... -
Page 5: Dimensions
3. Dimensions Models XHP 40 XHP 60 XHP 100 XHP 140 XHP 160 XHP 200 1000 1045 1045 Unit: mm 4. Installation 4.1 Installation illustration heat pump water treatment side joining valve output input for power cable input discharge pipe for... - Page 6 Discharge connection BYPASS to the swimming pool from the filter valve 1 valve 2 valve 3 from HEAT PUMP NOTE: The manufacturer delivers only the heat pump system. Other items shown in the illustration are other necessary components of the water system provided by users or suppliers.
- Page 7 ATTENTION: Please follow the steps below to put the heat pump into operation for the first time: 1. Open the valves to let water into the system. 2. Make sure there is no water leaking in the connections. 3. Run the heat pump with the circulating pump in operation. 4.2 Selection of the installation position •...
- Page 8 • The swimming pool heat pump is usually installed near the swimming pump at a maximum distance of 7.5 metres. If installed beyond this limit, the technology system (pipes) can cause higher heat losses. Most pipes are installed underground, and although the technology system (pipes) must be provided with thermal insulation, all tunnels and surrounding soil will still receive the heat, unless the ground is wet or the water level is high.
-
Page 9: Electrical Connection
5. Electrical connection 5.1 Connection diagram for the swimming pool heat pump XHP 40, XHP 60, XHP 100 IMPORTANT: The installation and connection of this device to the power supply can only be provided by a person that has the electrical qualifications in accordance with Decree No. 50/1978 Coll. Although the heat pump is electrically insulated from the rest of the unit, this fact only prevents the passage of electrical current to or from the water in the swimming pool. - Page 10 5.2 Connection diagram for the swimming pool heat pump XHP 140 white Compressor Fan motor brown OUTPUT1 OUTPUT2 brown RUN/ POWER SUPPLY blue OUTPUT3 Cooling coil temperature sensor Ambient temperature sensor Returned coolant temperature sensor OUTPUT4 Heating coil temperature sensor Water outlet coil temperature sensor Water inlet coil temperature sensor Transformer...
- Page 11 5.3 Connection diagram for the swimming pool heat pump XHP 200 Four-way valve blue blue Starting capacitor white black white Compressor Fan motor yellow yellow /green /green Starting blue capacitor blue black brown brown OUTPUT1 OUTPUT2 RUN/ POWER SUPPLY blue Cooling coil temperature sensor OUTPUT3 Ambient temperature sensor...
-
Page 12: Initial Heat Pump Start-Up And Its Winterization
NOTE: 1. The above mentioned connection diagrams are for information only; please use the diagrams delivered together with the device. 2. The swimming pool heat pump has to be well earthed, although the heat exchanger unit is electrically insulated from the rest of the unit. In spite of that, it is still necessary to earth the unit to protect yourself against short-circuits inside the unit. - Page 13 Time delay: The heat pump is equipped with a built-in 3-minute protection against restart. Time delay control is an integral part of the control circuit, which limits restart cycles and contactor clicking. Time delay automatically restarts the heat pump approximately 3 minutes after each interruption of the control circuit.
-
Page 14: Setting Operating Data
7. Setting operating data 7.1 Heating only operation 7.2 Control display functions 1. up and down arrows 2. timer on button 3. timer off button 4. clock button 5. on/off button 6. operating mode display 7. LED display 7.3 How to identify the operating parameters (in the event of switching off the heat pump, the LED display shows real time) (1) press the button for 5 seconds and enter the operating parameters interface... - Page 15 Parameter 0 Parameter 1 Parameter 2 setting the temperature for the setting the temperature for the total operating time for the compres- incoming water in cooling mode 8 to incoming water in heating mode 15 to sor after defrosting 30 to 90 minutes, 35°C, (default setting is 28°C) 40°C, (default setting is 28°C) (default setting is 40 minutes)
- Page 16 Parameter 9 Parameter A heat target for super manual setting of the interval for the performance -15 to 15°C, electronic expansion valve 18 to 94, (default setting 10°C) (default setting 70 (*5)) 7.4 How to identify the current mode? Parameter B: Parameter C: Parameter D: temperature of incoming water...
- Page 17 Parameter H: current intervals of the electronic expansion valve NOTE: 1. press the up or down arrow to check the temperature of incoming water, temperature of outgoing water, capacitor temperature, temperature of returned gas, ambient temperature, current intervals of the electronic expansion valve 2.
- Page 18 7.5 Setting the water temperature In the current mode, press the up or down arrows to set the water temperature, even if the heat pump is off. 7.6 Setting the locking function Press the up and down arrow simultaneously to lock the setting. To unlock the setting, press the arrows again simultaneously.
- Page 19 ATTENTION: • It is necessary to check the heat pump operation parameters after the installation and before the first use. • When the heat pump is running, the LED display shows the temperature of incoming water. • If you switch off the heat pump using the On/Off button on the control LED display, thus putting the heat pump into the STANDBY mode, the LED display will show the clock.
-
Page 20: Troubleshooting
8. Troubleshooting 8.1 Error codes shown on the controller with LED display Cable Fault Cause Solution controller Defect to the temperature sensor for The sensor is either open or Check or replace the sensor. incoming water short-circuited. Defect to the temperature sensor for The sensor is either open or Check or replace the sensor. - Page 21 8.2 Other faults and solutions (with no display on the controller with LED) Fault Display Cause Solution Check the connection The LED display shows No power supply of the cable and the circuit nothing. breaker. The LED display shows The heat pump is in the standby Start up the heat pump.
-
Page 22: Schematic Representation And List Of Parts
9. Schematic representation and list of parts Component name Component name ventilation panel air outlet hose base air return hose titanium tube central panel to the four-way valve E air collection tube from the four-way front panel valve C to the capacitor tube from the capillary tubes... -
Page 23: Spare Parts 1
10. Spare parts 1 Evaporator Four-way valve Filter Plastic water flow switch Fan motor Electronic expansion valve Fan blade Titanium heat exchanger Compressor Control LED display Watertight casing Suction valve... -
Page 24: Spare Parts 2
10. Spare parts 2 manometer fan motor capacitor temperature sensors high pressure valve low pressure valve control unit 11. Cabling diagram (example – XHP 60) Panel (main controller) Transformer Compressor capacitor... -
Page 25: Replacement Of Parts
12. Replacement of parts Filter Electronic expansion valve High pressure valve Low pressure valve Suction valve Manometer IMPORTANT WARNING: The components of the heat pump can only be replaced and repaired by a specialized company or an authorized service centre. Do not attempt to remove any defects yourself. - Page 26 Warranty terms and conditions The warranty conditions are governed by your supplier’s trade and warranty terms and conditions. Safe disposal of the product after its service life After its service life is over, have the product disposed of ecologically by a specialized company. Claims and servicing Claims are governed by applicable consumer protection legislation.
