SAV III Basic
OWNER'S MANUAL

Advertisement

loading

Related Manuals for Ocean Reef SAV III Basic

Summary of Contents for Ocean Reef SAV III Basic

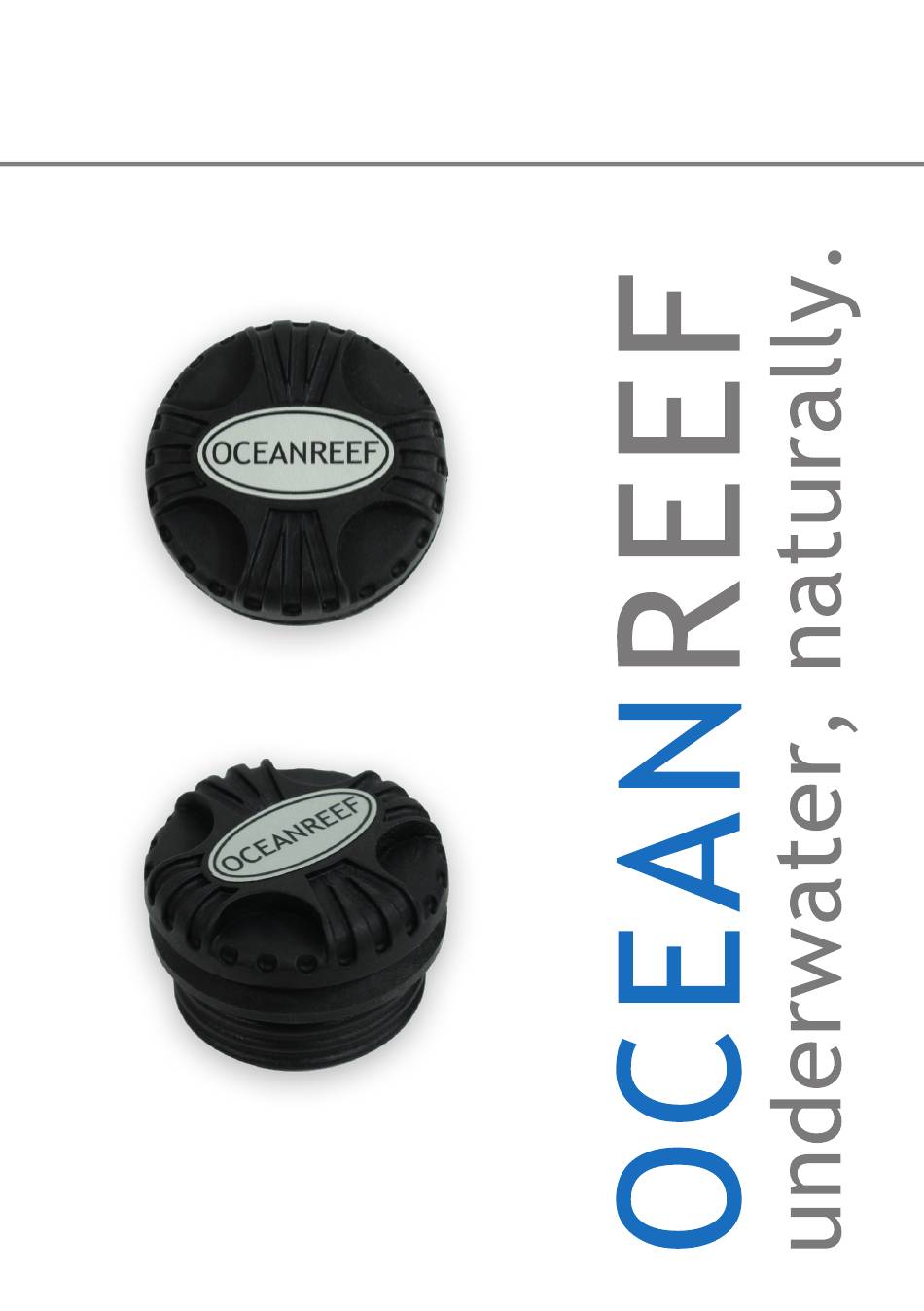

  • Page 1 SAV III Basic OWNER’S MANUAL...

  • Page 2: Table Of Contents

    SAV III Basic - OWNER’S MANUAL TABLE OF CONTENTS 1 - INTRODUCTION 2 - GENERAL WARNINGS / OWNER’S RESPONSIBILITIES 3 - FEATURES 4 - GLOSSARY 5 - ASSEMBLY 6 - TROUBLESHOOTING 7 - MAINTENANCE, CLEANING AND STORAGE 8 - SPARE PARTS 9 - WARRANTY SAV III Basic rel.

  • Page 3: Introduction

    1 - INTRODUCTION For more than 70 years, OCEAN REEF has been involved in the underwater diving industry. We have contributed much to this industry, from fins and snorkels to the most modern systems of underwater communication. Through the spirit of intrepid pioneers, brilliant inventors, passionate divers, and dynamic entrepreneurs, OCEAN REEF has been able to turn dreams into reality in the underwater world.

  • Page 4: General Warnings / Owner's Responsibilities

    Do not modify or alter the product in any way. DO NOT USE the SAV III Basic if any part is broken. DO NOT DIVE YOUR OCEAN REEF IDM IF SAV IS LEAKING WATER OR AIR. TROUBLE SHOOT THE SAV IF THERE IS SIGN OF WATER OR AIR LEAKAGE.
  • Page 5 Before using the SAV III Basic the user must ensure that the product has been properly inspected and maintained. (see Chapter 8 Maintenance, Cleaning and Storage).

  • Page 6: Glossary

    SAVIII Basic Code OR025030 The Surface Air Valve / SAV III / SAV III basic allows the diver to breathe ambient air while at the surface conserving the diver’s gas supply. To use, simply open the valve while on the surface or outside of the water to breathe ambient air, and close it when ready to dive.

  • Page 7: Assembly

    Check integrity of the gasket and ensure absence of debris and dirt. 3 - Insert the SAV III Basic or SAV in the OCTOPUS/SAV port aligning the threads. SAV III Basic rel. 1.0...
  • Page 8 (B). Opening the valve is achieved turning part A counter-clockwise, closing = clockwise. Part A should not be overtightened nor cranked open to avoid getting stuck. SAV III Basic rel. 1.0...

  • Page 9: Troubleshooting

    SAV is clean, doesn’t have any debris or other deposit that prevent it from closing properly. If you have a SAV III basic make sure the body of the valve is properly screwed in the port and make sure that the gasket in the port is in place.

  • Page 10: Maintenance, Cleaning And Storage

    Product should be stored in a ventilated environment preferably between -10°C (14°F) and +50°C (122°F), avoiding the direct action of sunlight, pollution, dirt, etc. For both storage and transportation the product can be kept assembled on mask. SAV III Basic rel. 1.0...

  • Page 11: Spare Parts

    For more information visit our website at: diving.oceanreefgroup.com/shop-dealers/ 9 - WARRANTY The OCEAN REEF SAV III Basic is guaranteed to be free of material or manufacturing defects for a period of 24 months from the time the unit is purchased.
  • Page 12 MESTEL Safety s.r.l 2510 Island View Way Via Arvigo 2, 16010 Genova (Italia) Vista, CA 92081 Phone +39 010 7082011 Phone +1 760 744 9430 E-mail: infoitaly@oceanreefgroup.com Fax +1 760 744 9525 E-mail: operator@oceanreefgroup.com diving.oceanreefgroup.com oceanreefgroup.com SAV III Basic rel. 1.0...
