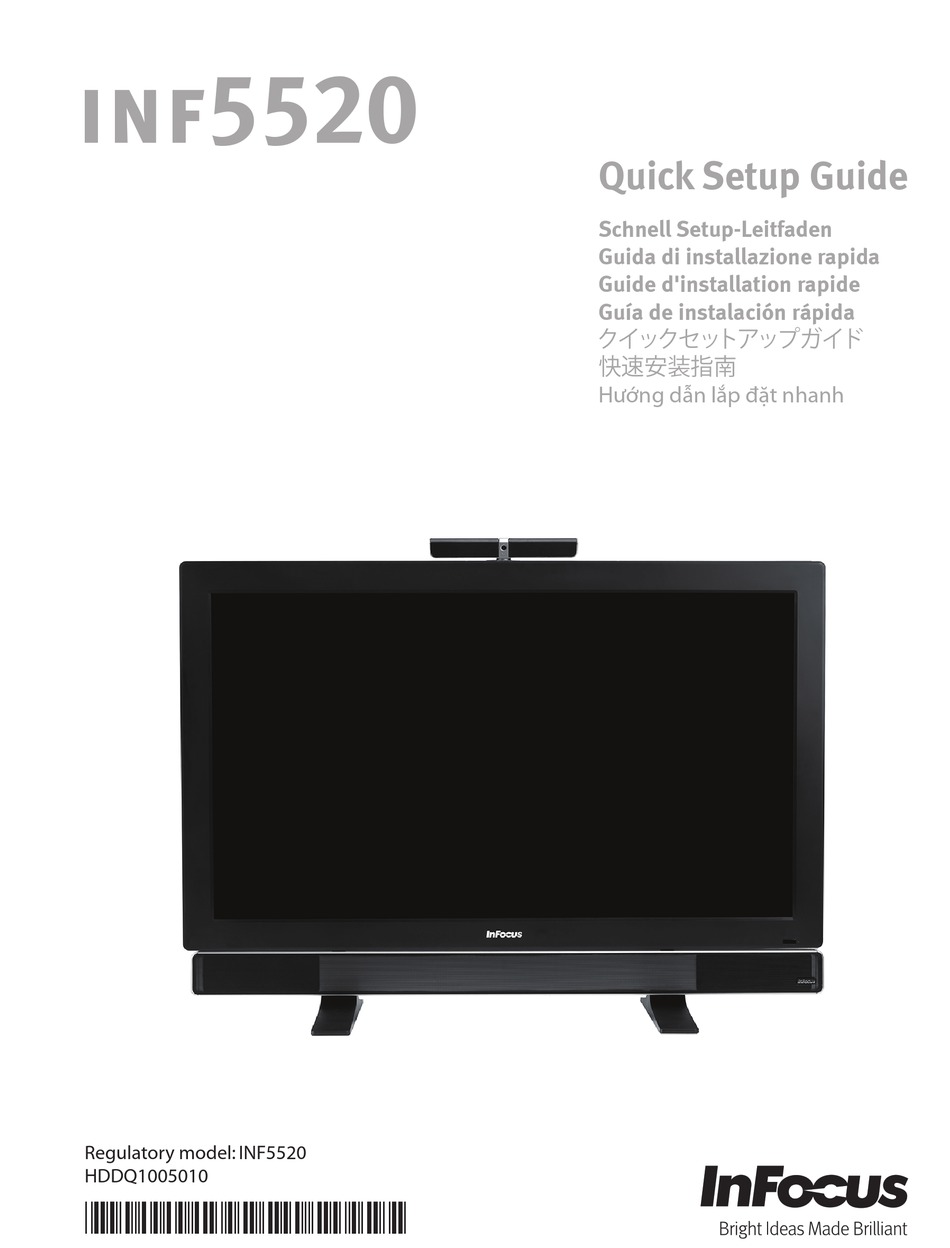

Page 1: Quick Setup Guide
Quick Setup Guide Schnell Setup-Leitfaden Guida di installazione rapida Guide d'installation rapide Guía de instalación rápida Hư ng d n l p đ t nhanh Regulatory model: INF5520 HDDQ1005010 *HDDQ1005010*... - Page 2 ...
-
Page 3: Declaration Of Conformity
Vidtel, Inc. InFocus, In Focus, INFOCUS (stylized) and Mondopad are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks, service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference. - Page 4 UL, cUL Other specific Country Approvals may apply. Please see product certification label. This document applies to regulatory model: INF5520 Input ratings: AC 100-240V, 7.5A, 50-60Hz InFocus reserves the right to alter product offerings and specifications at any time without notice.
-
Page 5: Table Of Contents
Contents Declaration of Conformity .......................... 1 Contents ................................ 3 Safety Considerations ............................ 4 Mondopad™ Overview ............................ 6 What’s Included .............................. 7 Setup ................................. 8 Attaching the Sound Bar ............................ 8 Installing the Feet .............................. 1 0 Attaching the HD Video Conferencing Camera ....................... 1 1 Setting up the Wireless Mouse and Keyboard ...................... 1 2 Connecting to Other Devices ........................... 1 3 ... -
Page 6: Safety Considerations
Safety Considerations This tablet is very heavy and should be moved and installed by at least two individuals. Do not attempt to move or install the tablet yourself, otherwise injury and/or damage may occur. Hold the tablet firmly when moving the tablet. ... - Page 7 Refer all service to qualified service personnel. Do not remove the cover or back. Servicing your own tablet can be dangerous to you and will void the warranty. Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock or injury and may void the warranty. ...
-
Page 8: Mondopad™ Overview

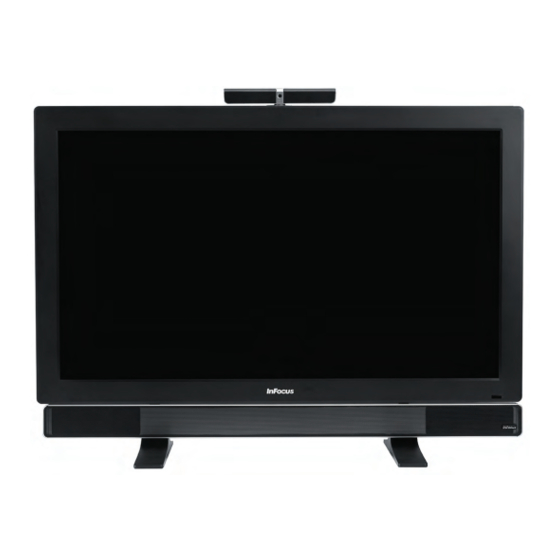

Mondopad™ Overview The InFocus Mondopad transforms conference rooms designed for one-way presentations into dynamic visual collaboration workspaces. Break down visual communication barriers with a giant 55” full-HD (1920x1080) wall tablet, intuitive touch applications and disruptively priced cloud-based video conferencing that allows you and your colleagues to securely connect, share and collaborate with anyone, anywhere. -
Page 9: What's Included
(set of two) (set of six) *Not included for all countries. For setup purposes, a keyboard and mouse are recommended. For additional accessory options, such as stands, carts and wall mounts, see the InFocus website (www.infocus.com/store) or your local dealer. What’s Included... -
Page 10: Setup
Setup Attaching the Sound Bar CAUTION: If the tablet is in an upright position with the feet or a stand attached, two NOTE: If you are not attaching the sound bar, proceed to the next section, “Installing the Feet” individuals are needed to install the sound bar. on page 10. - Page 11 4. Align the rectangular brackets with the screw holes on the tablet and using the screws from Step 3, secure the sound bar against the bottom edge of the tablet. 5. Connect one end of the AC power cord to the AC In jack on the back of the sound bar. 6.
-
Page 12: Installing The Feet
Installing the Feet 1. If you have not already done so, carefully place your tablet face-down on a cushioned, clean surface to protect the screen from damages and scratches. 2. Remove the tablet feet slot covers with a Philips screwdriver. Discard or save for future use. -
Page 13: Attaching The Hd Video Conferencing Camera
America. The mounting means should be strong enough to bear the weight of the monitor (approximately 114.2 lbs/51.8 kg without the stand). For additional accessory options, such as stands, carts and wall mounts, see the InFocus website (www.infocus.com/store) or your local dealer. -
Page 14: Setting Up The Wireless Mouse And Keyboard
Setting up the Wireless Mouse and Keyboard Note: The wireless mouse and keyboard is not included as a standard accessory for some countries. For initial setup and/or configuration, it may be easier to use a mouse and keyboard. Any standard wired or wireless mouse or keyboard connected through the Mondopad USB ports is supported by Mondopad. -
Page 15: Connecting To Other Devices
Connecting to Other Devices A full range of digital and analog video inputs and audio source devices can be connected to the connection panels on the back and side of Mondopad™, if desired. Available jacks include: ® HDMI (2), VGA, Component (RCA), S-Video, Composite, RS232, Audio in RCA (1 – R/L), Audio in 3.5mm (1), Audio Out (1 –... -
Page 16: Connecting Ac Power
Bezel Connector Panel Power button Keypad USB-A jacks USB-B jack Side Connector Panel Audio In (3.5mm) Audio In (L/R) RJ45 USB-A Power LED RS232 Antennas Audio Out (L/R) PC Reset (for Sound Bar) button Bottom Connector Panel ® Component Power switch HDMI Composite (YPbPr) -
Page 17: Controlling Mondopad
Controlling Mondopad™ Turning Mondopad™ On/Off 1. Verify that the power cord is connected to a power outlet and that the power switch on the Bottom Connector Panel is ON. 2. Press the Power button located on either: a. the remote b. -
Page 18: Using The Remote
Using the Remote The remote uses two (2) AAA batteries (not included). Install the batteries by removing the cover from the remote’s back, aligning the + and – ends of the batteries, sliding them in place and replacing the cover. CAUTION: ... - Page 19 The remote has the following buttons: POWER Power: Switches the power on or puts the tablet into POWER Standby. Home: Changes the active source back to the embedded HOME PC (Mondopad™). HOME INPUT MENU Input: Toggles the Source menu on and off, which allows INPUT the user to change sources.
-
Page 20: Using The Keypad
Using the Keypad The keypad, located on the right-edge of the tablet, has the following buttons: Menu button: Turns the OSD menu on and off. Left/Volume Decrease button: Decreases the audio volume when the OSD menu is off. Increases the value of selected OSD items when the OSD menu is on. Right/Volume Increase button: Increases the audio volume when the OSD menu is off. -
Page 21: Accessing The Installer's Guide
Accessing the Installer’s Guide To complete the setup of this product and the Mondopad Collaboration software, please download the Installer’s Guide located at www.infocus.com/mportal. Accessing the Installer’s Guide Page 19... -
Page 22: Limited Warranty
All exchanged parts and Products replaced under this Limited Warranty will become property of InFocus. InFocus' sole obligation is to supply (or pay for) all labor necessary to repair the Product found to be defective within the Limited Warranty period and to repair or replace defective parts with new parts or, at the option of InFocus, serviceable used parts that are equivalent or superior to new parts performance, but shall not exceed the return of the amount of the purchase price paid by the purchaser. - Page 23 Limited Warranty must establish to the satisfaction of InFocus both the date of purchase and that the Product was purchased new from InFocus or an InFocus authorized reseller. The sales receipt or invoice, showing the date of purchase of the Product is the proof of the date of purchase.
- Page 24 SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS and YOU MAY ALSO HAVE OTHER RIGHTS, DEPENDING ON JURISDICTION. THIS WARRANTY DOES NOT AFFECT YOUR LEGAL RIGHTS UNDER APPLICABLE NATIONAL LAWS RELATING TO THE SALE OF CONSUMER PRODUCTS.
