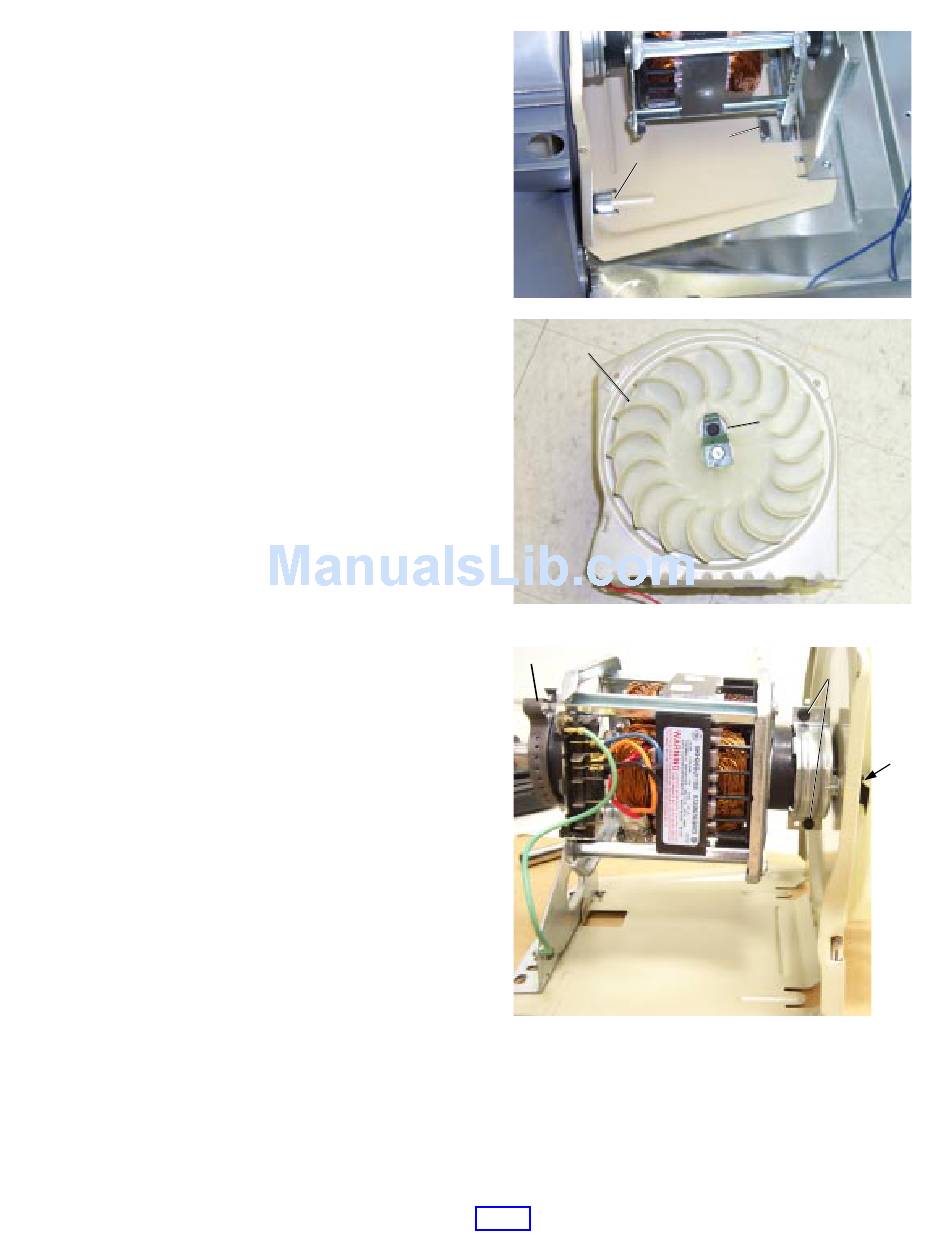

6. Lift the rear of the motor bracket up and over
the tab protruding from the dryer bottom.
7. Slide the motor bracket back until the bracket
tabs clear the slots in the base of the cabinet.
Remove the blower and motor.
8. Disconnect the motor ground wire from the
motor bracket.
9. Loosen the blower wheel clamp and pull the
blower off the motor shaft.
10. Remove 2 screws (from the blower side of the
motor bracket) securing the front motor strap.
11. Loosen 2 motor strap screws and remove the
front motor strap from the motor.
12. Compress the rear motor strap and remove
from the motor bracket.
13. Remove the motor from the bracket.
Bracket
Bracket
Tab
Tab
Blower Wheel
Blower Wheel
Motor Strap
Motor Strap
– 21 –
Tab
Tab
Blower Wheel
Blower Wheel
Clamp
Clamp
Strap
Strap
Screws
Screws
Screws
Screws
