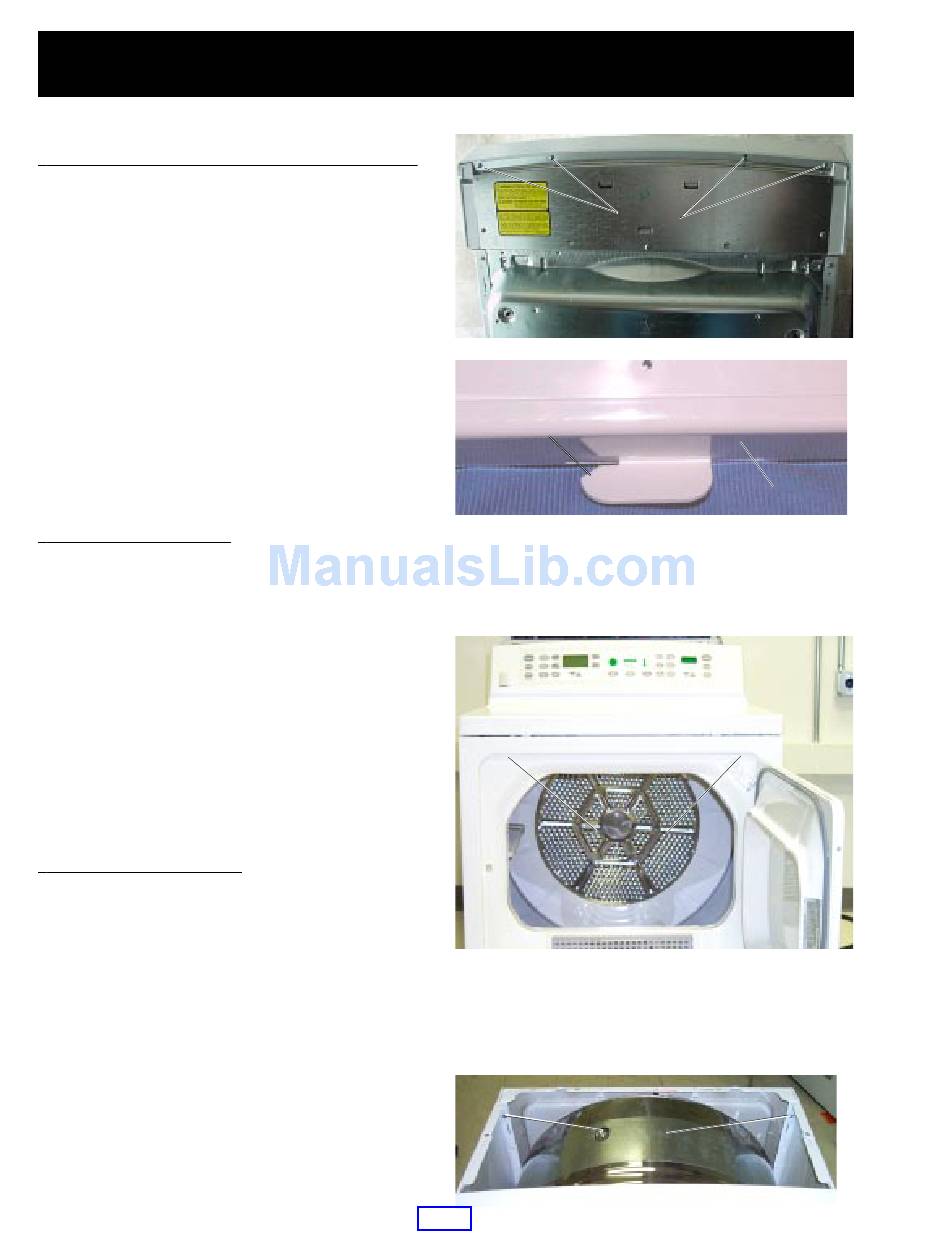

Control Panel

To place the control panel in the service position:
1. Remove 4 screws from the rear of the control
panel.
2. Gently pull on each corner to unsnap the
control panel from the sides of the unit.
3. Rotate the control panel forward approximately
1 inch and slide to the right to unlock the
bottom locking tabs.
4. Lift up and off the top panel.

Top Panel

The top panel is fastened at the front by 2 screws
and at the rear by locking tabs protruding from the
bottom of the control panel.
To remove the top panel:
1. Remove the control panel.
2. Remove 2 screws that secure the top panel to
the cabinet and the top panel.

Front Panel

Warning: Sharp edges may be exposed when the
front panel is removed. Use caution to avoid injury
when servicing dryer.
The front panel is fastened to the cabinet at the
inside front by 2 screws and at the bottom by 2
tabs protruding from the base of the cabinet.
To remove the front panel:
1. Remove the control panel and top panel. (See
Control Panel and Top Panel.)
2. Remove 2 screws from the front inside edge of
the front panel.
3. Tilt the top edge of the front panel out and lift off
the bottom tabs.
4. Disconnect wiring to the door switch, light, and
sensor rods and remove the front panel.

Dryer Components

Locking Tab Locking Tab
– 16 –
Screws
Screws
Control Control
Panel Panel
Screws
Screws
Screws Screws
