Summary of Contents for Shark NV100UKL

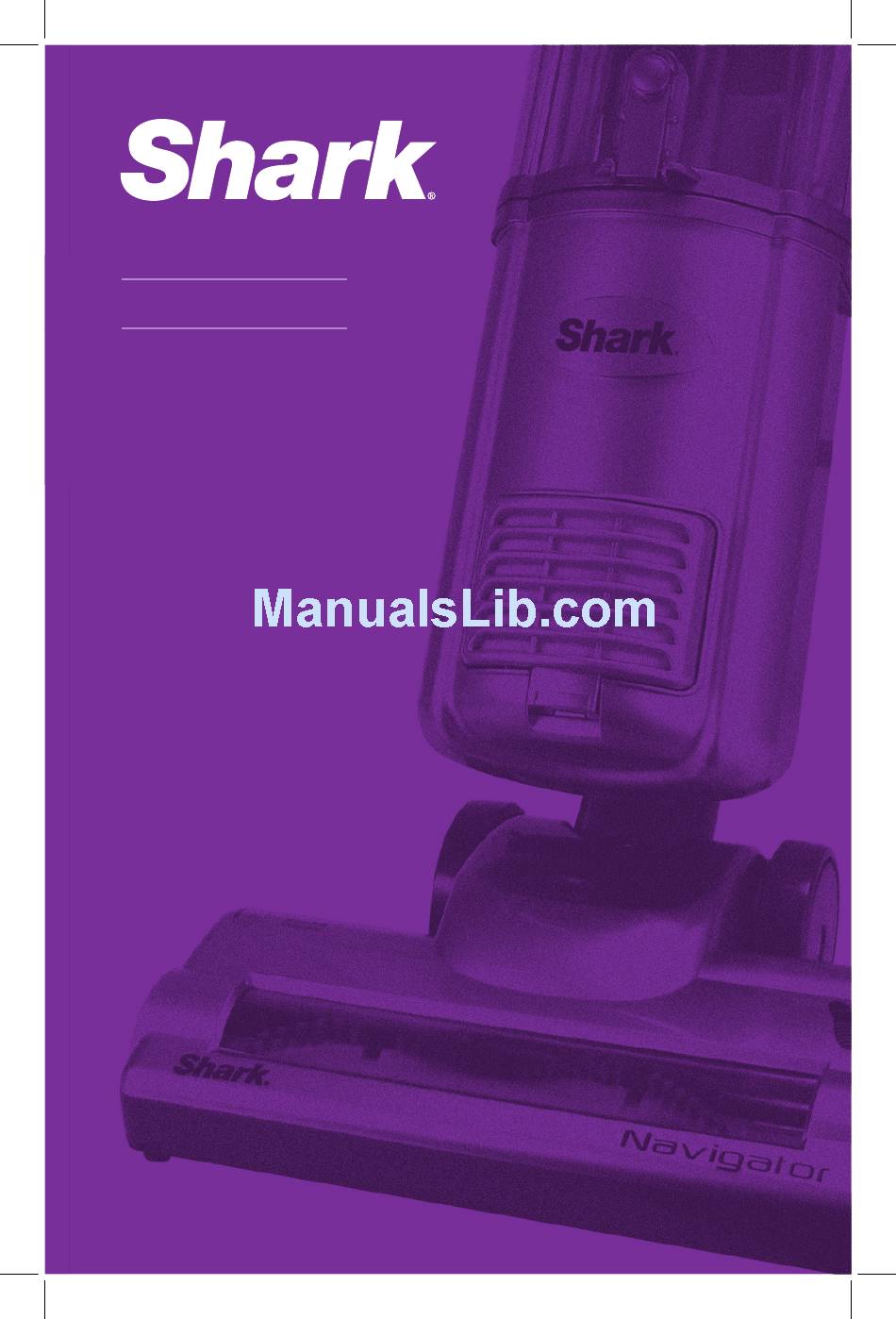

- Page 1 NV100UKL Owner’s Guide www.sharkclean.com NV100UKL_26_IB_ENG_120305_1.indd 1 12-03-05 11:13 AM...
- Page 2 To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmental safe recycling. This manual covers model: NV100UKL 26 TECHNICAL SPECIFICATIONS Voltage: 220-240V~, 50/60Hz Watts: 700W Amps: 5.83A...
- Page 3 Contents Thank you for Important Safety Instructions purchasing Getting Started the Shark ® Assembly Navigator ™ Using the Vacuum Vacuum. Emptying the Dust Cup Assembly Proper Care of Your Vacuum Troubleshooting Checking for Blockages Maintenance www.lakeland.co.uk NV100UKL_26_IB_ENG_120305_1.indd 1 12-03-05 11:13 AM...
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS For Household Use Only WARNING: WHEN USING YOUR SHARK ® NAVIGATOR VACUUM, BASIC SAFETY ™ TO REDUCE THE RISK OF FIRE, ELECTRIC PRECAUTIONS SHOULD ALWAYS BE SHOCK OR INJURY: FOLLOWED, INCLUDING THE FOLLOWING: GENERAL ELECTRICAL SAFETY: READ ALL INSTRUCTIONS BEFORE USING 1. - Page 5 17. DO NOT place vacuum on unstable surfaces 31. Before turning on the vacuum: such as chairs or tables. • M ake sure that dust cup, and all filters are in 18. DO NOT allow young children to operate the place after routine maintenance. vacuum or use as a toy. • M ake sure that all components and filters are 19.
-
Page 6: Getting Started
Assembly Getting Started Hose Connector Fig. 1 Fig. 2 FIRST THING’S FIRST, YOU YOUR SHARK NAVIGATOR ® ™ NEED TO KNOW WHAT’S IN THE IS EASY TO ASSEMBLE: BOX YOU JUST OPENED: Place your vacuum body upright Handle Hose Connector on a level surface. - Page 7 Fig. 3 Fig. 6 Fig. 5 Fig. 4 TO CARRY THE VACUUM: Insert the stretch hose into the When storing your vacuum, hose connector on the back of wind the power cord around With the unit in the standing the two cord holders and secure the unit. Make sure that it snaps position, lift by the Dust Cup in place.
-
Page 8: Using The Vacuum
Fig. 11 Fig. 7 Fig. 9 Fig. 10 Indicator Light Fig. 8 Fig. 12 IMPORTANT: To protect your Your Shark Navigator can be CLEAN ABOVE-FLOORS WITH ® ™ carpets, the brushroll will only used to clean all surface types. HOSE: turn on when you have pulled Plug in the vacuum. -
Page 9: Emptying The Dust Cup Assembly
Emptying the Dust Cup Assembly For best results empty the Dust Cup Assembly after each use; or as needed during prolonged usage. or when it reaches the MAX fill line. DO NOT OVERFILL. Turn vacuum off before emptying. Dust cup Release Button Fig. -
Page 10: Cleaning The Pre/Post-Motor Filters
Proper Care of Your Shark Upright Vacuum ® COMPONENT MAINTENANCE SCHEDULE Dust Cup Empty each time you vacuum. Pre-Motor Foam Filter Rinse and air dry every 3 months under normal use. Pre-Motor Felt Filter Rinse and air dry every 3 months under normal use. -
Page 11: Troubleshooting
Troubleshooting WARNING: To reduce the risk of electric shock, the power cord must be disconnected before performing maintenance/troubleshooting checks. PROBLEM POSSIBLE REASONS & SOLUTIONS Check to see if the vacuum is plugged in properly. Vacuum will not run. Check the circuit breaker/fuse. Check the On/Off button. -
Page 12: Checking For Blockages
Checking for Blockages Blockages may cause your vacuum to overheat and shut down. If this occurs, clear the blockages, then follow the instructions for Resetting the Motor Thermostat on page 11. IMPORTANT: Never insert sharp objects into any opening to clear an obstruction. - Page 13 Maintenance Notes Resetting the Motor Thermostat Your Shark Navigator ® ™ equipped with a protective Motor Thermostat. If the motor should overheat, the thermostat shuts off the power. TO RESET THE MOTOR THERMOSTAT: Press the Power Button ( )to turn the unit “Off”. Unplug the vacuum.
- Page 14 Notes www.lakeland.co.uk NV100UKL_26_IB_ENG_120305_1.indd 12 12-03-05 11:13 AM...
- Page 15 Notes www.lakeland.co.uk NV100UKL_26_IB_ENG_120305_1.indd 13 12-03-05 11:13 AM...
- Page 16 PO Box 298 Mirfield WF14 9BA Freephone 0800 862 0453 www.lakeland.co.uk Technical Details Model number: NV100UKL 26 Input: 700 Watts Main unit voltage: 220-240 V., 50/60Hz COPYRIGHT© EURO-PRO OPERATING LLC 2012 PRINTED IN CHINA Not to be disposed of with other household waste.
