MANUFACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945
Owner's
Manual

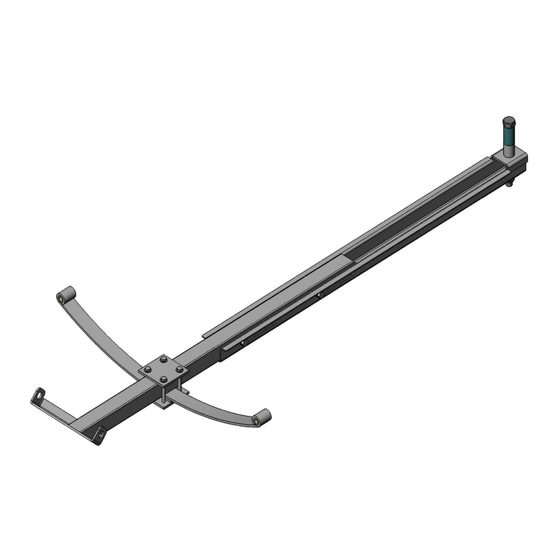

Accessories Mount
2646
Extension Kit
2900
Mount Kit Traxter
7119
Mount Kit Outlander
7668
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
Before Operating this
Equipment.
2800
ATV ACCESSORIES
Sold as Separate Pieces!!!!
ASSEMBLY
OPERATION
SERVICE AND ADJUSTMENT
REPAIR PARTS
1602 CORPORATE DRIVE WARRENSBURG, MISSOURI 64093
PH 660. 747. 8183 FAX 660. 747. 8650
swisherinc.com
Made In The
USA
REV. 05-034

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2646 and is the answer not in the manual?

Questions and answers

Related Manuals for Swisher 2646

Summary of Contents for Swisher 2646

  • Page 1 MANUFACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945 Owner’s Manual Accessories Mount 2646 Extension Kit 2900 Mount Kit Traxter 7119 Mount Kit Outlander 7668 ATV ACCESSORIES IMPORTANT Read and follow all Safety Precautions and Instructions Sold as Separate Pieces!!!! Before Operating this Equipment.

  • Page 2: Limited Warranty

    Should you have any questions concerning this warranty, please contact us toll-free at 1-800- 222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed.
  • Page 3 SAFETY PRECAUTIONS & DECALS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. Read this manual completely. Failure to observe the following safety instructions could result in serious injury or death.
  • Page 4 15 or 16 FIGURE 1 Note: Accessory Mount Holes ITEM PART ITEM PART QTY. DESCRIPTION DESCRIPTION 2630TK Channel Mount NB-655 3/4 - 10 X 7 1/2 GR 5 Bolt 2593TK Slide Bar NB243 3/4 - 10 X 5 GR 5 Bolt 2596TK Leaf Spring NB-609 3/4 - 10 Nyloc Nut 2631TK Spring Shackle...
  • Page 5 INSTALLATION OF ACCESSORY MOUNT TO ENSURE PROPER INSTALLATION, CAREFULLY FOLLOW ALL INSTRUCTIONS LISTED BELOW MOUNTING BRACKETS Included with your new ATV accessories mount are three sets of mounting brackets for ATV’s. Brackets 18,19 and 20,21 are two sets that will work on most ATV’s. The determining factor is what type of A-arms (lower portion of the front axle) are used on your ATV.
  • Page 6 Honda Mounting Instructions Installation Instructions Place U-bracket over rear A-arm bar as shown. 3/8 – 16 Nyloc Nut #NB182 Using supplied hardware, assemble plates and brackets. Position the brackets so they allow wheels to turn without contacting the rims (Reference step 10 on page 5) . Front bolt NB619 should be close to the front of the A-arm, contacting it if possible.
  • Page 7 Bombardier Outlander Accessory Mount Brackets Kit #7668 3/8 NYLOC NUT 5/16 NYLOC NUT HARDWARE AND PARTS 2 - ACCESSORY MOUNT BRACKET 7669TK 5/16 SAE WASHER 2 - ACCESSORY MOUNT WELDMENT 7670TK ACCESSORY MOUNT 4 - 3/8-16 X 2 ½ BOLT NB619 BRACKET 8 - 3/8 SAE WASHER...
  • Page 8 MANUFACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945 Owner’s ATV ACCESSORIES Manual Accessories Mount 2646 WHEN ORDERING PARTS, PLEASE HAVE THE Extension Kit FOLLOWING INORMATION AVAILABLE: 2900 * PRODUCT – ________________ * SERIAL NUMBER - _______________ * MODEL NUMBER - _______________...
