Summary of Contents for Swisher 2643 DUMP BUCKET

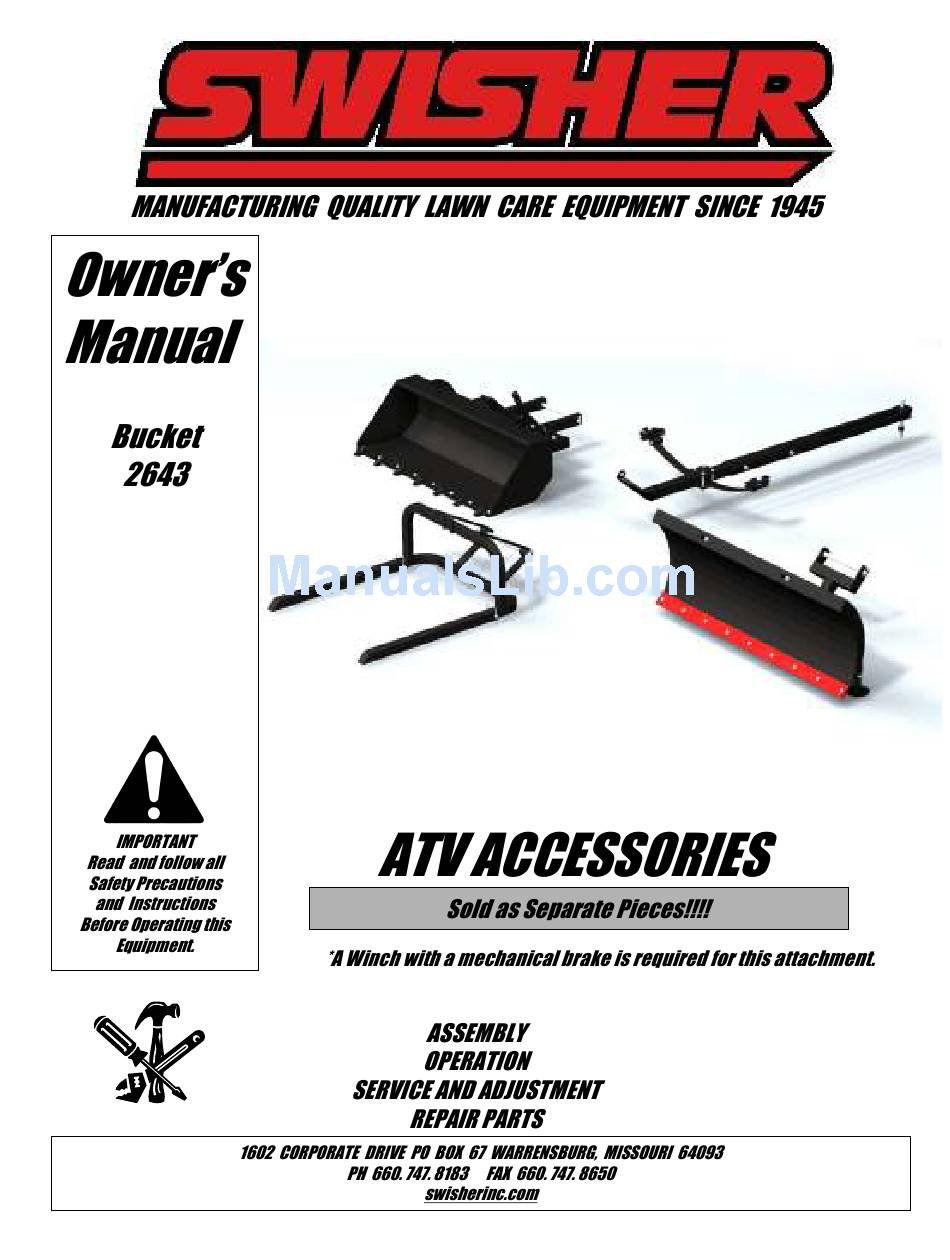

  • Page 1 2643* 2646 2644 2645 Made In The 2738 REV. 06-030...
  • Page 2 LIMITED WARRANTY...
  • Page 3 SAFETY PRECAUTIONS & DECALS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. Read this manual completely. Failure to observe the following safety instructions could result in serious injury or death.
  • Page 4 • • •...
  • Page 5 FIGURE 1 ITEM NO. QTY. PART NO. DESCRIPTION 1 5500TK ATV BUCKET 1 5505TK WEAR STRIP 1 5502TK BUCKET HITCH 2 NB-131 1/2-13X3 BOLT 1 5625TK BUCKET LATCH 2 NB-245 3/4-10X3 BOLT 2 NB-609 3/4-10 NYLOCK NUT 8 10216 5/16-18X3/4 BOLT 8 NB-170 5/16-18 SERRATED NUT 2 NB-281...
  • Page 6 TIGHTEN THE ASSEMBLY UNTIL THE NUT IS ALL THE WAY ON THE BOLT, ALLOWING LATCH (5) TO ROTATE FREELY. PLACE THE ASSEMBLED BUCKET ATTACHMENT IN FRONT OF YOUR ALREADY INSTALLED SWISHER ACCESSORY MOUNT. INSERT THE PLOW MOUNT PIN(11) THROUGH THE BUCKET HITCH AND THE ACCESSORY MOUNT.
  • Page 7 AFTER INSTALLING THE BUCKET, MAKE SURE THE ROPE IS TIED TO YOUR ATV SOMEWHERE YOU CAN GRAB WHILE OPERATING. TO DROP YOUR LOAD FROM THE BUCKET, RAISE THE BUCKET WITH THE WINCH AND PULL THE ROPE. THIS WILL DIS-ENGAGE THE BUCKET LATCH AND DROP YOUR LOAD. TO RE-ENGAGE THE BUCKET LATCH SLOWLY REVERSE YOUR ATV AND LOWER YOUR WINCH AT THE SAME TIME UNTIL THE BUCKET LATCH CLICKS BACK INTO LOCKING POSITION.
