You may have purchased this pool with the Intex Krystal Clear™ filter pump.
The pump has its own separate set of installation instructions. First
assemble your pool unit and then set up the filter pump.
1. • Find a flat, level location that is free and clear of stones, branches or other sharp objects
that may puncture the pool liner or cause injury.
• Open the carton containing the liner, joints, legs, etc., very carefully as this carton can be
used to store the pool during the winter months.

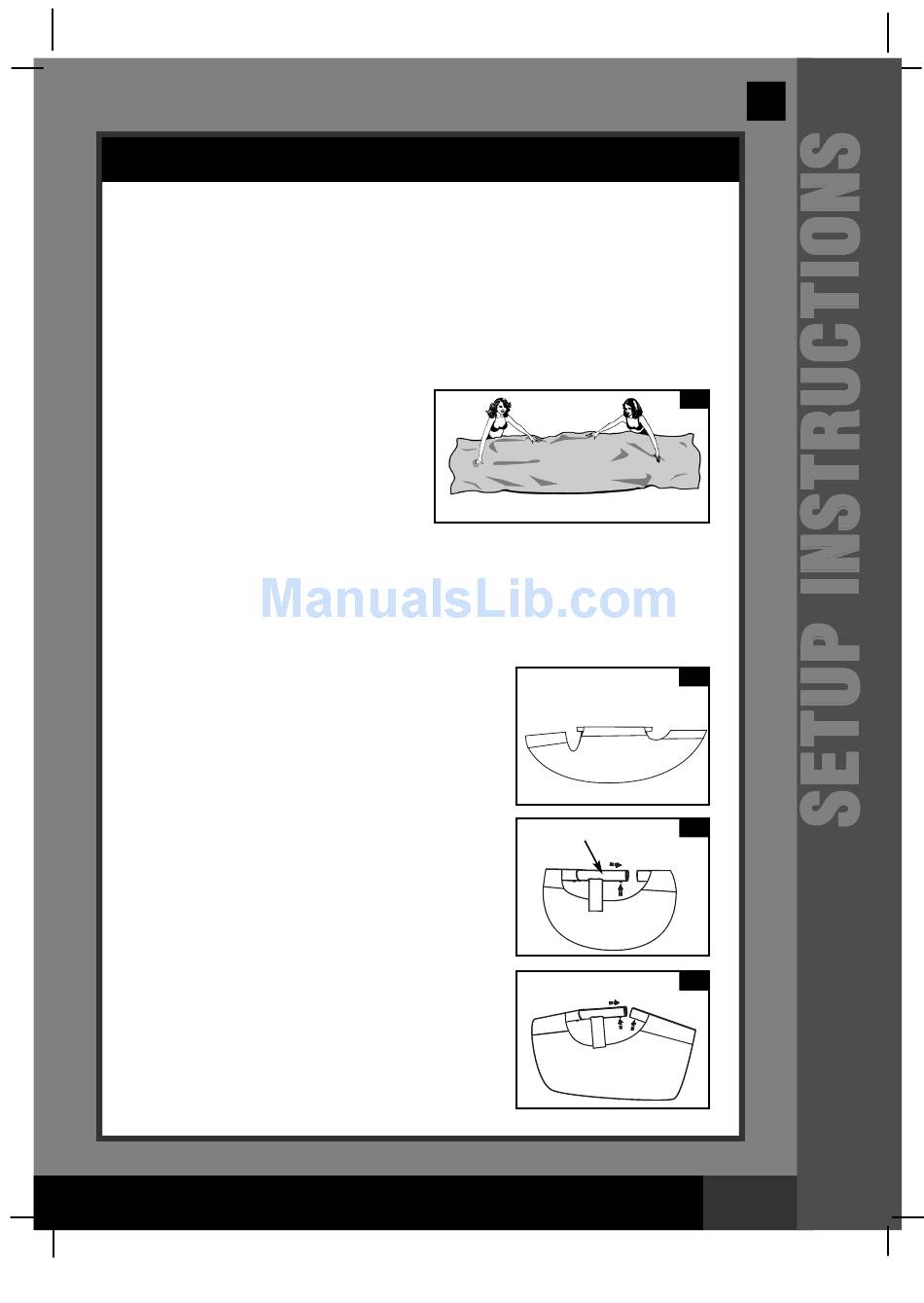

• Take out the ground cloth (7) and spread it over the cleared area. Then, take out the
liner (5) and spread it out over the ground
cloth, with the drain valve directed towards
the draining area. Place the drain valve
away from the house. Allow the sun to warm
up the liner before inserting the beams (4)
into the sleeve openings.
IMPORTANT: Always set up the pool
unit with at least 2 persons. Do not drag
the liner across the ground as this can
cause leaks or other damages (see drawing 1).
• During the setup of the pool liner, point the hose connections or openings in the
direction of the electrical power source. The outer edge of the pool should be within
reach of the pump's electrical connection.
2. • The frame pool's legs (2) and beams (4) fall into two groups. The smaller diameters are
the vertical legs. Both these legs and beams fit into the T-joints (1).
• Starting at any location, but always working in the
same direction, push the horizontal beam into the
sleeve (see drawing 2.1). Once the beam is centered
take one of the T- joints (1), snap the joint to one end
of the beam by aligning the hole and the spring-loaded
pin. Repeat this procedure in a circular fashion until all
the beams and joints have been connected (see
drawing 2.2).
The last joint connection may be difficult to
complete, but can be easily done by simultaneously
raising this last joint and beam about 2 inches (5 cm),
and connect the beam to the joint while lowering
these pieces to their normal position. The joint will
slide into the beam (see drawing 2.3). Make sure the
last joint is fully assembled before proceeding to
assembling the legs.
SAVE THESE INSTRUCTIONS
