User Manual of Product 1:

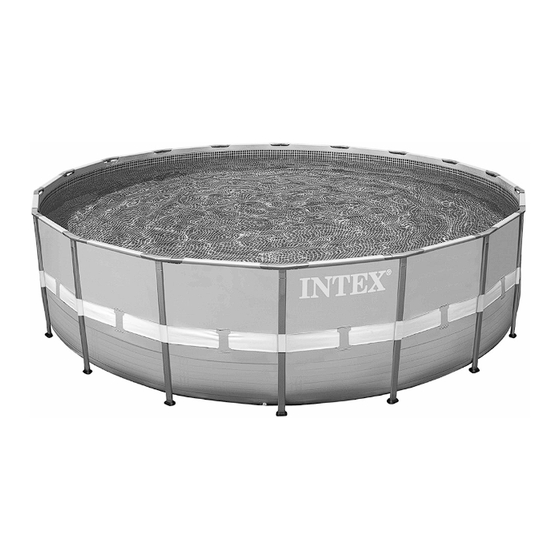

INTEX 26339EH Ultra XTR Deluxe Above Ground Swimming
Pool Set: 24ft x 52in – Includes 2800 GPH Cartridge Sand
Filter Pump – SuperTough Puncture Resistant – Rust Resistant
– Easy to Assemble
User Manual of Product 2:
Intex Recreation Corp 28001E Intex Auto Pool Cleaner, 1 Pack,
Grey

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 26339EH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intex 26339EH

Summary of Contents for Intex 26339EH

  • Page 1 Pool Set: 24ft x 52in – Includes 2800 GPH Cartridge Sand Filter Pump – SuperTough Puncture Resistant – Rust Resistant – Easy to Assemble User Manual of Product 2: Intex Recreation Corp 28001E Intex Auto Pool Cleaner, 1 Pack, Grey...
  • Page 2 14' - 26' (427 cm - 792 cm) models For illustrative purposes only. Accessories may not be provided with pool. Don’t forget to try these other fine Intex products: Pools, Pool Accessories, Inflatable Pools and In-Home Toys, Airbeds and Boats available at fine retailers or visit our website listed below.

  • Page 3: Table Of Contents

    Limited Warranty................18 Special Introductory note: Thanks for buying an Intex pool. Please read this manual before setting up your pool. This information will help extend the pool life and make the pool safer for your family's enjoyment. A team of 2-3 people is recommended for pool set up. Additional people will speed up the installation.

  • Page 4: Warnings

    (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. WARNING • Continuous and competent adult supervision of children and the disabled is required at all times. • Secure all doors, windows and safety barriers to prevent unauthorized, unintentional or unsupervised pool entry. • Install a safety barrier that will eliminate access to the pool for young children and pets. • Pool and pool accessories are to be assembled and disassembled by adults only. • Never dive, jump or slide into an above-ground pool or any shallow body of water. • Failure to set up pool on flat, level, compact ground or over filling could result in the pool’s collapse and the possibility that a person lounging in the pool could be swept out/ejected.
  • Page 5 (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English IMPORTANT SAFETY RULES Read and follow all safety information and instructions. Keep for future reference. Failure to follow these warnings and instructions can result in serious injury or death to users, especially children. WARNING NO DIVING OR JUMPING PREVENT DROWNING...
  • Page 6 (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English Barriers for Residential Swimming Pool Guidelines: An outdoor swimming pool, including an inground, aboveground, or onground pool, hot tub, or spa, should be provided with a barrier which complies with the following: 1. The top of the barrier should be at least 48 inches above grade measured on the side of the barrier which faces away from the swimming pool. The maximum vertical clearance between grade and the bottom of the barrier should be 4 inches measured on the side of the barrier which faces away from the swimming pool. Where the top of the pool structure is above grade, such as an aboveground pool, the barrier may be at ground level, such as the pool structure, or mounted on top of the pool structure. Where the barrier is mounted on top of the pool structure, the maximum vertical clearance between the top of the pool structure...

  • Page 7: Parts References

    (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. For Pools with Dual Suction Outlets Configuration: In order to comply with the requirement of the Virginia Grahame Baker Act (for USA and Canada), your pool is designed with dual suction outlets and one inlet fittings. Overview of the dual suction outlets configuration is as follow:...
  • Page 8 (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English PARTS REFERENCE (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. POOL SIZE & QUANTITIES DESCRIPTION 14’...
  • Page 9 (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English PARTS REFERENCE (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. 14’ x 42” (427 14’ x 48” (427 15’...
  • Page 10 (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English PARTS REFERENCE (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. Non-USA & Canada: NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. 14' (427 cm), 16' (488 cm), 18' (549 cm), 20' (610 cm), 22' (671 cm), 24' (732 cm) & 26' (792 cm) models POOL SIZE &...
  • Page 11 (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English POOL SETUP IMPORTANT SITE SELECTION AND GROUND PREPARATION INFORMATION WARNING • The pool location must allow you to secure all doors, windows, and safety barriers to prevent unauthorized, unintentional or unsupervised pool entry. • Install a safety barrier that will eliminate access to the pool for young children and pets. • Failure to set up the pool on flat, level, compact ground and to assemble and fill with water in accordance with the following instructions could result in the pool’s collapse or the possibility that a person lounging in the pool could be swept out/ejected, resulting in serious injury or property damage.
  • Page 12 (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English POOL SETUP ( continued ) You may have purchased this pool with the Intex Krystal Clear™ filter pump. The pump has its own separate set of installation instructions. First assemble your pool unit and then set up the filter pump. Estimated assembly time 45-60 min. (Note the assembly time is only approximate and individual assembly experience may vary.) 1. Liner preparation • Find a flat, level location that is free and clear of stones, branches or other sharp objects that may...
  • Page 13 (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English POOL SETUP ( continued ) • Next slide the vertical legs into the belt loop located in the middle of the pool liner. Carefully slide the leg into the belt loop and insert the top of the leg into the bottom of the joint. Snap the leg into joint’s holes by aligning the hole and the spring-loaded pin. Attach the leg’s end cap (3) to the bottom of the leg (see drawing 3). • Grab the frame pool’s top beams in 2 – 3 locations and "shake" the pool to be sure all the joints, legs and beams "fit into each other".

  • Page 14: General Aquatic Safety

    (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English GENERAL AQUATIC SAFETY Water recreation is both fun and therapeutic. However, it involves inherent risks of injury and death. To reduce your risk of injury, read and follow all product, package and package insert warnings and instructions.

  • Page 15: Pool Maintenance & Chemicals

    Likewise with liquid chlorine; mix it immediately and thoroughly with the pool water. 2. Never mix chemicals together. Add the chemicals to the pool water separately. Thoroughly dissolve each chemical before adding another one to the water. 3. An Intex pool skimmer and an Intex pool vacuum are available to assist in maintaining clean pool water. See your pool dealer for these pool accessories. 4. D o not use a pressure washer to clean the pool. SAVE THESE INSTRUCTIONS...

  • Page 16: Pool Maintenance & Drainage

    Keep spare filter cartridges on hand. Replace cartridges every two weeks. We recommend the use of a Krystal Clear™ Intex Filter Pump with all of our above-ground-pools. To purchase an Intex Filter Pump or other accessories see your local retailer, visit our website or call the Intex Consumer Services Department listed in the separate "Authorized Service Centers" sheet and have your Visa or Mastercard ready.

  • Page 17: Winter Preparations

    5. Remove the hoses that connect the pump and filter to the pool. 6. Add the appropriate chemicals for the winter period. Consult your local pool dealer as to which chemicals you should use and how to use them. This can vary greatly by region. 7. Cover pool with Intex Pool Cover. IMPORTANT NOTE: INTEX POOL COVER IS NOT A SAFETY COVER. 8. Clean and drain the pump, filter housing and hoses. Remove and discard the old filter cartridge. Keep a spare cartridge for the next season. 9. Bring pump and filter parts indoors and store in a safe and dry area, preferably between 32 degrees Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius).

  • Page 18: Troubleshooting

    • Repair with patch kit. WATER LEVEL on previous day. liner or hoses. • Finger tighten all caps. • Replace the hoses. SEDIMENT ON POOL • Dirt or sand on pool • Heavy use, getting in • Use Intex pool vacuum to BOTTOM floor. and out of pool. clean bottom of pool. SURFACE DEBRIS • Leaves, insects etc. • Pool too close to • Use Intex pool skimmer. trees.

  • Page 19: Limited Warranty

    (118PO) ULTRA XTR™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/13/2020 English LIMITED WARRANTY Your Intex Pool has been manufactured using the highest quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. This Limited Warranty applies to the Intex Pool only. The provisions of this Limited Warranty apply only to the original purchaser and is not transferable. This Limited Warranty is valid for the period noted below from the date of the initial retail purchase. Keep your original sales receipt with this manual, as proof of purchase will be required and must accompany warranty claims or the Limited Warranty is invalid. Pool Liner and Frame Warranty - 2 Years If a manufacturing defect is found within this 2 years period, please contact the appropriate Intex Service Center listed in the separate “Authorized Service Centers” sheet.
  • Page 20 Auto Cleaner For illustrative purposes only. Don’t forget to try these other fine Intex products: pools, pool accessories, inflatable pools and in-home toys, airbeds and boats available at fine retailers or visit our website.
  • Page 21 (198PO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 07/08/2021 TABLE OF CONTENTS Warnings............... 3 Parts Reference............4 Set Up Instructions............5-9 Debris Net Cleaning............. 10 Micro-screen Cleaning..........11 Troubleshooting Guide..........12 Long Term Storage............13 General Aquatic Safety..........13 S AVE THESE INSTRUCTIONS Page 2...

  • Page 22: Warnings

    (198PO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 07/08/2021 IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. WARNING • TO Reduce The Risk Of injuRy, dO nOT PeRmiT childRen TO use This PROducT. •...

  • Page 23: Parts Reference

    (198PO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 07/08/2021 PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: drawings for illustration purpose only. Actual product may vary. not to scale.

  • Page 24: Setup Instructions

    General • The Auto Cleaner must be connected to a filter pump with a flow rate between 1600 - 3500 gallons/hour (6056 - 13248 liters/hour). • For Intex ® above ground pools with 1-1/2” (38 mm) threaded strainer connector hose fitting. • The cleaning performance depends on the filter pump flow rate, the higher the flow rate the better the performance.
  • Page 25 (198PO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 07/08/2021 SETUP INSTRUCTIONS (continued) Turn off the filter pump. from inside of the pool, unscrew the nozzle from the water return connector. see fig. 1. Threaded strainer nozzle connector make sure the micro-screen (6) is inside the hose adaptor (7), then screw the hose adaptor to the threaded strainer connector, from inside of the pool.
  • Page 26 (9) after cutting. Recommend hose Pool size length (m) INTEX ABOVE GROUND POOLS (AGP’s) 16’ x 48” (488cmx122cm), 16’ x 52” (488cmx132cm) 18’ x 48” (549cmx122cm), 18’ x 52” (549cmx132cm) Circular 20’ x 48” (610cmx122cm), 20’ x 52” (610cmx132cm) 24’...
  • Page 27 (198PO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 07/08/2021 SETUP INSTRUCTIONS (continued) Brush assembly. see fig. 5. NOTE: Remove the brushes from underneath the device when vacuuming large debris or leaves on the pool floor. from outside of the pool, connect the end of hose with the hose collar nut (8) to the auto pool cleaner inlet.
  • Page 28 (198PO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 07/08/2021 SETUP INSTRUCTIONS (continued) hold the auto cleaner upside down below the water surface to jet out the water. see fig. 7. This will evacuate all the air in the hose and auto cleaner, so the cleaner will sink to the bottom of the pool floor.

  • Page 29: Debris Net Cleaning

    (198PO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 07/08/2021 DEBRIS NET CLEANING make sure the filter pump is turned off, and disconnect the power cord from the electrical outlet. lift the auto cleaner’s hose slowly then hold the auto cleaner up with both hands.

  • Page 30: Micro-Screen Cleaning

    (198PO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 07/08/2021 MICRO-SCREEN CLEANING make sure the filter pump is turned off, and disconnect the power cord from the electrical outlet. To remove the hose, unscrew (counter-clockwise direction) the hose collar nut (8) from the hose adaptor (7). see fig. 13. unscrew (counter-clockwise direction) the hose adaptor (7) from the threaded strainer connector.

  • Page 31: Troubleshooting Guide

    • Lift the auto cleaner out of the wrinkled area, and make sure the pool floor is as smooth as possible. • Contact Intex Service Center. • Check and clean the debris net and micro-screen. mOVemenT is • Clean or replace the filter pump cartridge. VeRy slOW • If using a sand filter, ensure the sand media is clean...

  • Page 32: Long Term Storage

    (198PO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 07/08/2021 LONG TERM STORAGE make sure the filter pump is turned off, and disconnect the power cord from the electrical outlet. using the set up instructions in reverse, disassemble the auto cleaner. clean and air dry all the accessories and parts thoroughly.
