Page 1: Instruction Manual

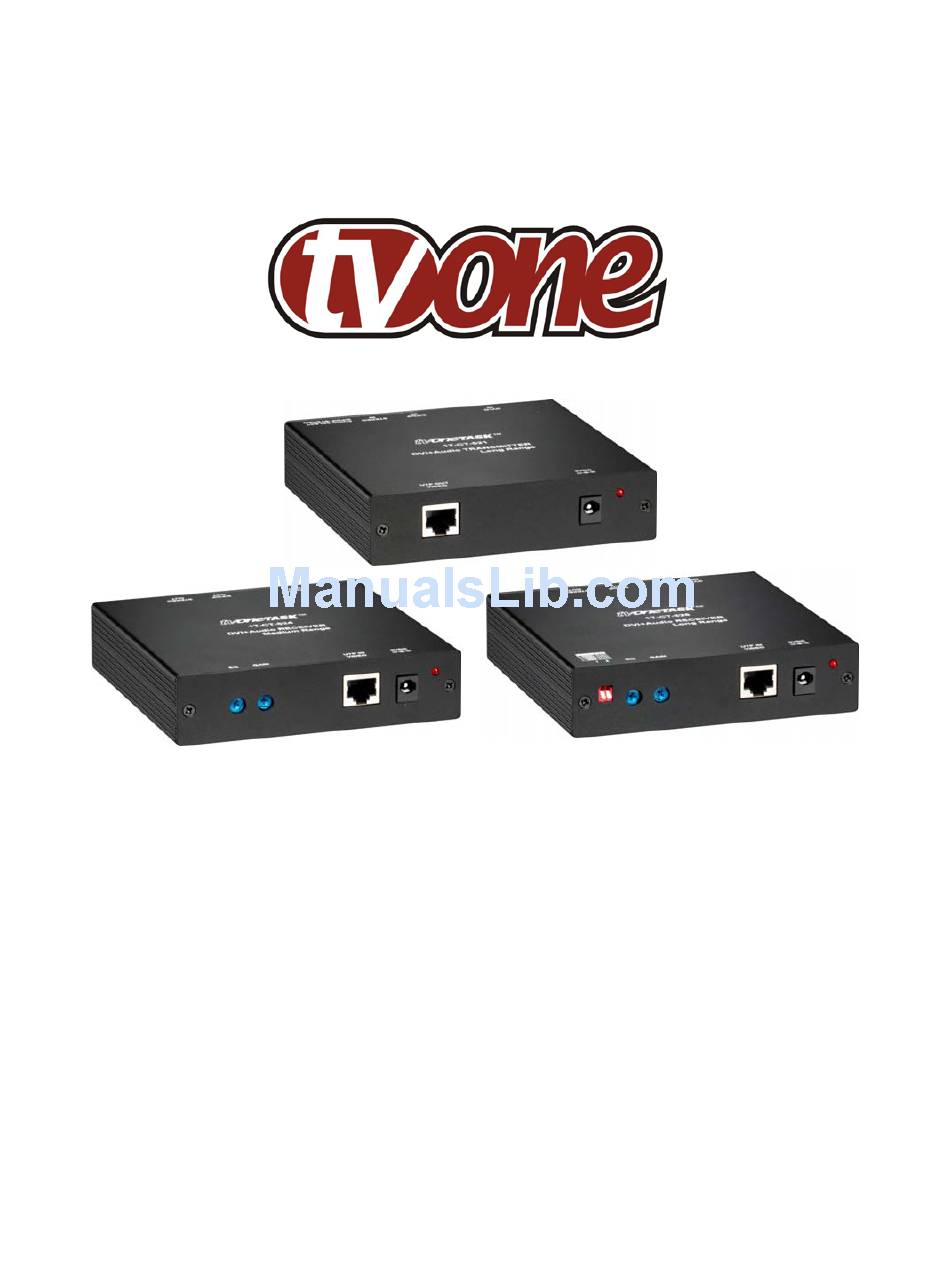

Instruction Manual 1T-CT-520 Series DVI-D+Audio to CAT.5 Extenders... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
INTRODUCTION Thanks for purchasing this Cat.5 Extender Product from TV One. The 1T-CT-520 Series product is a system for transmission of DVI-D video plus either S/PDIF or analog stereo signals over cables normally used for Ethernet transmission. Video resolutions up to 1920x1200 and 1080p can be realized over Cat.5/5E or Cat.6 cable at great distances. - Page 5 Features The 1T-CT-520 Series DVI-D+Audio to CAT.5 Extender Systems have many features that enable them to perform in a superior manner. Among those features you will find: • Resolutions to 1920x1200, 1080p @ 50/60Hz • Long Transmission Distance • 1T-CT-524 provides up to 100 meters (325 feet) •...
-
Page 6: Specifications
SPECIFICATIONS Video I/O 1T-CT-521 Tx-DVI-D In 1x via DVI-I Connector 1T-CT-524, 528 Rx-DVI-D Out 1x via DVI-I Connector Audio I/O All Units 1x S/PDIF Coax, 1x 3.5mm Analog Stereo UTP Outputs I/O 1T-CT-521 Tx – UTP Out 1x via RJ-45 1T-CT-524, 528 Rx –... -
Page 7: Checking Package Contents
CHECKING PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: • 1x Transmitter or Receiver unit • 1x Power Adapter • 1x Operations Manual Note: Please retain the original packing material should the need ever arise to return the unit. - Page 8 1T-CT-521 Transmitter Connect the DVI-D source device’s output to the DVI-I IN connector of the 1T-CT- 521 Transmitter, using the appropriate DVI cable. Then connect either an S/PDIF audio signal or an analog Stereo audio signal to the appropriate connector. 1.
- Page 9 to do this would introduce an unwanted variable that will have to be resolved should the system not function as expected. 1T-CT-524 and 1T-CT-528 Receivers Note: If the CAT.5/Cat.6 cables runs are equal to or less than 100 Meters (325 Feet), you can use either the 1T-CT-524 or 1T-CT-528 Receiver to complete the system.
-
Page 10: Operating The Unit
5. Lastly, turn on the source device and remote display. The source signal should now appear on the remotely located display. If not, consult the Troubleshooting section of this manual. OPERATING THE UNITS Once the connections have been made and power applied, there is little in the way of operational adjustments required however, all Receivers have Equalization and Gain adjustments which may be adjusted to improve the appearance of the video signal. -
Page 11: Limited Warranty
circumstances, make certain the transmitter and receiver(s) are receiving power. Next make certain your Cat.5/5E/6 cable is defect free and the RJ-45 connectors are securely attached to the cable at both ends. After trying the above suggestions should the problem still persist, contact your dealer for additional suggestions before contacting TV One. -
Page 12: Regulatory Compliance
REGULATORY COMPLIANCE The 1T-CT-520 Series DVI-D+Audio Extender products have been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. This Product and Power Adapter is RoHS Compliant.
