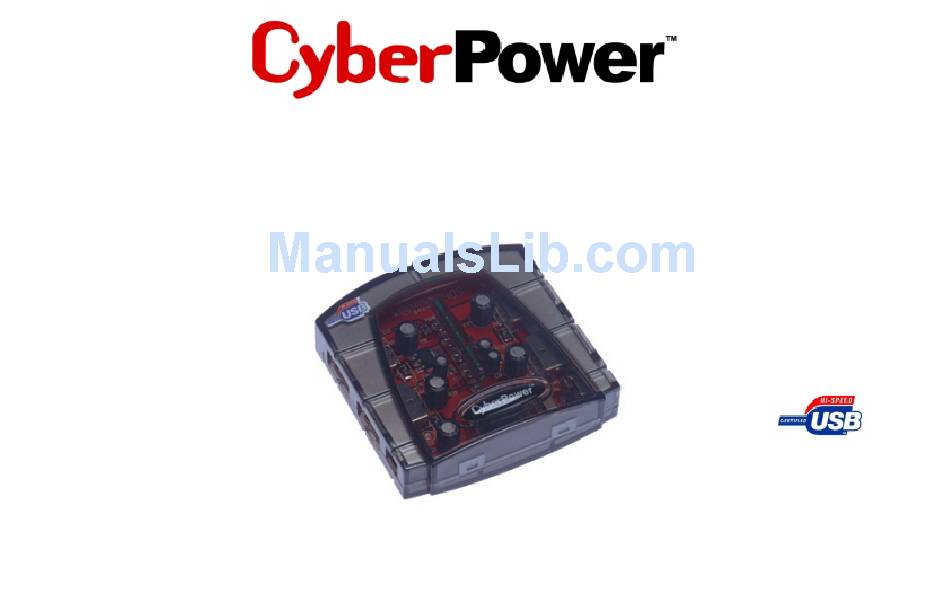

Quick Start Guide
for USB 2.0 4-Port Hub
CP-H420P
Model No.
This USB Hub makes the most of your computer and workspace by increasing the
number of available USB ports. There has never been a more convenient way to
expand your USB capacity.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-H420P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CyberPower CP-H420P

  • Page 1 Quick Start Guide for USB 2.0 4-Port Hub CP-H420P Model No. This USB Hub makes the most of your computer and workspace by increasing the number of available USB ports. There has never been a more convenient way to expand your USB capacity.
  • Page 2: Table Of Contents

    Table of Contents Introduction ....... . . 1 System Requirements ......2 Package Contents .
  • Page 3: Introduction

    The USB connections allow the user to easily connect multiple devices. The Cyber Power USB 2.0 4-Port Hub (Model. CP-H420P) provides additional ports to connect up to 4 USB devices to a single USB port on your computer.
  • Page 4: System Requirements

    NOTE: To use this USB hub with Windows 98 operating system, please visit http://www.cyberpowersystems.com and download the appropriate software driver before installing this Hub. Package Contents This package includes: USB 2.0 4-Port Hub (Model CP-H420P) AC Power Adapter 5 A-miniB USB Cable U s e r M a n u a l...
  • Page 5: Specifications

    Specifications...
  • Page 6: Product Overview

    Product Overview Model CP-H420P...
  • Page 7 Product Overview - continued 1) Power Indicator - Blue LED will light when USB Hub is receiving power. 2) Downstream Ports - Connect your USB devices to these 4 ports. 3) Port Status Indicators - Green LEDs indicate port status and overcurrent detection.
  • Page 8: Installation

    Installation This USB Hub is a plug-and-play device. Your computer will display the Add New Hardware Wizard after connecting the hub to your computer. Installation may be done whether your computer is powered on or off. It is not necessary to restart your computer after installation. 1) Connect the A-miniB USB cable (included in this package) to the Upstream port on the USB Hub, then connect the other end of the cable to an unused USB port on your computer.
  • Page 9 Installation - continued Self-Powering the Hub: Plug the DC power adapter into the power jack, then plug the power adapter into a wall outlet if additional power is required for connected USB devices. NOTE: To maximize USB Hub performance, it is recommended to plug Cyber Power AC power adapter while using.
  • Page 10: Troubleshooting

    Appendix A Troubleshooting Action Problem Possible Cause Problem Possible Cause Reset the hub and Static electricity may AC power adapter by Unit operates cause the hub to disconnecting it from Erratically. behave erratically. your computer. Wait 5 seconds, then reconnect it. USB devices Connected USB devices may require...
  • Page 11: Radio Interference Statement

    Appendix B Radio & TV Interference Statement This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 12: Lifetime Limited Warranty

    State to State. To make a Limited Warranty claim: 1. Pack and ship the Hub to CyberPower at 5555 12th Ave E, Suite 110, Shakopee, MN 55379; 2. Clearly indicate on the outside of the packaging that this is a WARRANTY RETURN;...
  • Page 13 Appendix C - continued Cyber Power will inspect and examine the Hub. If the Hub is defective in material or workmanship, Cyber Power will repair or replace it and return it to you at Cyber Power's expense at the place you have indicated.
  • Page 14 5555 12th Avenue East, Suite 110, Shakopee, MN 55379, U.S.A. TEL: (952) 403-9500 FAX: (952) 403-0009 Toll-Free: (877) 297-6937 E-mail: sales@cyberpowersystems.com Web: www.cyberpowersystems.com Entire contents copyright 2004 CyberPower Systems, Inc. © K01-H420P00 All rights reserved. Reproduction in whole or in part without permission is prohibited.
