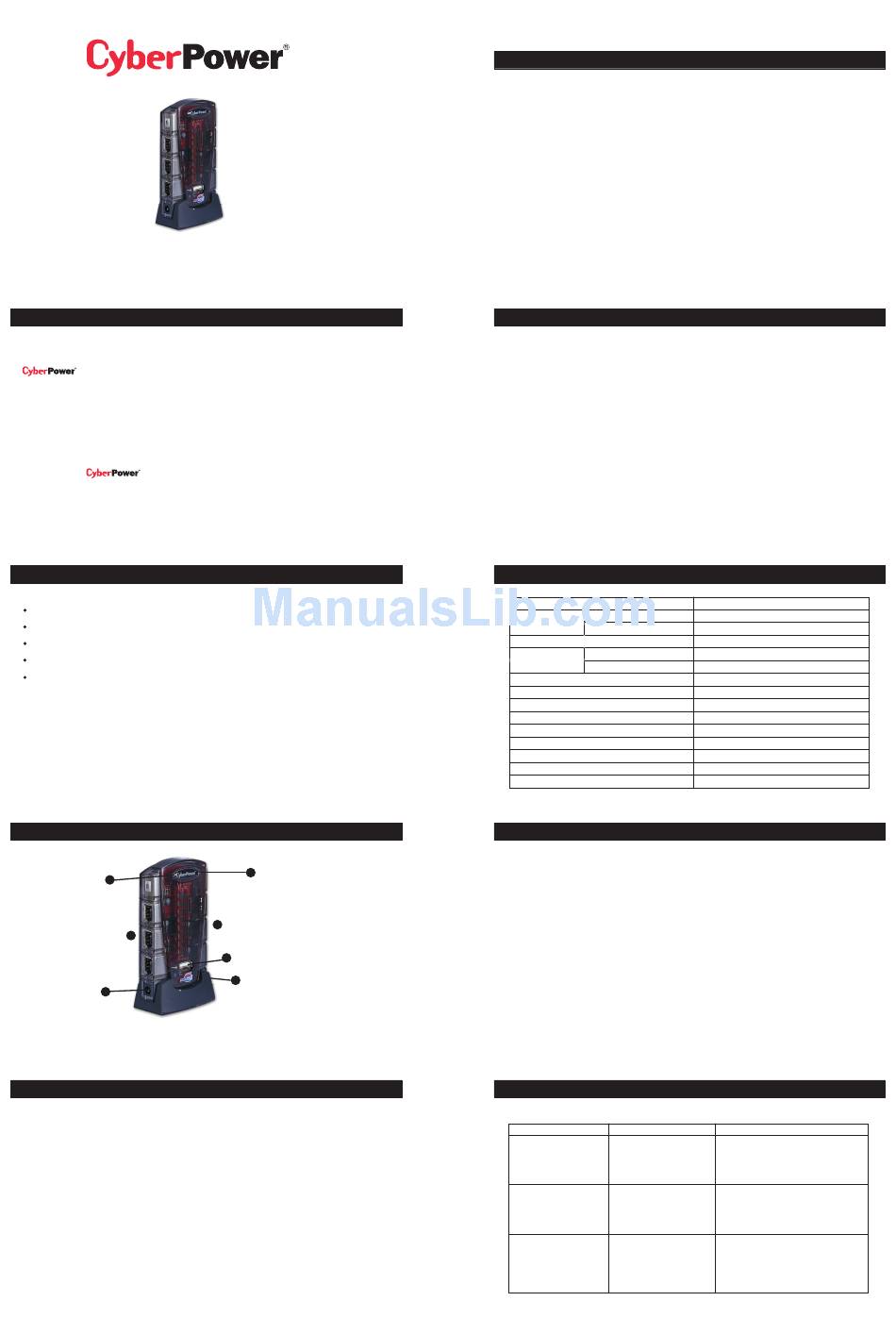

CyberPower CP-H743P Quick Start Manual

Quick Start Guide for USB 2.0 7 Port Combo Hub
This USB 2.0/ Firewire Hub makes the most of your computer and workspace by increasing
the number of available USB and Firewire ports. There has never been a more convenient
way to expand your USB and Firewire capacity
Introduction
USB(Universal Serial Bus) is currently the standard for most computers, notebooks and
peripherals. The USB connections allow the user to easily connect multiple devices. The
USB / Firewire 7 Port Combo Hub (Model. CP-H743P) provides additional
ports to connect up to 4 USB and 3 Firewire devices to a single USB port on your computer.
An AC power adapter is included for you to use the self-power mode.
The Quick Start Guide contains easy instructions in order to show you how to set up and
start using your USB Hub
Package Contents
This package includes:
USB 2.0/ Firewire 7 Port Combo Hub (Model CP-H743P)
AC Power Adapter
5m A-miniB USB cable
6 Firewire Device cable
User Manual
Product Overview
4
3
6
Installation
This USB / Firewire Combo Hub is a plug-and-play device. Your computer will display the
ADD NEW Hardware Wizard after connecting the hub to your computer. Installation may be
done whether your computer is powered on or off. It is not necessary to restart your computer
after installation.
1)Connect the A-miniB USB cable(include in this package) to the Upstream port on the USB
/ Firewire Combo Hub, then connect the other end of the cable to an unused USB port on
your computer.
2)Connect your USB and Firewire devices to the appropriate Downstream ports on the USB
/ Firewire Combo Hub.
Self-Power the Hub:
Plug the AC power adapter into the jack, then plug the power adapter into a well outlet if
additional power is required for connected USB devices.
NOTE:
Please use this USB / Firewire Combo Hub under Self-Power mode.
Model No. CP-H743P
1
2
2
5
Model CP-H743P
Table of Contents
Introduction
System Requirements
Package Contents
Specifications
Product Overview
Installation
Appendix A (Troubleshooting)
Appendix B (Radio Interference Statement)
Appendix C (Product Limited Liabilities Warranty)
System Requirements
Any PC or Macintosh computer with an available USB port and USB/Firewire-compliant
operating system(Windows 98/98SE/2000/ME/XP, MacOS 8.6 or above, etc.)
Specifications
FUNCTION
USB Ports Downstream
Upstream
Firewire ports
LEDs USB port status
Firewire port Status
Power Mode
Output Voltage(per port)
Output Current(per port)
Operating Temperature
Storage Temperature
Humidity
Housing
Weight
Dimensions
Product Overview - continued
1)USB ports Indicator – Green LED will light when USB Hub is receiving power. If the over
current condition occurs to any of USB ports, The Green LEDs will turn off. indicating a
problem with that device.
2)USB(Downstream) Ports – Connect your USB devices to these(includes 1 Flash Drive
Port)
3)FireWire Ports –Connect your FireWire devices to this ports
4)FireWire ports Indicator –Yellow LED indicates port status and over corrent detection for
Firewire ports. When a device is connected to one of the Firewire ports, The yellow LED
will illuminate. If an over current condition occurs to any of Firewire ports, the Yellow LED
will turn off, indicating a problem with that device.
5)Root(Upstream) Ports –Connect your FireWire devices to this port to provide a link
between the hub and devices.
6)AC Adapter Power Connection – Connect your ac power adapter here. This hub operates
in self-powered mode to ensure sufficient power is provided to connect USB devices.
Appendix A

Troubleshooting

ProbProblem Possible Cause
Unit operates Erratically. Static electricity may
cause the hub to behave
erratically.
USB devices operate Connected USB devices
erratically or can't be may require too much
powered on. power for bus-powered
operatically
Unit fails to operate at all. Non-USB compliant
operating system.
1
2
2
3
4
6
7
8
9
SPECIFICATION
7
1
3
1(Green LED)
1(Yellow LED)
Bus-Powered
+5V DC
500mA(max)
5°C~40°C
-20°C~60°C
0~80%RH. Noncondensing
Plastic
72g
102.0 x 58.0 x 21.0 mm
Action
Reset the hub and AC power adapter
by disconnecting it from your
computer. Wait 5 seconds, then
reconnect it.
Connect the AC power adapter to
the hub
Insure that your computer is fully USB
-compatible and a USB-compliant
operating system is installed.(see
System Requirements section)
