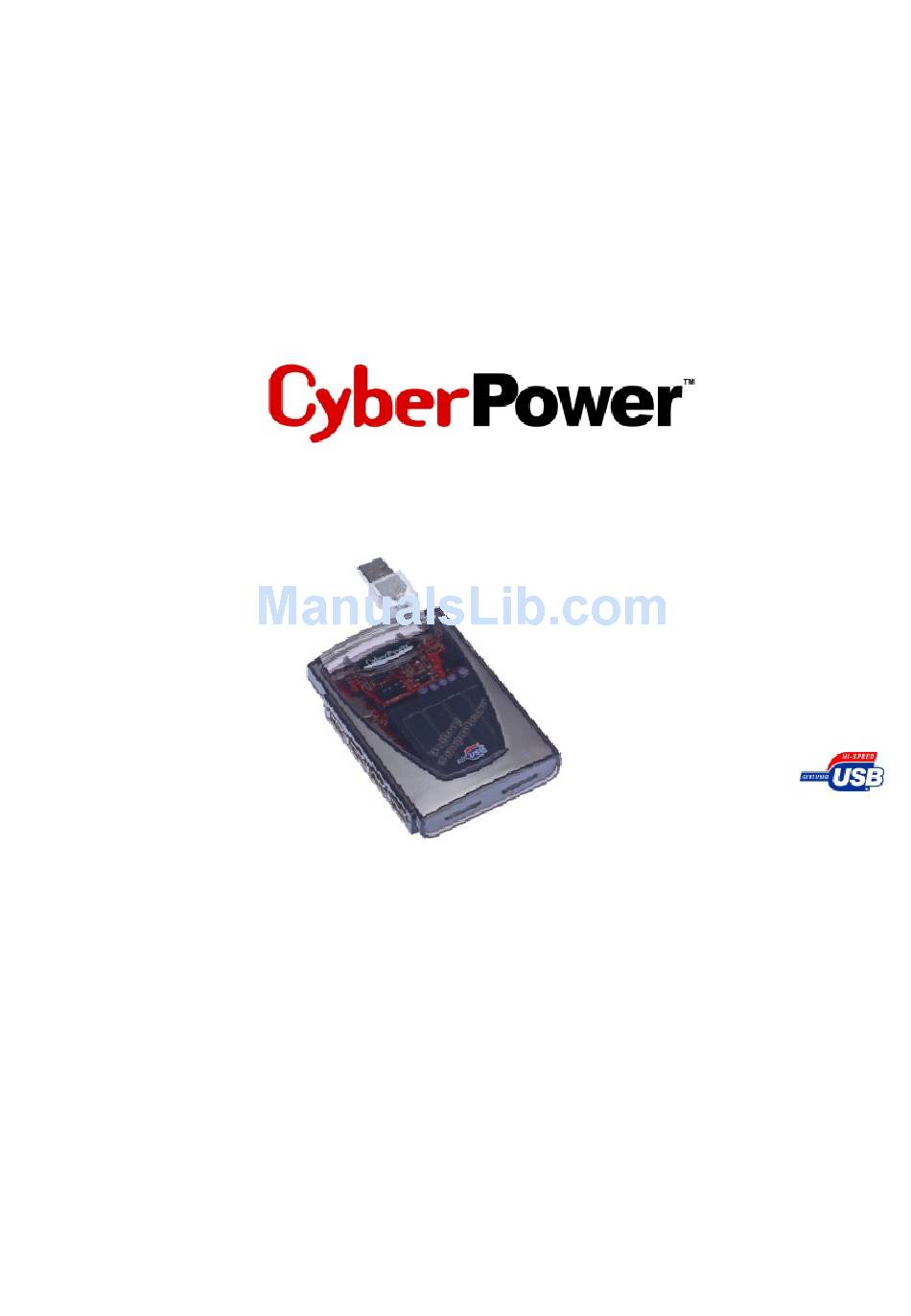

Quick Start Guide
USB 2.0 4 Port Mobile Battery Powered Hub
for
CP-H420MP
Model No.
This Battery Powered USB Hub makes the most of your notebook computer and workspace by increasing the
number of available USB ports. The need for an AC Power Adapter is eliminated by Battery Power. There has
never been a more convenient way for travelers and notebook users to utilize USB devices on the road.
Patent Pending
Advertisement
Table of Contents
Related Manuals for CyberPower CP-H420MP
Summary of Contents for CyberPower CP-H420MP
-
Page 1: Quick Start Guide
Quick Start Guide USB 2.0 4 Port Mobile Battery Powered Hub CP-H420MP Model No. This Battery Powered USB Hub makes the most of your notebook computer and workspace by increasing the number of available USB ports. The need for an AC Power Adapter is eliminated by Battery Power. There has never been a more convenient way for travelers and notebook users to utilize USB devices on the road. - Page 2 Thank you for purchasing this Cyber Power product. To enjoy all the features and benefits of this Battery Powered Hub, please carefully read and follow all installation and operation instructions completely.
-
Page 3: Table Of Contents
Table of Contents Introduction ....... . . 1 System Requirements ......2 Package Contents . -
Page 4: Introduction
The USB connections allow the user to easily connect multiple devices. Cyber Power's USB 2.0 4- Port Mobile Battery Powered Hub (Model CP-H420MP) provides additional ports to connect up to 4 USB devices to a single USB port on your computer. -
Page 5: System Requirements
Hub. Package Contents This package includes: 1. USB 2.0 4-Port Battery Powered Hub (Model CP-H420MP) 2. 4 AAA Ni-MH Rechargeable Batteries 3. 1.5 A Male-A Female USB Extension Cable 4. U s e r M a n u a l... -
Page 6: Specifications - Usb Battery Powered Hub
Specifications - Battery Powered Hub... -
Page 7: Specifications - Rechargeable Battery
Specifications Specifications - Rechargeable Battery Note: Please charge before use. The batteries are delivered in an uncharged state. -
Page 8: Product Overview
Product Overview Model CP-H420MP... - Page 9 Product Overview - continued 1) Power Indicator - Blue LED will illuminate when USB Hub is receiving power. 2) Battery Power Switch - Switch on battery power switch when extra power is needed for connected USB devices. This switch activates self-power mode. 3) Battery Discharge Indicator - Red LED will illuminate to indicate when the batteries are in use.
- Page 10 Product Overview - continued 6) Battery Cover - Remove cover and insert four (4) rechargeable Ni-MH batteries that are included in the package in order to use your Hub under Self- Power mode. 7) AC Power Adapter Connection - An AC Power Adapter (Model: CPSA0526; Output: 5V DC 2.6Amp) (Sold separately.
- Page 11 First Use - Charge Batteries When using this Hub the first time, charge the Ni-MH batteries at least 6 hours. 1) Insert the included batteries (4) into the Hub. 2) Plug the USB connector into an unused USB port on your computer. 3) Make sure that the Battery Power Switch is in the OFF position and your computer is ON.
-
Page 12: Installation
Installation This USB Hub is a plug-and-play device. Your computer will display the Add New Hardware Wizard after connecting the hub. The Add New Hardware Wizard will install the Cyber Power USB Hub automatically. It is not necessary to restart your computer after installation. To use this USB hub with Windows 98 operating system, please visit http://www.cyberpowersystems.com and download the appropriate software driver before installing this Hub. - Page 13 Installation - continued Self-Powering the Hub: Using Battery Power: If the connected devices work properly, keep the Battery Power Switch OFF in order to conserve battery power! If the connected devices function erratically or require additional power, turn the Battery Power Switch ON to activate Self-Power mode.
-
Page 14: Troubleshooting
Appendix A Troubleshooting Problem Possible Cause Action Static electricity may cause Reset the Hub by disconnecting it from Unit operates the Hub to behave your computer. Wait five seconds, then erratically. erratically. reconnect. Connected USB devices USB devices operate may require too much Set the Battery Power Switch to the ON erratically or can't be power for Bus-Powered... -
Page 15: Radio Interference Statement
Appendix B Radio & TV Interference Statement This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 16: Lifetime Limited Warranty
Appendix C Lifetime Limited Warranty Cyber Power warrants this USB Hub (the Hub) (excluding rechargeable Ni-MH battery) to be free from defect in material or manufacture for its lifetime. If a defect results in product failure during its normal use, Cyber Power's sole responsibility is to repair or replace (at its sole option) the Hub. - Page 17 Appendix C - continued Cyber Power will inspect and examine the Hub. If the Hub is defective in material or workmanship, Cyber Power will repair or replace it and return it to you at Cyber Power's expense at the place you have indicated.
- Page 18 5555 12th Avenue East, Suite 110, Shakopee, MN 55379, U.S.A. TEL: (952) 403-9500 FAX: (952) 403-0009 Toll-Free: (877) 297-6937 E-mail: sales@cyberpowersystems.com Web: www.cyberpowersystems.com © Entire contents copyright 2004 CyberPower Systems, Inc. K01-H420MP0 All rights reserved. Reproduction in whole or in part without permission is prohibited.
