Owner's Manual
IN ORDER TO GET THE MOST OUT OF YOUR INVERTER, THE INSTALLATION PROCEDURE FOUND IN
THE OWNER'S MANUAL MUST BE FOLLOWED CAREFULLY AND THE INVERTER MUST BE USED
PROPERLY. PLEASE READ THOROUGHLY THE OWNER'S MANUAL BEFORE INSTALLING AND USING
YOUR NEW INVERTER.
IMPORTANT YOUR NEW INVERTER MUST BE POWERED BY A 24 VOLT SOURCE ONLY. SOME
TECHNICAL INFORMATION IN THE OWNER'S MANUAL MAY NOT REFLECT YOUR NEW INVERTER
PERFORMANCES. THE HEREUNDER SPECIFICATIONS APPLIES TO YOUR 24 VOLT INVERTER AND
MUST BE CONSIDERED AS REPLACING THE ONES FOUND IN THE OWNER'S MANUAL.

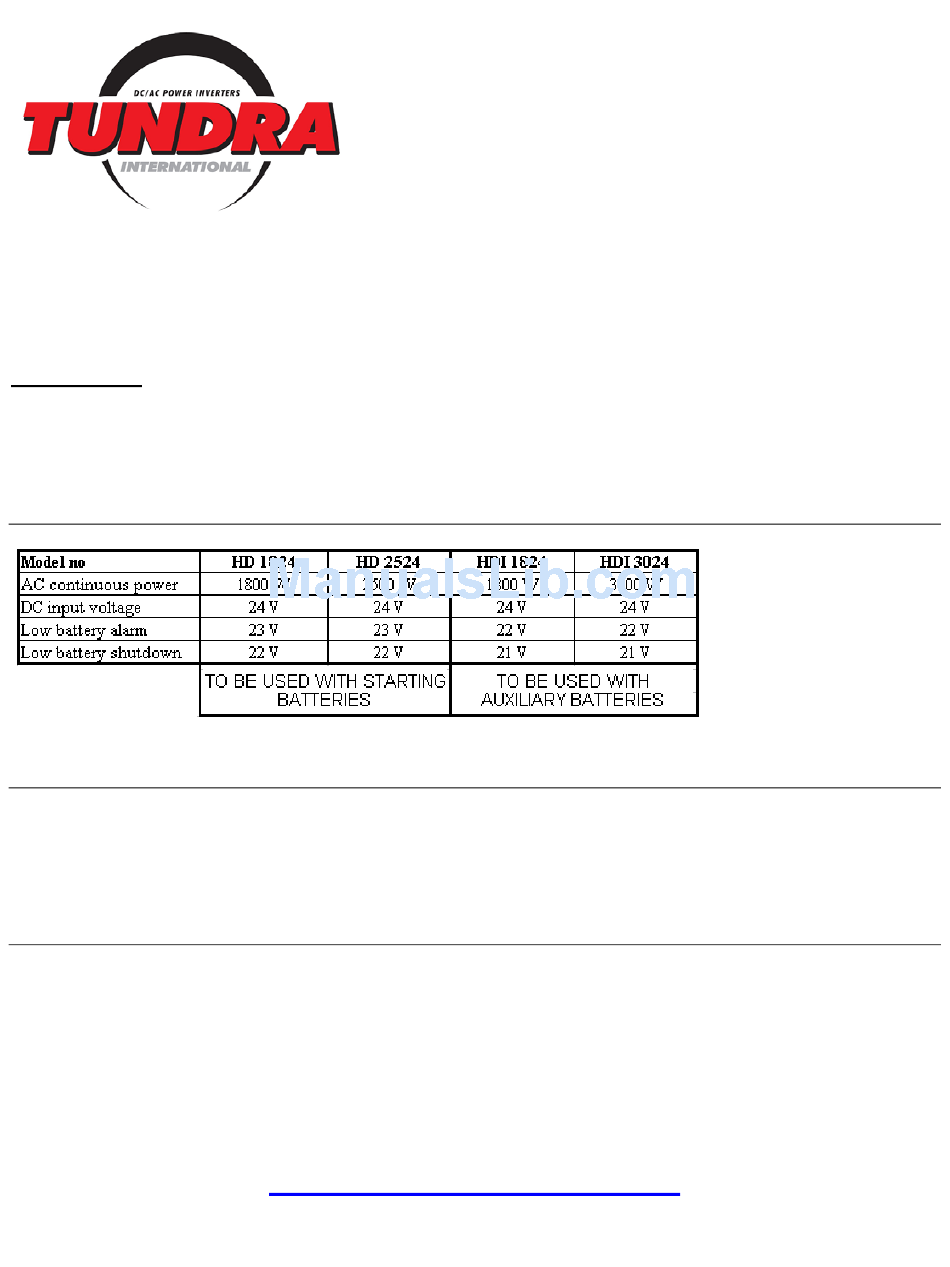

SPECIFICATIONS
RECOMMENDED MATERIAL
TUNDRA INSTALLATION KIT
WELDING CABLE
DC FUSE (CNL TYPE)
*Refer to the manual for rest of material needed
WARNING!
NEVER CONNECT THIS INVERTER TO A 12 VOLT POWER SOURCE, OR ANY OTHER
VOLTAGE THAN 24 VOLT.
WARNING! 24 VOLT CONFIGURATION REPRESENTS A GREATER DANGER THAN 12
VOLT SYSTEMS, PLEASE BE VERY CAUTIOUS WHEN CONNECTING YOUR
INVERTER TO THE BATTERIES
24 VOLT
POWER INVERTER
HD/HDI-1824
CM1200/1500
AWG #2
150A
www.tundrainternational.com
HD-2524
HDI-3024
CM1800/2000
AWG #1/0
AWG #2/0
200A
CM2500
250A
NEW
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Tundra E-1000
Summary of Contents for Tundra E-1000
- Page 1 PERFORMANCES. THE HEREUNDER SPECIFICATIONS APPLIES TO YOUR 24 VOLT INVERTER AND MUST BE CONSIDERED AS REPLACING THE ONES FOUND IN THE OWNER’S MANUAL. SPECIFICATIONS RECOMMENDED MATERIAL HD/HDI-1824 HD-2524 HDI-3024 TUNDRA INSTALLATION KIT CM1200/1500 CM1800/2000 CM2500 WELDING CABLE AWG #2 AWG #1/0...
- Page 2 Owner’s guide: E-1000 / E-1500 / E-2000 HD-1200 / HD-1800 / HD-2500 HDI-1800 / HDI-3000 Install using Tundra CM Series installation kit Ask your retailer ! (See page 4 for details) www.tundrainternational.com...
-
Page 3: Table Of Contents
Table of contents INTRODUCTION ............................. 4 Disclaimer ................................4 Output waveform ..............................4 FRONT , REAR PANEL & REMOTE CONTROL ................4 PERMANENT INSTALLATION ......................5 Recommended material ............................. 5 Recommended tools ............................6 Where to install ..............................6 Mounting the inverter ............................6 Ground ................................ -
Page 4: Introduction
1 Introduction Congratulations! You have purchased one of the most sophisticated and reliable power inverters on the market today. Incorporating some of the latest technological developments, it will give years of trouble free operation for your truck, boat, R.V. or other. In order to get the most out of your inverter, the installation procedure must be followed carefully and it must also be properly used. -
Page 5: Permanent Installation
3 Permanent Installation The use of the Tundra International installation kits is strongly recommended. These complete installation kits are custom designed to maximize performance. It has been developed to promote safe installation and to help eliminate the difficult task of sourcing the requisite and right material. -
Page 6: Recommended Tools
Recommended tools Hand held crimping tool for terminal lugs * Mandatory Hollow punch or hole saw for metal Drill bit set for metal Screw driver set Open end wrench set Side cutters Power drill CAUTION! Before installation, make sure that the inverter is turned “OFF.” Where to install Your inverter should be installed in a location that meets the following requirements: - Dry:... -
Page 7: Ground
Figure 3 : Installation schema Ground The inverter has a lug on the rear panel that must be connected, using a #8 AWG copper cable, to the chassis of your vehicle or to a metallic panel connected to the chassis. This grounding procedure conforms to most electrical codes that require to derived AC sources to ground in case of malfunctioning. -
Page 8: Preparation Of The Cable Connected To The Negative Side
Figure 4 : Terminals’ crimping procedure 3.6.1.1 Fuse A main fuse must be installed in the battery casing on the positive cable (+) between the batteries and the inverter, as close as possible to the batteries. In this way (and in the event of cable rupture), the DC current would be cut at the batteries and would not cause a fire. -
Page 9: Connection Of The Batteries
If you are unsure about powering any device with a modified sine wave power inverter, contact the manufacturer of the device. None of these potential problems can happen with the Tundra International pure sine wave inverters (HTS series). -
Page 10: Microwave
Microwave The power rating used with microwave ovens is the cooking power which refers to the power being delivered to the food being cooked. The actual operating power requirement rating is 40% to 100% higher than the advertised cooking power. The actual power consumption is usually stated on the back of the microwave. -
Page 11: Troubleshooting Guide
Troubleshooting guide Problem Possible cause Solution Low output voltage (96 to 105 volts) Using a voltmeter which cannot Use a TRUE RMS reading voltmeter properly read the RMS voltage of a modified sine wave Fault indicator ON Low input voltage Not enough battery capacity Recharge batteries Improper installation. -
Page 12: Specifications
8 Limited one-year warranty Tundra International Inc. warrants its power inverters against defects in workmanship and materials for a period of one (1) year from the date of first consumer purchase. This warranty is given only to the first end-use purchaser of the product. - Page 13 The above information, along with the proof of the consumer’s purchase date, such as the duplicate of the receipt, must be included with the defective unit. TUNDRA INTERNATIONAL INC. 2041-A, Leonard-de Vinci, Sainte-Julie (Quebec) Canada J3E 1Z2 Tel : 450.649.2470 / 1.877.964.2582 Fax : 1.888.855.9834...
