Hunter 41675-01 Installation Instructions Manual

CAUTION:
1. Read entire instructions carefully before beginning installation.
2. To avoid possible electrical shock, be certain electricity is shut
off at main panel before wiring.
3. All wiring must be in accordance with national and local
electrical codes. If you are unfamiliar with wiring, you should
use a qualified electrician.
WARNING:
1. To reduce the risk of fire or electrical shock, do not use a solid
state speed control with this fan. Use Hunter Controls only.
2. To reduce the risk of personal injury, do not bend the blade
brackets when installing the brackets or cleaning the fan. Do
not insert foreign objects in between rotating fan blades.
3. To reduce the risk of personal injury, install the fan only to
the building structure according to these instructions, and use
only the hardware supplied.
Step 1: Pre-Installation Instructions
A.
Select installation site. Check to see that in normal use no
object can come in contact with the rotating fan blades. The
mounting site should also meet the precautions listed in Step 3
below.
B.
Installation hardware is included for a standard drywall or
plaster ceiling. You will need a 4" x 1-1/2" or a 4" x 1/2" outlet
box and wire nuts (2) which can be purchased from any hard-
ware store or electrical supply house.
C.
The fan blades must be mounted at least 7' above the floor.
For maximum efficiency, they should not have any obstruction
(walls, posts, etc.) within 24" of the blade tips. See Figure 1 for
mounting distances.
Step 2: Inspection of Fan
A.
Unpack the fan carefully to avoid any damage to the components.
B.
Check for any shipping damage to the motor and the fan
blades. If more than one fan is being installed, keep the matched
and balanced fan blades in sets, as they were shipped. Should
one of the fan blades become damaged during shipment, return
all blades in the set for replacement.
C.
Check contents to be certain it contains a bag of parts.
8' MIN.
CEILING
TO FLOOR
7' MIN.
TO FLOOR

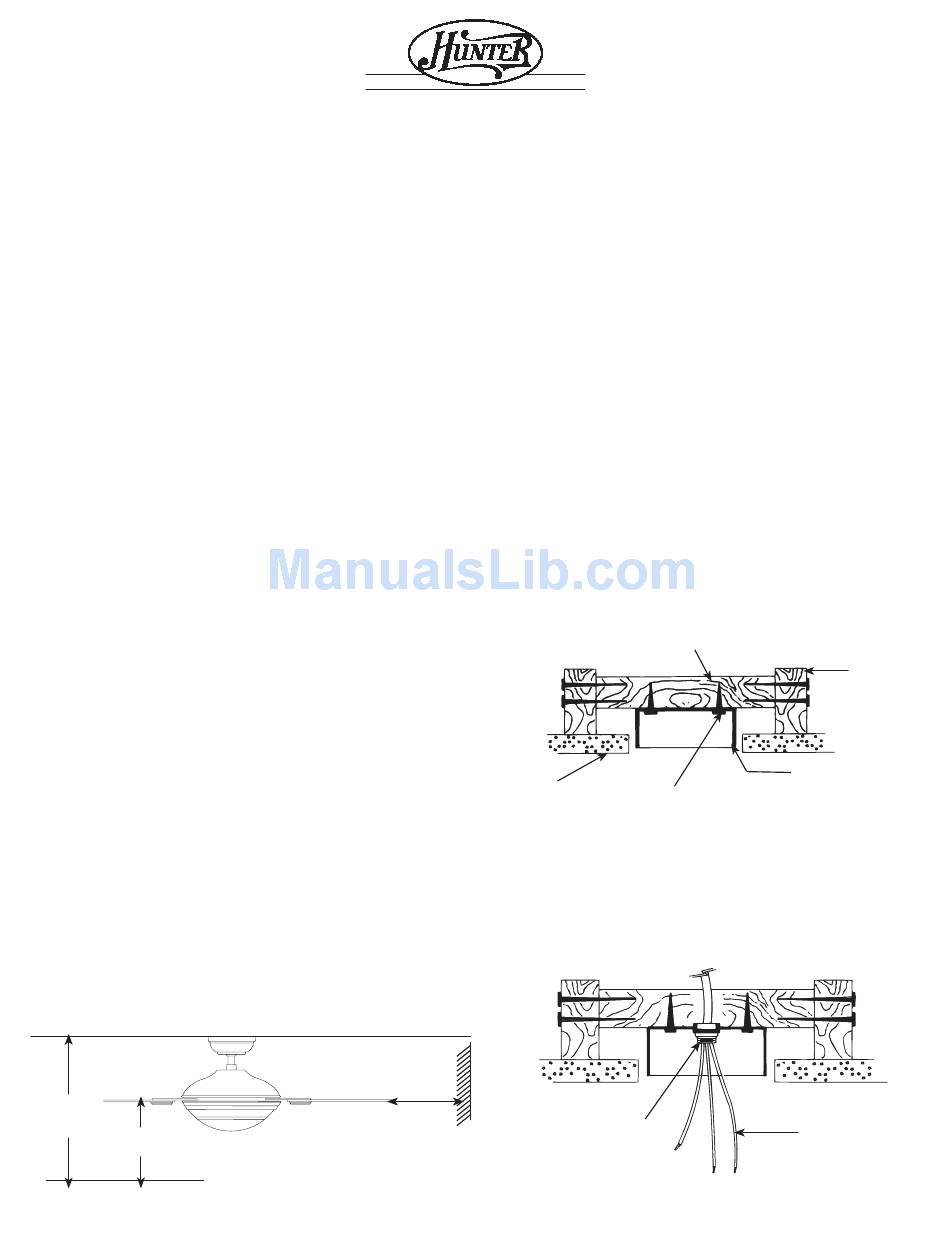

Figure 1. Wall Clearances
41675-01 01/07/2004
S I N C E

INSTALLATION INSTRUCTIONS

FOR HUNTER CEILING FANS
READ AND SAVE THESE INSTRUCTIONS
CLEARANCE TO
OBSTRUCTIONS
®
1 8 8 6
Step 3: Installation of Outlet Box and
Rough-In Wiring
CAUTION: Your Hunter ceiling fan with accessories can weigh
up to 35 lbs. The following precautions must be taken for safety
and to ensure that your fan is securely mounted to the ceiling.
• Be certain electricity is "off" at fuse panel when inspecting or
repairing installation site.
• All wiring must meet local and national electrical codes.
• Do not mount directly to an unsupported ceiling or to an
electrical outlet box. Mounting must support a 35 lb. fan with
accessories.
A.
Secure metallic outlet box 4" x 1-1/2" or 4" x 1/2" deep to
2 x 4 cross brace between two ceiling joists as shown in Figure
2. The outlet box must be recessed into the ceiling by 1/16"
minimum. Secure the outlet box to the cross brace by drilling (2)
pilot holes no larger than the minor diameter of the wood screws
(5/64") and use two #8 x 1-1/2" wood screws and washers. Use
the innermost holes for securing the box. Orient the box so the
outermost holes will be used in Step 4B.
CAUTION: Do not use a lubricant on screws.
CEILING
B.
Bring electrical cable into the outlet box and attach with an
approved connector. Make certain that wiring meets all national
and local electrical codes. Wire leads should extend at least 6"
beyond outlet box for ease in making connections. See Figure 3.
24"
CONNECTOR
1
2 X 4 BRACE
#8 WOOD SCREW & WASHER
(2) REQUIRED
FIGURE 2. Outlet Box
FIGURE 3. Wiring Outlet Box
© 2004 Hunter Fan Company™
CEILING
JOIST
OUTLET BOX
6" MIN.
LEAD
