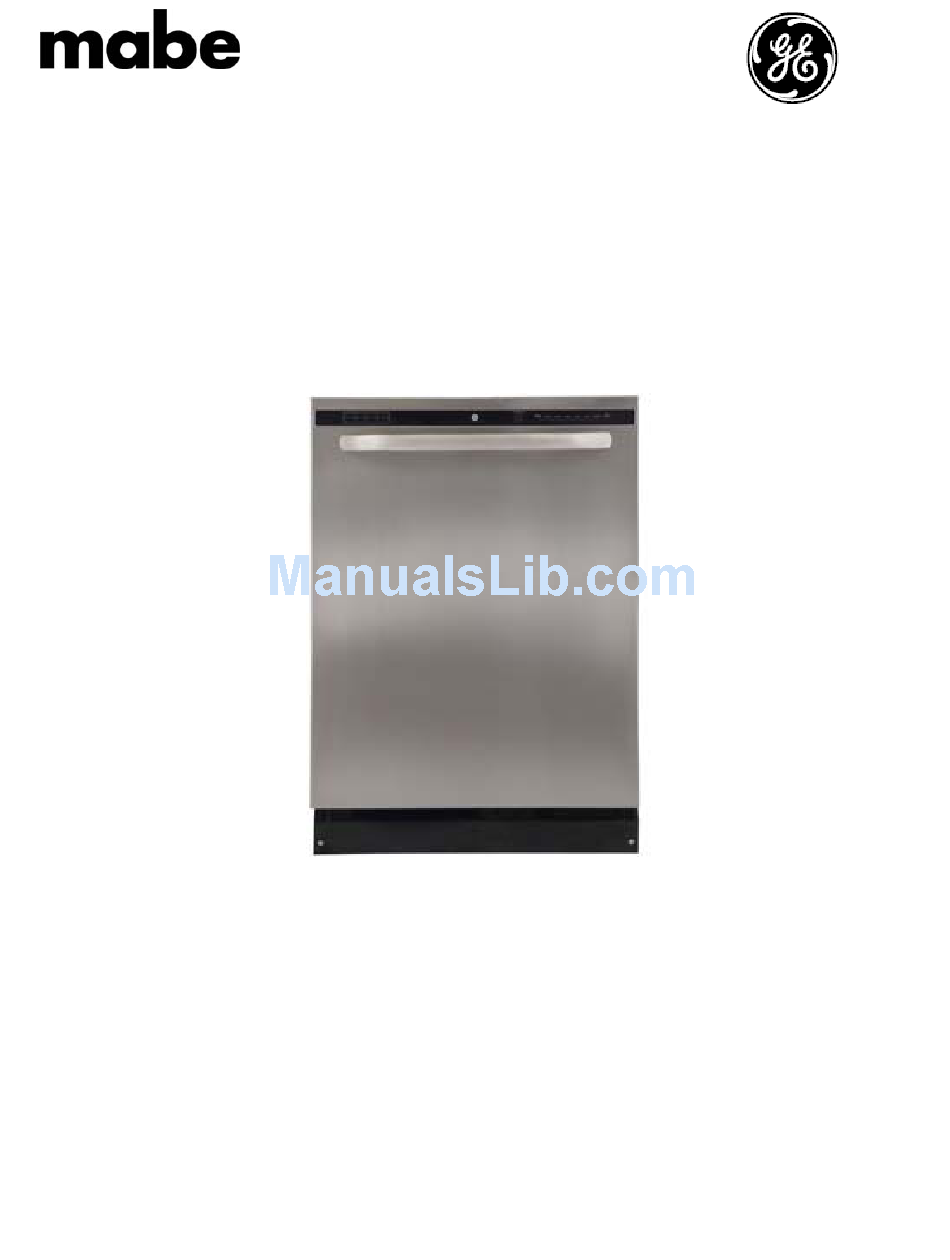

- Page 1 TECHNICAL SERVICE GUIDE GE Built-In Dishwasher with Stainless Steel Tall Tub Models GLD9312 GLD8312 GLD8110 08-MAN-DW-01...
- Page 2 IMPORTANT SAFETY NOTICE The information in this service guide is intended for use by individuals possessing adequate backgrounds of electrical, electronic, and mechanical experience. Any attempt to repair a major appliance may result in personal injury and property damage. The manufacture or seller cannot be responsible for the interpretation of this information, nor can it assume any liability in connection with its use.
-
Page 3: Table Of Contents
Table of Contents Nomenclature ............................4 Component Locator..........................9 Inside Door Panel after front panel has been removed..............10 Bottom View ............................10 Component Removal ..........................12 Removing Upper Rack ........................12 Middle Spray Arm ..........................12 Lower Spray Arm, Fine Filter, and Inlet Cover................. 12 Wash Pump Disassembly ........................ -
Page 4: Nomenclature
Nomenclature Model Number *Note: The exterior colour, ll = Integrated, requires a panel kit G L D 9 3 1 2 P 0 0 W W Brand G=GE Size L=Long Door Product Type D=Built-in Platform 9 = Fully Integrated Feather Pack... - Page 5 Serial Number The model number and serial number are located inside the door jam. The first two characters of the serial number identify Date Code -Month -( Alpha) Calendar Year Code (Alpha) Model Class Code 4,5,6,7,8 Serial Number Manufacturing Location Column 1 Denotes the fiscal month of manufacture Column 2...
-
Page 6: Control Features
Control Features Cycles Cycle Max # of Max # of Wash Wash Heated Pre-wash Wash Rinse Time Temperature Cycles Cycle Cycles Min Max Min Max Time Anti- 42 110 Bacterial Pots & 38 104 Pans Normal Wash China 30 52 Crystal Speed Wash... - Page 7 You can delay the start of a wash cycle for up to 12 hours (GLD8110 GLD8312) or 24 hours (GLD9312). Press the DELAY START pad to choose the number of hours you want to delay the start of the cycle; then press START/RESET.
- Page 8 13. Status Indicators Note: Status Indicators vary by model The Status display tells you what is happening while the dishwasher is in operation and may flash, indicating a malfunction. The lights will come ON indicating the sequence of the dishwasher operation.
-
Page 9: Component Locator
Component Locator 1. Upper Spray 7. Split Folding Utility Shelf (4) 2. Top Rack Track 8. Adjustable Top Rack 3. Water Inlet Opening. (in tub wall). 9. Middle Spray Arm 4. Lower Spray Arm 10. Removable Silverware Basket 5. Bottom Rack 11. -
Page 10: Inside Door Panel After Front Panel Has Been Removed
Inside Door Panel after front panel has been removed Latch Assembly Vent Assembly Interlock Switch Vent Wax Motor Control Board Dispenser Assembly Electrical Fill Solenoid Junction Box Schematic is located behind the bottom kick plate... -
Page 11: Bottom View
Bottom View Float Switch Fill Valve Clean Sensor Thermal Safety Drain Motor Wash Motor Temperature Sensor Heating Element Wash Sump... -
Page 12: Component Removal
Component Removal Lower Spray Arm, Fine Filter, and Inlet Cover Removing Upper Rack Check the holes in the arm for bits of foreign matter. Also check the spray wash arm for 1. Pull tab out and remove the end cap rotation. -
Page 13: Drain Pump
Wash Pump Disassembly con’t 5. Remove 2 screws holding the fine filter assembly and lift to remove. Press on 2 screws 3. Remove the pulveriser blade, screen, spring and washers. 6. Remove the 1 screw holding the coarse filter. Lift out the coarse filter. Order of pulveriser components 4. -
Page 14: Fill Funnel
Fill Funnel Heating Element The top section of the fill funnel separates from the The heating element nuts are located on the main body. The fill funnel body is held in place by a underside of the washer, near the door. Ample nut (located on the inside of the dishwasher). -
Page 15: Door Panel
Door Panel It is normal if the cycle times vary over a period of time from the factory default The door panel covers the main control board, settings due to temperature and water detergent cup, vent, wax motor, louver, and quality. -
Page 16: Troubleshooting
Troubleshooting schematic or strip circuit for motor resistance value. Service Mode To enter service mode, ensure door is closed and press the following keys. It is important to remember the motor does High Temp Wash. – Heat Dry - High Temp not start immediately when the dishwasher Wash cycle has started. -
Page 17: Temperature Sensor
water valve. The flood switch opens the L1 Clean Sensor side of the water valve circuit. The switch is normally open. The weight of the The clean sensor measures the amount of flood switch float holds the switch closed. The suspended particles in the wash water in the flood switch will not stop the flow of water if sump. -
Page 18: Control Module
Water valve, flood switch, flood switch float CN1 + CN6 – Door Panel, and stem, transorb, and then main control. CN2 – Display Board. The flood switch should open when the water level is approximately ¼ in. above the base Detergent/ Rinse Module (bottom) of the float dome. -
Page 19: Active Vent
Active Vent If the door is unlatched while running a wash cycle, the cycle countdown will pause and the vent will open. The active vent consists of the wax motor and housing. The active vent helps to reduce the noise level and heat loss when in the closed position. -
Page 20: Schematic
Schematic Vent Wax motor... - Page 21 English CONSUMER WARRANTY Your appliance is warranted to be free of defects in material and workmanship. How Long Parts What is covered Warranted Repair or Replace Labour (From Date of Sale) at Supplier’s Option One (1) year All parts One (1) year One (1) year Terms and Conditions: What Is Not Covered...
