Hunter 28496 Parts Manual

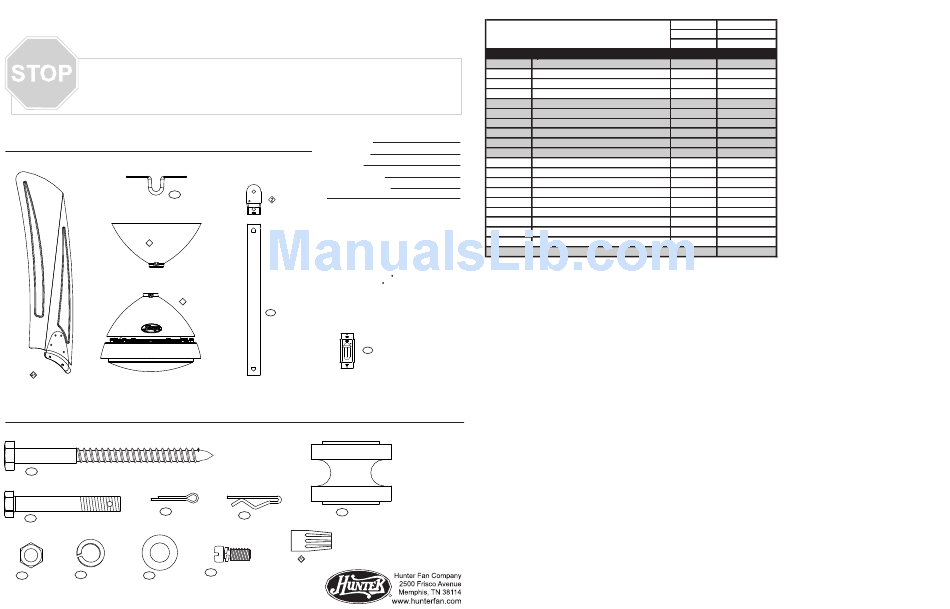

PARTS GUIDE

PARTS GUIDE
Using the Parts Guide below, check to make sure all parts are included in the box.
If parts are missing or damaged call 1-888-830-1326.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Before installing your fan, record the following information for your records and warranty assistance.

Fan Parts

50 Mounting Bracket
3 Canopy
8 Adapter
Cover
Blade Set
Motor / Housing Assembly
Hardware
235 Lag Bolt
232 Cotter Pin
234 Hex Bolt
158
159 Hex Nut Lockwasher 68 Flat Washer
Model Name
(Not Drawn to Scale)
Catalog No.
Serial No.
Date Purchased
Where Purchased
Hanger Bracket
Assembly
Missing / Broken Parts:
Call 1-888-830-1326
Fan does not work:
1. Reference the Trouble Shooting guide in
your Instruction Manual.
2. Call your Local Service Center.
3. Call Technical Support at 901-248-2222.
For additional information on:
Hunter Products
Dealer Location
Call 1-800-448-6837
www.hunterfan.com
90 Extension Pipe
/ 12" Downrod
236 4-Speed Fan Control
HI
MD
L2
L1
(Drawn to Scale)
175 Grommet
233 Clip Pin
Wire Nut
Screw, Blade Iron
47
Armature

Parts List

Item # Item Name
1 * Hanging System Kit
2 Hanger Bracket Assembly
3 Canopy
50 Mounting Bracket
8 Adapter Cover
46 * Blade Set
47 Screw, Blade Iron Armature
236 4-Speed Fan Control
90 Extension Pipe / 12" Downrod
60 * Hardware Kit
68 Flat Washer
70 Wire Nut
158 Lockwasher
159 Hex Nut
175 Grommet
232 Cotter Pin
233 Clip Pin
234 Hex Bolt
235 Lag Bolt
75 * Balancing Kit
Trouble Shooting
Service Center Locator
98000-01-380
7/25/03
R
Model # 28496
Asm. Dwg. # 94691-01
Finish White
Qnty Part #
2 74590-01-232
1 84705-01-132
1 63919-01-000
1 74818-01-000
1 84703-03-132
6 63755-05-133
1 64130-01-000
1 74765-01-132
1 94691-00-860
6 64807-01-232
4 05172-01-000
3 64808-01-232
3 64806-01-232
1 64678-01-000
2 03346-01-000
1 64871-01-232
3 64805-01-232
2
03481-01-232
1 07570-01-000
