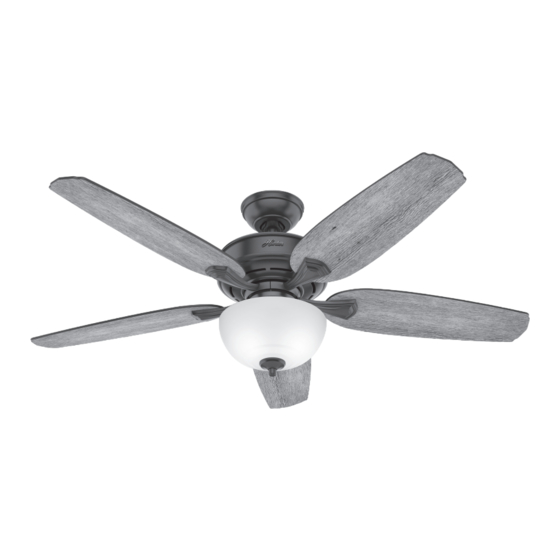

Hunter Channing Installation Manual

Hunter Channing Installation Manual

Hide thumbs Also See for Channing:

Advertisement

Model: 53366 Noble Bronze
53367 Brushed Nickel
53368 Fresh White
Fan weight ±2 lbs: 20 lbs (9.1 kg)
Channing
Installation Manual
©2017 Hunter Fan Co.
PG3591 r122617

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Channing and is the answer not in the manual?

Questions and answers

Cindy
July 6, 2025

Can you put incandescent bulbs in a Hunter Channing ceiling fan

Dale Lipps
March 20, 2025

I have a model 53366 hunter fan and it appears the in fan remote control module has failed. This is the module that is mounted in the bottom light fixture. Can I still get a replacement part for this item?

Subscribe to Our Youtube Channel

Summary of Contents for Hunter Channing

  • Page 1 Channing Installation Manual Model: 53366 Noble Bronze 53367 Brushed Nickel 53368 Fresh White Fan weight ±2 lbs: 20 lbs (9.1 kg) ©2017 Hunter Fan Co. PG3591 r122617...
  • Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
  • Page 4: Choosing The Right Installation Location

    A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit.
  • Page 5: Installing The Ceiling Bracket

    You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box.
  • Page 6: Hanging The Fan

    1886 Hanging the Fan NOTICE To prevent damage to fan, ALWAYS lift holding either the fan housing or the downrod. Place the downrod ball into the slot in the ceiling bracket. Progress Check: Your fan should look like this. Ceiling Bracket Downrod Hanging Fan Wiring...
  • Page 7: Wiring The Fan

    If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualified electrician. You are going to need these: Hunter Pro Tip: Here is how to connect the wires: 4 Wire Nuts (these are in the...
  • Page 8: Installing The Canopy

    1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Blades: Align the three blade holes with the three blade iron posts.
  • Page 9 Install the included LED bulbs into the sockets. When necessary, replace with bulbs of same wattage. Repeat x2 WARNING Hunter Pro Tip: Note: Want to install your fan without a light kit? GLASS FALL HAZARD Go to www.HunterFan.com/FAQs and click “How do I install my To prevent SERIOUS INJURY or DEATH, make Fan style may vary.
  • Page 10: Preparing The Remote

    1886 Preparing the Remote To access the battery compartment, remove the Philips screw and the battery door. The battery should be Battery installed with the positive (+) side Door up. Replace with a CR2032 battery when necessary. Phillips screw Installing the Remote Control Cradle You have two options for installing the remote cradle.
  • Page 11: Troubleshooting

    “How do I properly install multiple remote-controlled fans?” for information on how to correct this issue. Hunter Pro Tip: Cleaning the Fan Use soft brushes or cloths to prevent scratching. Cleaning products may damage the finishes. Downrod...
  • Page 12: Limited Lifetime Warranty

    There is no warranty for light bulbs (except where otherwise noted); remote control Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. batteries; fans purchased or installed outside the United States; fans owned by What Does This Warranty Cover? someone other than the original purchaser;...
