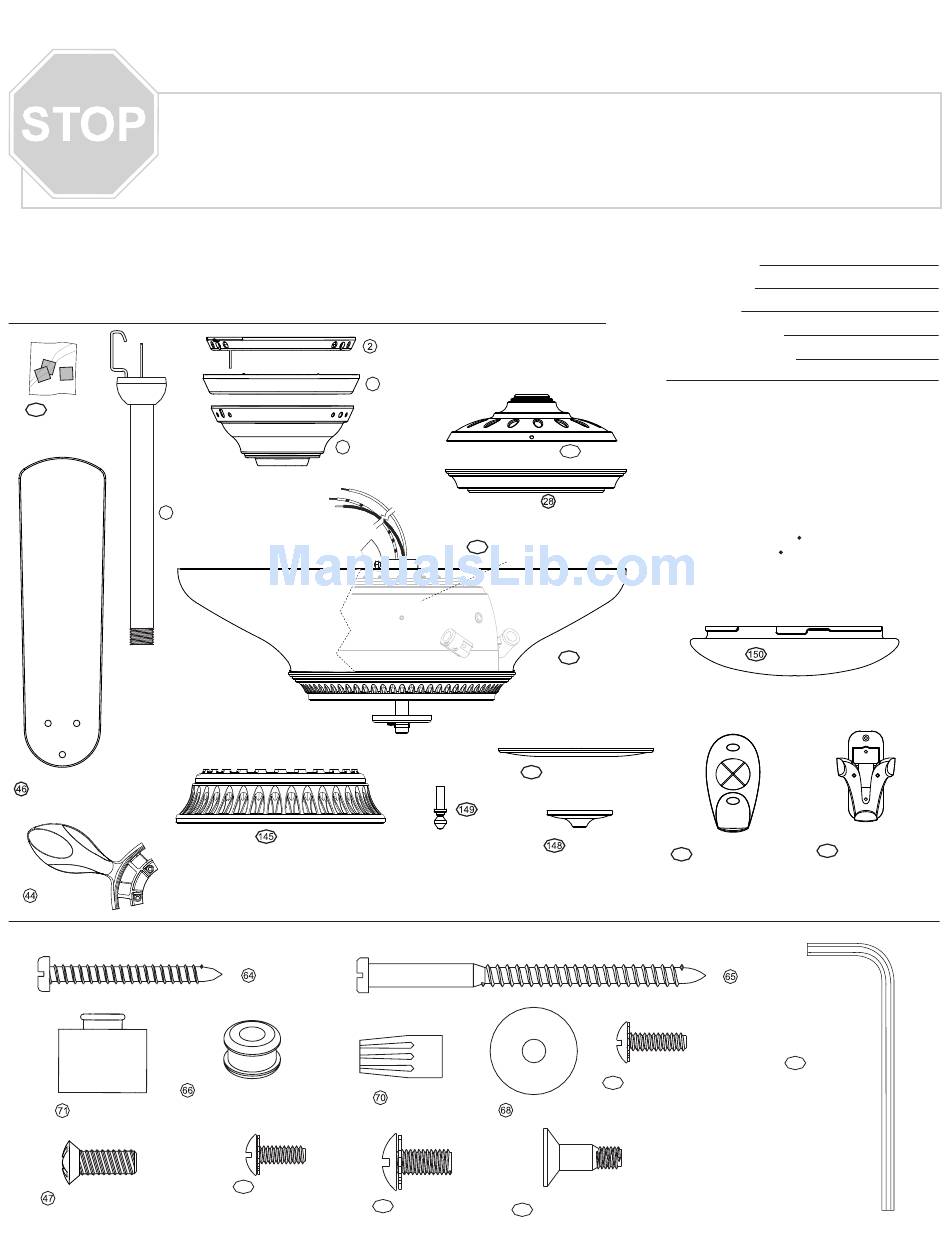

PARTS GUIDE
PARTS GUIDE
Using the Parts Guide below, check to make sure all parts are included in the box.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Before installing your fan, record the following information for your records and warranty assistance.
Fan Parts
75
Balancing
Kit
Hanger Ball
7
/ Downrod
Blade Set
Hardware
Blade Iron Set
Mounting Isolator
Blade Iron Armature Screw
If parts are missing or damaged call 1-888-830-1326.
(Not Drawn to Scale)
Ceiling Plate
4
3
Canopy
Light Fixture
Wood Screw
Rubber Blade Grommet
69
#6-32 x 3/8"
Screw
62
Canopy
Trim Ring
Switch Housing
Remote Receiver
(inside Motor
86
Housing Assembly)
248
Motor Housing Assembly
29
Switch Housing Cover
Finial
(Drawn to Scale)
Wire Nut
Flat Washer
Canopy Screw
67
Blade Assembly Screw
Model Name
Catalog No.
Serial No.
Date Purchased
Where Purchased
Missing / Broken Parts:
Call 1-888-830-1326
Fan does not work:
12
Adapter Cover
1. Reference the Trouble Shooting guide in
your Instruction Manual.
2. Call your Local Service Center.
3. Call Technical Support at 901-248-2222.
For additional information on:
Hunter Products
Dealer Location
Call 1-800-448-6837
Tiffany Bowl
Bottom Cap
87
Remote Transmitter
216
#6-32 x 1/2" Screw
Trouble Shooting
Service Center Locator
www.hunterfan.com
Globe / Shade
Remote Cradle
88
Wood Screw
79
Allen Wrench
98000-01-376 3/10/04
Advertisement
Related Manuals for Hunter 28424
Summary of Contents for Hunter 28424
-
Page 1: Fan Parts
Using the Parts Guide below, check to make sure all parts are included in the box. PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. Before installing your fan, record the following information for your records and warranty assistance. Fan Parts... - Page 2 64403-01-247 64403-01-247 94471-00-860 94493-00-860 05989-01-000 05989-01-000 63730-01-247 63730-01-247 74506-03-247 74506-03-247 05172-01-000 05172-01-000 74506-04-247 74506-04-247 07570-01-000 07570-01-000 64801-01-000 64801-01-000 85662-01-000 85662-01-000 85752-01-000 85752-01-000 85785-01-000 85785-01-000 84756-01-308 84756-01-308 64709-01-308 64709-01-308 64711-01-308 64711-01-308 93969-03-000 93969-03-000 94470-01-308 94492-01-308 28424 94493-01 Part # 98000-01-376 3/10/04...
- Page 3 GUÍA DE PIEZAS Use la Guía de Piezas de abajo para verificar que todas las piezas estén incluidas en la caja. POR FAVOR NO DEVUELVA ESTE PRODUCTO A LA TIENDA DONDE LO COMPRÓ. Antes de instalar su ventilador, anote la información siguiente para sus archivos y asistencia con la garantía. Piezas del ventilador Equipo equilibrador...
- Page 4 74941-05-308 74438-94-000 64403-01-247 94471-00-860 05989-01-000 63730-01-247 74506-03-247 05172-01-000 74506-04-247 07570-01-000 64801-01-000 85662-01-000 85752-01-000 85785-01-000 84756-01-308 64709-01-308 64711-01-308 93969-03-000 94470-01-308 28424 94493-01 Bronce mate 94423-57-000 74704-01-000 93850-01-308 93936-01-308 74510-03-247 06512-01-232 03144-03-232 06301-01-232 64724-01-000 74290-21-308 84614-01-308 93464-01-308 93973-01-308 93463-05-308 75147-08-000 64403-01-247 94493-00-860...
