Pix Controller DigitalEye Instruction Manual page 7

Camera Mode Setting
Switch 8 setup in "Movie Mode" then this switch setting is for 15 or 30 second movie clip, or the
time delay between double photo mode. If you want to take digital movies with your digital
camera you must have your digital camera setup in movie mode.
Camera Mode
15 second digital
movie clip
30 second digital
movie clip

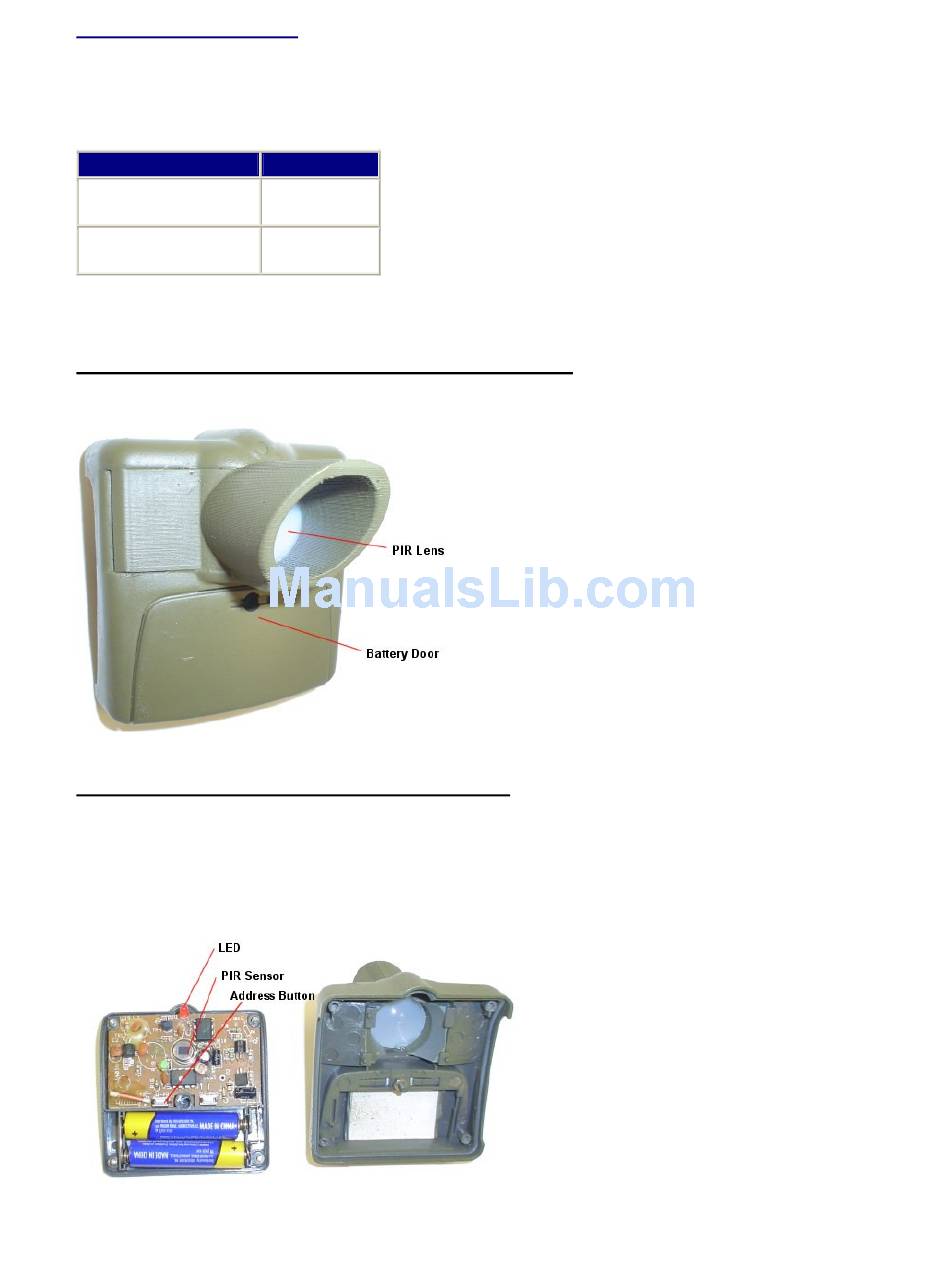

Introduction to the Wireless PIR Motion Sensor
Setting Wireless PIR Motion Sensor Addresses
Each wireless PIR sensor can be setup to send out a unique address. Wireless PIR sensors are
assigned an 'address', which consists of addresses between "A" to "P.
Switch 8
Down/Off
Up/On
The PixController DigitalEye RF (Radio
Frequency) is a wireless camera controller which
works in conjunction with the wireless PIR motion
sensor. The PixController RF boards "listens" for
wireless commands sent from the wireless PIR
motion sensor when the motion sensor is tripped.
When the RF board receives a trigger event it will
trigger the attached camera or camcorder to take
a photo or record video.
There are 2 AAA batteries that power the motion
sensor which will last for a year of continuous use.
To replace them just remove the battery door.
Never touch the PIR lens as this could damage
the PIR sensor
To change the Address that the
Wireless PIR transmits: First, remote
the 4 screws from the back of the case
and take off the cover as shown. Press
and hold the Address button (under the
battery compartment lid) the red LED
flashes first and then blinks the current
setting (once for A, twice for B, etc.).
Release and immediately press the
button the desired number of times for the
House Code you want to set (once for A,
twice for B, etc.) and hold the button on
the last press. 3 seconds after the last
press (while holding the button) the red
LED blinks back the number of times for
the code you set. Release the button.
