Remote VideoEye™ Instruction Manual
Introduction

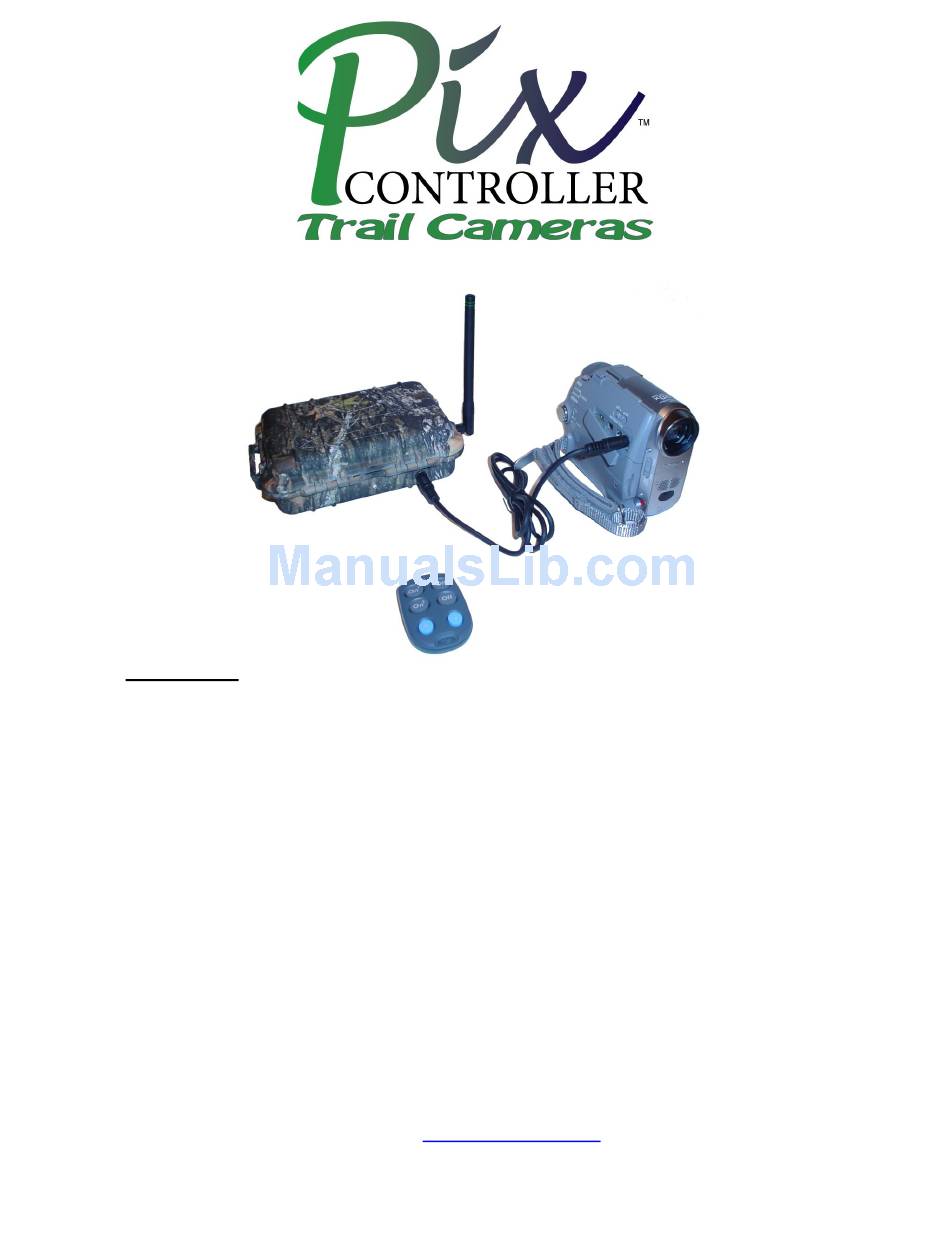

The PixController Remote VideoEye™ is a wireless remote triggering device to control any Sony
or Canon camcorders with the LANC editing port. The Remote VideoEye™ consists of a small
waterproof box with a receiving antenna and LANC port for connecting your user supplied
compatible camcorder. Wireless commands to power "on" your camcorder and start "recording"
can be sent via the included handheld SlimFire remote control unit. Commands to stop the
camcorder recording and power it down are also sent via the SlimFire remote, and command for
controlling the camcorder zoom functions are also possible via remote wireless commands.
The Remote VideoEye™ is perfect for capturing video without needing another camera man.
Filming wildlife documentaries or hunting videos will now take on a whole new and exciting angle.
You can now film "never before seen" angles of your hunt or wildlife documentary. Imagine a
video camera setup from ground angle filming the shot from a tree stand all controlled from the
hunter or camera man in the tree stand? Remote VideoEye™ units are also addressable, which
means you can control several Remote VideoEye™ camcorders units independently in one
setup.
There is no limit to the number of Remote VideoEye™ camcorder unit that can be used at one
time. Several system can be setup at one time and will all set to record with a simple press of the
button with the included SlimFire remote control unit. Remote VideoEye™ can also be triggered
via the X10 wireless PIR motion sensor. Imaging capturing footage of a trophy buck walking into
your setup from angle never before possible. Adding this type of footage to your hunting video or
wildlife documentary will set you apart from others!
Copyright ©, PixController, Inc.
http://www.pixcontroller.com,
all rights reserved
1
Advertisement
Table of Contents
Related Manuals for Pix Controller Remote VideoEye
Summary of Contents for Pix Controller Remote VideoEye
- Page 1 There is no limit to the number of Remote VideoEye™ camcorder unit that can be used at one time. Several system can be setup at one time and will all set to record with a simple press of the button with the included SlimFire remote control unit.
-
Page 2: Contact Information
What’s included with your Remote VideoEye™ System Your Remote VideoEye™ system contains the following items: Remote VideoEye™ Controller Box • Tilt-Swivel Antenna • Sony/Canon LANC camcorder 2.5mm cable • SlimFire Remote Control Unit • PixController Remote VideoEye™ Manual • Inspection/Acceptance of received products The buyer shall be responsible for inspecting all products shipped prior to acceptance;... - Page 3 Remote VideoEye™ System Components Remote VideoEye™ SlimFire Remote Remote VideoEye™ Controller Box Control Unit Remote VideoEye™ Exterior Components Remote VideoEye™User DIP Switch Remote VideoEye™Power Switch Remote VideoEye™ Interior Components...
- Page 4 Connecting Remote VideoEye™ to your camcorder Before powering up the Remote VideoEye™ unit you will need to connect the LANC Cable to your Camcorder unit. Your camcorder will need to be either a Sony or Canon camcorder with a LANC editing port.
- Page 5 Hi8 and 8mm Camcorders with LANC jacks: Most 8mm and older Hi8 camcorders manufactured by the following: Sony, Canon, Nikon, Ricoh, Hitachi, Yashika, Sanyo, Olympus, Blaupunkt, Grundig, Fujix, Kyocera, Siemens, Fisher, and possibly other makes. Current and recent Hi8 camcorder models generally do not have a LANC jack. You should further verify if a particular 8mm or older Hi8 camcorder actually has a LANC jack (most do - some don't).
- Page 6 LED will blink 5 times letting you know the camera system will now become active and ready for recording. If you get a constant 10 blinks from the Remote VideoEye™ this means there is a problem with the connection between the Remote VideoEye™ controller box and the camcorder. Please check to make sure the LANC cable is connected correctly.
-
Page 7: User Dip Switch
Note, Switch 8 is not used. Setting the Address Code Switches 1, 2, and 3 control the address code of the Remote VideoEye™ controller box. Both the SlimFire Remote Control and Remote VideoEye™ controller box need to be set to the same address code in order for the unit to function properly. -
Page 8: Zoom Control
Note: To put the Remote VideoEye back into “recording mode” when using Test Mode. Sound Switch 7 will let you control the sound indication. On the Remote VideoEye™ controller is a small speaker that can send out sound commands. The default mode is having this turned off, but there may be times when you would like a sound indication your unit is receiving the wireless commands. - Page 9 (shown lower right photo). There are situations where you may want to use both a tree stand and a ground Remote VideoEye™ units. In this case you may want to have the tree stand unit respond to the zoom control where the ground setup would not.
-
Page 10: Troubleshooting
LANC cable. Next turn your camcorder on into recording mode and power on the Remote VideoEye™ controller box Q: I do not see the red LED turn on when I power on the Remote VideoEye™ A: Replace the AA batteries in the Remote VideoEye™.
