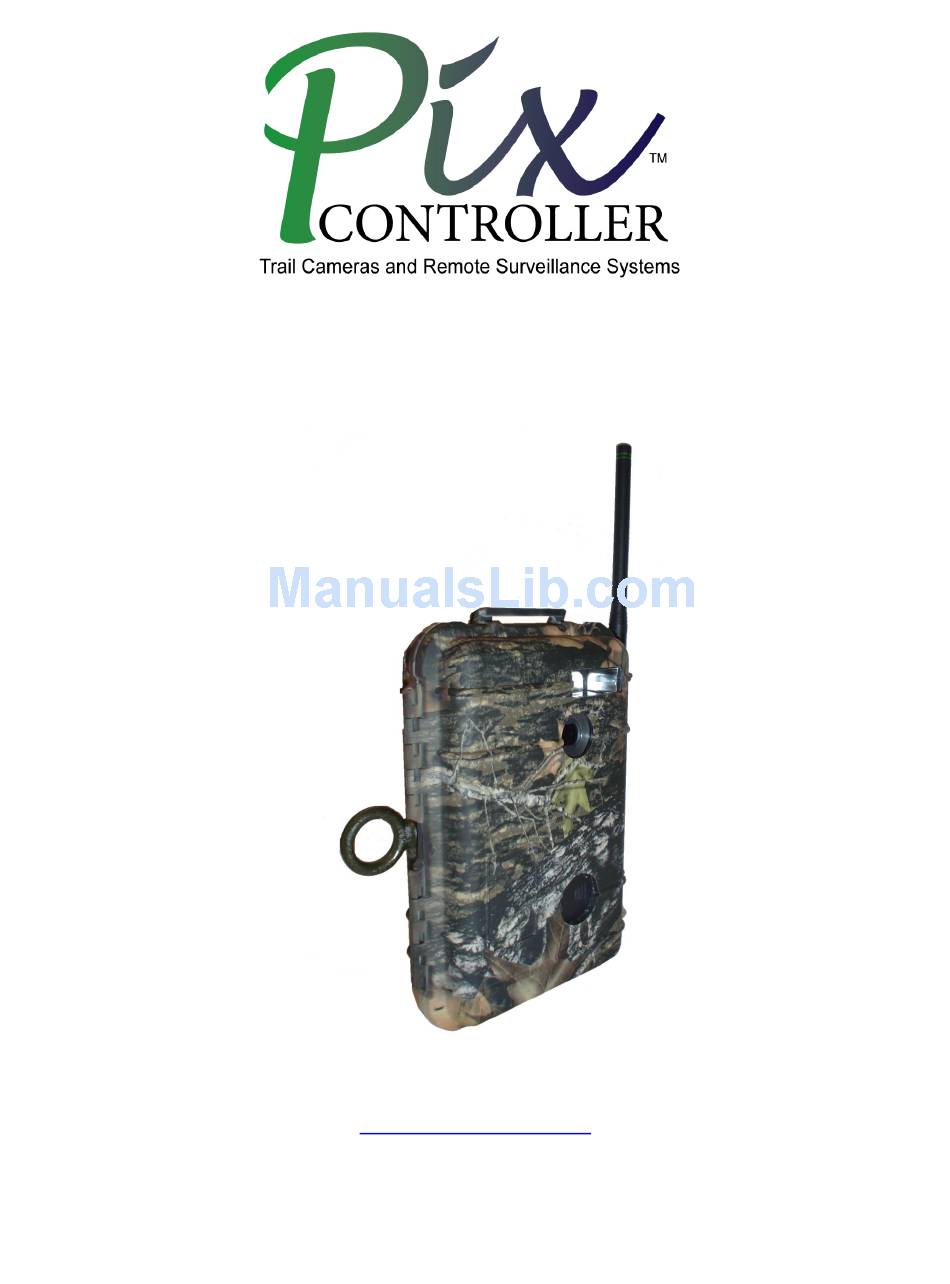

Page 1: Instruction Manual
DigitalEye™ 7.2 RF White Flash & IR Camera Instruction Manual Copyright PixController, Inc., All rights reserved. http://www.pixcontroller.com Email: sales@pixcontroller.com Phone: (724) 733-0970 Fax: (724_ 733-0860... -
Page 2: Getting Started
Getting Started Thank you for your purchase of the PixController, Inc. DigitalEye™ 7.2 Wireless RF camera system. This high-resolution digital game camera operates 24 hours a day, seven days a week, continually scouting game even when you’re not in the field. - Page 3 Quick Start Tips 1. Please read the DigitalEye™ trail camera manual which is located on the enclosed CD. Simply install the CD into your computer and click on the DigitalEye™ manual link. The manual is in PDF format, but you may wish to print a hardcopy to your PC’s printer. Your DigitalEye™...
- Page 4 DigitalEye™ 7.2 Overview Listed below are the components of your DigitalEye™ 7.2 unit. These items will be referred to throughout this manual. Please become familiar with these items. DigitalEye™ 7.2 RF Exterior DigitalEye™ 7.2 RF Interior...
- Page 5 To power up the system turn the Power on/off switch to the "on" position. You will hear a short melody from the PixController RF board letting you know it's powered on. Next there will be a 30 second delay. After this time expires you will hear 4 quick beeps which let you know the system is going into a 1 minute auto walk test phase.
- Page 6 Sensor Switch 1 Switch 2 Switch 3 Address Down/Off Down/Off Down/Off Down/Off Down/Off Up/On Down/Off Up/On Down/Off Down/Off Up/On Up/On Up/On Down/Off Down/Off Up/On Down/Off Up/On Up/On Up/On Down/Off Up/On Up/On Up/On PIR Delay Setting Switches 4, 5, and 6 control the delay between PIR events. This setting is used so you can limit or not limit the number of photos taken when a motion event.
- Page 7 The PixController DigitalEye RF (Radio Frequency) is a wireless camera controller which works in conjunction with the wireless PIR motion sensor. The PixController RF boards "listens" for wireless commands sent from the wireless PIR motion sensor when the motion sensor is tripped.
- Page 8 The hotter the target the longer detection range you will have. For example a car can be seen at a greater distance. The RF wireless range back to the DigitalEye unit is about 100’ to 150’ depending on line of sight.
- Page 9 Be sure you do not turn on the Sony digital camera. If you do the trail camera will not function. You must also wait the full 1.5 Turn the unit power switch on. minute warm up period before your DigitalEye is ready to take Make sure the Digital Camera is turned off photos.
- Page 10 Locking your DigitalEye™ 7.2 Unit The DigitalEye™ 7.2 was designed such that it could be easily locked to any tree in the woods. To protect your investment we recommend using the Master Lock® Python™ Cable locking system. To lock your DigitalEye™ 7.2 unit, follow the 5-Step process below.
- Page 11 Checking your DigitalEye™ 7.2 Unit When checking your DigitalEye™ 7.2 unit it’s a good idea to carry a spare set of AA camera batteries and a spare memory card for the digital camera. Approach the DigitalEye™ 7.2 unit from the rear unless you want your photo taken.
- Page 12 Checking photos in the field You can now remove the digital camera from the DigitalEye™ 7.2 unit. You can review any photos taken by the DigitalEye™ 7.2 on the digital camera’s TFT color display. Refer to your digital camera user manual for...
- Page 13 3. Never attach your DigitalEye™ to a tree that can move in the wind, this can set off the camera system. Attach your DigitalEye™ to a firm tree or pole for best results. If you don't have access to large tree in the area you can mount your unit to a metal or wooden stake.
- Page 14 Visual Media Explorer™ Photo Browsing Software Included on the DigitalEye™ 7.2 Installation CD is a copy of the powerful photo browsing software – Visual Media Explorer™. This software runs on any Win 95, 98, 2000, NT, and XP operating system.
-
Page 15: Unit Specifications
Photo delay: ~1.8 seconds Photos per charge: ~300 (1/2 taken with flash) DigitalEye™ 7.2 Batteries: 4 AA alkaline battery (lasting about 4-8 months) & Li Ion batteries in the Sony 7.2 camera lasting 300+ photos Temperature range: 5ºF to 110ºF Copyright PixController, Inc., All rights reserved.
