Hunter 23964 Parts Manual

PARTS GUIDE PARTS GUIDE
PARTS GUIDE PARTS GUIDE

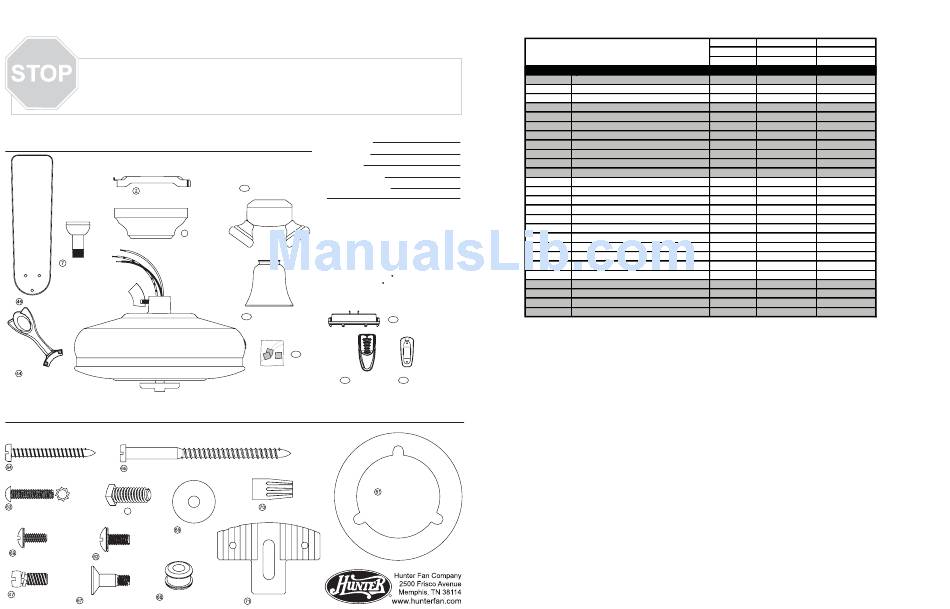

Using the Parts Guide below, check to make sure all parts are included in the box.
If parts are missing or damaged call 1-888-830-1326.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Before installing your fan, record the following information for your records and warranty assistance.
Fan Parts
Hanger Bracket
Assembly
3
Hanger Ball
/ Downrod
Assembly
Blade Set
Motor / Housing Assembly
Blade Iron Set
Hardware
Wood Screw
Wood Screw
Screw, Low Profile Washer
8 Set Screw
Flat Washer
Screw, Machine, 6-32
Screw, Canopy
Screw, Blade Iron
Blade Grommet
Armature Screw, Blade Assembly
Model Name
(Not Drawn to Scale)
Catalog No.
Serial No.
Date Purchased
Where Purchased
49 Light Kit Assembly
Missing / Broken Parts:
Call 1-888-830-1326
Fan does not work:
Canopy
1. Reference the Trouble Shooting guide in
your Instruction Manual.
2. Call your Local Service Center.
3. Call Technical Support at 901-248-2222.
For additional information on:
Hunter Products
Dealer Location
Call 1-800-448-6837
www.hunterfan.com
150 Glass Globe / Shade
75 Balancing Kit
87 Remote Control
Transmitter
(Drawn to Scale)
Wire Nut
Mounting Isolator

Parts List

Item #
1
2
3
7
8
44
46
47
49
150
60
61
62
63
64
65
66
67
68
69
70
Trouble Shooting 71
Service Center Locator
75
86
87
88
Remote Control
86
Receiver
88 Remote Control
Cradle
Washer,
Installer Choice
98000-01-310
01/01/07
R
Model #
Asm. Dwg. #
Finish
Item Name Qnty
Canopy Assembly
* Hanger Bracket Assembly 1
* Canopy 1
* Hanger Ball / Downrod Assembly 1
Set Screw 2
Blade Iron Set 1
Blade Set 1
Screw, Blade Iron Armature 11
Light Kit Assembly 1
Glass Globe / Shade 3
* Hardware Kit 1
Washer, Installers Choice 1
Screw, Canopy 2
Screw, Low Profile Washer 3
Wood Screw 2
Wood Screw 2
Blade Grommet 16
Screw, Blade Assembly 16
Flat Washer 4
Screw, Machine, 6-32 3
Wire Nut 4
Mounting Isolator 2
Balancing Kit 1
Remote Control Receiver 1
Remote Control Transmitter 1
Remote Control Cradle 1
23964 23965
95329-01 95329-02
Bright Brass Brushed Nickel
Part # Part #
74090-02-232 74090-02-232
92697-01-116 92697-01-214
74229-03-116 74229-03-214
03009-01-232 03009-01-133
93451-05-116 93451-05-214
74296-13-000 74296-20-000
63755-05-232 63755-05-133
96946-01-000 96946-09-000
84884-01-000 84884-09-000
92895-00-850 92895-00-851
73788-01-232 73788-01-232
74510-04-232 74510-04-133
74508-06-232 74508-06-232
06512-01-232 06512-01-232
03144-03-232 03144-03-232
05989-01-000 05989-01-000
63730-06-232 63730-06-133
06301-01-232 06301-01-232
74506-03-232 74506-03-133
05172-01-000 05172-01-000
74135-01-000 74135-01-000
07570-01-000 07570-01-000
85068-02-000 85068-02-000
85094-01-000 85094-01-000
85093-01-000 85093-01-000
