Wells HC100 Owner's Manual
Countertop ceramic hotplates installation use & care exploded view parts list wiring diagram
Hide thumbs
Also See for HC100:
- Specifications (2 pages) ,
- Parts list (6 pages) ,
- Owner's manual (24 pages)
Table of Contents
Advertisement
Quick Links
223
WELLS BLOOMFIELD, LLC
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
fax: 314-781-2714
www.wells-mfg.com
OWNERS MANUAL
for
COUNTERTOP
CERAMIC
HOTPLATES
Models:
HC100
HC125
HC225
Includes
INSTALLATION
USE & CARE
EXPLODED VIEW

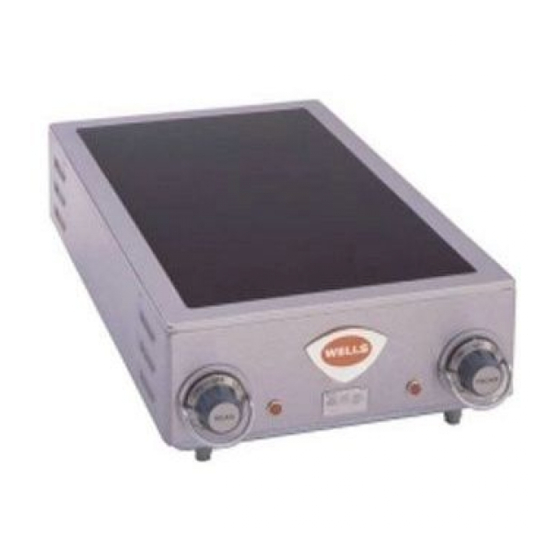

Model HC225
PARTS LIST
WIRING DIAGRAM
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
2M-303755
12
p/n
Rev. D
M223
0120
Advertisement
Table of Contents
Related Manuals for Wells HC100
Summary of Contents for Wells HC100
-
Page 1: Owners Manual
Additional manuals are available from your WELLS DEALER. THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any questions concerning installation, operation or maintenance of this equipment. -
Page 2: Shipping Damage Claim Procedure
The for information and other details concerning warranty. prices charged by Wells Bloomfield for its products are SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS Resetting of safety thermostats, circuit breakers, over cleaning schedules, are customer responsibility. - Page 3 CUSTOMER SERVICE DATA optimum performance. SPECIFICATIONS MODEL ELEMENT WIDTH DEPTH VOLTS AMPS PLUG HEIGHT HC100 Single 7” 12-5/8” 12-5/8” 120 V 11.7 A 1.4 kW NEMA 5-15P 1” HC125 Single 9” 14-3/4” 14” 208 V 1ø 9.0 A 1.9 kW...
- Page 4 FEATURES & OPERATING CONTROLS HEATING ELEMENT (UNDER CERAMIC TOP) CERAMIC TOP HOT SURFACE INDICATOR LIGHT TEMPARATURE CONTROL KNOBS POWER INDICATOR LIGHT POWER CORD NAME PLATE ADJUSTABLE LEGS Ceramic Top Provides smooth, low maintenance heating surface Heating Element Provides heat for food preparation Note: elements located under ceramic top Hot Surface Indicator Glows whenever ceramic top is above 150ºF (66ºC)
-
Page 5: Agency Approval Information
PRECAUTIONS AND GENERAL INFORMATION This appliance is intended for use in commercial establishments WARNING: only. ELECTRIC SHOCK This appliance is intended to prepare food for human consumption. HAZARD No other use is recommended or authorized by the manufacturer or its agents. - Page 6 INSTALLATION NOTE: DO NOT discard UNPACKING & INSPECTION the carton or other packing Carefully remove the hotplate from the carton. Remove all materials until you have protective plastic film, packing materials and accessories from the inspected the appliance for hotplate before plugging the hotplate into electrical power or otherwise hidden damage and tested it performing any installation procedure.
- Page 7 OPERATION GENERAL OPERATIONAL NOTES CAUTION: HOT SURFACES Carefully read the description of the hotplate operation on the specification sheet. Exposed surface scan be hot DO NOT attempt to perform any maintenance or service unless the to the touch and may cause hotplate is unplugged or disconnected from electrical power.
-
Page 8: Cleaning Instructions
CLEANING INSTRUCTIONS CAUTION: PREPARATION ELECTRIC Unplug or disconnect hotplate from electrical power before cleaning. SHOCK HAZARD Allow hotplate to cool completely before cleaning. Unplug hotplate from electric FREQUENCY power before cleaning. Daily TOOLS CAUTION: Cleaning Creme BURN HAZARD Razor Scraper Clean Cloth or Sponge Allow hotplate to cool Mild Detergent or Cleaner Formulated for Stainless Steel... - Page 9 Avoid sliding cookware across hotplate surface. broken hotplate surface. Severe injury may result. Remove stains and metal marks from the glass-ceramic cook Contact an Authorized Wells surface after use by cleaning with cleaning creme. Allow Service Agency immediately for repairs.
-
Page 10: Troubleshooting
One or more sections Temperature control not on Turn temperature control to won’t heat desired setting Damaged temperature control, Contact Authorized Wells element or other internal component Service Agency for repairs Hotplate not hot enough Temperature control not set Adjust for desired temperature... - Page 11 NOTES...
- Page 12 EXPLODED VIEW: HC100 HC-100 COUNTERTOP ELECTRIC CERAMIC HOTPLATE 22328 HC100 COUNTERTOP CERAMIC HOTPLATE 120VAC WELLS Model: HC100 Countertop Electric Ceramic Hotplate PL223 IL1814 Rev. A 7/10/09...
- Page 13 PARTS LIST: HC100 HC100 COUNTERTOP ELECTRIC CERAMIC Fig No Part No Description WS-501686 TOP ASSY HC-100 120V I7-301686 TOP ASSY 2Q-301661 GLASS CERAMIC HC100 2H-301213 INSUL LYTHERM HP 1/4X5/8 2J-301121 LIGHT SIGNAL CLEAR 120V 2C-31053 NUT 8-32 KEPS MS NICKEL...
- Page 14 EXPLODED VIEW: HC125 HC-125 COUNTERTOP ELECTRIC CERAMIC HOTPLATE 22305 HC-125 COUNTERTOP CERAMIC HOTPLATE 120VAC WELLS WELLS Model: HC100 Countertop Electric Ceramic Hotplate PL223 IL1814 Rev. A 7/10/09...
- Page 15 PARTS LIST: HC125 HC-125 COUNTERTOP ELECTRIC CERAMIC Fig No Part No Description WS-501649 TOP ASSY REPLACEMENT HC-125 I7-301214 TOP DRAWN HC-125 1256 WS-501109 GLASS CERAMIC HC-125 1256 2H-301213 INSUL LYTHERM HP 1/4X5/8 2J-301121 LIGHT SIGNAL CLEAR 120V 2C-31053 NUT 8-32 KEPS MS NICKEL 2N-301120 ELEM 240V 2500W HC-125 2M-300534...
- Page 16 EXPLODED VIEW: HC225 HC-225 COUNTERTOP ELECTRIC CERAMIC HOTPLATE 22307 HC-225 COUNTERTOP CERAMIC HOTPLATE 208/240VAC REAR REAR FRONT FRONT Model: HC100 Countertop Electric Ceramic Hotplate PL223 IL1814 Rev. A 7/10/09...
- Page 17 PARTS LIST: HC225 HC-225 COUNTERTOP ELECTRIC CERAMIC Fig No Part No Description 2Q-501650 TOP ASSY REPLACEMENT HC-225 I7-301215 TOP ASSY HC-225 WS-501110 GLASS CERAMIC HC-225 & 2256 2H-301213 INSUL LYTHERM HP 1/4X5/8 2J-301121 LIGHT SIGNAL CLEAR 120V 2C-31053 NUT 8-32 KEPS MS NICKEL 2N-301120 ELEM 240V 2500W I7-301119...
- Page 18 WIRING DIAGRAM...
- Page 19 WIRING DIAGRAM...
- Page 20 NOTES...
- Page 21 NOTES...
- Page 22 NOTES...
-
Page 23: Customer Service Data
2R-302040 For factory authorized service, or to order factory CLEANING CREME, CERAMIC HOTPLATE 2L-301124 authorized replacement parts, contact your Wells authorized service agency, or call: Wells Bloomfield, LLC 10 Sunnen Dr., P.O.Box 430129 St. Louis MO 63143 USA Service Dept. - Page 24 WELLS BLOOMFIELD, LLC 10 Sunnen Dr., St. Louis, MO 63143 telephone: 314-678-6314 fax: 314-781-2714 www.wells-mfg.com...
