Model HC2256
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
2M-303756
p/n
Rev. E
WELLS BLOOMFIELD, LLC
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
IMPORTANT: DO NOT DISCARD THIS MANUAL
fax: 314-781-2714
www.wells-mfg.com
WIRING DIAGRAM
224
OWNERS
MANUAL
for

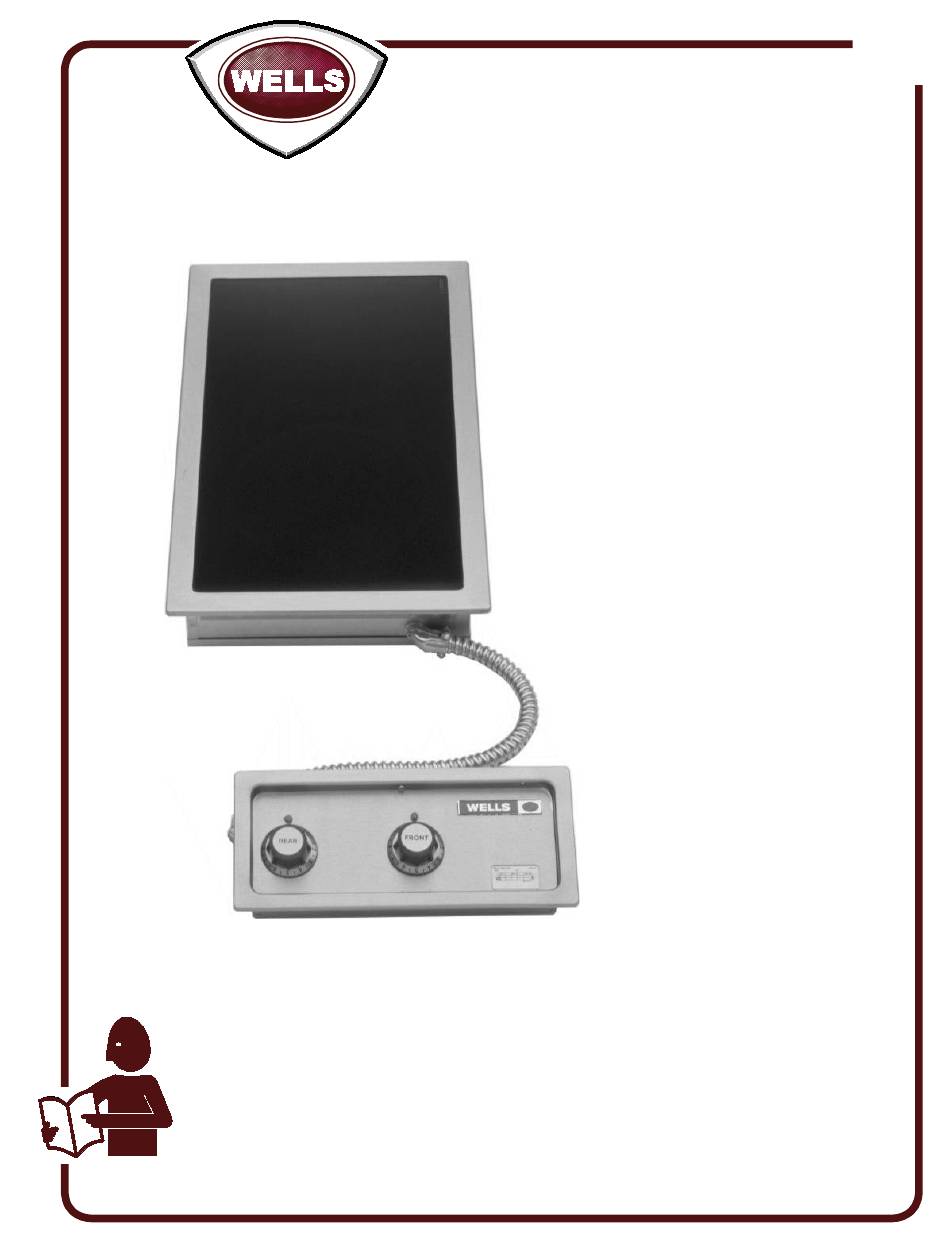

BUILT-IN
CERAMIC
HOTPLATES
Models:
HC1006
HC1256
HC2256
Includes
INSTALLATION
USE & CARE
EXPLODED VIEW
PARTS LIST
09
M224
0626 rms
Advertisement
Table of Contents
Related Manuals for Wells HC1256
Summary of Contents for Wells HC1256
- Page 1 Additional manuals are available from your WELLS DEALER. THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any questions concerning installation, operation or maintenance of this equipment.
-
Page 2: Limited Warranty Statement
The pric- for information and other details concerning warranty. es charged by Wells Bloomfield for its products are based SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS Resetting of safety thermostats, circuit breakers, over cleaning schedules, are customer responsibility. -
Page 3: Specifications
PARTS & SERVICE CUSTOMER SERVICE DATA INTRODUCTION Thank You for purchasing this Wells Bloomfield appliance. Proper installation, professional operation and consistent maintenance of this equipment will ensure that it gives you the very best performance and a long, economical service life. -
Page 4: Features & Operating Controls
FEATURES & OPERATING CONTROLS Fig. 1 Built-In Ceramic Hotplate - Features & Operating Controls HOTPLATE UNIT Ceramic Top Provides smooth, low maintenance heating surface Heating Element Provides heat for food preparation Note: elements located under ceramic top Hot Surface Indicator Glows whenever ceramic top Light is above 150ºF (66ºC) -
Page 5: Precautions And General Information
PRECAUTIONS AND GENERAL INFORMATION This appliance is intended for use in commercial establishments WARNING: only. ELECTRIC SHOCK HAZARD This appliance is intended to prepare food for human consumption. No other use is recommended or authorized by the manufacturer or its All servicing requiring agents. -
Page 6: Installation
Damage due to being connected to the wrong voltage For supply connections, use 14 ga. (HC1006) or 10 ga. (HC1256 and or phase is NOT covered by HC2256) copper wires suitable for at least 75ºC. warranty. -
Page 7: Operation
OPERATION GENERAL OPERATIONAL NOTES CAUTION: HOT SURFACE Carefully read the description of the hotplate operation on the specification sheet. Exposed surfaces DO NOT attempt to perform any maintenance or service unless the can be hot to the touch hotplate is disconnected from electrical power. and may cause burns. -
Page 8: Cleaning Instructions
CLEANING INSTRUCTIONS CAUTION: PREPARATION ELECTRIC Disconnect hotplate from electrical power before cleaning. SHOCK Allow hotplate to cool completely before cleaning. HAZARD FREQUENCY Disconnect hotplate from Daily electric power before cleaning. TOOLS Cleaning Crème PN: 2L-301124 CAUTION: Razor Scraper BURN HAZARD Clean Cloth or Sponge Mild Detergent or Cleaner Formulated for Stainless Steel Allow hotplate to cool com-... -
Page 9: Special Care Instructions
Avoid sliding cookware across hotplate surface. broken hotplate surface. Severe injury may result. Remove stains and metal marks from the glass-ceramic cook surface Contact an Authorized Wells after use by cleaning with cleaning creme. Allow Service Agency immediately hotplate surface to cool completely before cleaning for repairs. -
Page 10: Troubleshooting
Service Agency for repairs NOTE: There are no user serviceable components in the hotplate. In all cases of damage or component malfunction, contact your Authorized Wells Service Agen- cy for repairs. - Page 11 NOTES...
- Page 12 EXPLODED VIEW: HC1006 HC-1006 BUILT-IN ELECTRIC HOTPLATE - 208/240V - SPIRAL ELEMENT 22329 HC-1006 BUILT-IN CERAMIC HOTPLATE 120VAC Flex Conduit - 1/2” Dia. WELLS WELLS Model: HC1006 Built-In Electric Ceramic Hotplate - 208/240V PL224 IL1802 Rev. A 6/25/09...
- Page 13 PARTS LIST: HC1006 HC1006 Built -In Ceramic Hotplate Fig No. Part No Desctiption I7-301690 TOP ASSY HC1006 CERAMIC 2C-33935 SCREW 6ABX5/16 PH PAN SMS 2Q-301661 GLASS CERAMIC HC100, HC1006 2H-301213 INSUL LYTHERM HP 1/4X5/8 2N-301660 ELEM 120V 1400W HC100 2J-301121 LIGHT SIGNAL CLEAR 120V 2C-31053 NUT 8-32 KEPS MS NICKEL...
- Page 14 EXPLODED VIEW: HC1256 HC-1256 BUILT-IN CERAMIC HOTPLATE 22308 HC-1256 BUILT-IN CERAMIC HOTPLATE 208/240VAC FLEX CONDUIT - 1/2” DIA WELLS WELLS Model: HC1256 Built-In Electric Ceramic Hotplate - 208/240V PL224 IL1803 Rev. A 6/25/09...
- Page 15 PARTS LIST: HC1256 HC1256 Built -In Ceramic Hotplate Fig No. Part No Desctiption I7-301101 TOP ASSY HC1256 2C-33935 SCREW 6ABX5/16 PH PAN SMS WS-501109 GLASS CERAMIC HC125, HC1256 WS-501213 INSUL LYTHERM HP 1/4X5/8X6' 2I-Z12311 GASKET-FIBER WASHER 2K-34136X FTG FLEX CON 90X 1/2 MOD...
- Page 16 EXPLODED VIEW: HC2556 HC-2256 BUILT-IN CERAMIC HOTPLATE 22270 HC-2256 BUILT-IN CERAMIC HOTPLATE 208/240VAC FLEX CONDUIT 1/2” DIA REAR REAR FRONT FRONT Model: HC2256 Built-In Electric Ceramic Hotplate PL224 IL1804 Rev. A 6/25/09...
- Page 17 PARTS LIST: HC2256 HC2256 Built -In Ceramic Hotplate Fig No. Part No Desctiption 2C-33935 SCREW 6ABX5/16 PH PAN SMS I7-301102 TOP ASSY HC2256 WS-501110 GLASS CERAMIC HC225, HC2256 WS-501213 INSUL LYTHERM HP 1/4X5/8X6’ 2K-34136X FTG FLEX CON 90 X 1/2 MOD 2I-Z12311 GASKET FIBER WASHER 2C-31053...
-
Page 18: Wiring Diagram
WIRING DIAGRAM... - Page 19 WIRING DIAGRAM...
- Page 20 NOTES...
- Page 21 NOTES...
- Page 22 NOTES...
-
Page 23: Parts And Service
2R-302040 For factory authorized service, or to order factory CLEANING CRÈME, CERAMIC HOTPLATE 2L-301124 authorized replacement parts, contact your Wells authorized service agency, or call: Wells Bloomfield, LLC 10 Sunnen Dr., St. Louis MO 63143 USA Service Dept. phone: (314) 678-6314... - Page 24 WELLS BLOOMFIELD, LLC 10 Sunnen Dr., St. Louis, MO 63143 telephone: 314-678-6314 fax: 314-781-2714 www.wells-mfg.com...
