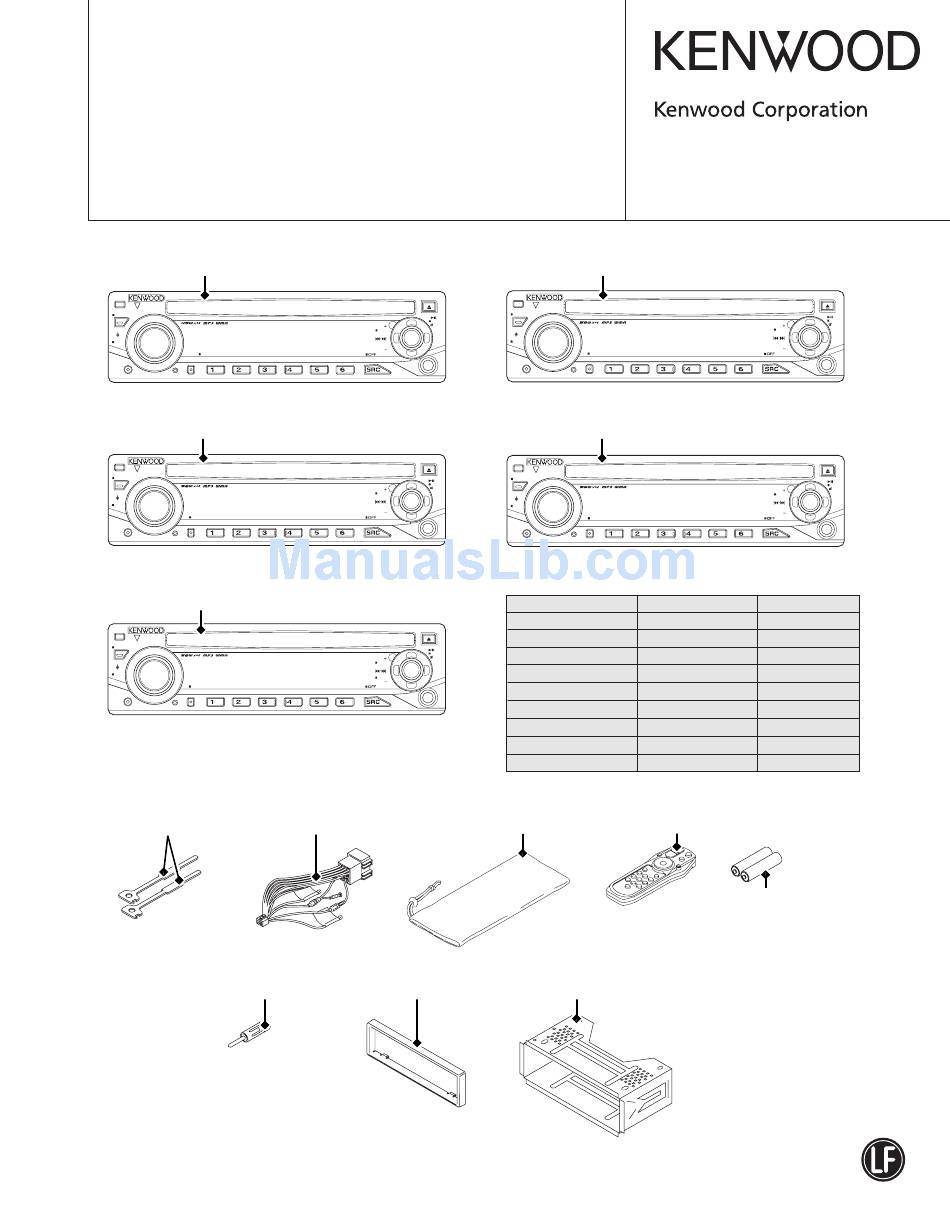

CD RECEIVER
KDC-W237AY/W237GY
KDC-W3037AY/W3037GY
KDC-W311AY/W311GY
KDC-W3537AY/W3537GY/W4037Y
SERVICE MANUAL
Panel assy
KDC-W237AY/W237GY (A64-4058-02)
B.BOOST
MENU
VOL
AUD
SET UP
AUTO
AME
SCAN
RDM
ATT
Panel assy
KDC-W311AY/W311GY (A64-4057-12)
B.BOOST
MENU
VOL
AUD
SET UP
TI
AME
SCAN
RDM
ATT
Panel assy
KDC-W4037Y (A64-4038-12)
B.BOOST
MENU
VOL
AUD
SET UP
TI
AME
SCAN
RDM
ATT
Lever
DC cord
(D10-4589-04) x2
(E30-6427-05)
Antenna adaptor
(T90-0523-05)
* Depends on the model. Refer to the parts list.
/
DISP
KDC-W237
FM
SCRL
AM
REP
F.SEL
/ PTY
DISP
KDC-W311
FM
SCRL
AM
REP
F.SEL
/ PTY
DISP
KDC-W4037
FM
SCRL
SW
AM
REP
F.SEL
M.RDM
Carrying case
(W01-1685-05)
* Escutcheon
(B07-xxxx-xx)
© 2006-12 PRINTED IN JAPAN
B53-0483-00 ( N ) 229
Panel assy
KDC-W3037AY/W3037GY (A64-4056-12)
B.BOOST
MENU
VOL
AUD
SET UP
TI
AME
SCAN
RDM
ATT
Panel assy
KDC-W3537AY/W3537GY (A64-4042-12)
B.BOOST
MENU
VOL
AUD
SET UP
TI
AME
SCAN
RDM
ATT
SPARE TDF PANEL
MAIN UNIT NAME
TDF PARTS No.
KDC-W237AY
Y33-2660-60
KDC-W237GY
Y33-2660-61
KDC-W3037AY
Y33-2650-63
KDC-W3037GY
Y33-2650-64
KDC-W311AY
Y33-2650-65
KDC-W311GY
Y33-2650-66
KDC-W3537AY
Y33-2650-61
KDC-W3537GY
Y33-2650-62
KDC-W4037Y
Y33-2650-60
* Remote controller assy (RC-557)
(A70-2087-05)
Mounting hardware assy
(J21-9716-03)
This product uses Lead Free solder.
/ PTY
DISP
KDC-W3037
FM
SCRL
AM
REP
F.SEL
/ PTY
DISP
KDC-W3537
FM
SCRL
AM
REP
F.SEL
M.RDM
TDF NAME
TDF-W237A
TDF-W237G
TDF-W3037A
TDF-W3037G
TDF-W311A
TDF-W311G
TDF-W3537A
TDF-W3537G
TDF-W4037
Battery
(Not supplied)
