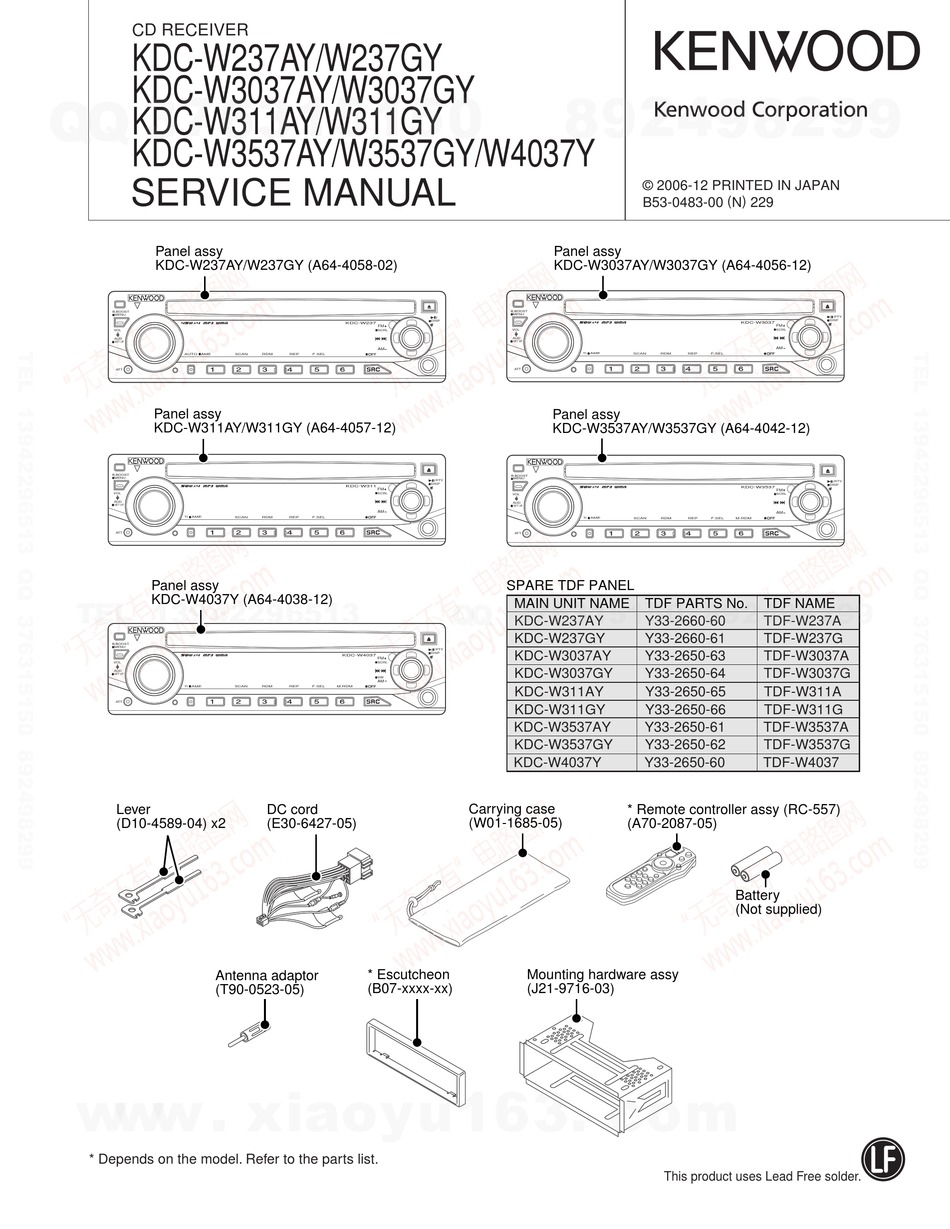

CD RECEIVER
KDC-W237AY/W237GY
QQ
3 7 63 1515 0
KDC-W3037AY/W3037GY
KDC-W311AY/W311GY
KDC-W3537AY/W3537GY/W4037Y
SERVICE MANUAL
