Maintenance
To replace the battery:
•
Slide the boots off of the battery terminals.
•
Disconnect the BLACK battery cable and the black battery
charger wire from the battery Negative terminal (–).
•
Disconnect the RED battery cable and the red battery charger
wire from the battery Positive terminal (+).
•
Remove the battery strap.
To install a new battery:
•
Reverse the steps above and follow Figure 15.
•
Double check all connections to ensure they are in the correct
location and secure. See Figure 15.
•
Secure battery with battery strap.

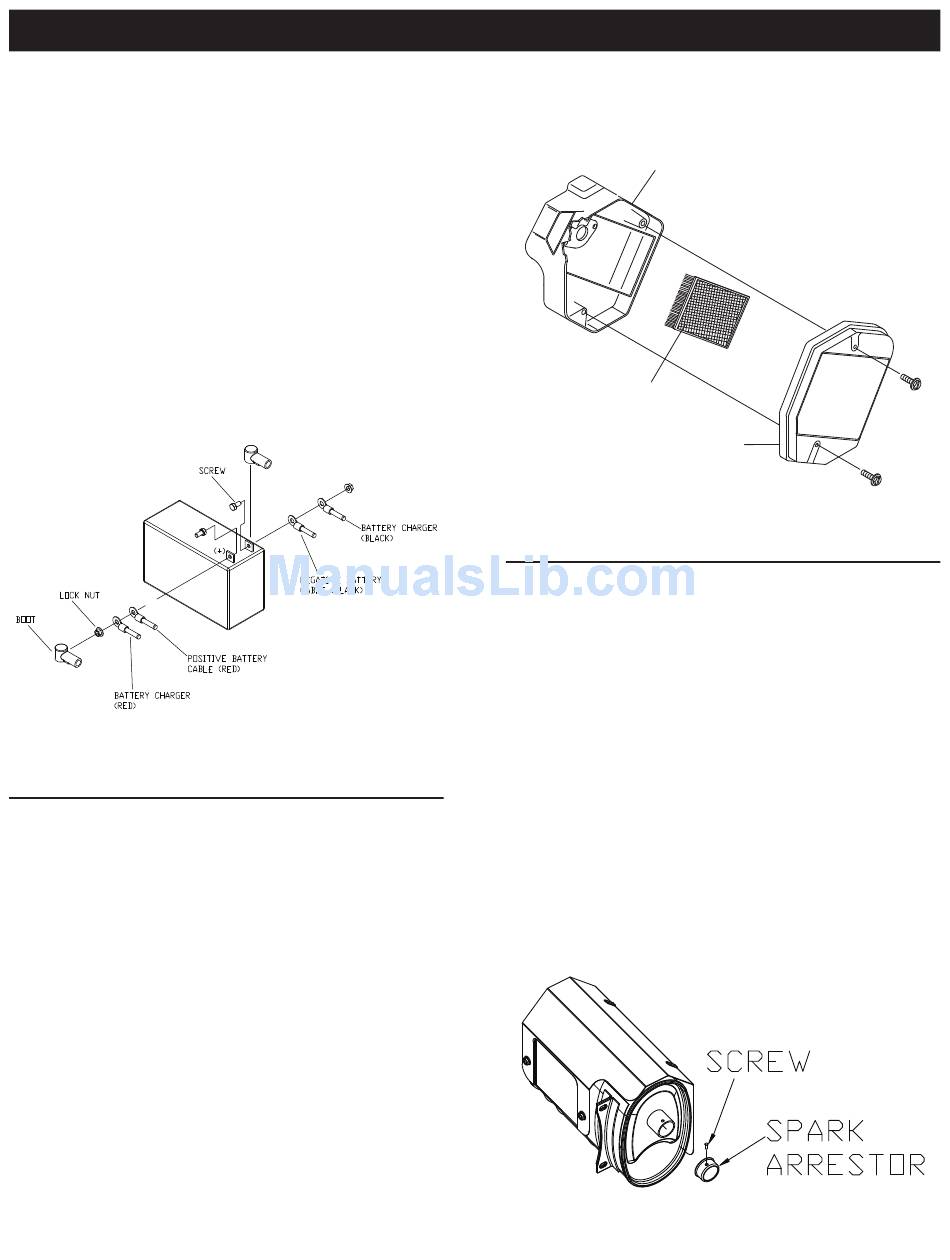

Figure 15 - Battery Connections
Battery Type: CP12-10, 12V, 10AH
3.3.8 AIR FILTER REPLACEMENT
The engine will not run properly and may be damaged if using
a dirty air cleaner. Clean or replace the air cleaner paper filter
once a year. Clean or replace more often if operating under dusty
conditions (Figure 16).
To clean or replace paper air filter:
•
Remove air cleaner cover and remove paper filter.
•
Clean paper filter by tapping it gently on a solid surface. If the
filter is too dirty, replace it with a new one. Dispose of the old
filter properly.
•
Clean air cleaner cover, then insert new paper filter into the base
of the air cleaner. Re-install air cleaner cover.
To order a new air filter, please contact the nearest authorized
service center at 1-800-333-1322.
14
NOTE:
Figure 16 - Air Filter
BASE
FILTER
COVER
3.3.9 CLEAN SPARK ARRESTOR SCREEN
The engine exhaust muffler has a spark arrestor screen. Inspect
and clean the screen at least once each year (Figure 17). If unit is
used regularly, inspect and clean more often.
If using the generator on any forest-covered, brush-covered
or grass-covered unimproved land, it must equipped with a
spark arrestor. The spark arrestor must be maintained in good
condition by the owner/operator.
Clean and inspect the spark arrestor when the engine is at
ambient temperature as follows:
•
Remove spark arrestor from muffler by removing the screw.
•
Inspect screen and replace if torn, perforated or otherwise
damaged. DO NOT USE a defective screen. If screen is not
damaged, clean it with commercial solvent.
•
Replace the spark arrestor and secure with the screw.
Figure 17 - Spark Arrestor
NOTE:
