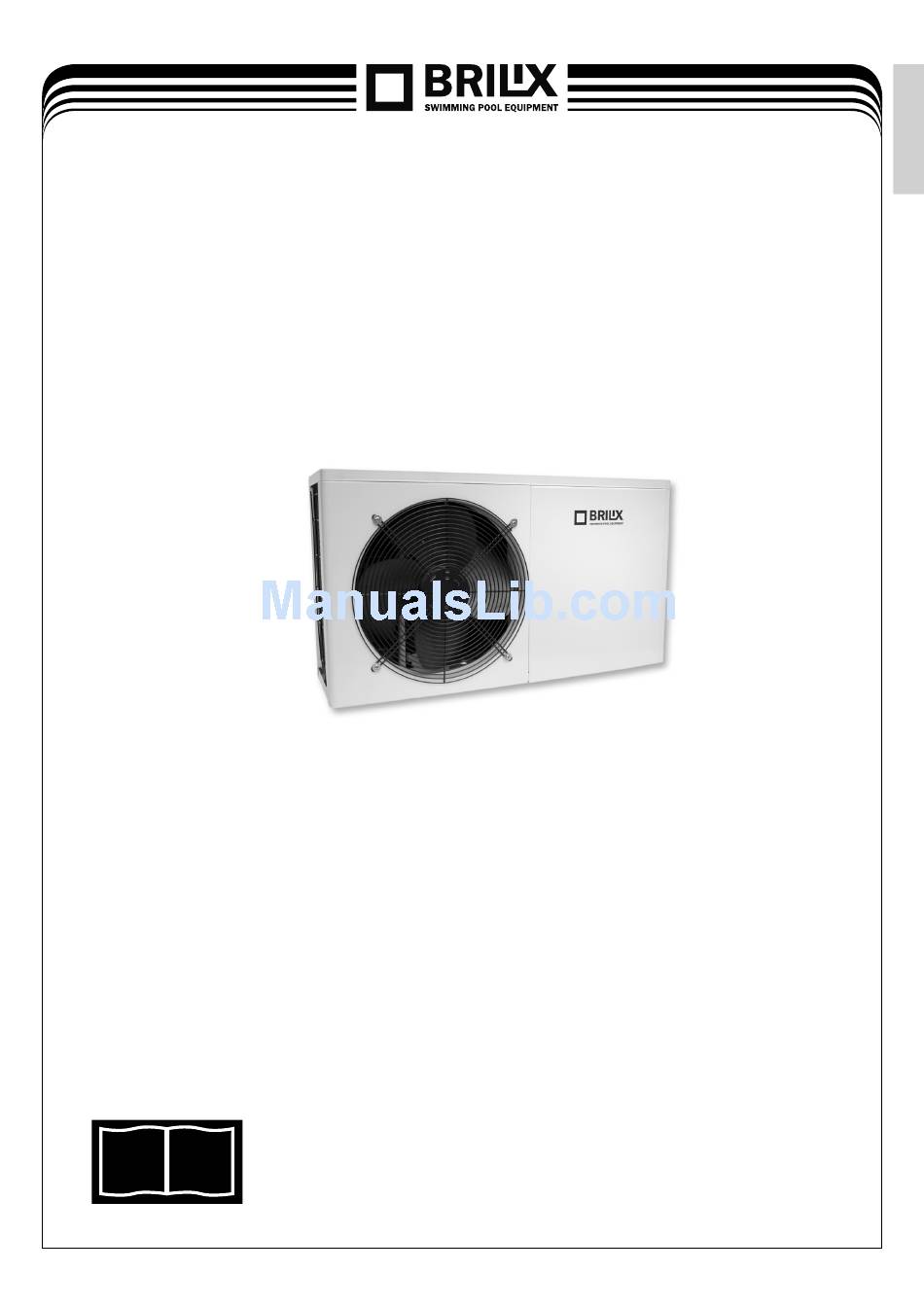

- Page 1 SWIMMING POOL HEAT PUMP (THP 55, THP 100, THP 120, THP 170) INSTALLATION USER GUIDE Read the instructions...
-
Page 2: Table Of Contents
Contents Performance and properties ........4 System design ............4 III. Performance ............5 Dimensions ............6 Preparations for installation ........6 Operating the control unit ........9 VII. Connection diagram ..........12 VIII. Maintenance ............13 Troubleshooting ........... 13 Thank you for choosing our product and for your trust in our company. -
Page 3: Performance And Properties
I. Performance and properties High performance Our heat pumps are very effi cient in transferring heat from air to water in the pool. They can provide savings of up to 80% in energy compared to an electric heater. Long life The heat exchanger is made from a PVC/titanium composite pipe resistant to the long-term effects of pool water. -
Page 4: Performance
III. Performance properties Performance properties of a monoblock-type heat pump for swimming pools Code THP 55 THP 100 THP 120 THP 170 5500 9900 11800 17300 Nominal heat output 19000 34000 41300 59500 Heat input 1240 1940 2650 3670 Operating current for heating... -
Page 5: Dimensions
IV. Dimensions Dimensions of heat pumps (monoblock-type) for swimming pools Model THP 55 THP 100 THP 120 Dimension 1000 1090 1090 Unit: mm Model THP 170 Dimension 1165 81,5 Unit: mm V. Preparations for installation 5.1 Selection of the installation position •... - Page 6 Model with horizontal discharge min. 1000 mm inlet inlet min. 1000 mm from above min. min. 1000 mm 1000 mm outlet min. 2000 mm Requirements for free space around the horizontal heat pump Model with vertical discharge more than 1000 mm inlet min.
- Page 7 5.2 Installation diagram back pressure valve fi lter chlorinator water pump trap back pressure valve...
-
Page 8: Operating The Control Unit
VI. Operating the control unit Preliminary steps before start-up A) Inspect the heat pump • Visually check the device or the pipeline within the device to ensure that the device was not damaged during transport. • Check that the ventilator does not touch any other part of the device. B) Check the electric connections •... - Page 9 6. 3 How to change the mode Press the button to change the mode to automatic, heating or cooling. The appropriate indicator light will be illuminated on the right side of the control unit. 6.4 How to check the settings and the current measured values In the standby mode or operation mode, use the buttons to fi...
- Page 10 6. 5 How to change parameter settings 1. In the standby mode, use buttons to fi nd the parameter 0-A and the current measured values for B-F. 2. Simultaneously, for fi ve seconds, press buttons to activate parameter setting. 3. Change the parameter value until you hear a beep and until the parameter is indicated on the display as a fl...
-
Page 11: Connection Diagram
VII. Connection diagram Models: THP 55, THP 100, THP 120, THP 170 CONNECTION DIAGRAM FOR A SWIMMING POOL HEAT PUMP four-way valve ventilator pump electric heating unit blue green / yellow green / yellow black four-way valve common black blue... -
Page 12: Maintenance
VIII. Maintenance • Check that the device water inlet is open. It is necessary to avoid low water and air fl ows into the device because they could worsen its performance and reliability. You have to clean the swimming pool fi lter regularly to avoid damage to the device as a result of a dirty or blocked fi... - Page 13 WARNING • Before installation, check that the electricity supply complies with the technical conditions of your heat pump. The details are specifi ed on the plaque fi tted to the device or in this guide. • Install recommended electric protective devices in accordance with local regulations. •...
