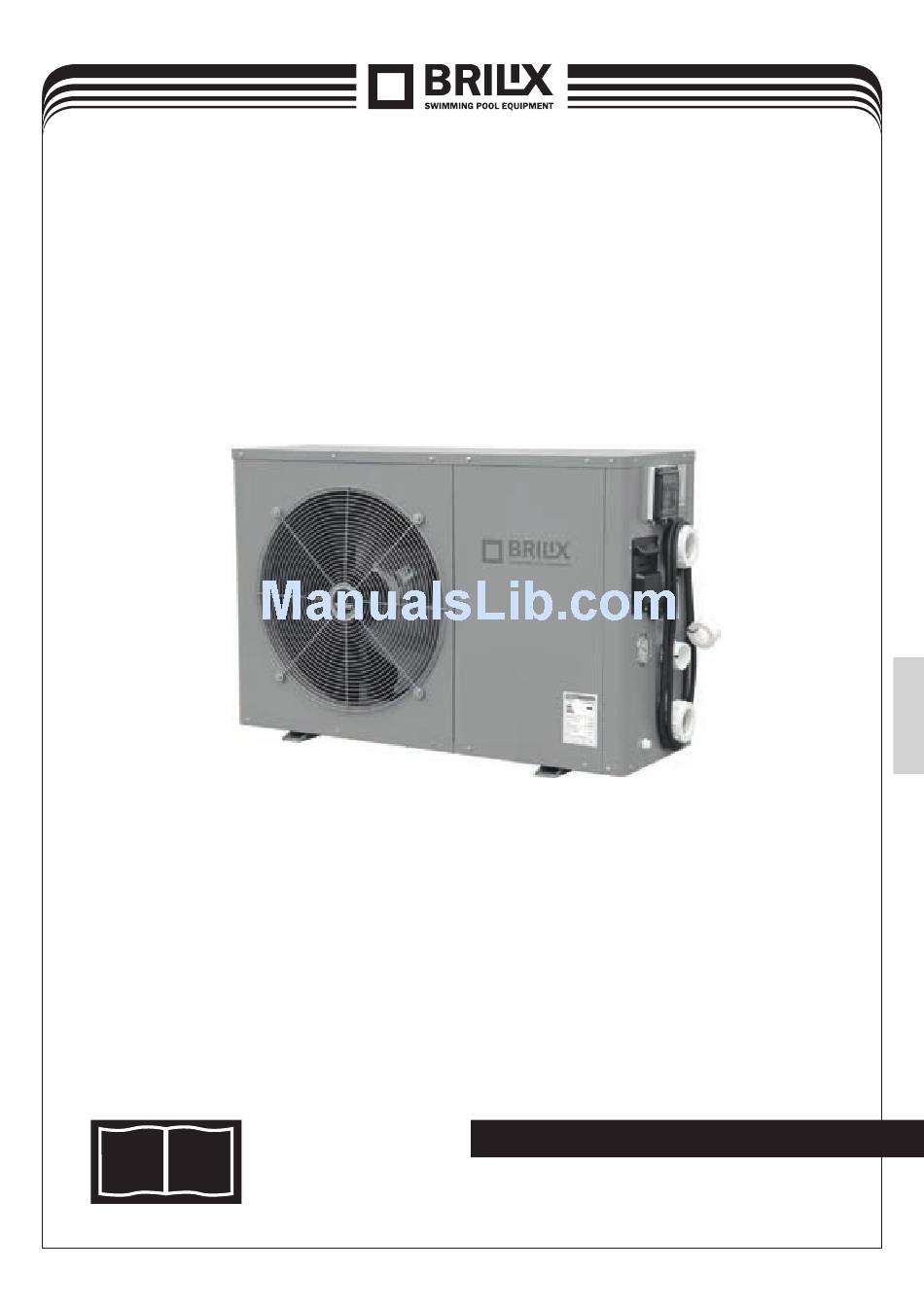

Page 1: User Manual
INVERTER SWIMMING POOL HEAT PUMP USER MANUAL VERZE 8. 6. 2017 / REVIZE: 3. 11. 2017 Read the instructions Illustrative photo... - Page 2 Regulation (EU) n° 517/2014 of 16/04/14 on fluorinated greenhouse gases and repealing Regulation (EC) n° 842/2006 Thank you to choose the Inverter swimming pool heat pump for your pool heating, it will heat your pool water and keep the constant temperature when ambient temperature at -10°C to 35°C.
- Page 3 Index 1. Specification ............................4 2. Dimension ..............................7 3. Installation ............................. 8 4. Adjust the by-pass kit ........................10 5. Initial operation ..........................10 6. Controller Operation ........................12 7. Operation logic ..........................15 8. Malfunction and Trouble shooting ....................16 9.
-
Page 4: Specification
1. Specification Model XHPFD 80 E XHPFD 100 E XHPFD 140 E * Performance at Air 27°C, Water 27°C, Humidity 80% Heating (Max./Std./Min.) 10-2,3 Power consumption (Std.) 1,52-0,18 C.O.P. (Std.) 13-6,6 * Performance at Air 15°C, Water 26°C, Humidity 70% Heating (Max./Std./Min.) - Page 5 Model XHPFD 160 E XHPFD 210 E XHPFD 260 E * Performance at Air 27°C, Water 27°C, Humidity 80% Heating (Max./Std./Min.) 17-3,8 Power consumption (Std.) 2,54-0,29 C.O.P. (Std.) 13-6,7 * Performance at Air 15°C, Water 26°C, Humidity 70% Heating (Max./Std./Min.) 11,5-3 Power consumption (Std.) 2,2-0,37...
- Page 6 Model XHPFD 260 EII XHPFD 350 E XHPFD 350 EII * Performance at Air 27°C, Water 27°C, Humidity 80% Heating (Max./Std./Min.) 26-13 33-16,5 33-6,5 Power consumption (Std.) 2,56 3,26 3,26 C.O.P. (Std.) * Performance at Air 15°C, Water 26°C, Humidity 70% Heating (Max./Std./Min.) 20-10 25-12,5...
-
Page 7: Dimension
2. Dimension XHPFD 100 E XHPFD 160 E... -
Page 8: Installation
3. Installation (1) The heat pump unit must be installed by professional technicians .otherwise unit may be damaged or body injured, even dead (2) The unit is designed for outdoor location with good ventilation. Recirculation of cold discharge air back into evaporator coil will greatly reduce heating capacity and efficiency of the unit, which will void the compressor warranty. - Page 9 (14) If water pressure is over 10 KPA, or water flow rate is more than 11 cubic meters through heat exchanger, it is necessary to install the by-pass pipe in water system. (15) Installation illustration Swimming pool Filter Pump Heat pump NOTE: The factory only provides the heat pump unit.
-
Page 10: Initial Operation
4. Adjusting the bypass Discharge connection 1. Valve 1 2. Valve 2 BYPASS 3. Valve 3 4. Outside 5. Inside 6. Pump 7. To swimming pool 8. From the filter Use the following procedure to adjust the bypass: • fully open all three valves •... - Page 11 Depending on the initial temperature of the water in the swimming pool and the air temperature, it may take several days to heat the water to the desired temperature. A good swimming pool cover can dramatically reduce the required length of time. Water Flow Switch: It is equipped with a flow switch for protecting the HP unit running with adequate water flow rate .It will turn on when the pool pump runs and shut it off when the...
-
Page 12: Controller Operation
6. Controller Operation button Press to start the heat pump unit, the LED display shows the desired water temperature for 5 seconds, then shows the inlet water temperature and the operation mode. Press to stop the heat pump unit and show “OFF” During the parameter checking and setting, press the to quick-exit and save the current setting. - Page 13 Parameter code Condition Range Remarks IPM mould temperature 0-120 °C Inlet water temperature -9-99 °C Outlet water temperature -9-99 °C Ambient temperature -30 °C-70 °C Real testing value Gas return temperature -30 °C-70 °C Pipe temperature -30 °C-70 °C Gas exhaust temperature 0-C5 °C (125 °C) Steps of electronic expansion valve 0-99...
- Page 14 6.10 Press this button, the light will be flash, the heat pump will operate in ‘Full output’ only. 6.11 While you choose the Smart, the heat pump will just operate in ‘Medium output’ and ‘Full output’. When in ‘Medium output’, the light of Smart will flash. When in ‘Full output’, the lamp of Smart is lighting, the lamp of Powerful will be flash.
-
Page 15: Operation Logic
7. Operation logic 7.1 The heating operation logic Working status Working mode Water in temperature Heat pump working level < = setT - 1 Powerful Smart setT - 1 < a < setT + 1 Smart > = setT + 1 Standby <... -
Page 16: Malfunction And Trouble Shooting
7.3 The operating logistic of shift between Silent, Smart and Powerful mode: the default setting in factory is in Smart operating mode. If you choose the Silent, the heat pump will just operate at silent and smart mode. If you choose the Smart mode, the heat pump will just operate at Smart and Powerful mode. If you choose the Powerful mode, the heat pump will just operate at powerful mode. - Page 17 Faults Remark Reason Solution IPM module output circuit temperature EE14 The sensor output is abnormal Check the instrument panel or replace sensor failure Protection against excessively high IPM EE15 Check the instrument panel or replace module temperatures Protection of PFC module EE16 Check the instrument panel or replace DC fan error...
-
Page 18: Electrical Wiring
9. Electrical Wiring XHPFD 100 E, XHPFD 140 E, XHPFD 160 E * The dotted line part are only used in some models Transformer Compressor Electronic Expansion Valve Ambient temperature Heating pipe temperature Temperature of exhaust gases Water out temperature Water in temperature Display, Control Water flow switch... -
Page 19: Maintenance
Electrical connection Note: Although the heat pump is electrically isolated from the rest of the swimming pool system, this only prevents the flow of electrical current to or from the water in the pool. Earthing is still required for protection against short-circuits inside the unit. Always provide a good earth connection. -
Page 20: Exploded View
11. Exploded view... - Page 21 Part name Part name Top cover Wiring terminal Rear grille Intake valve Vaporiser Pressure gauge Insulation plate Blue sealing lip PFC coil Cover for wiring power supply Pillar Watertight box Fan motor handle Red sealing lip Side grille Regulator Fan motor Flow switch Base Copper pipes...
