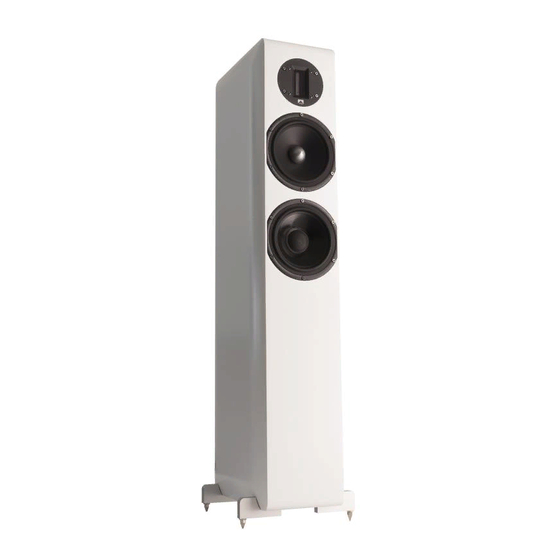

- Page 1 XTZ 99.36 MKII Walnut XTZ 99.36 MKII Black Matt XTZ 99.36 MKII White High-End floor speaker User manual © 2011 XTZ AB , www.xtz.se Page: 1...
-
Page 2: Table Of Contents
Table of contents Page: Contents About XTZ Technical presentation Preparations Practice of sound / Installation and placement tips Mounting /Area of usage Sound adjustment Technical specifications Service & Support Page: 2... -
Page 3: Contents
Contents Contents Congratulations of your purchase the XTZ 99.36 MKII When combined with surround audio/video electronics, you will experience sound of motion pictures or music records much deeply and naturally. Now when you watch your favourite movie or listen to your reference music CDs, you... -
Page 4: Technical Presentation
Technical presentation Cabinet design The box design with a narrow baffle and curved side is not only an esthetical neat shape, but also provides advantages in terms of acoustics, since non parallel walls suppress internal resonances of the cabinet. The cabinet is made from sturdy MDF board, which offers good sonic qualities. - Page 5 The copper plating of the top and bottom plates along with a solid copper phase plug improves the heat conduction and thus contributes to the high power durability. Gold plated terminals reduce contact resistance and serves as anti-corrosion. Large windows in the basket both above and below the spider reduces sound reflection, air flow noise and cavity resonances.
-
Page 6: Preparations
Preparations Unpackning Carefully unpack the speaker, and pay attention so you don't break anything. If possible, save the box for future transportations. If there should be damage to the loudspeaker, please contact your retailer. Accessories Bass reflex plug (6 pcs) User manual Loops for level adjustment (6pcs) Page: 6... -
Page 7: Practice Of Sound / Installation And Placement Tips
Practice of sound / Installation and placement tips This chapter contains common information on loudspeaker placement and installation. These are general rules, so there are exceptions. In which room do No matter how good the equipment is, in the wrong listening environment it will inevitably sound bad. - Page 8 Cables Try to keep them as short as possible. By its electrical parameters, a long conductor will have a bigger influence on the sound than a short one. It may also work as an antenna and thus receive various signals that may become a constant noise in an active subwoofer.
-
Page 9: Mounting /Area Of Usage
Mounting and Connecting tips Mounting Normally the XTZ 99.36 MKII is placed standing by a wall. The wall behind and besides the alternatives loudspeaker have influence both on the bass level and the bass characteristics, so please be patient and try different distances to the rear and side walls. -
Page 10: Sound Adjustment
Mechanical taste, so please has patience when trying on the XTZ 99.36 MKII. adjustment of the out your prefered setting. boundary frequency The level can be adjusted in 6 different levels in the bass range. - Page 11 Basic setting for Since the acoustics is determined by a wide range of external factors there exists no single neutral set- neutral bass ting that will work properly for all cases. reproduction External factors that have influence on the sound include the room, the placing, output levels etc.
-
Page 12: Technical Specifications
Technical specifications Construction type 2 1/2-way with separates boxes for woofer and Woofer/midrange, Bass reflex cabinet that may be set as a closed box, and a total of eight distinct bass modes (Room Tuning). The treble and bass levels are adjustable. Dimensions 244 x 910 x 352 mm (W x H x D) (with front cover) -
Page 13: Service & Support
Service & support "Do-It-Yourself"- We apply "do-it-yourself" service on all XTZ service, products constructed and produced using common products. service technology, so that basically most people are able to "unscrew" the loudspeaker If you by yourself are able to find out what part of using common tools.
