USB Dongle Series Model:UD-731N

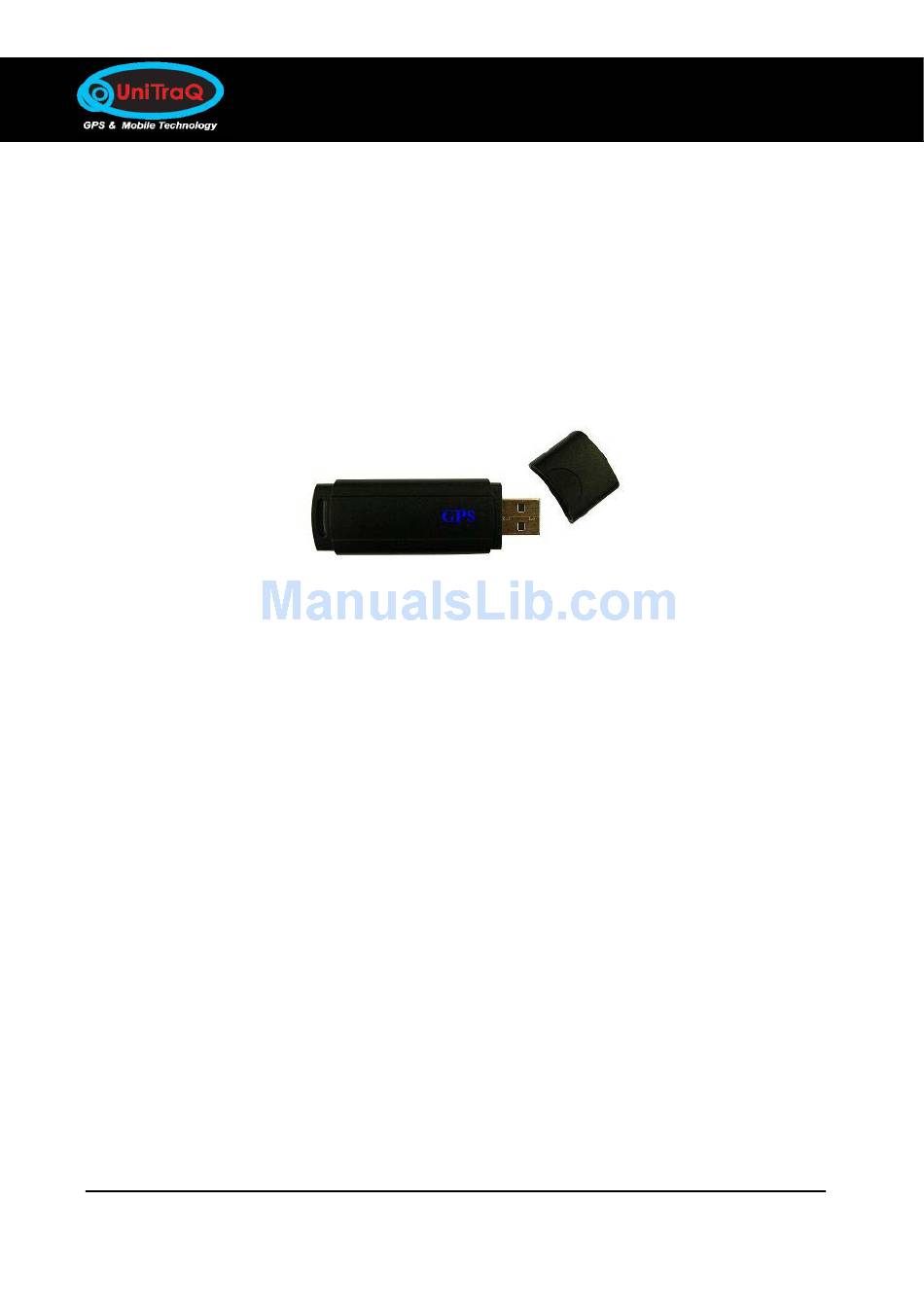

GPS USB Dongle Series
Model:UD-731N
UD-731N
User's Manual
UniTraQ International Corp. All right reserved, © 2011
2F., No.136, Ziqiang S. Rd., Zhubei City, Hsinchu County 30264, Taiwan (R.O.C.)
TEL：886-3-6578491
FAX：886-3-6578492
MADE IN TAIWAN
UniTraQ International Corp.
RoHS compliance
.
1
2011,01, Version 1.1
Advertisement
Table of Contents
Related Manuals for UniTraQ UD-731N
Summary of Contents for UniTraQ UD-731N
- Page 1 USB Dongle Series Model:UD-731N GPS USB Dongle Series Model:UD-731N UD-731N User’s Manual UniTraQ International Corp. All right reserved, © 2011 2F., No.136, Ziqiang S. Rd., Zhubei City, Hsinchu County 30264, Taiwan (R.O.C.) TEL：886-3-6578491 FAX：886-3-6578492 MADE IN TAIWAN UniTraQ International Corp.
-
Page 2: Table Of Contents
USB Dongle Series Model:UD-731N Contents 1. Introduction………………..………………………………………………………….………….3 2. Package contents……………………………………………………………………….……….3 3. System requirements…………………………………………………………………………...3 4. Features………………………..……………………………………………………………….…3 5. Specifications………………………………………………………………………………….…4 5.1 Electronic Characteristics…………………………………………………………………..4 5.2 Physical Characteristics…………………………………………………………………….5 6. Getting started…………………………………………………………………………………...6 6.1 LED Status……………………………………………………………………………….……6 7. Operations………………………………………………………………………………………..7 7.1 Overview……………………………………………………………………………………….7 7.2 Install USB Driver…………………………………………………………………………..7-9 7.3 Device Manage Confirmation and Memory Usage……………………………………..9 8. -
Page 3: Introduction
Having fast time-to-first-fix and high sensitivity, the UD-731N offers good navigation performance even in urban canyons. The UD-731N is built in with NAND FLASH memory for users to utilize it for memory storage. The navigation software can also install in the built-in memory to support full navigation function with GPS receiver in the same device. -
Page 4: Specifications
USB Dongle Series Model:UD-731N 5. Specifications 5.1 Electronic Characteristics Parameter Specification Receiver Type 50 channels Re-acquisition sensitivity -160dBm Tracking sensitivity -160dBm Cold start sensitivity -145dBm Receiver frequency 1575.42MHz Code C/A code Accuracy (1) Position 2.5m CEP (2) Velocity 0.1m/sec Startup Time hot start <... -
Page 5: Physical Characteristics
USB Dongle Series Model:UD-731N 5.2 Physical Characteristics Parameter Specification Physical dimension 78.62mm X 24.83mm X 11.15mm Weight 22+-10%g UniTraQ International Corp. RoHS compliance 2011,01, Version 1.1... -
Page 6: Getting Started
USB Dongle Series Model:UD-731N 6. Getting Started There are only few simple steps that you need to follow before using your UD-731N: Install the USB driver onto your laptop using the included CD-ROM . Plug the GPS receiver into your laptop’s USB port and assign the COM port. From... -
Page 7: Operations
7. Operations 7.1 Overview UD-731N is an easy to use device with GPS receiver and memory built-in together. After you install the USB driver on the computer or laptop, both GPS receiver and maeory can work with the computer or laptop normally. - Page 8 USB Dongle Series Model:UD-731N C. The driver is on Installing UniTraQ International Corp. RoHS compliance 2011,01, Version 1.1...
-
Page 9: Device Manage Confirmation And Memory Usage
D. On the next dialogue, click Finish to complete driver installation 7.3 Device Manage Confirmation and Memory Usage: Plug UD-731N into PC, the GPS COM port will appear in Device Manage. At the same time the Removable Disk will appear, therefore you can click OK button to utilize storage memory. -
Page 10: Application Software Introduction
USB Dongle Series Model:UD-731N 8. Application Software Introduction 8.1 u-Center The u-Center application software is provides by u-blox to support the devices with their GPS chipset built-in. This section describes the simple and quick user guides to this useful program. Please refer to the user manual of this software for more details. -
Page 11: Starting U-Center
USB Dongle Series Model:UD-731N 8.1.2 Starting u-center After a successful installation, u-center will start up as shown in Figure 1: Figure 1: Start Display 8.1.3 Configuring the Serial Connection When u-center is started for the first time, the COM port needs to be initialized. u-center supports the COM-Settings listed below and all u-blox GPS receivers are pre-configured this way. -
Page 12: Main Frame
USB Dongle Series Model:UD-731N Figure 2: Start Display after a successful connection 8.1.4 Main Frame The Main Frame is the primary display screen of u-center. It displays all tool bars and some of the information provided by the GPS receiver. In the status bar, information about communication, UTC time, Operating Time, used protocol (NMEA or UBX), used file, etc. - Page 13 USB Dongle Series Model:UD-731N Protocol Information: This box indicates the current message set that is being used to communicate with the GPS receiver. This can be the NMEA-0183 standard or the UBX protocol. The UBX protocol provides more extensive information with the receiver.
-
Page 14: Trouble Shooting
Put GPS receiver inside the car, some of the sun-control film with metal that makes microwave can not be radiate. GPS not fix problem If you see “GPS not fix” message on the screen after you enable the UD-731N GPS receiver, please consider the possible problems below: ... -
Page 15: Approved Nmea Message
USB Dongle Series Model:UD-731N 10. APPROVED NMEA MESSAGE The serial interface protocol is based on the National Marine Electronics Association’s NMEA 0183 ASCII interface specification. This standard is fully define in “NMEA 0183, Version 2.3” The standard may be obtained from NMEA, www.nmea.org... -
Page 16: Gll-Latitude And Longitude, With Time Of Position Fix And
USB Dongle Series Model:UD-731N 4: Real Time Kinematic. System used in RTK mode with fixed integers 5: Float RTK. Satellite system used in RTK mode. Floating integers 6: Estimated (dead reckoning) Mode 7: Manual Input Mode 8: Simulator Mode Satellites Used... -
Page 17: Status
USB Dongle Series Model:UD-731N Field Name Example Description Latitude 4250.55899 Latitude in ddmm.mmmmm format Leading zeros transmitted N/S Indicator Latitude hemisphere indicator ‘N’ = North ‘S’ = South Longitude 14718.50849 Longitude in dddmm.mmmmm format Leading zeros transmitted E/W Indicator Longitude hemisphere indicator... -
Page 18: Gsa - Gps Dop And Active Satellites
USB Dongle Series Model:UD-731N 10.3 GSA - GPS DOP AND ACTIVE SATELLITES GPS receiver operating mode, satellites used in the navigation solution reported by the GGA or GNS sentence and DOP values. Structure: $GPGSA,A,x,xx,xx,xx,xx,xx,xx,xx,xx,xx,xx,xx,xx,x.x,x.x,x.x*hh<CR><LF> 1 2 3 3 3 3 3 3 3 3 3 3 3 3 4 5 6 Example: $GPGSA,A,3,01,20,19,13,,,,,,,,,40.4,24.4,32.2*0A<CR><LF>... -
Page 19: Gsv - Gps Satellite In View
USB Dongle Series Model:UD-731N 10.4 GSV - GPS SATELLITE IN VIEW Number of satellites in view, PRN number, elevation angle, azimuth angle, and C/No. Four satellites details are transmitted per message. Additional satellite in view information is send in subsequent GSV messages. -
Page 20: Rmc - Recommanded Minimum Specific Gps/Transit Data
USB Dongle Series Model:UD-731N 10.5 RMC - RECOMMANDED MINIMUM SPECIFIC GPS/TRANSIT DATA Time, date, position, course and speed data provided by a GNSS navigation receiver. Structure: $GPRMC,hhmmss.sss,A,dddmm.mmmmm,a,dddmm.mmmmm,a,x.x,x.x,ddmmyy,x.x,a,a*hh<CR><L F> 6 7 8 10 11 12 13 Example: $GPRMC,092204.999,A,4250.55899,S,14718.50849,E,0.00,89.68,211200,,A*25<CR><LF> Field Name Example... - Page 21 USB Dongle Series Model:UD-731N Magnetic variation Magnetic variation in degrees (000.0 ~ 180.0) Magnetic Variation Magnetic variation direction ‘E’ = East ‘W’ = West Mode indicator Mode indicator ‘N’ = Data not valid ‘A’ = Autonomous mode ‘D’ = Differential mode ‘E’...
-
Page 22: Vtg - Course Over Ground And Ground Speed
USB Dongle Series Model:UD-731N 10.6 VTG - COURSE OVER GROUND AND GROUND SPEED The Actual course and speed relative to the ground. Structure: GPVTG,x.x,T,x.x,M,x.x,N,x.x,K,a*hh<CR><LF> Example: $GPVTG,89.68,T,,M,0.00,N,0.0,K,A*5F<CR><LF> Field Name Example Description Course 89.68 True course over ground in degrees (000.0 ~ 359.9) Magnetic course over ground in degrees (000.0 ~... -
Page 23: Zda -Time And Data
USB Dongle Series Model:UD-731N 10.7 ZDA -TIME AND DATA Structure: $GPRMC,hhmmss.sss,dd,mm.yyyy, , ,xxx<CR><LF> 4 5 6 7 Example: $GPZDA,104548.04,25,03,2004,,*6C<CR><LF> Field Name Example Description UTC time 104548.04 UTC time in hhmmss.ss format, 000000.00 ~ 235959.99 UTC time: day UTC time: day (01 ... 31) UTC time: month 03 UTC time: month (01 ... - Page 24 Website www.unitraq.com © 2011 UniTraQ International Corp. All rights reserved. Not to be reproduced in whole or part for any purpose without written permission of UniTraQ International Corp (“UniTraQ”) Information provided by UniTraQ is believed to be accurate and reliable.
