UniTraQ BT-5721 User Manual

Bluetooth gps receiver series
Hide thumbs Also See for BT-5721:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Technical Manual

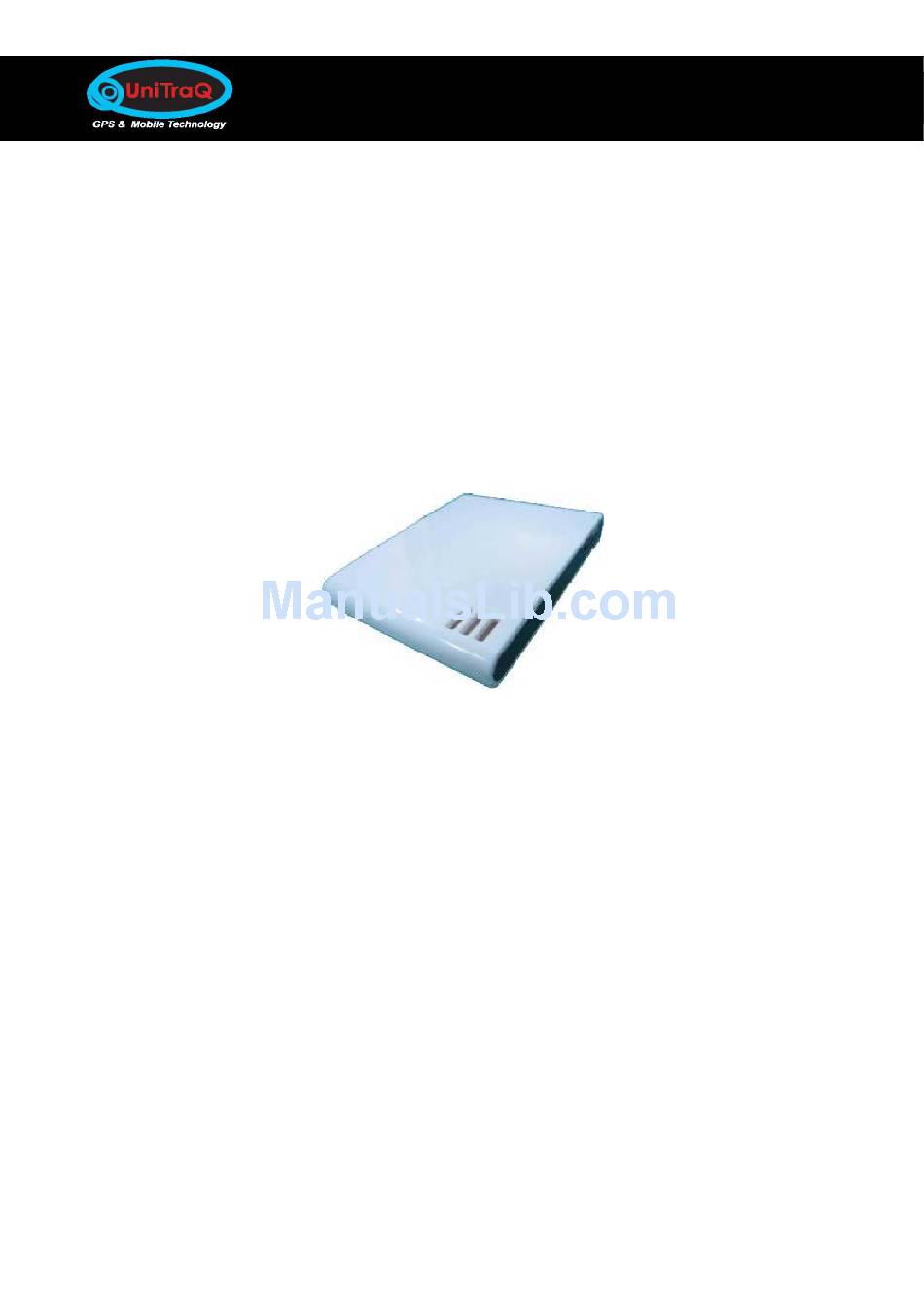

Bluetooth GPS Receiver Series
Bluetooth GPS Receiver
BT-721
Model: BT-5721 / 5722

USER MANUAL

UniTraQ International Corp. All right reserved, © 2009
2F., No.136, Ziqiang S. Rd., Zhubei City, Hsinchu County 30264, Taiwan (R.O.C.)
TEL：886-3-6578491
FAX：886-3-6578492
MADE IN TAIWAN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT-5721 and is the answer not in the manual?

Questions and answers

Related Manuals for UniTraQ BT-5721

Summary of Contents for UniTraQ BT-5721

  • Page 1: User Manual

    Bluetooth GPS Receiver Series Bluetooth GPS Receiver BT-721 Model: BT-5721 / 5722 USER MANUAL UniTraQ International Corp. All right reserved, © 2009 2F., No.136, Ziqiang S. Rd., Zhubei City, Hsinchu County 30264, Taiwan (R.O.C.) TEL：886-3-6578491 FAX：886-3-6578492 MADE IN TAIWAN...

  • Page 2: Table Of Contents

    6.2 Install GPSView for Win CE (PDA or Mobile Phone)………………………….……………...……..23 6.2.1 Installing the GPSView Software into Win CE Mobile Phone..........23-25 6.2.2 Using GPSView Software (For Win CE Mobile Phone)............25-26 6.3 Data log...............................27 UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 3 GPS equipment. Although the BT-5 Bluetooth GPS Receiver is a precision electronic NAVigation AID (NAVAID), any NAVAID can be misused or misinterpreted and, therefore, become unsafe. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 4: Introduction

    The BT-5721/5722 Bluetooth GPS Receiver is a total solution GPS receiver with Bluetooth, USB Interface and built-in rechargeable battery for time to first fix. BT-5721/5722 design is based external Bluetooth chipset and UniTraq’s GPS module with low power consumption.

  • Page 5: Features

    ◆ 65 parallel satellite-tracking channels for fast acquisition and reacquisition. ◆ Support NMEA0183 V3.01 data protocol. ◆ Built -in 1000mAh Lithium-polymer battery inside makes BT-5721/5722 continue work to 8hr. ◆ Built -in rechargeable battery for supply power to internal SRAM keeping almanac and ephemeris for time to first fix(TTFF).

  • Page 6: Specifications

    4G (39.2m/sec Datum WGS-84 Protocol NMEA-0183 V3.01 3.2 Bluetooth Specifications Frequency range: 2.40~2.48GHz Bluetooth Version: 2.0 Class: 2 (10m) Sensitivity: -80dBm Support Profile: serial port profile (SPP) Stack: (4279) cyt_8unified_fl_bt2.0_22_0702091828_encr56 2007-02-09 UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 7: Power Specifications

    Weight: 154g ℃ ℃ Operation temperature: -20 ~+60 ℃ ℃ Storage temperature: -40 ~+80 Operation humidity: 5% to 95% no condensing 3.6 Other Specifications LED indicators Bluetooth/GPS/Low battery and charging status. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 8: Accessories

    Bluetooth GPS Receiver BT-5721/5722 4. Accessories: 4.1 Standard Accessories 1. GPSView Software & User Manual CD 2. Anti Slip Car Pad 4.2 Optional Accessories: 1. Travel Charger 2. USB cable 3. Car Charger UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 9: Operations

    Red light (flashing, 2 second on/1 second off) : Waiting for the position fix Red light (flashing, 1 second on/1 second off) : Position Fixed 3.The Power Button Turns the unit on and off UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 10: Charging Battery

    XP system. User can easily install USB driver, the USB driver can automatically install the driver when user execute it. 5.4 Bluetooth Connection 5.4.1 Laptop or Notebook 5.4.1-1 BlueSoleil instructions 1: Please click the program on desktop and the window below will appear. Please click “Search Devices” UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 11 Bluetooth GPS Receiver BT-5721/5722 Bluetooth devices nearby will be searched. Please select “BTGPS” among them. Please click “Search Services” UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 12 Available service will show up. Please choose “Bluetooth Serial Port (COM10)”, it will be pairing with BTGPS. (COM10 is regarded as an example, Physical COM PORT depends on users’ computers.) After connection is complete, the illustration will become green color. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 13: Bluesoleil Instructions 1

    5.4.1-2 BlueSoleil Instructions 2: BlueSoleil classic use interface Please Right click Bluetooth illustration in Tool on the mouse and select “Display Classic View”. Classic window will appear. Please click “Bluetooth and select “Search Device”. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 14 Bluetooth GPS Receiver BT-5721/5722 Bluetooth devices nearby will be searched. Please choose “BTGPS among them. Please right click “BTGPS illustration on the mouse and select “Search Services”. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 15 Available service will show up. Please choose “Bluetooth Serial Port (COM10)”, it will be pairing with BTGPS. (COM10 is regarded as an example; Physical COM PORT depends on users’ computers.) Please right click applicable item on the mouse and select “Connect”. It will complete Bluetooth connection. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 16 Bluetooth GPS Receiver BT-5721/5722 After connection is complete, the illustration will become green color. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 17: Pda Or Smart Phone

    Turn On your Bluetooth GPS and setup; follow the setup process in your Windows Mobile 5 phone: Go to the Devices tab and choose Choose BT GPS and select Next New Partnership UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 18 Serial Port under the available enter “0000” and then select Next services list Now go to the COM Ports tab and Choose BT GPS from the list and select New Outgoing Port select Next UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 19 Bluetooth GPS Receiver BT-5721/5722 Select the desired GPS COM port for your device (eg: COM 6), make sure Secure Connection is marked and choose Finish UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 20: Gps Testing Software

    Please select “ GPS View” Then installation Window will appear. Please click “ Next”. Please refer to the following window . Please click “ I accept the terms of the license aggrement” and then go to “Next” UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 21 Bluetooth GPS Receiver BT-5721/5722 Please enter the details of User and then click” Next”. Please select “ Complete” and then click “ Next”. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 22 Bluetooth GPS Receiver BT-5721/5722 Please click “ Install”. Start installing. Complete Installation. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 23: Using Gpsview For Windows 2000/Xp

    Execute GPS View Selection Series. Enter the Window below. Click on “Auto Scan”or Select “COM PORT” which will connect to BT-GPS, then Click on “Start”. It will display the connection status of GPS and NMEA as shown below. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 24 5. Execute Warm Start 6. Execute Hot Start 7. Save NMEA Data(Automatically save in the same Program file) 8. Upgrade Firmware( If upgrading Firmware, save it in the same Program file) UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 25: Install Gpsview For Win Ce (Pda Or Mobile Phone)

    6.2 1 Installing the GPSView Software into Win CE Mobile Phone: 1. After starting your computer, put Mobile Searcher Software CD into CD-ROM. 2. Press the symbol of ActiveSync. 3. Press “Explore”. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 26 Bluetooth GPS Receiver BT-5721/5722 4. Select “My Windows Mobile-Based Device”. 5. Select “Storage Card”. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 27: Using Gpsview Software (For Win Ce Mobile Phone)

    2. Find out the document of “Storage Card” and open the file of “Locate”. Select “COM PORT” which will connect to BT-GPS, then Click on “Start”. It will display the connection status UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 28 Bluetooth GPS Receiver BT-5721/5722 of GPS and NMEA as shown below. Display the pages which is usable information for satellites UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 29: Data Log

    Bluetooth GPS Receiver BT-5721/5722 6.3 Data log 6.3.1 Set up Data Log 1. Execute Data log.exe. 2. Select “DataLog Log Configure” UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 30 Bluetooth GPS Receiver BT-5721/5722 3. Configure your favorite log time “min_time” (by seconds) and “Enable” the Data log. 6.3.2 Check the status of configure 1. Select “DataLog Log Status” UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 31 Bluetooth GPS Receiver BT-5721/5722 2. The window of “Response” will display the above configured status. 6.3.3 Retrieve the content of Data Log 1. Select “DataLog Log Read” UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 32 Bluetooth GPS Receiver BT-5721/5722 2. Select the to be stored file path and file name. (ex. Data.log) 3. Click on the “Store” to retrieve the logged data. The completed window. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 33 Bluetooth GPS Receiver BT-5721/5722 4. Decompress the retrieved logged data by selecting “DataLog Log Decompress” 5. Select the pre-stored Data.log (for example). UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 34 7. After the decompression, some files will be generated as the figure. The *.kml file can be applied to the Google Earth and display the tracked trace. 6.3.4 Clear the Data Log 1. To clear the logged memory, select “DataLOg Log Clear” UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...
  • Page 35 Bluetooth GPS Receiver BT-5721/5722 2. Click “YES＂to clear out the whole logged data. UniTraQ International Corp. RoHS compliance 2009, 04 Version 2.3...

  • Page 36: Unitraq International Corp

    UniTraQ assumes no responsibility for errors or omissions in these materials, nor for its use. UniTraQ reserves the right to change specification at any time without notice. These materials are provides “as is” without warranty of any kind, either expressed or implied, relating to sale and/or use of UniTraQ products including liability or warranties relating to fitness for a particular purpose, consequential or incidental damages, merchantability, or infringement of any patent, copyright or other intellectual property right.

This manual is also suitable for:

Bt-5722
