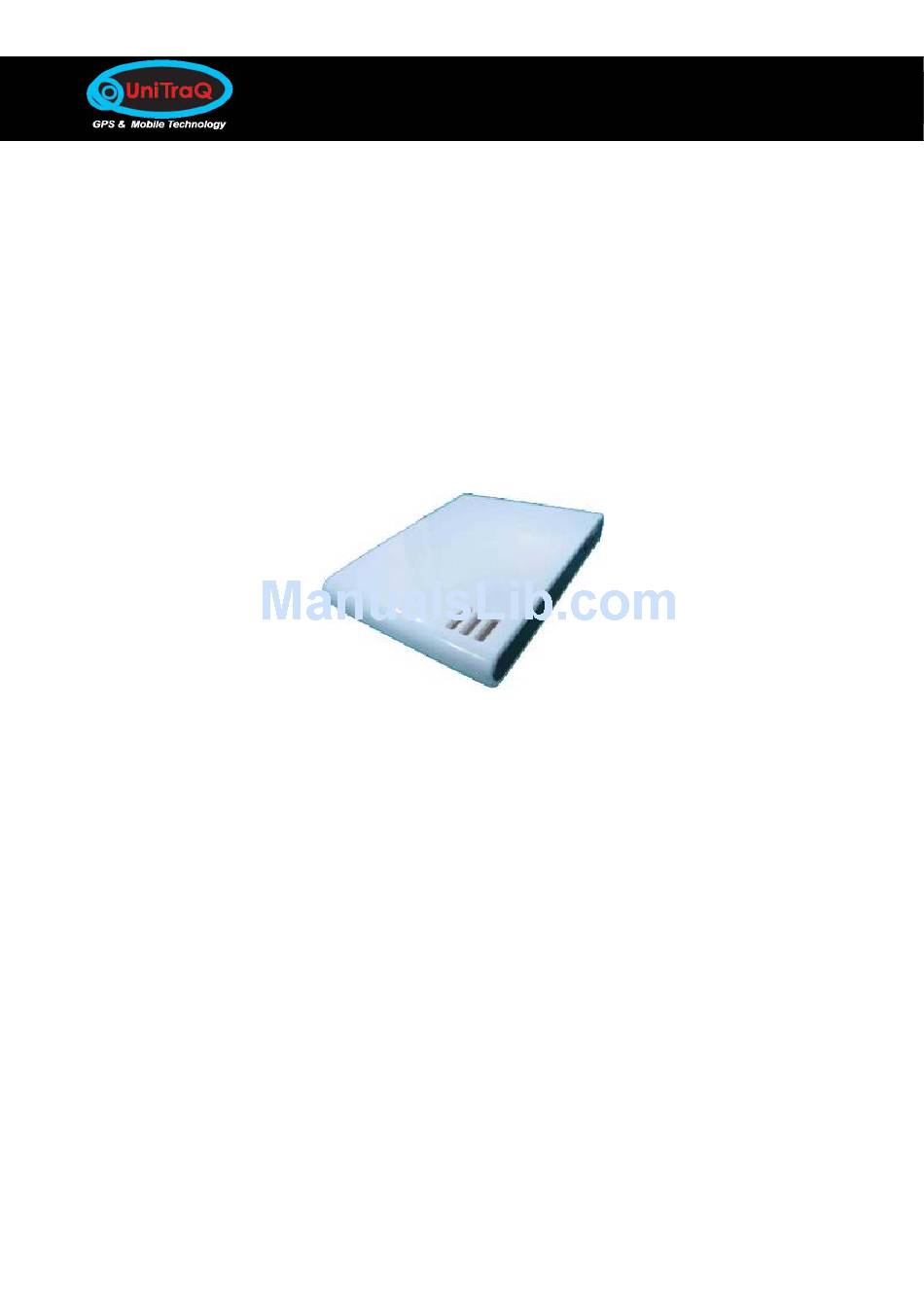

- Page 1 Bluetooth GPS Receiver Series Bluetooth GPS Receiver BT-721 Model: BT-5721 / 5722 Technical Manual UniTraQ International Corp. All right reserved, © 2008 9F-2, NO. 158, Sec. 2,Gongdao 5 Rd., Hsinchu City 30070,Taiwan, R.O.C MADE IN TAIWAN...
-
Page 2: Table Of Contents
3.4.2 Output format…………………………………………………………………………………….……….4 3.4.3 Data communication interface………………………………………………………………….……..4 3.4.4 External antenna connector…………………………………………………………………….……..4 3.5 Physical Specifications........................4 3.6 Other Specifications………………………………………………………………………………………….4 4. Accessories……………………………………………………………………………………………………...….5 4.1 Standard Accessories………………………………………………………………………………….…….5 4.2 Optional Accessory.………………………………………………………………………………………….5 5. Operations……………………………………………………………………………………………………….…..5 5.1 Hardware Descriptions……………………………………………………………………………………..5 5.2 Charging Battery………………………………………………………………………………………………6 UniTraQ International Corp. RoHS compliance 2009, 02 Version 1.1... - Page 3 GPS equipment. Although the BT-5 Bluetooth GPS Receiver is a precision electronic NAVigation AID (NAVAID), any NAVAID can be misused or misinterpreted and, therefore, become unsafe. UniTraQ International Corp. RoHS compliance 2009, 02 Version 1.1...
-
Page 4: Introduction
The BT-5721/5722 Bluetooth GPS Receiver is a total solution GPS receiver with Bluetooth, USB Interface and built-in rechargeable battery for time to first fix. BT-5721/5722 design is based external Bluetooth chipset and UniTraq’s GPS module with low power consumption. -
Page 5: Specifications
4G (39.2m/sec Datum WGS-84 Protocol NMEA-0183 V3.01 3.2 Bluetooth Specifications Frequency range: 2.40~2.48GHz Bluetooth Version: 2.0 Class: 2 (10m) Sensitivity: -80dBm Support Profile: serial port profile (SPP) Stack: (4279) cyt_8unified_fl_bt2.0_22_0702091828_encr56 2007-02-09 UniTraQ International Corp. RoHS compliance 2009, 02 Version 1.1... -
Page 6: Power Specifications
MMCX type/3.3V output 3.5 Physical Specifications Size:80×60×10 mm Weight: 154g Operation temperature: -20℃~+60℃ Storage temperature: -40℃~+80℃ Operation humidity: 5% to 95% no condensing 3.6 Other Specifications LED indicators Bluetooth/GPS/Low battery and charging status. UniTraQ International Corp. RoHS compliance 2009, 02 Version 1.1... -
Page 7: Accessories
Red light: power on Blue light: Being receiving Bluetooth signal Green light 1: Being charging battery; Green light 2 (flashing) : Low battery 3.The Power Button Turns the unit on and off UniTraQ International Corp. RoHS compliance 2009, 02 Version 1.1... -
Page 8: Charging Battery
You can use car charger to connect BT-5 Bluetooth GPS Receiver with battery of car, or use travel charger to connect with an outlet. When battery is been charging, the green LED on the GPS receiver lights continuously UniTraQ International Corp. RoHS compliance 2009, 02 Version 1.1... - Page 9 UniTraQ assumes no responsibility for errors or omissions in these materials, nor for its use. UniTraQ reserves the right to change specification at any time without notice. These materials are provides “as is” without warranty of any kind, either expressed or implied, relating to sale and/or use of UniTraQ products including liability or warranties relating to fitness for a particular purpose, consequential or incidental damages, merchantability, or infringement of any patent, copyright or other intellectual property right.
