Vision VHD-400 Series User Manual

Digital video surveillance system h.264 hd-sdi dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

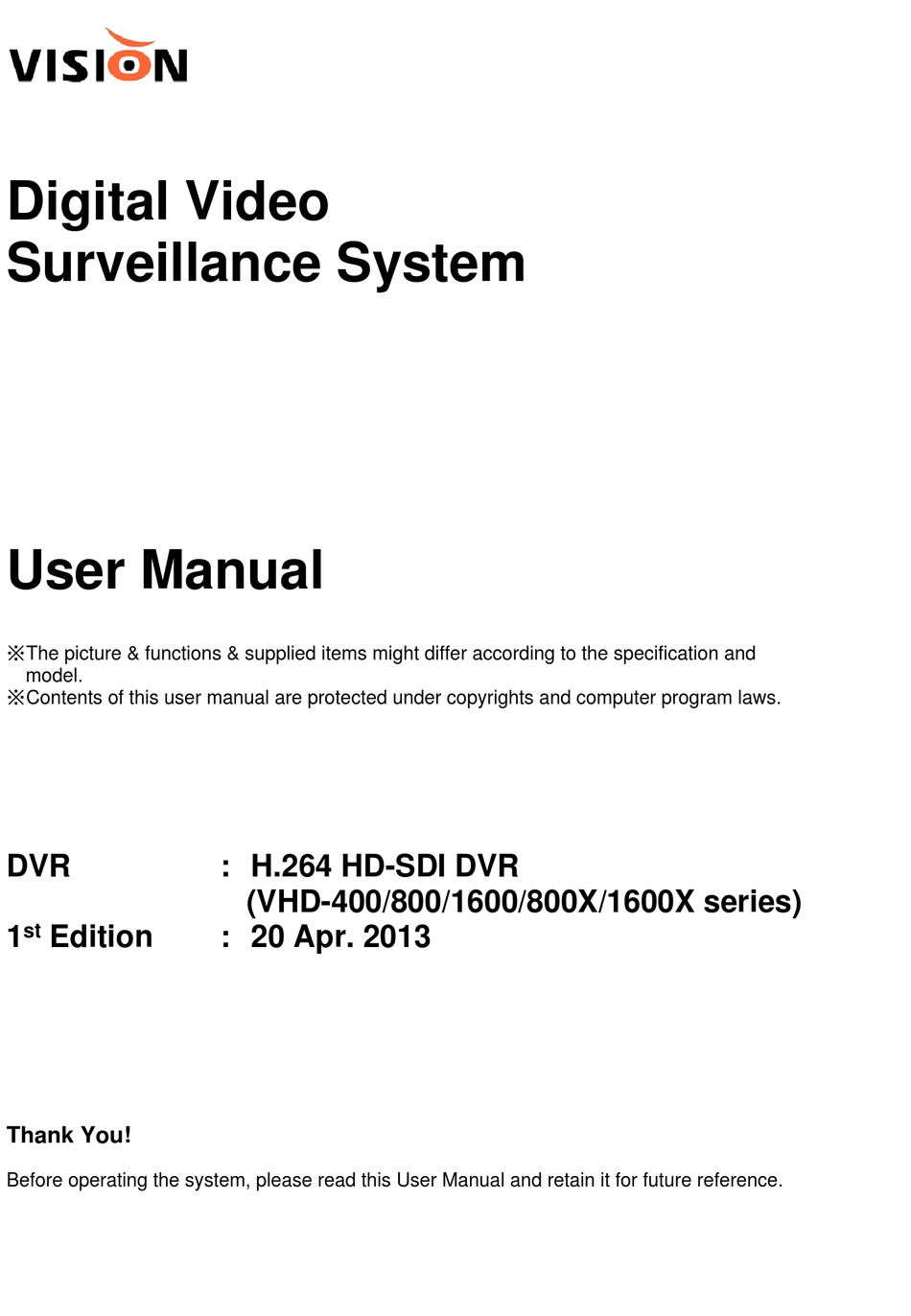

Digital Video
Surveillance System

User Manual

※ The picture & functions & supplied items might differ according to the specification and
model.
※ Contents of this user manual are protected under copyrights and computer program laws.
DVR
st
1
Edition
Thank You!
Before operating the system, please read this User Manual and retain it for future reference.
: H.264 HD-SDI DVR
(VHD-400/800/1600/800X/1600X series)
: 20 Apr. 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VHD-400 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vision VHD-400 Series

Summary of Contents for Vision VHD-400 Series

  • Page 1: User Manual

    ※ The picture & functions & supplied items might differ according to the specification and model. ※ Contents of this user manual are protected under copyrights and computer program laws. : H.264 HD-SDI DVR (VHD-400/800/1600/800X/1600X series) Edition : 20 Apr. 2013 Thank You!
  • Page 3 WARNING TO REDUCE FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. The installation should be made by a qualified service person and conformed to all local codes.
  • Page 4 Cautions Read Before System Operation Follow these details to prevent material damage or personal injury. Signs of Caution and Warning Warning: This sign indicates that the user could die or be seriously wounded if not used or installed properly. Caution: This sign indicates that the user could be wounded or could expect property damage if not used or installed properly.
  • Page 5 3. The air inhaler of the front panel and air outlet of the back panel must not be blocked during installation. The internal temperature of the product would be greater than allowable and could cause malfunction or fire. 4. Do not touch the product or the power cord when there is thunder. It may cause electric shock.

  • Page 6: Table Of Contents

    Contents GETTING STARTED ............................6 ..........................6 HECKING UPPLIED TEMS ..............................7 YSTEM TARTUP ............................8 YSTEM HUTDOWN OPERATION ..............................10 ..............................10 ............................11 ISPLAY ................................. 14 EQUENCE ..........................15 EARCH ECORDED MAGE PTZ O ..............................18 PERATION ..............................18 IGITAL ..............................

  • Page 7: Getting Started

    Getting Started Checking Supplied Items Make sure that you have following items supplied with your DVR. If any of these items is missing or damaged, notify your vendor immediately. Keep the packing utilities for moving or storage purposes afterwards. Items Photo Quantity User Manual and...

  • Page 8: System Startup

    System Startup After connecting all peripheral devices, connect power cord to the DVR for system startup. Once the DVR is started, image will be displayed on the screen. To operate the DVR, login is required as the administrator. The factory default of password is “1234”.

  • Page 9: System Shutdown

    System Shutdown To turn off the power, click “TOOL” button and then click “SHUTDOWN” in the GUI software as below. Do not pull off the power by pulling the power plug. When the system asks User & Password, input them which have the rights to system shutdown.

  • Page 11: Operation

    Operation User Log-in Check the power connection. Input USER and PASSWORD for login after turning on the system. The factory default of user and password are “ADMIN” and “1234” respectively. Admin user is to fully control the entire DVR system. Note 1) LOGIN window will be permanently displayed in monitor as above picture until user logs in with the correct ID and password.

  • Page 12: Live Display Mode

    Live Display Mode 2.2.1. Channel Selection Real-time live image can be seen by easy button operation after power-on. The images can be seen on real-time by 1, 4, 9, 16 screen. Whenever the channel mode icon in the menu bar or the layout mode in the pop-up menu is clicked, channel mode will be changed accordingly.
  • Page 13 2.2.2. Menu(Tool) Bar When user place USB mouse pointer in the bottom of the monitor in live mode, menu(tool) bar will be appeared as below picture. [MENU] button on the front panel works the same. Sequence button makes screen display change, based on the current display mode, sequentially.
  • Page 14 2.2.3. Icons In real time live mode, icons or messages will be indicated on the screen to notify the system mode or status. Below are the icon categories, which are indicated on the monitor. Icon to be shown Icon to be shown at right-upper corner on each channel at right-bottom corner on full screen.

  • Page 15: Sequence

    2.2.5. Video Loss “Video Loss” is shown on the display screen when camera is disconnected on a certain channel. If a channel doesn’t have a connected camera from the beginning, channel logo is shown. When camera is disconnected, warning sound shall be generated depending on the system setting.

  • Page 16: Search Recorded Image

    Search Recorded Image User can search recorded image by clicking the right mouse button and select Search button or clicking Tool button in the menu bar and select Search button. 2.4.1. Instant Search When the Instant Search is selected, DVR automatically playback the video clip that is recorded 10 minutes before.
  • Page 17 2.4.2. Calendar Search User can select date and time to search for a certain image within the recorded image. The red colored date means there are record data on that day. When the date is selected, user can check the time which has record data by the blue colored column at the time bar. And user can move to the desired time to search by dragging the grey colored slide bar.
  • Page 18 2.4.3. Event Search The Event search is used to find particular event, quickly and easily. In order to find a specific event, select a date/time and camera/event type. When the “Get Index” button is clicked, user can check events under the selected condition. After playback the searched data, click the right mouse button and select “Playback Exit”...

  • Page 19: Ptz Operation

    PTZ Operation User can get into PTZ mode by clicking right mouse button and selecting “PTZ” in the pop-up menu or select joystick button in the menu bar appeared in the bottom of the main screen. When the mouse pointer is moved to the middle-bottom side of the screen, control buttons will be shown.

  • Page 20: Alarm Out

    Alarm Out User can manually activate every single relay and beep sound of the DVR. At “Alarm Out” of the pop-up menu, click the relay number to activate that relay operation. To stop the operation, click the relay number again. When the “Buzzer” is clicked, DVR makes a beep sound.

  • Page 21: Backup During Playback

    Backup during Playback User can easily archive video while watching video playback. In playback mode, user can click Backup button on the menu bar or select Backup in the pop-up menu start backup setting. Select time/channel & media (USB or CD/DVD) to backup. Backup file is saved as “.exe”...

  • Page 22: Setting

    Setting General setting structure consists of “System”, “Device”, “Record”, “Network”, “Backup” and “Quick Setup” as below. Main Classification Sub Classification INFORMATION USER SYSTEM EXPORT/IMPORT DEFAULT CAMERA AUDIO SENSOR DEVICE MOTION EXTRA ALARM CAMERA RECORDING SCHEDULE NETWORK DDNS NETWORK NOTIFICATION BACKUP BACKUP EASY NETWORK EASY SETUP...
  • Page 23 3.1.1. Information DVR NAME User can designate the DVR name by using virtual keyboard as below. DVR ID User must setup DVR ID to match with the ID setting of IR Remote Controller, if user wants to use it to control DVR. 20(0~19) different ID can be set.
  • Page 24 Time Format User can change time display format(12hours or 24hours). Language User can select language for menu. Current Version It shows the current firmware version. Update Firmware User can update firmware via USB memory Stick. Caution Do not click CANCEL button during firmware upgrade. It may cause serious damage on the system.
  • Page 25 1) Put USB thumb-drive which was formatted by FAT/FAT32 in any USB port of DVR that shall be compatible with USB 2.0 version 2) Once the system detects the thumb-drive, user can see a new version after clicking “Read USB” button. 3) Click “Update”...
  • Page 26 3.1.2. User The ADMIN user (default password is 1234) has got the full authority for system setting, and can change the system password or assign different permission level to each group. There are 6 different functions to be selected according to the permission level. Setup : Menu(System, Device, Recording, Network, Backup, Easy Setup) Playback...
  • Page 27 3.1.3. Export/Import User can copy and paste the system configuration values in this menu. “Send Setup” allows user to copy the setting values of this system to USB memory devices. “Receive Setup” allows user to call up the setting values of other system from USB memory devices. During import process, make sure that the F/W version of source DVR has to be the same as the one of target DVR which user wants to import setting values to.
  • Page 28 3.1.4. HDD User can check model, total size, available size and status of the installed HDD. User can select “Overwrite” or “Stop” when HDD becomes full and also can easily format new HDD or existing HDD by clicking “Erase All Data” button. Note 1) The system always reserves some space in each built-in HDD to effectively utilize archiving memory.

  • Page 29: Device

    Device 3.2.1. Camera User can set each camera’s name, motion area and covert function, etc.. Name In order to distinguish the channel from the others, user can designate the channel name. Covert If a channel is set as COVERT, image is not displayed but channel logo is displayed. Sensitivity User can set the sensitivity for motion detection.
  • Page 30 3.2.2. Audio User can select the usage of audio input. The number of audio channel may differ depending on DVR model.
  • Page 31 3.2.3. Sensor It allows user to set alarm generation when the external sensor device, connected to the DVR, detects signal. On/Off Turn on or turn off the sensor. Camera Select the associated camera. Relay Select the associated alarm output. I. Rec(Intensive Recording) When alarm is triggered, system instantly assigns “remaining fps”...
  • Page 32 Notification User can select how to be alerted upon sensor is activated by clicking “Notification” button. The system will generate buzzer sound in the selection of “Buzzer” and/or make pop-up screen of the camera in the selection of “Full Screen”. The system can send mail in the selection of “E-Mail”. Note Check the setting of the sensor type (N/O or N/C).
  • Page 33 3.2.4. Motion Alarm Motion alarm is to start the recording when motion is detected by installed camera based on the area setting. The system will trigger alarm signal via the selected sensor-out channel. On/Off Turn on or turn off the motion alarm. Relay Select the associated alarm output.
  • Page 34 3.2.5. Extra Alarm There are two extra alarm functions available on the system such as SMART & VIDEO LOSS. S.M.A.R.T It is to trigger alarm signal when HDD might be about to be out of operation. It can be notified via Buzzer and/or E-Mail.
  • Page 35 3.2.6. PTZ User can set detail for connecting PTZ camera to the DVR. Check the below items for proper P/T/Z operation.  Check if the protocol of the connected PTZ camera is correct.  Check if the communication setting including baud rate of the connected PTZ camera is in accordance with the assigned value for that P/T/Z protocol.

  • Page 36: Record

    Note PTZ operation works properly only when the PTZ setup in the DVR is the same as that of PTZ camera. Record 3.3.1. Camera Recording Type User can select recording type among Continuous, Event & Pre-Event In case of Event & Pre-Event, user can set Period for each type. Select to record each channel.
  • Page 37 3.3.2. Schedule Set recording schedule for each camera. User can set schedule for each camera, differently, or can set all cameras with the same schedule by “Apply To All” button. Recording can be set by each hour from 00 through 23 a day. Camera Select a camera to set schedule.
  • Page 38 Table for schedule is divided into three rows as WD(weekday), WE(weekend), HD(holiday). Note Emergency Recording User can record instantly with Cross icon button in the Tool bar. When the Emergency Recording starts, system works the same as if all events occur. However, if no event is set, Emergency Rocording doesn’t work.

  • Page 39: Network

    Network DVR can be connected to network or internet through either fixed IP or dynamic IP by proper setting of DVR & router. 3.4.1. Network Static/DHCP(Network Type) At the first startup the system, it is set as DHCP and searches IP. User can select either STATIC IP or DHCP for dynamic IP according to the network environment.
  • Page 40 TCP Port It is for setting value transmission. Input the port number to use when connecting locally or remotely.(Default : 9020) It is for use with Remote Software P/C (RMS & CMS) & mobile device(MMS). UDP Port It is for image transmission. Input the port number to use when connecting locally or remotely.(Default : 9021) It is for use with Remote Software P/C (RMS &...
  • Page 41 3.4.2. DDNS User can use either a public DDNS server or the DDNS server operated by DVR maker (cctv-link.net) to connect through dynamic IP. It is recommended to use maker’s DDNS server for stable network connection. DDNS Server Type Default is “www.cctv-link.net” and user can change it into “dyndns.org” or “no-ip.com”. Input necessary information based on your network environment, and then click [OK] button.
  • Page 42 3.4.3. Router Setting (Port Forwarding) If user wants to use router for network connection, necessary Port Forwarding in the router (both static IP and dynamic IP) is required. The procedure described as below is just one of the example for the reference and the captured figures may differ depending on the model of the router. Please refer to the manual of the router for details.
  • Page 43  For Web Port of DVR If you use 80 for Web Port (mentioned as above), you have to forward Port # 80 to DVR LAN IP. Note : If you change DVR Web Port to 8080, you have to open and do Port Forwarding for 8080.
  • Page 44 3.4.4. NTP NTP function can use standard internet time server and “pool.ntp.org” is recommended. In order to use this function, select the timezone and click [Sync To Server]. Timezone Select correct Timezone. NTP Server Default is “pool.ntp.org”. NTP Server TIme Click [Query] button to receive current time from the NTP server.
  • Page 45 3.4.5. Notification DVR can notify the event to registered e-mail address. Receiver Click [Receiver] to register e-mail address to receive event notification. Click the empty column and input e-mail address with virtual keyboard and click [Add] button. If there is any e-mail address to delete, select one of them and click [Del] button.
  • Page 46 Sender Click [Sender] to set server to send e-mail. SMTP Server Type / SMTP Server Select SMTP server. If user wants to use a specific server, select “User Defined” and input in the SMTP Server column with virtual keyboard. SMTP Port Input port number to be used for sending e-mail at the SMTP server.(Default : 587) If a SMTP server requires SSL authentication(ex, Gmail, N mail and so on), check at “Use SSL Connector”.

  • Page 47: Backup

    Backup 3.5.1. Backup User can archive video clip recorded for a certain period for a selected channel or channels to USB memory stick or CD/DVD. Backup file is saved as “ .exe” file to check at the PC, automatically. And the player program is saved together with video clip. Recording Period / Period Select starting date/time and ending date/time of images to backup.
  • Page 48 3.5.2. Backup Video Retrieve After archiving, there would be file created as “ .exe”. Double click the file to play the backup images at the PC.

  • Page 49: Easy Setup

    Easy Setup Easy Setup is to help user make easy configuration for network, recording mode & quality. The setting made by Easy Setup will get the first priority to apply on the system whatever user sets configurations in other menu. 3.6.1.

  • Page 50: Q & A

    Q & A 1. There is nothing displayed on the monitor though electric power is supplied to DVR. 1) Please check if the power is supplied properly. When the power is supplied, you can hear the noise from FAN and HDD operation. 2) Please check the cable connection with the DVR.
