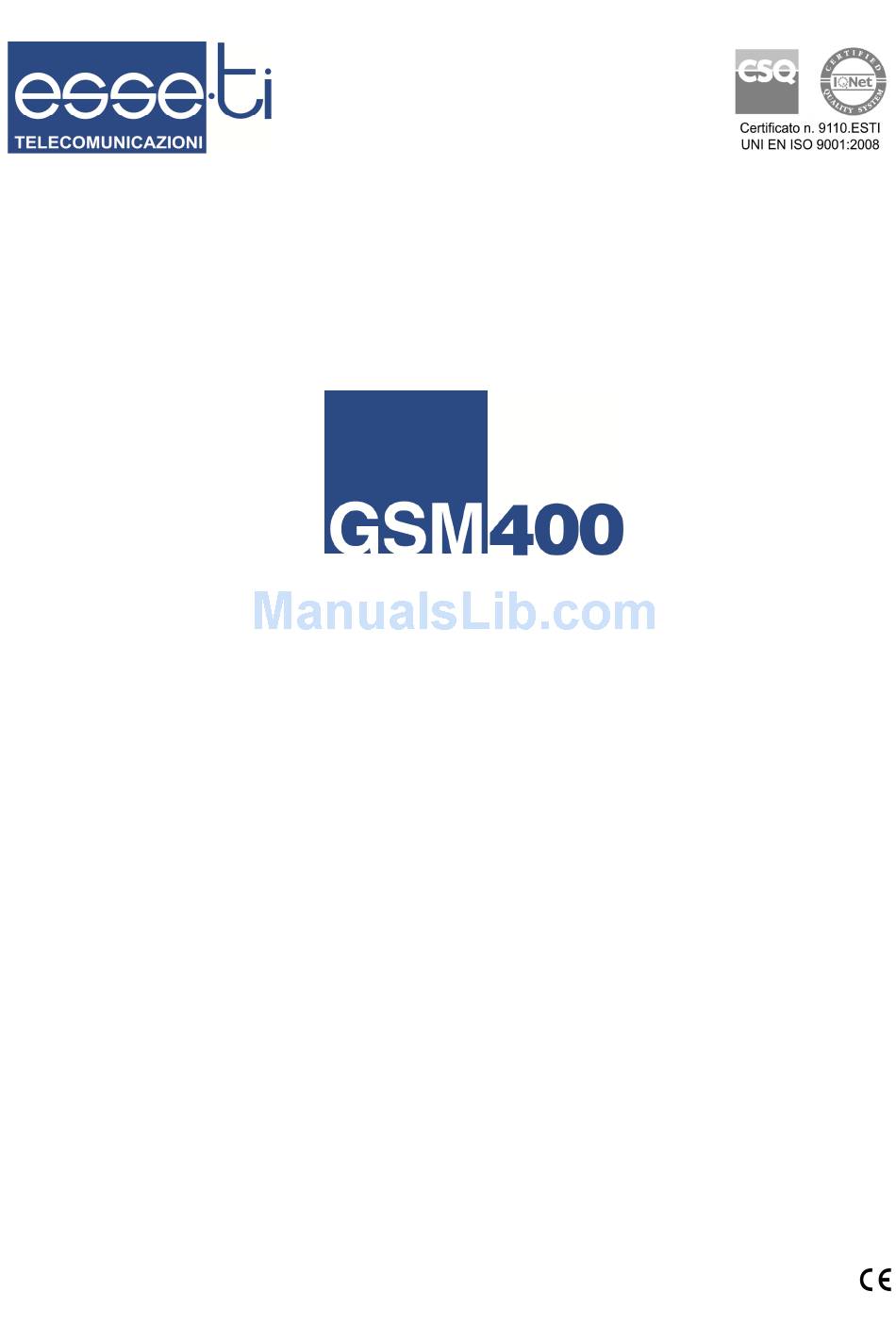

  • Page 1 User’s manual 29/05/2013...
  • Page 2 The User shall be responsible for defects arising from the use of the product. Esse-ti shall only be responsible for defects according to and within the limitations set by the Presidential Decree dated 24/05/1988 no.

  • Page 3: Table Of Contents

    Inserting the antenna ................8   Connection to the telephone line ............. 9   Connection to the power supply .............. 9   Turning the GSM400 gateway on ............10   Gateway mounting operations ............... 11   GSM400 installation recommendations ..........12  ...
  • Page 4   Matching telephone numbers manually ..........34   Matching telephone numbers automatically .......... 36   Adjustments ................. 37   Restoring default settings ............. 39   Reset .................... 40   programming via sms ............... 41   Message format ..................41   Notification message format ..............

  • Page 5: General Installation Instructions

     The product must be EXCLUSIVELY used for the purpose it was designed for. Esse-ti shall not be responsible for damages arising from improper use.  The product has been designed in compliance with the regulations in force and must be installed in systems that comply with the provisions of law.

  • Page 6: Description

    DESCRIPTION GSM400 is a device that, connected to a fixed telephone or to the PSTN input terminals of a PABX or autodialer, allows you to make and receive calls over the GSM network. For correct operation, a normal SIM card is required.

  • Page 7: Installation

    INSTALLATION Remove the cover by pressing the upper side.  ANTENNA cable connector SIM CARD housing with front panel LED indicating signal strength (green) and LED indicating device operation status (red) Telephone line output (RJ11 connector) for telephone set connection or PABX analogue line connection 230Vac external adapter input Telephone line output (terminal block) for connection of autodialer/PABX...

  • Page 8: Inserting The Sim Card

    Inserting the SIM card Before inserting or replacing the SIM card, always make sure that the gateway has been disconnected from the mains and that no electrostatic discharge is present in order to avoid damaging it. Take all necessary measures to avoid electrostatic discharge. Shift the SIM card housing cover downward until it unblocks and ...

  • Page 9: Connection To The Telephone Line

    The gateway may get damaged. Connection to the telephone line Connect the GSM400 to a standard telephone or to the PSTN input  terminals of a PABX or autodialer via the RJ-11 connector (D in the picture at page 7);...

  • Page 10: Turning The Gsm400 Gateway On

    Turning the GSM400 gateway on Power the GSM400.  Wait 15 seconds after power-up to give time to the GSM400 to  register correctly with the GSM network. Make sure the red LED (device status) flashes briefly once every 3 ...

  • Page 11: Gateway Mounting Operations

    Drill two holes with 5 mm diameter on the wall at a distance of 50  Insert the 2 fischers and screw down until the screws are at a 5  mm distance from the wall. Place the GSM400 gateway onto the two screws through the two  back slots. Page 11...

  • Page 12: Gsm400 Installation Recommendations

    GSM400 installation recommendations  The GSM400 gateway must be installed in a location where the radio signal allows for using the GSM system.  It is advisable to leave plenty of space around the gateway for maintenance operations.  Do not install the GSM400 gateway outdoors, since it lacks protection devices against weather conditions that can damage the gateway (water, humidity, etc.).

  • Page 13: Programming Via Telephone

    PROGRAMMING VIA TELEPHONE Allows you to customise the gateway according to your requirements. Programming can be carried out locally via a MF telephone. You can programme:  voltage of telephone line;  use mode;  interdigit dialling time;  country calling code and international call prefix; ...

  • Page 14: Voltage Of The Telephone Line

    Note: programming can be carried out even if the signal is absent. After the confirmation or the error tones, the “no signal” tone will follow, after which you can proceed with programming or hang up. OLTAGE OF THE TELEPHONE LINE The following programming allows you to modify the voltage in the TEL terminal and in the RJ-11 connector.

  • Page 15: Use Mode

    SE MODE It allows to indicate whether the device is connected to the input terminals of an autodialer or a PABX or directly to an analogue telephone set. Factory default: telephone / PABX. Setting telephone / PABX mode (confirm) Lift the handset and dial: **21. ...

  • Page 16: Interdigit Dialling Time

    NTERDIGIT DIALLING TIME The interdigit time is the maximum amount of time allowed between digits while dialling a telephone number or a programming code. There are 2 ways to make outgoing calls: Dial the telephone number and then press # to confirm. The call is ...

  • Page 17: Dialling Codes

    IALLING CODES This programming is necessary for the correct operation of the caller number display service (CLI). It allows displaying the caller’s telephone number without the area code. International call prefix The international call prefix is the first part of a country’s code. For example, the international dialling code for Italy, whose complete code is 0039, is 00.
  • Page 18 (country calling code) (confirm) Lift the handset and dial: **09*;  Dial the country calling code (max. 5 digits).  Dial # to confirm.  After the confirmation tone hang up or carry on with other  programmings. Page 18...

  • Page 19: Clip Setting

    CLIP SETTING Upon an incoming call, if a telephone connected to the GSM400 is provided with a display, it will show the CLI (caller identification). Moreover, on some telephones and some switchboards, it is also possible to display date and time of the call. With this programming you can determine whether to show the date and time of the call in addition to the caller’s number.
  • Page 20 Note: if the GSM400 gateway remains off for a long time, it will be necessary to repeat the activation procedure; otherwise the date and time displayed could be incorrect. Deactivation (confirm) Lift the handset and dial: **7*0.  Dial # to confirm.

  • Page 21: Clir Setting

    CLIR SETTING Permanent setting Thanks to this programming you can decide whether to send out your telephone number during outgoing calls. Factory default: operation based on the service provided by your provider (option) (confirm) Lift the handset and dial: **6*. ...

  • Page 22: Temporary Setting

    Temporary setting The following programming allows you to modify the CLIR permanent setting for one call only. Enabling restriction for a call Initial situation: CLIR restriction not active. This programming allows you to activate the CLIR restriction for the immediately subsequent call. (confirm) Lift the handset and dial:**16.

  • Page 23: Roaming Setting

    OAMING SETTING It allows to enable or disable the roaming function of the GSM400 gateway. When the roaming service is disabled, in case the GSM400 registers with a different provider than the programmed, it is not possible to make or receive any calls.
  • Page 24 Disabling roaming service It allows to select a specific SIM’s provider by disabling the GSM400’s operation with any other provider . (MCC) (MNC) (confirm) Lift the handset and dial: **5*0*.  Select the specific SIM’s provider by dialling the related MCC ...

  • Page 25: Setting Telephone Number For Notification Service

    ETTING TELEPHONE NUMBER FOR NOTIFICATION SERVICE It allows to enter the telephone number appointed for low-battery and battery status notifications by SMS. (telephone number) (telephone number) (confirm) Lift the handset and dial: **40*.  Enter the telephone number to which the notification SMS must be ...
  • Page 26 Deleting It allows to delete the telephone number appointed for SMS notifications or warnings. (confirm) Lift the handset and dial: **40.  Dial # to confirm.  After the confirmation tone hang up or carry on with other  programmings. Page 26...

  • Page 27: Setting The Administrator Telephone Number

    SETTING THE ADMINISTRATOR TELEPHONE NUMBER SMS programming mode may be effected by any mobile phone or other device sending out SMS. After setting the administrator telephone number, programming mode by SMS is only allowed by the administrator’s telephone number. Note: once it has been entered, the administrator number will receive the notification SMS related to the “Automatic converter”...

  • Page 28: Programming Password

    Lift the handset and dial: **18.  Dial # to confirm.  After the confirmation tone hang up or carry on with other  programmings. ROGRAMMING PASSWORD It allows to change the password appointed for SMS programming mode and for “Automatic converter” service. Factory default: 0.

  • Page 29: Low-Battery Check

    BATTERY CHECK If the low-battery check is enabled, GSM400 checks the battery status every second. When the charge goes below the previously-programmed threshold ensuring the minimum number of operating hours in idle mode, a notification SMS is sent to the programmed telephone number (see “Setting telephone number for notification service”).

  • Page 30: Programming The Minimum Value

    Disabling (confirm) Lift the handset and dial: **51.  Dial # to confirm.  After the confirmation tone hang up or carry on with other  programmings. Programming the minimum value It allows to set the min. number of operating hours in idle mode. Below this threshold, a notification SMS is sent out.

  • Page 31: Automatic Converter Of Selected Telephone Number

    Each preset telephone number is matched with a corresponding telephone number , either by programming and/or automatic learning. When dialing out the corresponding telephone number , the GSM400 will make a call to the previously-matched telephone number instead of calling the real one.

  • Page 32: Entering Preset Numbers

    GSM400 will send a call to the first telephone number included in the “Preset telephone number” column. Entering preset numbers It allows to enter up to 5 telephone numbers receiving any outgoing call sent out by GSM400.
  • Page 33 Deleting a preset telephone number It allows to delete a preset telephone number. (password) (location) (confirmation) Lift the handset and dial: **26*.  Enter the programming password.  Dial *.  Enter the location of the telephone number to be deleted. ...

  • Page 34: Matching Telephone Numbers Manually

    Matching telephone numbers manually It allows to associate a specific telephone number to each preset number. Note: in case no telephone number is manually matched to any preset number, the association is automatically carried out by auto- learning procedure. (password) (location) (telephone number) (telephone number)
  • Page 35 Deleting a previously matched telephone number. It allows to delete a telephone number previously matched with a preset number. (password) (location) (confirmation) Lift the handset and dial: **25*.  Enter the programming password.  Dial *.  Enter the location of the telephone number to be deleted, 1 to 5. ...

  • Page 36: Matching Telephone Numbers Automatically

     autodialer connected with the GSM400 module. GSM400 will check if the number is already matched with a preset telephone number. If so, it will send a call to the preset number; if not, it will match the selected number to the first available preset number and will make a call to it.

  • Page 37: Adjustments

    DJUSTMENTS This programming allows you to adjust the receiver gain as well as the transmitter gain. WARNING The factory-default settings are optimal values, please do not change them unless it is strictly necessary. Transmission Factory default: +12dB. (value) (confirm) Lift the handset and dial: **10*. ...
  • Page 38 -14dB -12dB -10dB -8dB -6dB Dial # to confirm.  After the confirmation tone hang up or carry on with other  programmings. Page 38...

  • Page 39: Restoring Default Settings

    ESTORING DEFAULT SETTINGS It is possible to restore the factory - default settings at any time, by dialling: (confirm) Lift the handset and dial: **99.  Dial # to confirm.  After the confirmation tone hang up or carry on with other ...

  • Page 40: Reset

    ESET You can reset the GSM400 gateway at any time, without powering it off, with the following code: (confirm) Lift the handset and dial: **98.  Dial # to confirm.  Hang up.  Note: resetting the GSM400 gateway does not modify its programming profile.

  • Page 41: Programming Via Sms

    SMS. In case the administrator number has been previously set, programming via SMS is only allowed from such telephone number. An SMS notifying that programming has been completed will be sent back by the GSM400 to the same telephone number that forwarded the programming SMS. WARNING...
  • Page 42 Programming Code (c..c) Telephone line voltage 61*X Telephone / PABX mode Autodialer mode Interdigit dialling time International call prefix 08*X..X Country calling code 09*X..X CLIP activation 7*1*ggmmaa*hhmm CLIP deactivation CLIR permanent setting CLIR temporary activation CLIR temporary deactivation Enabling roaming service Disabling roaming service 5*0*XXXYYY Setting telephone number for notification service...

  • Page 43: Notification Message Format

    Example: it is required to enable low-battery check and to set the telephone number for notifications. Outgoing message text: ET-IG4*0#50#40*X..X*X…X# Notification message format The format of the message notifying the user or the administrator who previously sent out a programming SMS, is the same as the programming message format.

  • Page 44: Services

    Pick up the handset; conversation with a remote party starts.  UTGOING CALLS Allows you to dial over the GSM network. If the GSM400 gateway is connected to a PABX, please refer to the switchboard’s manual. If the GSM400 gateway is connected to a telephone: Pick up the handset.

  • Page 45: Measuring The Signal Level

    Note: in case of low signal, we recommend installing the GSM400 in a different area with a better signal. Note: if you receive the “no signal” tone, it means that the gateway has not been registered correctly by the provider.

  • Page 46: Reading The Battery Status

     After the confirmation tone hang up.  After receiving the request, GSM400 will send an SMS to the number programmed to be alerted. The outgoing message text is the following: “Carica batteria (Battery charge): x”, where x is the value corresponding to the minimum number of operating hours guaranteed by the battery in idle mode, according to the table at paragraph “Low-battery check”.

  • Page 47: Reading "Automatic Converter" Numbers

    “A ” EADING UTOMATIC CONVERTER NUMBERS It is possible to check remotely, via SMS, the preset numbers and the stored selected numbers (see chapter “Programming via SMS” for the use of SMS). Reading preset numbers The programming code to be contained in the message text must be the following : where: XXX: programming password...

  • Page 48: Rs232 Port

    RS232 PORT The RS232 port allows to use the GSM400 for the connection and the two-way data transmission between devices equipped with serial communication (eg: pc and lift controller). Note: the SIM card must be enabled for data traffic. 2: transmission from GSM400...

  • Page 49: Connection Example

    Connection example Page 49...

  • Page 50: Signals

    SIGNALS ONES Dialling Indicates that the GSM400 is ready for dialing. Dissuasion Indicates: delay in dialing, end of conversation, access to services not permitted. Busy Indicates that the called party is busy. Confirmation Indicates that the requested service or programming has been accepted.

  • Page 51: Call Signals

    ALL SIGNALS Indicates an incoming call. Status indicator LED (red) Indicates network login in progress or GSM400 not correctly registered to the network or PIN enabled. Indicates the GSM400 is correctly registered to the network. Indicates connection (voice or data) in progress.
  • Page 52 Good signal level. High signal level. Page 52...

  • Page 53: Note

    NOTE Page 53...
  • Page 54 GSM400 29/05/2013...

  • Page 55: Warranty Conditions

    1. In order to claim warranty rights the purchaser must fill out the warranty certificate completely and enclose proof of purchase. 2. Esse-ti warrants this product under articles 128 and following of the legislative decree n° 206/2005. The warranty term is two years. Six months after the purchase date, the purchaser shall prove that the defect is attributable to faults existing upon delivery.

  • Page 56: Warranty Certificate

    WARRANTY CERTIFICATE Model: Serial N°: Dealer’s signature and stamp: Proof of purchase: Purchaser’s signature: Esse-ti s.r.l. Via G. Capodaglio, 9 – 62019 Recanati (MC) – ITALY Tel. ++39 0717506066/1 – Fax ++39 0717506057 www.esse-ti.it – mail: assistenza@esse-ti.it...
