Pentium Motherboard

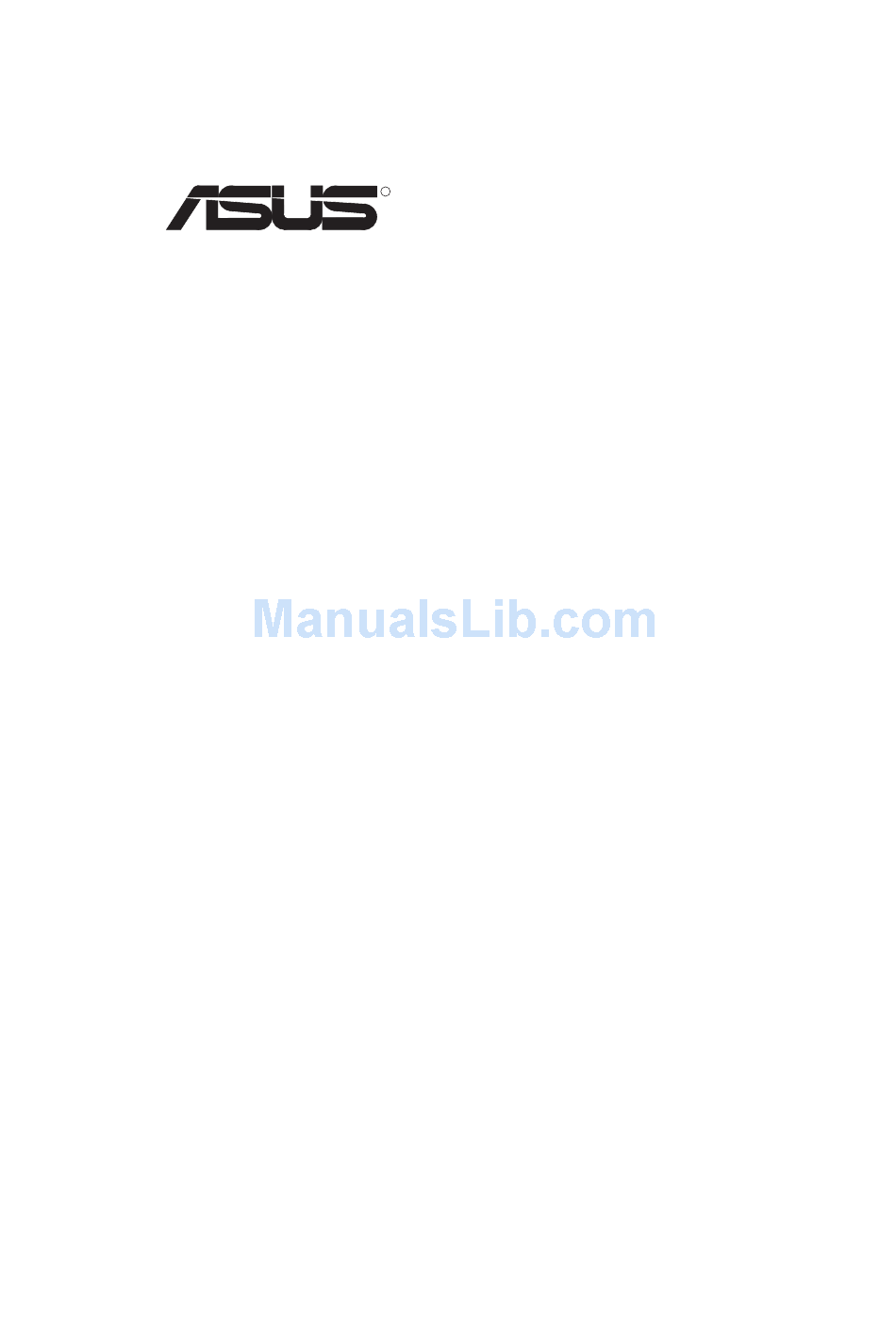

USER'S MANUAL
Motherboard Model Information
This motherboard has various models besides the full-featured model described in this
manual. You have the option of purchasing models with or without the DIMM
sockets, MediaBus extension, or the L2 cache expansion slot. Ignore the features that
are not relevant to your model. You have the option of choosing 256KB or 512KB L2
cache onboard. To determine your L2 cache size, look on the box Model: or press
Pause when the BIOS diagnostic displays the information chart on your system. The
third line on the top right of the chart will show one of the following:
To upgrade to 512KB cache, the 256K model requires a 256KB cache module to be
inserted into the optional L2 cache expansion slot. See your retailer about any fea-
tures that you may need before purchasing.
P/I-P55TVP4
R
Cache Memory : 256K
Cache Memory : 512K
