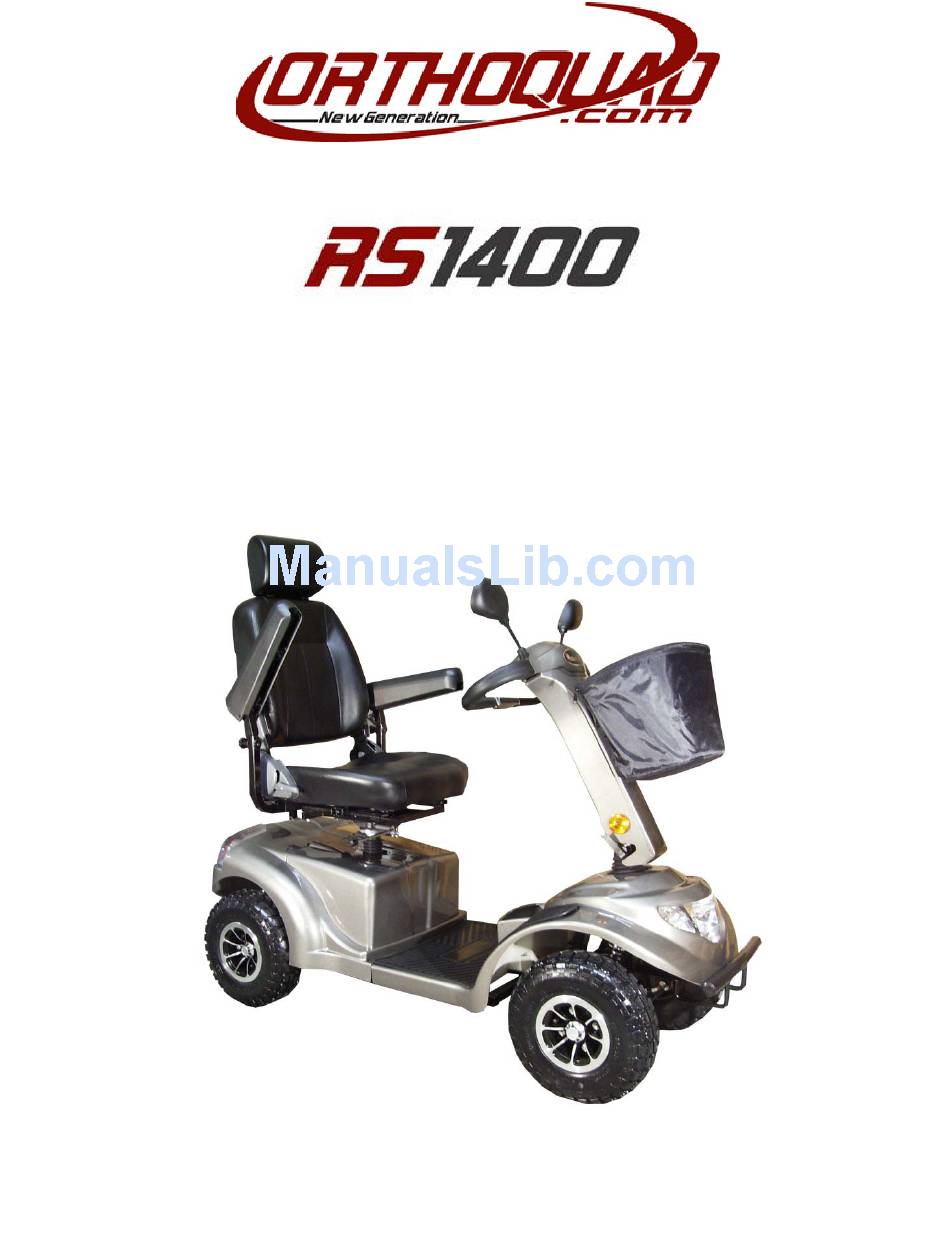

- Page 1 Mobility Scooter User’s Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Specifications III. Features Operating Your Scooter Safety Instructions Battery Charging VII. Maintenance Schedule VIII. Warranty IX. Basic Troubleshooting... -
Page 3: Introduction
Please read this manual thoroughly and carefully to become familiar with all operation instructions prior to operating your RS1400. If you have any questions concerning the operation or maintenance, please contact your dealer. -
Page 4: Specifications
ABOUT THE MANUAL The manufacturer reserves the rights of final interpretation on the manual. For any printing mistakes or new improvements, the manufacturer will update in the new editions. SPECIFICATIONS PERFORMANCE DATA Maximum forward speed 16km/h Maximum backward speed 4.8km/h Maximum Climbing Grade 15 degrees Ground clearance Turning radius 1.5m Load Capacity (max) 180kg (400 pounds) Range with Full Charge Up to 30 - 40 km Braking distance 1.8m BATTERY... -
Page 5: Features
III. FEATURES Swing away armrests Swivel seat, fully reclining Adjustable Forward/Reverse Seat Adjustable tiller Dynamic regenerative braking Rear wheel direct drive with differential Fully solid state controller External Battery Charger 24-volt permanent magnet heavy duty DC motor ON/OFF switch lock Horn Head light Turning lights... -
Page 6: Operating Your Scooter
The brake may not be as effective when engaged on inclines greater than 15 degrees or 21% if the occupant’s weight exceeds 400 pounds. In case the brake fails to engage, the RS1400 may roll slowly on a slope. Turn off the power immediately. -
Page 7: Safety Instructions
5. MOVE MANUALLY – MANUAL FREEWHEEL LEVERS Whenever you want to push your RS1400 for a short distances, you can put it in manual freewheel mode. The manual freewheel lever is located on the end of the motor at the rear of the RS1400. - Page 8 CAUTION: IT IS VERY IMPORTANT THAT YOU READ THIS INFORMATION REGARDING THE POSSIBLE EFFECTS OF ELECTROMAGNETIC INTERFERENCE ON YOUR POWERED SCOOTER. Electromagnetic Interference (EMI) From Radio Wave Sources Powered wheelchairs and motorized scooters (in this text, both will be referred to as powered wheelchairs) may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
- Page 9 Note: Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such as electric shavers and hair dryers, so far as we know, are not likely to cause EMI problems to your powered wheelchair. Powered Scooter Electromagnetic Interference (EMI) Because EM energy rapidly becomes more intense as one move closer to the transmitting antenna (source), the EM fields from Hand-held...
- Page 10 In summary, - DO NOT try to climb sharp curbs. - DO NOT drive off or over obstacles exceeding 5 cm height. - DO NOT make abrupt changes in direction at high speed or while traveling on an incline. - DO NOT attempt to make fast turn on flat surfaces. - DO NOT climb inclines greater than 15 degrees.
-
Page 11: Battery Charging
VI. BATTERY CHARGING To ensure the best performance and maximum battery life, we recommend frequent battery charging. Your RS1400 comes with an external battery charger for your ease and convenience. The console battery display makes charging simple and easy. It is recommended that you charge your scooter every night. -
Page 12: Maintenance Schedule
VII. MAINTENANCE SCHEDULE In order to obtain the best performance and lasting service life, please maintain your unit according to the following schedule and instructions: DAILY Check brake effectiveness before you drive. Recharge batteries fully every night. WEEKLY 1.Check tire pressure. The pressure should be 40-45 psi. 2. -
Page 13: Warranty
(2) The battery is guaranteed 6 months after the date of purchase by the end-user.(customer) (3) All other RS1400 components are guaranteed for 1 full year after the date of purchase by the end-user.(customer) GUARANTEE IS NOT ENSURED WITH THE PROBLEMS CAUSED BY THE FOLLOWING: 1) Do not operate according to the manual. -
Page 14: I X. Basic Troubleshooting
I X. Basic Troubleshooting 1- All of my RS1400 systems appear to be ¨dead¨ Possible solutions • Ensure the key is fully inserted and turned on. • Ensure the batteries are fully charged. • Ensure both battery harnesses are firmly connected to the electronic controller module and to the battery terminals.
