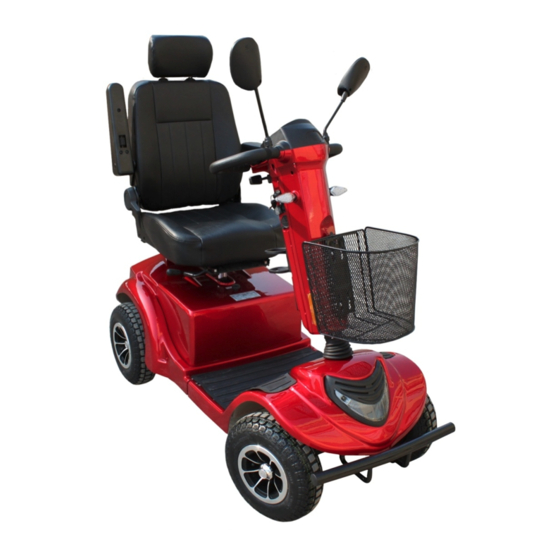

RZ1000
Read the User Manual carefully before operating the RZ1000.
If you do not fully understand any part of this manual, please contact your dealer or
any of our Service Centres.
Read this manual step by step, as injury or damage may occur from misuse!
Electromagnetic Interference ("EMI") can cause powered vehicles to behave
erratically, which could be dangerous to the user.
For your safety and protection, it is IMPERATIVE that you take time to read
Chapter 8 ("EMI WARNING") before operating the RZ1000.
USER'S MANUAL
WARNING
WARNING
RZ1000-T
Advertisement
Table of Contents
Related Manuals for Orthoquad RZ1000-T
Summary of Contents for Orthoquad RZ1000-T
- Page 1 USER’S MANUAL RZ1000 RZ1000-T WARNING Read the User Manual carefully before operating the RZ1000. If you do not fully understand any part of this manual, please contact your dealer or any of our Service Centres. Read this manual step by step, as injury or damage may occur from misuse! WARNING Electromagnetic Interference (“EMI”) can cause powered vehicles to behave...
-
Page 2: Table Of Contents
CHAPTER 1 – OVERVIEW OF THE RZ1000 (MAIN FEATURES) CHAPTER 2 – SAFETY SYMBOLS FOR THE RZ1000 CHAPTER 3 – SAFETY INSTRUCTIONS for RZ1000 CHAPTER 4 – OPERATING INSTRUCTIONS CHAPTER 5 – CHARGING THE RZ1000 BATTERIES CHAPTER 6 – MAINTENANCE CHAPTER 7 –... -
Page 3: Chapter 1 - Overview Of The Rz1000 (Main Features)
CHAPTER 1 – OVERVIEW OF THE RZ1000 (MAIN FEATURES) Congratulations on choosing the RZ1000 as your electrically powered scooter. The RZ1000 is designed for a maximum occupant mass of 150 kg (330 lbs). The RZ1000 is an indoor/outdoor scooter designed to work in normal environmental conditions from very cold temperatures (-30ºC/-22ºF) to very hot temperatures (+45ºC/+113ºF). -
Page 4: Chapter 2 - Safety Symbols For The Rz1000
CHAPTER 2 – SAFETY SYMBOLS FOR THE RZ1000 WARNING! An authorized supplier or qualified technician must perform the initial setup of this scooter, and must perform all of the procedures in this manual. The symbols below are used throughout this user’s manual and on the scooter to identify warnings and important information. - Page 5 When making adjustments (folding the seat back, adjusting the armrest, moving the seat forward or backward, adjusting the tiller distance), as well as when squeezing the throttle control lever, always take care that your hands and fingers are not trapped between any of the moving parts. When moving the tiller forward or backward, be careful not to trap your fingers in the mechanism.
- Page 6 Always drive carefully. Adjust your speed according to road conditions. When turning at high speed, the RZ1000 can become unstable. Before making sharp turns, reduce speed to minimum to prevent roll-over. The RZ1000 is able to go up slopes higher than the recommended safe slope.
- Page 7 Keep tools and other metal objects away from the battery terminals. Keep tools and other metal objects away from the battery terminals. Keep tools and other metal objects away from the battery terminals. Contact with tools can cause electrical shock. Do not sit on the Contact with tools can cause electrical shock.
-
Page 8: Chapter 3 - Safety Instructions For Rz1000
CHAPTER 3 – SAFETY INSTRUCTIONS for RZ1000 GENERAL MANDATORY! Do not operate your new RZ1000 scooter for the first time without reading and understanding this user manual completely. Your RZ1000 is a state-of-the-art life-enhancement device designed to increase mobility. We provide an extensive range of products to best fit the individual needs of the user. - Page 9 TIRE INFLATION Your RZ1000 is equipped with pneumatic tires. Check the tyre pressure at least once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of your RZ1000. WARNING! It is critically important that the psi/bar/kPa air pressure indicated on each tire is maintained at all times.
- Page 10 Maximum Recommended Incline Angles When driving up an incline, try to keep your RZ1000 moving. If you must stop, start up again slowly, and then accelerate cautiously. When driving down an incline, set the speed switch to MIN and drive forward only. If your RZ1000 starts to move down the incline faster than you want, allow it to come to a complete stop by releasing the throttle control lever, then push the throttle control lever forward slightly to ensure a safely controlled descent.
- Page 11 Figure B. Normal Driving Position Figure C. Increased Stability Drive Position When you approach an incline, it is best to lean forward. See Figures B and C. This shifts the centre of gravity of you and your RZ1000 toward the front of the RZ1000 for improved stability.
- Page 12 OUTDOOR DRIVING SURFACES Your RZ1000 is designed to provide optimum stability under normal driving conditions, on dry, level surfaces of concrete, tarmac, or asphalt. However, we recognize that there will be times when you will encounter other surfaces. For this reason, your RZ1000 is designed to perform well on packed soil, grass, and gravel.
- Page 13 FREEWHEEL MODE Your RZ1000 is equipped with a manual freewheel lever that, when pushed forward, allows the RZ1000 to be pushed manually. Freewheel Manual lever Your RZ1000 is also equipped with an electric button located on the dashboard to release the electromagnetic brake.
- Page 14 STAIRS AND ESCALATORS RZ1000 scooters are not designed to travel up or down stairs or escalators. Always use an elevator. WARNING! Do not use your RZ1000 scooter to negotiate stairs or escalators. DOORS Determine whether the door opens toward or away from you. ...
- Page 15 MOTOR VEHICLE TRANSPORTATION The manufacturer recommends that you do not remain seated in your RZ1000 while travelling in a motor vehicle. The RZ1000 should be stowed in the boot of a car or in the back of a truck or van with the batteries removed and properly secured. In addition, all removable RZ1000 parts, including the armrests, seat, and shroud, should be removed and/or properly secured during transportation.
- Page 16 PRESCRIPTION DRUGS/PHYSICAL LIMITATIONS The RZ1000 user must exercise care and common sense when operating the RZ1000. This includes awareness of safety issues when taking prescription or over-the-counter drugs or when the user has specific physical limitations. WARNING! Consult your physician if you are taking prescription or over-the-counter medication or if you have certain physical limitations.
-
Page 17: Chapter 4 - Operating Instructions
CHAPTER 4 – OPERATING INSTRUCTIONS FOR RZ1000 FIGURE A (#1) Key switch (#2) Handlebar adjustment lever (#3) Charging socket (#4) Two USB charging ports (Numbers refer to Figure A ) Key Switch (#1) The main key switch is located on side of tiller column ... - Page 18 FIGURE B Power indicator (#1)Battery Status Lights ON LED Indicator (#2) Maintenance LED High / Low speed indicator (#3) Speed limit dial (#4) High / Low speed mode switch (#5) Throttle Control Lever (#5) Throttle Control Lever (#6) Left turning (#6) Right turning (#9) Automatic Freewheel switch...
- Page 19 To drive: Throttle control lever (#5) Gently squeeze the throttle control lever (depending on whether you want to drive forward or backward) until you reach the desired speed. Your speed is directly proportional to the deflection of the throttle control lever. Note: You can squeeze one side of the throttle control lever towards you, or you can push the other side away from you to achieve the same effect.
- Page 20 After stopping the RZ1000, turn the key switch to OFF and After stopping remove the key. The ON LED will turn off . Note: The EMB locks automatically when the throttle control lever is released and the RZ1000 has come to a complete stop. Safe driving When driving on ramps, high curbs and on sharp turns, drive very slowly and carefully, preferably with the speed set to MIN.
-
Page 21: Chapter 5 - Charging The Rz1000 Batteries
CHAPTER 5 - CHARGING THE RZ1000 BATTERIES Read the charger manual before using it. Warning: If you use a charger other than the one supplied with your RZ1000 ask your dealer for instructions. CHARGING BATTERIES (see Figure C) 1. Insert the charger plug (8) in the charging socket (10) located on the right side of the tiller column. -
Page 22: Chapter 6 - Maintenance
CHAPTER 6 – MAINTENANCE Although the RZ1000 requires very little maintenance, do not neglect it. When performing maintenance procedures on the RZ1000, make sure that it stands on a level surface and that the key is not inserted. This chapter contains both periodic maintenance procedures and maintenance procedures to be performed as required. - Page 23 Note! Batteries must be replaced by trained professionals only. Replace Warning! Batteries contain high energy and can spark, resulting in a batteries possible fire hazard. Warning! Working with batteries can cause damage and Injury if not done properly. In this procedure, refer to Figure bellow. 1.
-
Page 24: Chapter 7 - Troubleshooting And Repair
Remember: you can contact your dealer at any time for further professional support. Replacement parts: Tires and tubes are: 4.10/3.50–6" (RZ1000) Front tire: 265x 85mm, Rear tire 4.10/3.50–6" (RZ1000-T) Rear + Front LED light : contact your authorized dealer Symptom... -
Page 25: Chapter 8 - Emi Warning
CHAPTER 8 – EMI WARNING All types of electrically powered vehicles, such as powered wheelchairs and motorized scooters (in this text all types will be referred to as “powered vehicles”) may be susceptible to electromagnetic interference (EMI). This is from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones. -
Page 26: Specifications
Load Capacity (max) 150kg (330lbs) Range with Full Charge Up to 30 - 40 km Wheel size 4x 4.10/3.50-6 (RZ1000) Front: 265x 85mm, Rear: 4.10/3.50–6" (RZ1000-T) Tyres pressure 30psi BATTERY Sealed battery x 2 pcs 12V/40Ah or 12V/55Ah BATTERY CHARGER... -
Page 27: Warranty Warranty + Storage Instructions
Fuses/Bulbs WARRANTY SERVICE Warranty service must be performed by an authorized Orthoquad dealer. Please contact your authorized Orthoquad dealer for more information.There is no other express warranty. STORAGE INSTRUCTIONS Always store in a dry area protected from freezing to avoid damage to the scooter and premature wear of the batteries.
