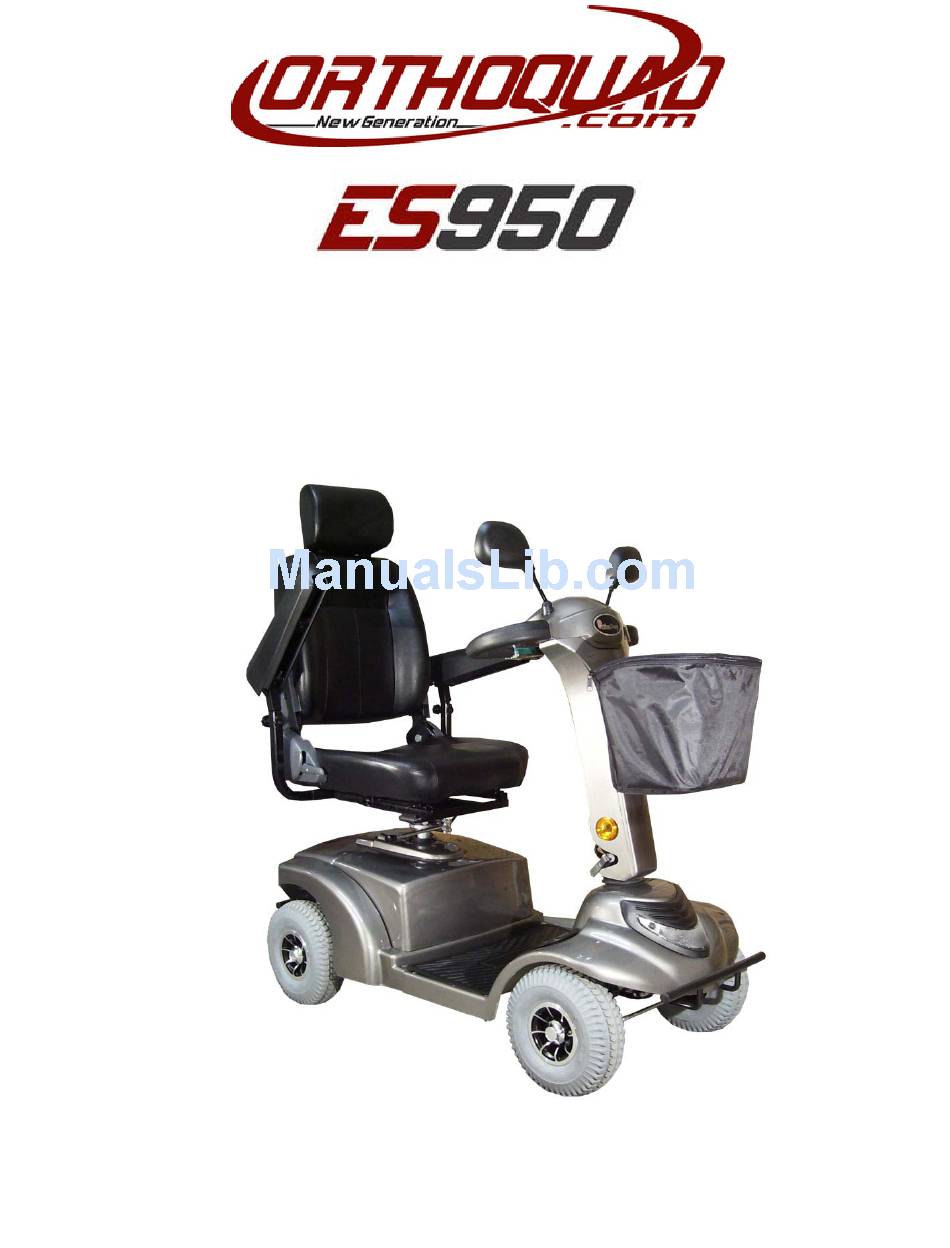

- Page 1 Mobility Scooter User’s Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Specifications III. Features Operating your scooter Safety Instructions Battery Charging VII. Maintenance Schedule VIII. Warranty IX. Basic Troubleshooting... -
Page 3: Introduction
I. INTRODUCTION Thank you for your interest in our scooter ES950. This scooter is a mobility assistive device designed for senior citizens who have walking difficulty or are weak in physical strength and for also for the disabled people. We designed this scooter to restore the dignity, equality and personal freedom, to provide convenience and comfort to you. -
Page 4: Specifications
SPECIFICATIONS PERFORMANCE DATA Maximum forward speed 13 km/h Maximum backward speed 4.8 km/h Maximum Climbing Grade 15 degrees Load Capacity 125kg – 275lbs Ground Clearance 6 cm Range with Full Charge Up to 30 - 40 km Turning Radius 1.2m DIMENSIONS Length 48’’... -
Page 5: Features
III. FEATURES Swing away armrests Swivel seat Adjustable Forward/Reverse Seat Adjustable tiller Dynamic regenerative braking coupled with fail-safe electro-mechanical disk brake Rear wheel direct drive with differential Fully solid state controller External Battery Charger 24-volt permanent magnet heavy duty DC motor ON/OFF switch lock Horn Head light... -
Page 6: Operating Your Scooter
OPERATING YOUR SCOOTER 1, BEFORE OPERATION 1). Insert the power key into the switch lock and turn clockwise to the ON position. 2). Check the battery charge indicator to make sure the batteries are fully charged. 3). Make sure that clutch lever is at close position. 2, TURN POWER ON Insert the key into the key switch on the upper tiller and rotate clockwise to the “ON”... - Page 7 Turning off the key switch cut off power brake. 5. MOVE MANUALLY Whenever you want to push your ES950 for a short distances, you can put it in manual freewheel mode. The manual freewheel lever is located on the end of the motor at the rear of the ES950.
-
Page 8: Safety Instructions
V. SAFETY INSTRUCTIONS Your scooter can move on grass , gravel, dirt, and sand surfaces, as well as hard paved or carpeted surfaces. However, extra caution should be taken when operating your unit on uneven surfaces other than flat surfaces. There are some concerns about electromagnetic interference to powered wheelchairs and scooters. - Page 9 The sources of radiated EMI can be broadly classified into three types: 1) Hand-held portable transceivers (transmitters-receivers) with the antenna mounted directly on the transmitting unit. Examples include: citizens band (CB) radios, “walkie talkie,” security, fire, and police transceivers, cellular telephones, and other personal communication devices.
- Page 10 3) If unintended movement or brake release occurs, turn the powered scooter OFF as soon as it is safe. 4) Be aware that adding accessories or components, or modifying the powered scooter, may make it more susceptible to EMI (Note: There is no easy way to evaluate their effect on the overall immunity of the powered scooter.
- Page 11 In summary, - DO NOT try to climb sharp curbs. - DO NOT drive off or over obstacles exceeding 5 cm in height. - DO NOT make abrupt changes in direction at high speed or while traveling on an incline. - DO NOT climb inclines greater than 15 degrees or a rise of 2 meters in 10 meters.
-
Page 12: Battery Charging
VI. BATTERY CHARGING To ensure the best performance and maximum battery life, we recommend frequent battery charging. Your scooter comes with an external battery charger for your ease and convenience. The console battery display makes charging simple and easy. Follow these steps for battery charging. -
Page 13: Maintenance Schedule
VII. MAINTENENCE SCHEDULE In order to obtain the best performance and lasting service life, please maintain your unit according to the following schedule and instructions: DAILY Test brake effectiveness before you drive. Recharge battery fully every night. WEEKLY . Check tire pressure. Pressure should be 40 - 50 psi. 2. -
Page 14: Warranty
2 year. (2) The battery is guaranteed 6 months after the date of purchase by the end-user.(customer) (3) All other ES950 components are guaranteed for 1 full year after the date of purchase by the end-user.(customer) GUARANTEE IS NOT ENSURED WITH THE PROBLEMS CAUSED BY THE FOLLOWING: 1) Do not operate according to the manual. -
Page 15: I X. Basic Troubleshooting
I X. Basic Troubleshooting 1- All of my ES950 systems appear to be ¨dead¨ Possible solutions • Ensure the key is fully inserted and turned on. • Ensure the batteries are fully charged. • Ensure both battery harnesses are firmly connected to the electronic controller module and to the battery terminals.
