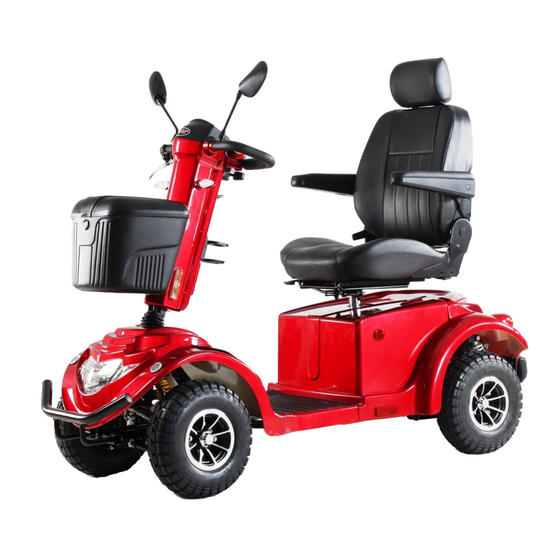

Read the User Manual carefully before operating the RZ1500
If you do not fully understand any part of this manual, please contact your dealer or
any of our Service Centres.
Read this manual step by step, as injury or damage may occur from misuse!
Electromagnetic Interference ("EMI") can cause powered vehicles to behave
erratically, which could be dangerous to the user.
For your safety and protection, it is IMPERATIVE that you take time to read
Chapter 8 ("EMI WARNING") before operating the RZ1500.
USER'S MANUAL
WARNING
WARNING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RZ1500 and is the answer not in the manual?

Questions and answers

Penny Bruvold
July 6, 2025

Size of swivel seat base for Orthoquad RZ 1500 Pictures and measurements please

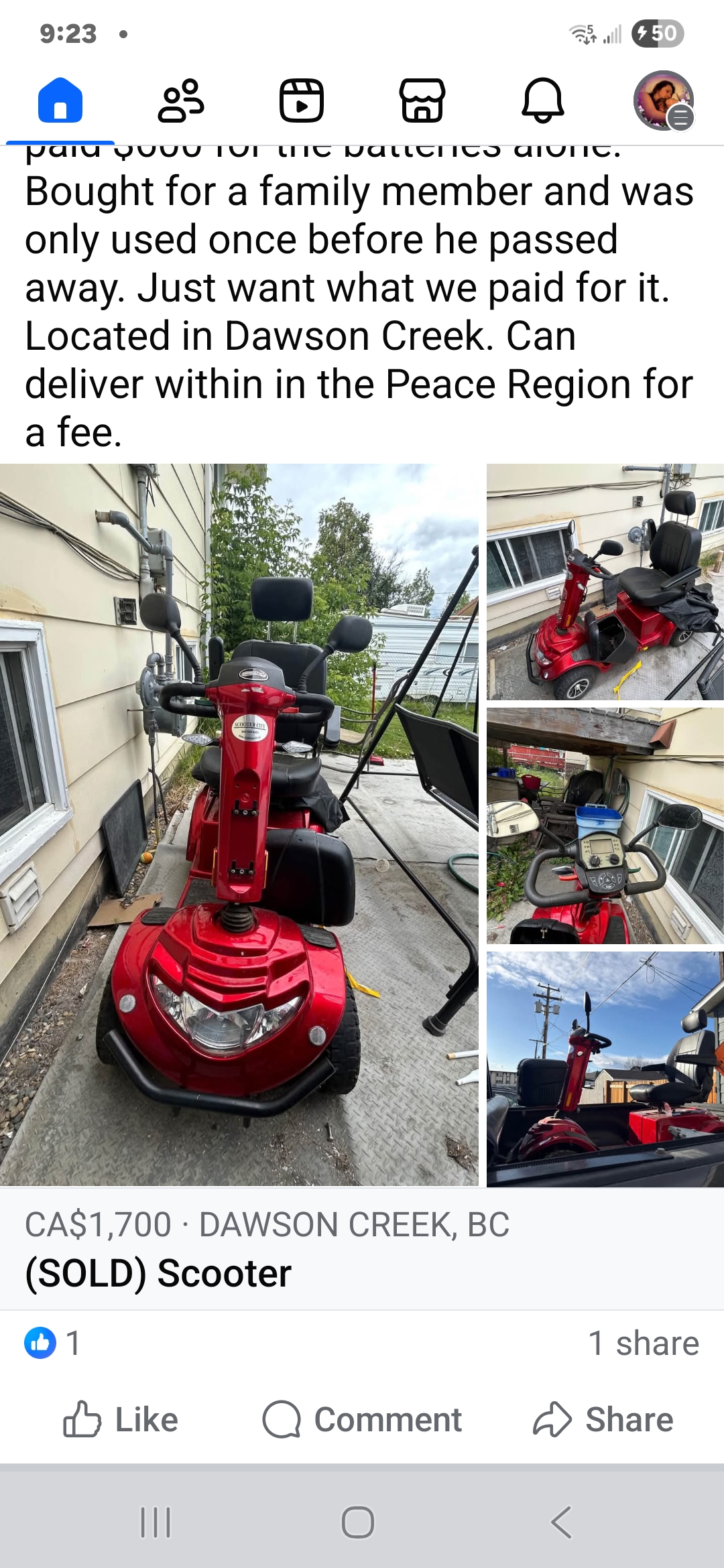

User image 6869c91c8ef1f
0

Related Manuals for Orthoquad RZ1500

Summary of Contents for Orthoquad RZ1500

  • Page 1 USER’S MANUAL WARNING Read the User Manual carefully before operating the RZ1500 If you do not fully understand any part of this manual, please contact your dealer or any of our Service Centres. Read this manual step by step, as injury or damage may occur from misuse! WARNING Electromagnetic Interference (“EMI”) can cause powered vehicles to behave...

  • Page 2: Table Of Contents

    CHAPTER 1 – OVERVIEW OF THE RZ1500 (MAIN FEATURES) CHAPTER 2 – SAFETY SYMBOLS FOR THE RZ1500 CHAPTER 3 – SAFETY INSTRUCTIONS for RZ1500 CHAPTER 4 – OPERATING INSTRUCTIONS CHAPTER 5 – CHARGING THE RZ1500 BATTERIES CHAPTER 6 – MAINTENANCE CHAPTER 7 –...

  • Page 3: Chapter 1 - Overview Of The Rz1500 (Main Features)

    The RZ1500 will operate in light rain showers, but extended use is not recommended in heavy rain or snow. The RZ1500 is easy to operate. The relatively large wheels let the user drive on unpaved roads, over moderately rough terrain and over obstacles as high as 4” (10 cm).

  • Page 4: Chapter 2 - Safety Symbols For The Rz1500

    Get acquainted with the RZ1500 and its operational features before driving it. Drive slowly (speed limit dial set to MIN) until you get used to the RZ1500, to its various functions, safety features, and to its braking capabilities and limitations.
  • Page 5 Use lead acid maintenance-free sealed batteries only. If the RZ1500 is involved in any kind of an accident in which parts are damaged, you must get a qualified technician to examine it before continuing to use it.
  • Page 6 Do not release either the manual or the manual release lever of the electromagnetic brake (EMB) when the RZ1500 is on a slope. When on any sort of an incline, never place the RZ1500 in freewheel mode while seated on it or standing next to it.
  • Page 7 Flammable material. Do not expose to open flame. Flammable material. Do not expose to open flame. At the rear of the RZ1500 is the manual release lever of the EMB. When At the rear of the RZ1500 is the manual release lever of the EMB. When At the rear of the RZ1500 is the manual release lever of the EMB.

  • Page 8: Chapter 3 - Safety Instructions For Rz1500

    The contents of this manual are based on the expectation that a mobility device expert has properly fitted the RZ1500 scooter to the user and has assisted the prescribing healthcare professional and/or the authorized dealer to give instructions for the use of the product.
  • Page 9 Proceed with extreme caution as you approach the downgrade of a ramp or incline.  Take wide turns with your RZ1500 scooter around any tight corners. If you do that,  the scooter’s rear wheels will follow a wide arc. Do not cut the corner short, and do not bump into or get hung up on any railing corners.
  • Page 10 Maximum Recommended Incline Angles When driving up an incline, try to keep your RZ1500 moving. If you must stop, start up again slowly, and then accelerate cautiously. When driving down an incline, set the speed switch to MIN and drive forward only. If your RZ1500 starts to move down the incline faster than you want, allow it to come to a complete stop by releasing the throttle control lever, then push the throttle control lever forward slightly to ensure a safely controlled descent.
  • Page 11 Figure C. Increased Stability Drive Position When you approach an incline, it is best to lean forward. See Figures B and C. This shifts the centre of gravity of you and your RZ1500 toward the front of the RZ1500 for improved stability.
  • Page 12 WARNING! Do not operate your RZ1500 on public streets or roadways. It may be difficult for traffic to see you when you are seated on your RZ1500 . Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with extreme caution.
  • Page 13 RZ1500 to be pushed manually. Freewheel Manual lever Your RZ1500 is also equipped with an electric button located on the dashboard to release the electromagnetic brake. Turn key switch to ON position. To activate push button and hold. To release the brake just release the button.
  • Page 14 LIFTS/ELEVATION PRODUCTS If you travel with your RZ1500, you may find it necessary to use a lift or elevation product to aid in transportation. We recommend that you closely review the manufacturer’s instructions, specifications, and safety information before using the lift/elevation product.
  • Page 15 Bending to the side while seated creates the risk of tipping. It is important to maintain a stable centre of gravity to keep the RZ1500 from tipping. We recommend that you determine your personal limitations and practice bending and reaching in the presence of a qualified attendant.
  • Page 16 TV stations. WARNING! The addition of accessories or components to an electrically powered mobility vehicle can increase its susceptibility to EMI. Do not modify your RZ1500 scooter in any way not authorized by the manufacturer.

  • Page 17: Chapter 4 - Operating Instructions

    ON: Power is supplied to the RZ1500 and the EMB is released automatically when the throttle control lever is squeezed. To operate the RZ1500, insert the key in the key switch and turn it to ON (clockwise). The switch will remain in this position and the Power indicator will be lit.
  • Page 18 When the speed limit dial is set to MAX, the RZ1500 will drive at approximately 15 km/hr.  When the speed limit dial is set to MIN, the RZ1500 will drive at approximately 3 km/hr. Do not change the speed limit dial setting while the RZ1500 is moving.
  • Page 19 Throttle control selection can also be activated by fingers or thumb of both hands, use whichever method is most comfortable for you. To stop: Release the throttle control lever. The RZ1500 will stop gradually. Turning buttons Before you turn, press the applicable indicator button. When a turn (#6) indicator is activated, the applicable LED will flash.
  • Page 20 Prior to use Before using the RZ1500, be sure you know your own weight and the weight of any items you will be carrying on it. The maximum total load is 180kg (400lbs).

  • Page 21: Chapter 5 - Charging The Rz1500 Batteries

    4. Under ideal storage conditions, batteries that were charged to full capacity and were not used should be recharged every month. 5. If you expect not to use your RZ1500 for an extended period of time, we recommend charging it for two days and then disconnecting the batteries.

  • Page 22: Chapter 6 - Maintenance

    CHAPTER 6 – MAINTENANCE Although the RZ1500 requires very little maintenance, do not neglect it. When performing maintenance procedures on the RZ1500, make sure that it stands on a level surface and that the key is not inserted. This chapter contains both periodic maintenance procedures and maintenance procedures to be performed as required.
  • Page 23 Note! Batteries must be replaced by trained professionals only. Replace Warning! Batteries contain high energy and can spark, resulting in a batteries possible fire hazard. Warning! Working with batteries can cause damage and Injury if not done properly. In this procedure, refer to Figure bellow. 1.

  • Page 24: Chapter 7 - Troubleshooting And Repair

    CHAPTER 7 – TROUBLESHOOTING AND REPAIR The following table provides troubleshooting and repair instructions for problems that may be encountered when operating the RZ1500. as well as the best way to correct the problem. The table contains three columns: Symptom...

  • Page 25: Chapter 8 - Emi Warning

    CHAPTER 8 – EMI WARNING All types of electrically powered vehicles, such as powered wheelchairs and motorized scooters (in this text all types will be referred to as “powered vehicles”) may be susceptible to electromagnetic interference (EMI). This is from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones.

  • Page 26: Specifications

    SPECIFICATIONS SHEET PERFORMANCE DATA Maximum forward speed 17 km/h Maximum backward speed 5 km/h Maximum Safe Climbing Grade 6° / 10.5% Turning radius 71’’ Load Capacity (max) 180kg (400lbs) Range with Full Charge Up to 40km Wheel size 4.00-6 (14 inches high) Tires pressure 30 psi BATTERY...

  • Page 27: Warranty Warranty + Storage Instructions

    Fuses/Bulbs  WARRANTY SERVICE Warranty service must be performed by an authorized Orthoquad dealer. Please contact your authorized Orthoquad dealer for more information.There is no other express warranty. STORAGE INSTRUCTIONS Always store in a dry area protected from freezing to avoid damage to the scooter and premature wear of the batteries.
