Océ Operation Guide
Education Services
1.1.1.
English version
Océ WP33
Operation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP33 and is the answer not in the manual?

Questions and answers

Related Manuals for Océ WP33

Summary of Contents for Océ WP33

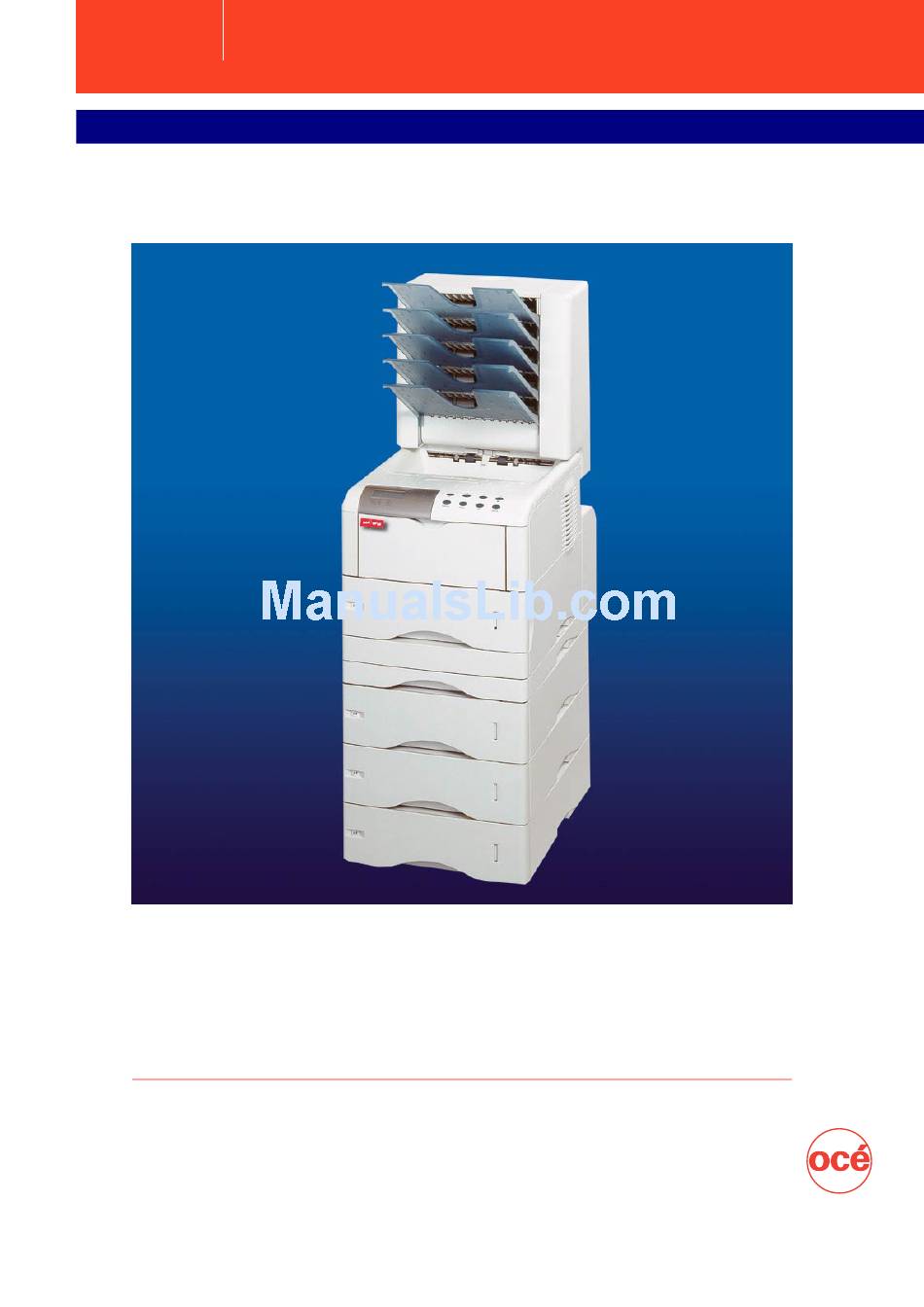

  • Page 1 Océ Operation Guide Education Services 1.1.1. English version Océ WP33 Operation Guide...
  • Page 2 Caution on Installation No liability is assumed for any damage caused by improper installation. Notice on Software Software used with this printer must support the printer’s emulation mode. The printer is factory-set to emulate the PCL. The emula- tion mode can be changed by following the procedures described in Chapter Notice on This Guide The information in this guide is subject to change without notification.

  • Page 3: Limited Warranty

    IBM PROGRAM LICENSE AGREEMENT The device you have purchased contains one or more software programs ("Programs") which belong to international business machines corporation ("IBM"). This document defines the terms and conditions under which the software is being licensed to you by IBM. If you do not agree with the terms and conditions of this license, then within 14 days after your acquisition of the device you may return the device for a full refund.
  • Page 4 Typeface Trademark Acknowledgement All resident fonts in this printer are licensed from Agfa Corporation. Helvetica, Palatino and Times are registered trademarks of Linotype-Hell AG. ITC Avant Garde Gothic, ITC Bookman, ITC ZapfChancery and ITC Zapf Dingbats are registered trademarks of International Type- face Corporation.

  • Page 5: Table Of Contents

    Contents Contents Introduction ....................ix Features ................................x For More Information........................... xiii Guide to the Operation Guide........................xiv Using the Operator Panel ............1-1 Chapter 1 Understanding the Operator Panel ......................1-2 Message Display ............................ 1-2 Interface Indicator ..........................1-3 Paper Size Indicator..........................
  • Page 6 Contents Pagination ..............................1-41 Emulation............................. 1-41 Changing the Emulation ...................... 1-41 Alternative Emulation for KPDL Emulation ..............1-42 Printing KPDL Errors ......................1-43 Font ............................... 1-44 Default font ..........................1-44 Default Font Size ........................1-46 Changing Type for Courier/Letter Gothic ................1-47 Setting the Character Pitch for Courier/Letter Gothic ............
  • Page 7 Contents Configuration .............................. 1-91 Page Protect Mode ..........................1-91 Linefeed (LF) Action ..........................1-92 Carriage-Return (CR) Action ......................1-93 Wide A4 Pitch............................1-94 Print Density............................1-95 Total Printed Pages..........................1-96 Toner Counter Resetting ........................1-96 Message Language..........................1-97 Automatic Form Feed Timeout......................1-99 Sleep Timer Setting ...........................
  • Page 8 Contents Troubleshooting ..............4-1 Chapter 4 General Guide............................... 4-2 Print Quality Problems ..........................4-3 Indicators and Messages ..........................4-6 Indicators..............................4-6 Maintenance Messages.......................... 4-7 Error Messages ............................ 4-10 Correcting a Paper Jam..........................4-12 Jam at the Paper Cassette or Inside the Printer ................4-14 Paper Jam at the Option Duplexer .....................
  • Page 9 Contents Serial Interface (Option) ..........................B-6 RS-232C Interface..........................B-6 RS-232C Protocol ............................B-7 PRESCRIBE FRPO D0 Command....................... B-9 RS-232C Cable Connection ........................B-10 Obtain a Suitable RS-232C Cable...................... B-10 Connecting the Printer to the Computer................... B-10 Specifications ................. C-1 Appendix C Glossary ..................

  • Page 10: Introduction

    Introduction The Kyocera Mita page printer has many extremely desirable features. It was designed to make a contribution to a cleaner environment as well as to represent the latest generation of page printer technology. This section contains the following subsections. •...

  • Page 11: Features

    Features This section outlines the common major printer features of the FS-3830N page printer. Ultra long life modules The drum, developer, and fuser have been designed for ultra long life. Amorphous silicon drum The drum has been developed using Kyocera’s unique ceramic technology using amorphous silicon.

  • Page 12: Pdf Direct Printing

    USB (Universal Serial Bus) Interface This printer supports Hi-Speed USB 2.0 standards. Connection to a computer with a USB interface gives a higher communication speed than parallel interface connection. e-MPS ‘e-MPS’ is an abbreviation for ‘enhanced-Multiple Printing System,’ which is a post-processing function that combines electronic sorting, job retention, and virtual mailboxing.
  • Page 13 Microdrive (hard disk unit) slot for various functions such as job retention, VMB, and more By saving print jobs onto the Microdrive, they can be printed out at the operator panel when desired. The electronic sort function can be used for much faster printing.

  • Page 14: For More Information

    For More Information... Item Description Installation Guide Describes procedures from printer setup to printing (paper manual) a test page. KX Printer Driver Describes the procedure to install the printer driver Installation Guide software. (paper manual) Operation Guide Guides you through topics concerning the (this manual) operations and maintenance of the printer.

  • Page 15: Guide To The Operation Guide

    Guide to the Operation Guide This Operation Guide has the following chapters: Chapter 1 Using the Operator Panel This chapter explains the message display, indicators and keys on the operator panel, and how to make various settings from the operator panel. Chapter 2 Paper Selection This chapter explains the types of paper that can be used with the printer.
  • Page 16 Indicates tips or advice useful for operation. Note Indicates situations that are potentially hazardous to the human body or devices. Caution Indicates situations that are potentially extremely hazardous to the human body or devices. Warning Indicates operations that can be performed or are effective only when the required option unit is installed.

  • Page 17: Chapter 1 Using The Operator Panel

    Using the Operator Chapter 1 Panel This chapter explains the following topics: • Understanding the Operator Panel • Printing Test Pages • Paper Handling • Pagination • e-MPS • Interface • Operating the Storage Device • Configuration...

  • Page 18: Understanding The Operator Panel

    Understanding the Operator Panel Understanding the Operator Panel The operator panel has a LCD message display, three indicators, and eight keys. Messages that appear on the display and functions of indicators and keys are explained in the sections that follows. Message Display The message display gives information in the form of short messages.

  • Page 19: Interface Indicator

    Understanding the Operator Panel INTERFACE Interface Indicator The interface indicator shows the interface that is currently used. It uses the following abbreviations: Standard bi-directional parallel interface Standard USB interface Network interface Option serial interface (RS-232C) Option network interface card No interface is active. Each interface has a timeout time of 30 seconds during which the other interface should wait to receive a print job.

  • Page 20: Paper Type Indicator

    Understanding the Operator Panel TYPE Paper Type Indicator This shows the paper type defined for the current paper casette. Automatic cassette switching is available according to the paper type. Creating The paper type can be specified at the operator panel. See Custom Paper Type on page 1-32.

  • Page 21: Keys

    Understanding the Operator Panel Keys The operator panel keys are used to configure the printer. Note the certain keys have the secondary function. CANCEL MENU ENTER Settings made with these keys effect only the interface currently in use. Note Function •...

  • Page 22: Menu System Road Map

    Understanding the Operator Panel Menu System Road Map This section explains how to use the menu selection system. The MENU key on the operator panel allows you to use the menu to set or change the printer environment such as the number of copies to make, emulation, etc., to your specific needs.
  • Page 23 Understanding the Operator Panel Continued from previous page Interface > >Parallel I/F Parallel Auto Normal Interface > Network High Speed Interface > Serial Nibble (high) Interface > Option >NetWare >NetWare > >>NetWare Frame Auto >TCP/IP >>DHCP >Ether Talk >>IP Address >Network Status >>Subnet Mask Page...
  • Page 24 Understanding the Operator Panel Continued from previous page Emulation PCL 6 Emulation > >Print KPDL errs KPDL Emulation > >Alt. Emulation KPDL (AUTO) PCL 6 Emulation >Print KPDL errs Line Printer Emulation IBM Proprinter Emulation DIABLO 630 Emulation EPSON LQ-850 Font >...
  • Page 25 Understanding the Operator Panel Continued from previous page Print Quality > >KIR Mode >Ecoprint Mode >Resolution Fast 1200 mode Fine 1200 mode 300 dpi 600 dpi >Print Density Hard Disk > >Read Data >Write Data >Delete Data >List of Partitions RAM Disk Mode RAM Disk Mode >RAM Disk Size...
  • Page 26 Understanding the Operator Panel Continued from Previous page Paper Handling > >MP Tray Mode Cassette >MP Tray Size A4 or Letter >MP Tray Type Plain >EF Size DL or Business >EF Type Envelope † >BulkFeeder Size † >BulkFeeder Type Plain >Cassette Size >Cassette Size >...
  • Page 27 Understanding the Operator Panel Continued from previous page Others > >MSG Language English >Form Feed Time Out 030sec. >Sleep Timer > >>Sleep Mode 015 min. >Print HEX-DUMP >Printer Reset >Resource Prot. Permanent Perm / Temp >Buzzer >Auto Continue > >>Auto Continue Mode Timer 030sec.

  • Page 28: Printing Test Pages

    Printing Test Pages Printing Test Pages This section explains the procedure for printing the printer’s internal information using the menu selection system. The menu map is usefull as a reference to guide yourself through the menu selection system. The status page is a list of parameters and settings for most basic printer configurations.
  • Page 29 Printing Test Pages Sample MENU MAP FS-3830N Page Printer MENU MAP 1-13...
  • Page 30 Printing Test Pages Status Page If you want to check the printer's current status, including memory available and option settings, you can find the information you need on the status page. Press the MENU key. Press the key repeatedly until Print Status Page appears. Print Status Page Press the ENTER key.

  • Page 31: Status Page

    Printing Test Pages The following is a sample status page. The numbers below refer to the contents explained on the following pages. FS-3830N Page Printer STATUS PAGE Firmware Version: Released: Hardware Information Memory Page Information Installed Options Network Status Emulation Error Log Toner Gauge Interfaces...
  • Page 32 Printing Test Pages 1 — Software Version This information shows the firmware version and date of issue of the printer. 2 — Hardware Information This information shows various printer settings, such as the size and type of the paper in the paper cassettes. 3 —...
  • Page 33 Printing Test Pages 10 — Interface Information This information shows the default font and the default emulation for all interfaces installed in the printer. 11 — KIR Test Pattern KIR is the Kyocera Mita’s original smoothing function. This test pattern shows the effect of the KIR (Kyocera Image Refinement) system.

  • Page 34: Service Status Page

    Printing Test Pages Service Status Page The service status page contains printer settings information that is more detailed than the standard status page and is therefore for mostly service purposes. However, since there is a great deal of information available on the service status page that may be helpful to you, the procedure for printing it out is given below.

  • Page 35: Network Interface Status Page

    Printing Test Pages Network Interface Status Page You can print out a status page for the network interface. The network interface status page shows the firmware version, the network addresses, and other information under various network protocols about the network interface card.

  • Page 36: Network Status

    Printing Test Pages Press the key repeatedly until Network appears. Interface ? Network Press the ENTER key again. A > appears. Interface > Network Press the > key and then press the key repeatedly until the message display indicates >Network Status Page. >Network Status Page The default setting is Off.

  • Page 37: Font Lists

    Printing Test Pages Font Lists To help in selecting fonts, you can print the lists of the fonts including option fonts. Press the MENU key. Press the key repeatedly until Font > appears. Font > Press the > key. Press the key repeatedly until >...
  • Page 38 Printing Test Pages Font Lists Internal Scalable and Bitmapped Fonts List PRESCRIBE Font Name Scalable/Bitmap Password Selection [FSET] Font ID Internal Scalable and Bitmapped Fonts List PRESCRIBE Font Name Scalable/Bitmap Password Selection [FSET] Font ID 1-22...

  • Page 39: Received Data Dumping

    Printing Test Pages Received Data Dumping It is possible to print data received by the printer as hexadecimal code for the purposes of debugging programs and files. Press the MENU key. Press the key repeatedly until Others > appears. Others >...

  • Page 40: Paper Handling

    Paper Handling Paper Handling This section explains how to use the operator panel to change the paper size and type for each paper source, the mode for the MP (multi-purpose) tray, and other settings regarding paper handling. Setting the Paper Size Set the paper sizes according to the sizes of paper to be set in the paper cassette and the MP tray.
  • Page 41 Paper Handling Custom Paper Size In addition to the standard sizes A5, A4, B5, Letter, and Legal (for U. S. A. only) size for the paper cassette, paper of other sizes can be fed as custom sizes. When placing paper of sizes other than A5, A4, B5, Letter, or Legal (for U.
  • Page 42 Paper Handling Press the key repeatedly until >Cassette Size > appears. If option paper feeders are added, Cassette 1 Size will appear for the standard paper cassette and Cassette 2 Size, Cassette 3 Size, and Cassette 4 Size will appear for the option paper feeders.
  • Page 43 Paper Handling Selecting the Unit of Measurement Then, use the following procedure to set the unit of measurement. Press the > key. Press the key repeatedly until >>Unit appears. The unit of measurement can be selected between millimeters and inches. The current unit of measurement is displayed (the default setting is mm).

  • Page 44: Setting The Paper Size In Mp Tray

    Paper Handling When the unit of measurement is set, press the key. >>X Dimension appears as shown below (the paper width setting). >>X Dimension 216 mm Press the ENTER key. A blinking cursor ( ) appears. >>X Dimension 216 mm Press the key to increase or decrease the value of the figure where the cursor is blinking and display the desired width.
  • Page 45 Paper Handling Press the > key. Press the key repeatedly until >MP Tray Size appears. >MP Tray Size Press the ENTER key. A blinking question mark (?) appears. >MP Tray Size ? A4 Press the key to display the desired MP tray size. The display changes as shown below.

  • Page 46: Setting The Paper Type

    Paper Handling Setting the Paper Type Set the paper types according to the paper to be set in the cassette and the MP tray. Setting the Paper Type in Paper Cassette Make this setting to match the paper type fed from the paper cassette of the printer.

  • Page 47: Setting The Paper Type In Mp Tray

    Paper Handling Setting the Paper Type in MP Tray You can automatically select the paper cassette according to the selection made by the application software (printer driver). The factory default setting is Plain. This menu does not appears when the option envelope feeder is installed on the printer.

  • Page 48: Creating Custom Paper Type

    Paper Handling Press the key to display the desired MP tray type. The display changes as shown below. Plain Transparency Preprinted Labels Bond Recycled Vellum Rough Letterhead Color Prepunched Envelope Cardstock Thick High quality Custom (1 to 8) When the desired MP tray type is displayed, press the ENTER key. Press the MENU key and the message display returns to Ready.
  • Page 49 Paper Handling Press the ENTER key. A blinking question mark (?) appears. >Type Adjust > ? Custom 1 Press the key to display the desired paper type. The display changes as shown below. Custom (1 to 8) Plain Transparency Preprinted Labels Bond Recycled...

  • Page 50: Paper Weight

    Paper Handling Setting the Paper Weight You can set the paper thickness for your custom paper type to be customized. Display the custom paper type (see Creating Custom Paper Type on page 1-32) and press the > key. Press the key repeatedly until >>Paper Weight appears.
  • Page 51 Paper Handling Setting the Duplex Path To use this function, the duplexer must be installed on the printer. Option If the paper type is set to Custom and the option duplexer is installed on the printer, you can set whether or not to enable duplex printing as follows. The default setting is Enable.
  • Page 52 Paper Handling Resetting the Custom Paper Type Creating Custom Resets the settings of Custom 1 to 8 that are set in Paper Type on page 1-32. Press the MENU key. Press the key repeatedly until Paper handling > appears. Paper Handling > Press the >...

  • Page 53: Mp Tray Mode

    Paper Handling MP Tray Mode The MP tray can be used in either of two modes – first or cassette. The MP tray feed paper differently depending on the mode: • Cassette Mode This is the default mode. The MP tray acts in the same manner as other paper source.

  • Page 54: Selecting The Paper Feed Source

    Paper Handling Press the ENTER key. A blinking question mark (?) appears. >MP Tray Mode ? Cassette Select First or Cassette using the key. Press the ENTER key. Press the MENU key. The message display returns to Ready. Selecting the Paper Feed Source You can select from which paper source printing will be performed.

  • Page 55: Selecting The Output Stack

    Paper Handling Selecting the Output Stack The following procedure allows you to select whether printouts will be received by the top tray or to the rear tray. If an option sorter is installed, it can also be selected using the manner described below. Press the MENU key.

  • Page 56: Overriding A4 And Letter Size Difference

    Paper Handling Overriding A4 and Letter Size Difference This selects whether to enable or disable the difference between A4 size and Letter size. Under the default setting of Off, the paper size of the paper source is matched to the paper size formatting the jobs. If these differ, a corresponding error message is displayed.

  • Page 57: Pagination

    Pagination Pagination The items regarding pagination can be made from the operator panel. The items that can be set are shown below. • Emulation • Font • Code Set • Number of Copies • Printing Orientation • KIR (Kyocera Image Refinement) •...

  • Page 58: Alternative Emulation For Kpdl Emulation

    Pagination Press the ENTER key. Press the MENU key. The message display returns to Ready. Alternative Emulation for KPDL Emulation The auto KPDL (KPDL (AUTO)) emulation enables the printer to automatically change the emulation mode according to the print job received.

  • Page 59: Printing Kpdl Errors

    Pagination Press the key repeatedly until the desired alternative emulation appears. Press the ENTER key. Press the MENU key. The message display returns to Ready. Printing KPDL Errors The printer can print error descriptions when printing error occurs during KPDL emulation. The default is Off – the printer does not print KPDL errors.

  • Page 60: Font

    Pagination Select On using the key. >Print KPDL Errs ? On Press the ENTER key. Press the MENU key. The message display returns to Ready. Font You can select the default font for the current interface. In addition to the internal fonts, all fonts that are downloaded to the printer memory, or fonts stored on a CompactFlash card, Microdrive, or option ROM, can be selected as the default font.
  • Page 61 Pagination Press the > key. The message display changes to that show below. >> I000 The letter before the number indicates the type of font as shown below: Letter Description Internal font Soft (down load) font Fonts in an option CompactFlash card Fonts in a RAM disk or option Microdrive.

  • Page 62: Default Font Size

    Pagination Default Font Size The following procedure determines the size of the default font. If the default font is a fixed font such as Courier or Letter Gothic, the character pitch can be changed instead of the font size. Press the MENU key. Press the key repeatedly until Font >...

  • Page 63: Changing Type For Courier/Letter Gothic

    Pagination Changing Type for Courier/Letter Gothic Courier or Letter Gothic font type can be selected as Regular or Dark. For example, to change the type of Courier, proceed as follows: Press the MENU key. Press the key repeatedly until Font > appears. Font >...

  • Page 64: Setting The Character Pitch For Courier/Letter Gothic

    Pagination Setting the Character Pitch for Courier/Letter Gothic The character pitch for fixed fonts is adjustable when the default font is Courier or Letter Gothic. Press the MENU key. Press the key repeatedly until Font > appears. Font > Press the > key. Press the key repeatedly until >Font Select >...

  • Page 65: Code Set

    Pagination Code Set You can change the character code set. Available character code sets vary depending on the current font. (The default is IBM PC-8.) Press the MENU key. Press the key repeatedly until Font > appears. Font > Press the > key. Press the key until >...

  • Page 66: Number Of Copies

    Pagination Number of Copies You can set the number of copies to be printed of each page for the current interface. The number of copies can be set between 1 and 999. Press the MENU key. Press the key repeatedly until Page set > appears. Page Set >...

  • Page 67: Printing Orientation

    Pagination Printing Orientation The default orientation of the page can be selected from the portrait (upright) and landscape (sideways) page orientation. Portrait orientation Landscape orientation Press the MENU key. Press the key repeatedly until Page Set > appears. Page Set >...

  • Page 68: Kir (Kyocera Image Refinement)

    Pagination KIR (Kyocera Image Refinement) This printer incorporates the KIR (Kyocera Image Refinement) smoothing function. This function provides high print quality by providing software enhancement of print resolution. With KIR With KIR (default) Set the print density to 3 when setting the KIR mode. For details on print density, see page 1-95.

  • Page 69: Print Quality

    Pagination Press the MENU key. Press the key repeatedly until Print Quality > appears. Print Quality > Press the > key. Press the key repeatedly until >KIR Mode appears. >KIR Mode Press the ENTER key. A blinking question mark (?) appears. >KIR Mode ? On Select On or Off using the...

  • Page 70: Ecoprint

    Pagination Ecoprint The Ecoprint enables you to reduce the amount of toner consumed on the page so as to save your printing costs. You can set to Ecoprint mode on, as follows. (The factory default setting is Off.) The Ecoprint setting has no effect on the print speed. The Ecoprint mode setting is On when the printing image becomes lighter, yet very readable.

  • Page 71: Resolution

    Pagination Resolution Proceed as follows to set the default print resolution from four ways — 300 dpi, 600 dpi, Fast 1200 mode, and Fine 1200 mode. The clarity of printed characters and graphics becomes sharper in this order. Press the MENU key. Press the key repeatedly until Print Quality >...

  • Page 72: E-Mps

    e-MPS e-MPS e-MPS is an abbreviation for ‘enhanced-Multiple Printing System’ which implements the following functions that are available from the printer driver: • Job Retention • Job Storage In either job mode, when printing a document, the print data is transferred from the computer to the printer then stored on the printer’s hard disk.

  • Page 73: Quick Copy

    e-MPS Job Storage Job storage stores print jobs either temporarily or permanently, or in virtual mailboxes, as you click an appropriate radio button on the printer driver when printing from a computer. Virtual Mailbox Virtual mailbox is part of Job Storage, which stores print jobs on the Virtual mailbox is part of Job Storage, which stores print jobs on the hard disk without printing.
  • Page 74 e-MPS Press the > key. Press the key repeatedly until >Quick Copy appears followed by the user name (Harold, in this example). The user name is assigned at printing using the printer driver. >Quick Copy Harold Press the ENTER key. A blinking question mark (?) appears before the user name.

  • Page 75: Proof And Hold

    e-MPS Deleting a Quick Copy Job All quick copy jobs are automatically deleted when the printer is turned off. If you desire to explicitly delete a stored quick copy job, proceed as follows: Follow steps 1 through 8 in the above section to let the title of the job displayed.
  • Page 76 e-MPS Press the key repeatedly until >Quick Copy appears followed by the user name (Harold, in this example). The user name is assigned at printing using the printer driver. >Quick Copy Harold Press the ENTER key. A blinking question mark (?) appears before the user name.

  • Page 77: Printing A Private Job

    e-MPS Printing a Private Job In private printing, you can specify that a job is not printed until you release the job from the operator panel. At sending the job from the application software, you should specify a 4-digit access code in the printer driver.
  • Page 78 e-MPS Press the key to display the desired job title. Press the ENTER key. The ID input line appears. Enter the four-digit access code entered in the printer driver and press the ENTER key. To enter the ID, press the < or > key to move the cursor to the number to be changed and then enter the correct number by pressing key.

  • Page 79: Printing A Stored Job

    e-MPS Printing a Stored Job The procedure below allows you to store print jobs to the Microdrive that are frequently needed such as fax cover pages, check lists, and order forms, for printing at any later time using the operator panel. The print jobs will not be deleted when the printer is turned off.
  • Page 80 e-MPS Press the key to display the desired job title. Press the ENTER key. If you entered an access code for the printer driver, the ID input line appears. Enter the four-digit access code entered in the printer driver and press the ENTER key. To enter the ID, press the <...

  • Page 81: Printing A Code Job

    e-MPS Printing a Code Job KM-NET Job Manager Install the KM-NET for Clients software from the CD-ROM supplied with the printer. To do this, from the CD-ROM Main Menu, select Printer Utilities > KM-NET for Clients. Browse through Windows Start > Programs > Kyocera Mita > KM- NET for Clients.
  • Page 82 e-MPS Select the printer and then click on the Job Manager icon. The jobs that are stored in that printer will be displayed. To print the job, right click Job name and then click Print on the drop down list that appears.

  • Page 83: Printing A List Of Code Jobs

    e-MPS Printing a List of Code Jobs If you select Permanent Job Storage on the printer driver, you can have a List of Code Job printed using the operator panel. Press the MENU key. Press the key repeatedly until e-MPS > appears. e-MPS >...

  • Page 84: Retrieving Jobs From Virtual Mailbox (Vmb)

    e-MPS Retrieving Jobs from Virtual Mailbox (VMB) To use this mode, an option Microdrive must be installed in the printer. Option To retrieve the jobs posted in the virtual mailbox, proceed as follows. Press the MENU key. Press the key repeatedly until e-MPS > appears. e-MPS >...

  • Page 85: Printing A List Of Vmb

    e-MPS Printing a List of VMB A Virtual Mailbox list includes the jobs currently stored in the mailboxes. Press the MENU key. Press the key repeatedly until e-MPS > appears. e-MPS > Press the > key. Press the key repeatedly until >List of VMB appears. >List of VMB Press the ENTER key.

  • Page 86: E-Mps Configuration

    e-MPS e-MPS Configuration You can change the following parameters for e-MPS operation: • Maximum number of Quick Copy/Proof and Hold jobs • Maximum space assigned to temporary code jobs Option • Maximum space assigned to permanent code jobs • Maximum space assigned to virtual mailboxes The total amount of storage areas specified must not exceed the total size of the Microdrive.
  • Page 87 e-MPS Press the key to increase or decrease the value at the blinking cursor. The value can be set between 0 and 50. Use the > and < keys to move the cursor right and left. When the desired maximum number of jobs is set, press the ENTER key.
  • Page 88 e-MPS Press the key to increase or decrease, respectively, the value at the blinking cursor. Use the > and < keys to move the cursor right and left. When the desired size is displayed, press the ENTER key. Press the MENU key. The message display returns to Ready. Maximum Space Assigned to Permanent Code Jobs This changes the Microdrive space that holds permanent code jobs.
  • Page 89 e-MPS When the desired size is displayed, press the ENTER key. Press the MENU key. The message display returns to Ready. Maximum Space Assigned to Virtual Mailboxes This changes the Microdrive space for virtual mailboxes. You can change the maximum space from 0 to 9999 (megabytes). The actual maximum size depends on the size of free Microdrive space, however.

  • Page 90: Interface

    Interface Interface This printer is equipped with a parallel interface, a USB interface and a network interface. An optional serial interface and a second network interface can be installed as well. Various printing environment parameters such as the default emulation can be changed indepently on different interfaces by using the printer’s menu selection system.

  • Page 91: Usb Interface Mode

    Interface Press the ENTER key. A blinking question mark (?) appears. >Parallel I/F ? Auto Press the key to display the desired mode. The display changes as shown below. Press the ENTER key. Auto (default) Normal High Speed Nibble (high) Press the MENU key.

  • Page 92: Serial Interface Parameters

    Interface Serial Interface Parameters This section applies to the printers having the option serial interface board kit (IB-11) installed. Option The baud rate, data bits, stop bits, parity, and protocol for the serial interface can be set as follows: Press the MENU key. Press the key repeatedly until Interface >...

  • Page 93: Data Bits

    Interface Press the > key. Each time the key is pressed, the setting item and current setting change as shown below. Definable baud rates: 1200, 2400, 4800, >Baud Rate 9600 (default), 19200, 38400, 57600, 115200 9600 Definable data bits: 7, 8 (default) >Data Bits Definable stop bits: 1 (default), 2 >Stop Bits...

  • Page 94: Network Interface Parameters

    Interface Network Interface Parameters This printer supports TCP/IP , NetWare and EtherTalk protocols. In addition, you can install the option network interface card in the option interface slot. Using the operator panel, you can: • Activate or deactivate TCP/IP , NetWare, and EtherTalk •...
  • Page 95 Interface Press the > key. Each time the key is pressed, the display changes as shown below. Range Set this item to On when you connect to a >NetWare > network using NetWare. In submenu (>), frame mode can be selected from Auto, Ethernet, 802.2, 802.3, and 802.3 SNAP .

  • Page 96: Subnet Mask

    Interface Press the > key. Each time the key is pressed, the item changes as shown below. >>DHCP >>IP Address 000.000.000.000 >>Subnet Mask 000.000.000.000 >>Gateway 000.000.000.000 Display the item to be set and press the ENTER key. For DHCP , a question mark (?) appears. For IP Address, Subnet Mask, and Gateway, the cursor ( ) blinks.

  • Page 97: Operating The Storage Device

    Operating the Storage Device Operating the Storage Device The printer supports three types of storage devices: CompactFlash card, Microdrive, and RAM disk. The printer is equipped with a slot for a CompactFlash card and a Microdrive. By inserting a CompactFlash card or Microdrive into the printer, the following operations become available.

  • Page 98: Ram Disk Size

    Operating the Storage Device The default setting is Off. Press the ENTER key. A blinking question mark (?) appears. Select On using the key, and then press the ENTER key. RAM Disk Mode ? On Press the > key to display >RAM Disk Size. >RAM Disk Size 0087 Mbyte Press the ENTER key again, and change the RAM disk size using the...

  • Page 99: Reading Data

    Operating the Storage Device Reading Data To read data on a CompactFlash card, Microdrive, or the RAM disk use the following procedure: Press the MENU key. Press the key repeatedly until Memory Card >, Hard Disk > or RAM Disk Mode > appears. Memory Card >...

  • Page 100: Writing Data

    Operating the Storage Device Writing Data You can write data to a CompactFlash card, the Microdrive, or the RAM disk using the operator panel. When writing data to the storage device, a name is automatically assigned to the data. The CompactFlash card or the Microdrive or the RAM disk must be formatted.
  • Page 101 Operating the Storage Device In this state, send the file from the computer to the printer. The file is written onto the storage device given a destination name (also referred to as a partition name) which the printer automatically assigns one after another as follows: DataS001 (first data), DataS002 (second data), DataS003 (third data)...

  • Page 102: Deleting Data

    Operating the Storage Device Repeat above steps until you have transferred all data (files) that you want to write to the CompactFlash card. Each time you finish writing data, a CompactFlash card write information page is printed from the printer showing the information explained in step 4 above, but pertaining only to the data just written.

  • Page 103: Reading Fonts From A Compactflash Card

    Operating the Storage Device Reading Fonts from a CompactFlash Card If a font (CompactFlash) card is already inserted into the slot when the printer is turned on, the fonts are automatically read into the printer. To re-read fonts into the printer from a CompactFlash card, proceed as follows.

  • Page 104: Formatting A Storage Device

    Operating the Storage Device Formatting a Storage Device A new CompactFlash card or Microdrive must be formatted before it can be used in the printer. You can format the storage device using the printer operator panel. • Formatting will destroy any existing data on a storage device. •...

  • Page 105: Printing A List Of Data Names

    Operating the Storage Device When the formatting is successfully completed, the printer automatically prints out a format information page as shown below. FS-3830N Page Printer FORMAT INFORMATION Capacity. The total size of the CompactFlash card or the Microdrive memory. Used Space. The size the printer uses for its system. Free Space.
  • Page 106 Operating the Storage Device Press the ENTER key. A question mark (?) appears. >List of Partitions ? Press the ENTER key. Processing appears and the printing of the list starts. FS-3830N Page Printer PARTITION LIST Device Information Partition Information The list provides the following information that are automatically generated by the printer about data currently stored in the storage device: Device Name/Number.

  • Page 107: Configuration

    Configuration Configuration This section explains the details of printer settings. The following items are covered. • Page Protect Mode • Linefeed (LF) Action • Carriage-Return (CR) Action • Wide A4 Pitch • Print Density • Total Printed Pages • Toner Counter Resetting •...

  • Page 108: Linefeed (Lf) Action

    Configuration Press the ENTER key. A blinking question mark (?) appears. >Page Protect ? On Press the key repeatedly until Auto appears. >Page Protect ? Auto Press the ENTER key. Press the MENU key. The message display returns to Ready. Linefeed (LF) Action This procedure instructs the printer what to do when it receives a linefeed code (character code 0AH).

  • Page 109: Carriage-Return (Cr) Action

    Configuration When the desired action is displayed, press the ENTER key. Press the MENU key. The message display returns to Ready. Carriage-Return (CR) Action This procedure instructs the printer what to do when it receives a carriage- return code (character code 0DH) Press the MENU key.

  • Page 110: Wide A4 Pitch

    Configuration Wide A4 Pitch Turn this to On to increase the maximum number of characters that can be printed in a line for A4 page (78 characters at 10 pitch) and Letter size page (80 characters at 10 pitch). This setting is effective in only PCL 6 emulation.

  • Page 111: Print Density

    Configuration Print Density The print density can be adjusted in five steps: from 01 (light) to 05 (dark). The factory setting is 03. Press the MENU key. Press the key repeatedly until Print Quality > appears. Print Quality > Press the > key. Press the key repeatedly until >Print Density appears.

  • Page 112: Total Printed Pages

    Configuration Total Printed Pages This procedure displays the total number of printed pages. Press the MENU key. Press the key repeatedly until Life Counters > appears. Life Counters > Press the > key. Press the key repeatedly until >Total Print appears, the total number of printed pages displayed.

  • Page 113: Message Language

    Configuration Press the ENTER key. A question mark (?) appears. >New Toner Installed ? Press the ENTER key. The toner counter is reset. The message display returns to Ready. Message Language You can select the language of the messages on the message display by following the procedure given below.
  • Page 114 Configuration Press the key. The display cycles through the available selections in the following order (The key cycles in the reverse order): >MSG Language ? English >Langue ? Francais >Anzeigesprache ? Deutsch >Lingua ? Italiano >Berichttaal ? Nederlands >Idioma ? Español >Idioma da MSG ? Portugues Press the ENTER key.

  • Page 115: Automatic Form Feed Timeout

    Configuration Automatic Form Feed Timeout When the printer receives no data for a certain time, it time out and releases the current interface: it prints whatever data it has in its buffer and feeds out the page. You can adjust the time-out time as follows: Press the MENU key.

  • Page 116: Sleep Timer Setting

    Configuration Sleep Timer Setting The printer has a sleep timer to conserve power when the printer is not printing, processing, or receiving data. You can adjust the timer value, the length of time the printer waits before entering sleeping mode in the absence of data.

  • Page 117: Sleep Timer

    Configuration Turning Off the Sleep Timer You can turn off the sleep timer function by following the procedure given below. Press the MENU key. Press the key repeatedly until Others > appears. Others > Press the > key. Press the key repeatedly until >Sleep Timer >...

  • Page 118: Printer Resetting

    Configuration Printer Resetting The procedure described below resets the printer’s temporary conditions, such as the current unit of measurement, page orientation, font, character code set, margins, etc., set by commands to their default values. Press the MENU key. Press the key repeatedly until Others >...

  • Page 119: Resource Protection

    Configuration Resource Protection When you switch from the PCL 6 emulation to another, all downloaded fonts and macros are lost. Resource protection preserves these PCL resources in memory so that they are intact when you change the emulation back to PCL 6. Resource protection requires extra memory to store the downloaded fonts and macros.

  • Page 120: Alarm (Buzzer) Setting

    Configuration Alarm (Buzzer) Setting In addition to the message displayed when the paper supply is exhausted, or when paper jamming occurs, an audio warning is made to sound. This is useful, for example, when the printer is in a location some distance from the user.

  • Page 121: Auto Continue Setting

    Configuration Auto Continue Setting When Auto Continue is enabled, the printer will automatically print the next received data following a preset amount of time passes after any one of the following errors occurs: Memory overflow Press GO Print overrun Press GO KPDL error Press GO File not found Press GO Hard disk err Press GO...

  • Page 122: Auto Continue

    Configuration Setting the Auto Continue Recovery Time Follow the procedure given below to change the recovery time for Auto Continue. Press the MENU key. Press the key repeatedly until Others > appears. Others > Press the > key. Press the key repeatedly until Auto Continue Mode >...

  • Page 123: Duplex Printing Error Detection Setting

    Configuration Duplex Printing Error Detection Setting If the error detection setting for duplex printing has been turned On, and you attempt to print onto a paper size and paper type that cannot be used for duplex printing, the Duplex disabled Press GO error message will be displayed and printing will stop.

  • Page 124: Chapter 2 Paper Selection

    Paper Selection Chapter 2 This chapter explains the following topics: • General Guidelines • Special Paper • Paper Type...

  • Page 125: General Guidelines

    General Guidelines General Guidelines The printer is designed to print on high-quality copier bond paper (the kind used in ordinary dry copier machines), but it can also accept a variety of other types of paper within the limits specified below. The manufacturer assumes no liability for problems that occur when paper not satisfying these requirements is used.

  • Page 126: Selecting The Right Paper

    General Guidelines Selecting the Right Paper Laser printing is a process involving laser light, electrostatic discharge, toner, and heat. In addition, as the paper passes through the printer it undergoes considerable sliding, bending, and twisting motions. A high- quality printing paper matching the printer’s requirements withstands all these stresses, enabling the printer to turn out clean, crisp printed copies consistently.

  • Page 127: Paper Size

    General Guidelines Paper Size Cassettes and an MP tray are available for the paper sizes listed in the table below. The dimensional tolerances are ±0.7 mm (±0.0276 inches) for the length and width. The angle at the corners must be 90° ±0.2°. Multi-purpose Size Cassette or...

  • Page 128: Moisture Content

    General Guidelines Paper Weight Equivalence Table Paper weight is listed with expression in U.S. bond weight (lb) and European metric (g/m²). The shaded point indicates the standard weight. U. S. Bond Weight (lb) Europe Metric Weight (g/m²) Table 2-3 Thickness (Caliper) Thick paper is referred to as high-caliper paper and thin paper as low- caliper paper.
  • Page 129 General Guidelines Paper Grain When paper is manufactured, it is cut into sheets with the grain running parallel to the length (long grain) or parallel to the width (short grain). Short grain paper can cause feeding problems in the printer. All paper used in the printer should be long grain.

  • Page 130: Special Paper

    Special Paper Special Paper This section explains printing on special paper. The page printer can use the following types of special paper. In this case, set the media type according to the table below. Paper type Media type Colored paper Color Preprinted paper Preprinted...

  • Page 131: Adhesive-Backed Labels

    Special Paper Adhesive-Backed Labels The basic rule for printing on adhesive labels is that the adhesive must never come into contact with any part of the printer. Adhesive paper sticking to the drum or rollers will damage the printer. Be sure to feed label paper from the MP tray. Feeding label paper from a paper cassette may cause printer failure.
  • Page 132 Special Paper The table below lists the specifications for adhesive label paper. Item Specification Weight of top sheet 44 to 74 g/m² (12 to 20 lb/ream) Composite weight 104 to 151 g/m² (28 to 40 lb/ream) Thickness of top sheet 0.086 to 0.107 mm (3.9 to 4.2 mils) Composite thickness 0.115 to 0.145 mm (4.5 to 5.7 mils)

  • Page 133: Thick Paper

    Special Paper To avoid jamming due to curled envelopes, do not leave more than approximately 10 printed envelopes stacked in the paper trays during multiple envelope printing. Envelopes should be fed in the face-up position, right edge first. Thick Paper Fan the stack of paper and align the edges before loading them in the MP tray.

  • Page 134: Preprinted Paper

    Special Paper Colored Paper Colored paper should satisfy the same conditions as white bond paper, listed in Paper Specifications on page 2-2. In addition, the pigments used in the paper must be able to withstand the heat of fusing during the printing process (up to 200 °C or 392 °F).

  • Page 135: Paper Type

    Paper Type Paper Type The printer is capable of printing under the optimum setting for the type of paper being used. Setting the paper type for the paper source from the printer’s operator panel will cause the printer to automatically select the paper source and print in the mode best suited to that type of paper.

  • Page 136: Chapter 3 Maintenance

    Maintenance Chapter 3 This chapter explains how to replace the toner container and how to clean parts such as the registration roller and charger wire. This chapter explains the following topics: • Toner Container Replacement • Waste Toner Box Replacement •...

  • Page 137: Toner Container Replacement

    Toner Container Replacement Toner Container Replacement The toner container in the printer should be replaced as soon as the message display shows Toner low or soon after. If you continue to use the printer, eventually the toner supply will be exhausted at which point the printer will stop printing and the Replace toner Clean printer message will be shown instructing you to install a new toner kit.

  • Page 138: Replenishing Toner

    Toner Container Replacement Replenishing Toner Open the printer top cover all the way. Top Cover Pull the lock lever (blue colored) to the right and gently lift the old toner container. Lock Lever Keep the toner container as level as possible while removing. Note Put the old toner container in the plastic bag supplied with the toner kit and dispose of it.
  • Page 139 Toner Container Replacement Take the new toner container from the bag. With the label side down, thoroughly shake the toner container (in the direction of the arrows) ten times or more. This ensures that the toner is evenly distributed inside. New Toner Container 10 times or more...
  • Page 140 Toner Container Replacement Push firmly on the top of the toner container at the positions marked PUSH HERE. When the toner container fits into place, it will lock with a clicking sound. Close the top cover. It is necessary to clean the inside of the printer after replacing the toner container.

  • Page 141: Waste Toner Box Replacement

    Waste Toner Box Replacement Waste Toner Box Replacement Replacing the Waste Toner Box When replacing the toner container, the used waste toner box in the printer should also be replaced with the new one from the new toner kit. Note Open the left cover on the left side of the printer.
  • Page 142 Waste Toner Box Replacement Cap the waste toner box after removing from the printer. Old Waste Toner Box To avoid toner spilling, place the capped waste toner box in the plastic bag supplied before proper disposal. Plastic Bag Open the cap of the new waste toner box. New Waste Toner Box...
  • Page 143 Waste Toner Box Replacement Insert the new waste toner box as shown in the figure below. The box will be locked when it fits into place. New Waste Toner Ensure that it is correctly inserted and close the left cover. The printer parts must be cleaned when replacing the toner Cleaning on page 3-9.

  • Page 144: Cleaning

    Cleaning Cleaning To avoid print quality problems, the following printer parts must be cleaned with every toner container replacement. In addition, the charger wire and paper transfer unit should be cleaned from time to time, or whenever print quality problems occur. If the toner container was replaced when Replace toner Clean printer was displayed, Clean printer Press GO will appear after replacement.

  • Page 145: Cleaning The Charger Grid

    Cleaning Cleaning the Charger Grid The charger grid is a part located at the bottom of the charger unit, which also needs to be cleaned. You should use a grid cleaner attaching it to the printer and pull out the charger unit as instructed below. Take the grid cleaner from protective bag in the new toner kit, and remove the cap.
  • Page 146 Cleaning Attach the grid cleaner to the printer with the pad at the top, as shown in the figure. Grid Cleaner Making sure that the charger roller does not come into contact with the grid cleaner pad, repeat a few times the action of slowly pulling out and pushing back in the charger unit, as shown in the figure.
  • Page 147 Cleaning Remove the grid cleaner from the printer and dispose of it. The grid cleaner is not re-usable. After cleaning the charger wire and grid, push the charger unit all the way in and close the left cover. 3-12...

  • Page 148: Paper Transfer Unit

    Cleaning Paper Transfer Unit To avoid print quality problems due to paper dust and debris, clean the paper transfer unit in the following manner. While pulling the paper transfer unit release lever (green colored), pull out the paper transfer unit. Paper Transfer Unit Release Lever (green colored) Paper Transfer Unit...

  • Page 149: Chapter 4 Troubleshooting

    Troubleshooting Chapter 4 This chapter explains how to handle printer problems that may occur. If a problem cannot be corrected, contact your Kyocera Mita dealer. This chapter explains the following topics: • General Guide • Print Quality Problems • Indicators and Messages •...

  • Page 150: General Guide

    General Guide General Guide There are quite a few printer problems that you can deal with by yourself. This section explains how to correct these problems. Therefore, if some kind of problem should occur, check the following before concluding the printer is broken. Symptom Check Items Corrective Action...

  • Page 151: Print Quality Problems

    Print Quality Problems Print Quality Problems As the following table shows, there are many possible causes of print quality problems, such as blank output as. The troubleshooting procedure for each type of problem is explained below. If you still can not solve the problem, contact your Kyocera Mita dealer.
  • Page 152 Print Quality Problems Printed Results Corrective Action Faint or blurred printing Check the Ecoprint setting. When this setting is On, switch it to Off on the Operator Panel. (See Ecoprint on page 1-54) Check the operator panel. • If the Toner low message is displayed and the ATTENTION indicator is flashing, install a new toner kit.
  • Page 153 Print Quality Problems Printed Results Corrective Action Dirt on the top edge or back of the paper Check the paper chute and the ramp. Pull out the paper transfer unit and check for toner on the paper ramp. Clean the paper ramp using a soft, dry, lint- Cleaning on page 3-9.

  • Page 154: Indicators And Messages

    Indicators and Messages Indicators and Messages The tables on the following pages indicate how to respond to problems indicated by the operator panel indicators and messages. Indicators Indicator Name Condition Description Flashing An error occurs that you can clear by yourself. The printer is on-line.

  • Page 155: Maintenance Messages

    Indicators and Messages Maintenance Messages The following table lists maintenance messages that you can deal with by yourself. If Call service person appears, turn off the printer, disconnect the power cord, and contact your Kyocera Mita dealer. Message Corrective Action Add paper (paper source) The paper has run out.

  • Page 156: Correcting A Paper Jam

    Indicators and Messages Message Corrective Action There is data for printing that matches with a paper cassette setting (paper size, Load Cassette # †† (paper size)/(paper type) paper type), but there is no paper in the paper cassette. Set paper into the paper source as displayed on the operator panel, and press the GO key to restart printing.
  • Page 157 Indicators and Messages Message Corrective Action Printing job cannot be done in current resolution because there is not enough internal Warning memory. Try adding more memory or changing resolution. See Appendix image adapt The printer’s internal memory is running low due to the number of fonts and macros Warning downloaded.
  • Page 158 Indicators and Messages Error Messages The following table lists error messages that can be dealt with by the user. Message Corrective Action VMB: A VMB tray that was specified for output does not contain any jobs, or the VMB File not found tray is not being used.
  • Page 159 Indicators and Messages Message Corrective Action The CompactFlash card is accidentally removed from the printer’s memory card slot Memory card err during reading. If you continue reading the memory card, insert the same memory Insert again card into the slot again. The printer again reads it from the beginning of the data. Note: We recommend that you follow the reading procedure from the beginning to ensure correct reading of the memory card.
  • Page 160 Correcting a Paper Jam Correcting a Paper Jam The Paper jam message is displayed on the message display when paper becomes stuck in the paper transport system, the paper feed timing is incorrect, or paper fails to feed at all. The jam can be corrected by removing the paper.
  • Page 161 Correcting a Paper Jam When the jammed paper has been removed, open and close the printer’s top cover or the paper transfer unit. Then the printer automatically warms up, goes on-line, and continues printing. Depending on the point at which the jam occurred, the printer may or may not print the jammed page.

  • Page 162: Jam At The Paper Cassette Or Inside The Printer

    Correcting a Paper Jam Jam at the Paper Cassette or Inside the Printer Paper is jammed at the paper cassette or inside the printer. Remove the Paper jam jammed paper using the procedure given below. Cassette 1 While the display alternates between the paper jam message and HELP START, press the key.
  • Page 163 Correcting a Paper Jam If paper is jammed before the registration roller, remove it as shown in A. If paper is jammed under the registration roller, remove it as shown in B. Registration Registration Roller Roller Open the rear cover and remove the jammed paper. Also, remove the paper jam Rear Cover...

  • Page 164: Paper Jam At The Option Duplexer

    Correcting a Paper Jam Paper Jam at the Option Duplexer Paper is jammed inside the rear cover of the option duplexer or at the Paper jam duplexer drawer. Remove the jammed paper using the procedure given Duplexer below. While the display alternates between the paper jam message and HELP START, press the key.
  • Page 165 Correcting a Paper Jam Remove the jammed paper. and remove the paper jam. Close the rear cover of the duplexer and the duplex drawer. Close rear cover duplex drawer. - HELP END -- Press 4-17...

  • Page 166: Paper Jam At The Option Sorter

    Correcting a Paper Jam Paper Jam at the Option Sorter Paper is jammed at the option sorter. Remove the jammed paper using the Paper jam procedure given below. Sorter While the display alternates between the paper jam message and HELP START, press the key.
  • Page 167 Correcting a Paper Jam Close the rear cover of the option sorter. Close rear cover. - HELP END -- Press 4-19...

  • Page 168: Jam At The Mp Tray

    Correcting a Paper Jam Jam at the MP Tray Paper is jammed at the MP tray. Remove the jammed paper using the Paper jam procedure given below. MP tray While the display alternates between the paper jam message and HELP START, press the key.

  • Page 169: Chapter 5 Fonts

    Fonts Chapter 5 This appendix explains the types of fonts you can use with the printer. A font is a set of characters of a particular design. The design is referred to as a typeface. Several characteristics identify a font. These include the code set (For details on the code sets, read Programming Manual on the supplied CD-ROM), spacing, pitch, height, style, stroke weight, and typeface family.

  • Page 170: List Of Fonts

    List of Fonts List of Fonts This section contains a full list of the printer’s internal fonts. The printer has 80 PCL fonts, 1 bitmap font, and 80 PostScript Level 3 compatible fonts. You can print the font list from the printer by using the printer’s operator panel key.
  • Page 171 List of Fonts Font number Font samples...
  • Page 172 List of Fonts Font number Font samples...

  • Page 173: Kpdl Fonts (1)

    List of Fonts KPDL Fonts (1)

  • Page 174: Kpdl Fonts (2)

    List of Fonts KPDL Fonts (2)

  • Page 175: Appendix A Options

    Options Appendix A This appendix explains how to expand the printer’s memory and how to install each option unit. Also refer to the manuals of the respective option units. This appendix explains the following option units: • Expanding the Printer Memory •...

  • Page 176: Available Options

    Available Options Available Options 1 SO-60 Sorter SO-60 Sorter Equipped with five trays each with 200 sheets capacity. Performs sorting, collating, and mailbox functions. Attaches to the top of the printer. PT-4/PT-60 Rear Tray 2 PT-4/PT-60 Rear Tray It attaches to the rear of the printer. 3 Network Interface Card (IB-20/21E/22) Insert the card into the option interface slot at the rear of the printer.

  • Page 177: Expanding The Printer Memory

    Expanding the Printer Memory Expanding the Printer Memory This section explains how to expand the printer’s memory. Expanded printer memory enables you to print more complex pages, download more fonts, and define more macros. This section first explains how to remove the main circuit board and then how to install a DIMM (Dual In-line Memory Module) on the main circuit board.
  • Page 178 Expanding the Printer Memory Removing the Main Circuit Board The main circuit board of the printer is equipped with two sockets for memory expansion. Expansion memory is available in the form of DIMM. The following instructions are intended for the technician only. Note Notes on Handling the Main Circuit Board and DIMM Protect the electronics by taking these precautions:...
  • Page 179 Expanding the Printer Memory Remove the two screws from the printer’s rear panel. Screws Pull the main circuit board all the way out of the printer. DIMM Sockets • Before pulling the main circuit board out, clear away the area behind the printer.

  • Page 180: Installing Dimm

    Expanding the Printer Memory DIMM to be used 16 MB, 32 MB, 64 MB, 128 MB, and 256 MB DIMM can be used for memory expansion. See your Kyocera Mita dealer for purchasing information of the DIMM that are best suited for use with this printer. Installing DIMM Insert the DIMM into the socket as shown below.
  • Page 181 Expanding the Printer Memory Removing DIMM To remove a DIMM, carefully pull the end clips outwards, then pull the DIMM out of the socket. Return the main circuit board to the printer by reversing the procedure explained in Removing the Main Circuit Board from the Printer.
  • Page 182 Expanding the Printer Memory Adjusting the Memory on the Printer Driver After you install the additional memory to the printer, follow the instructions below to set the printer driver so that the printer can use the memories efficiently. Click the Windows start button, and click Printers and Faxes. Right click the Kyocera Mita FS-3830N KX icon, and click Properties.

  • Page 183: Installing Option Units

    Installing Option Units Installing Option Units PF-60 Paper Feeder Up to three option paper feeders can be installed below the printer. A paper feeder can hold approximately 500 sheets of paper at a time. By using option paper feeders in conjunction with the printer paper cassette, which can also hold approximately 500 sheets of paper, up to approximately 2,000 sheets of paper can be fed continuously.
  • Page 184 Installing Option Units Push down the bottom plate until it locks. Set the paper size dial to the size of paper to be used. Adjust the paper guides and paper stopper to the size of paper to be used. A-10...
  • Page 185 Installing Option Units Load paper. • Do not load more paper than will fit under the load limits on the paper guides. Note • The paper cassette will hold approximately 500 sheets of paper with a 80 g/m² (21 lb) basis weight, or with a thickness of 0.11 mm. Load Limit Load Limit Set the stack of paper so that it is under the clips as shown in the...

  • Page 186: Du-61 Duplexer

    Installing Option Units DU-61 Duplexer Install the option duplexer immediately below the printer. By combining the two binding modes (short edge bind and long edge bind) with the two printing orientations (portrait and landscape), duplex printing is possible in four different methods. Duplex printing can be specified from the application (printer driver).
  • Page 187 Installing Option Units Gently place the printer on top of the duplexer. Connect the printer cable (parallel interface cable, USB interface cable, serial interface cable or network interface cable) according to your operation environment. If you are using a paper cassette for Legal size paper, be sure to pull the cassette out towards you first before you connect the printer cable.
  • Page 188 Installing Option Units Pass the connected cable and power cord through the opening in the duplexer. Install the duplexer rear cover. A-14...

  • Page 189: Sorter

    Installing Option Units SO-60 Sorter Install the option sorter on top of the printer. It is equipped with five sorter trays, with a capacity of 200 sheets each. There are three modes in which printouts can be received: the sorter mode, the collator mode, and the mail box mode (for details about the modes, see KX Printer Drivers Operation...
  • Page 190 Installing Option Units If the duplexer is installed, remove the duplexer rear cover, power cord, and printer cable. Remove the sorter connection cover from the printer. Store the removed cover in a safe place. Sorter Connection Cover Install the sorter by inserting the four hooks on its attachment legs into the notches in the printer.
  • Page 191 Installing Option Units Push the sorter down. The levers of the attachment legs are in the lock position. When removing the sorter, unlock the attachment legs by releasing the levers as shown in the figure one by one, and then lift the sorter. Connect the sorter cable to the printer.
  • Page 192 Installing Option Units When disconnecting the sorter cable, hold the grip on the connector as shown in the figure and then pull it out. Grip The sorter is equipped with two power cord sockets. The upper one is to be connected to a power outlet and the lower one is to be connected to the printer.
  • Page 193 Installing Option Units If the duplexer is installed, secure the power cord to the duplexer. Take care not to loosen the power cord. If the duplexer is installed, remove the two cut-out portions from the upper part of the duplexer rear cover removed in step 5. Reinstall the duplexer rear cover.
  • Page 194 Installing Option Units Install the five sorter trays to the sorter. Sorter Tray Connect the power cord supplied with the printer to the sorter. Do not move or lift the printer with the sorter installed. Warning A-20...

  • Page 195: Ef-60 Envelope Feeder

    Installing Option Units EF-60 Envelope Feeder Install the option envelope feeder at the front of the printer. By installing the envelope feeder, you can print on a wide variety of different envelope sizes. And the EF-60 feeds envelopes automatically, making it easy to print on large quantities of envelopes at one time.
  • Page 196 Installing Option Units Fit both ends of the envelope feeder into their mountings on the paper transfer unit as shown in the figure and lay the envelope feeder down toward you. Envelope Feeder Return the paper transfer unit into the printer with the envelope feeder mounted.
  • Page 197 Installing Option Units Pull out the sub-tray that matches the size of the envelopes. Sub-tray Load envelopes into the envelope feeder so that they feed in face up, right edge first. Then adjust the envelope feeder’s paper guides to the width of the envelope.
  • Page 198 Installing Option Units Press the paper setting button. The envelope feeder’s bottom tray is lifted and envelopes that are fed are secured to the envelope feeder. Paper Setting Button • Paper feed errors may occur when using large envelopes. If this happens, remove the envelopes and move the switch to the up ( position as shown in the figure.

  • Page 199: Pt-4/Pt-60 Rear Tray

    Installing Option Units PT-4/PT-60 Rear Tray Use the rear tray when you wish paper to be stacked with the printed side facing up (reverse order), or when you are printing on envelopes, postcards, transparencies, or thick paper. When installing it directly to the printer, use PT-4.

  • Page 200: Network Interface Card

    Installing Option Units Network Interface Card Insert the option network interface card into the option interface slot at the rear of the printer. Along with the standard for the network interface on the printer, the network interface card supports TCP/IP , IPX/SPX, NetBEUI, and EtherTalk protocols, so that the printer can be used on network environments including Windows, Macintosh, UNIX, NetWare, etc.
  • Page 201 Installing Option Units Connect the network cable. Network Cable Set the network address from the printer operator panel (for details about the modes, see Network Interface Parameters on page 1-78). A-27...

  • Page 202: Microdrive (Hard Disk

    Installing Option Units Microdrive (Hard Disk) Insert the Microdrive into its slot on the main circuit board of the printer. If a Microdrive is installed in the printer, received data can be rasterized and stored on this Microdrive. This enables high-speed printing of multiple copies using an electric sort function.
  • Page 203 Installing Option Units Install the Microdrive into its slot on the main circuit board. Microdrive Slot Microdrive Return the main circuit board to the printer by reversing the procedure followed when removing it. A-29...

  • Page 204: Compactflash (Memory) Card

    Installing Option Units CompactFlash (Memory) Card Insert the CompactFlash card into the card slot located near the handle on the right of the printer. A CompactFlash card is a microchip card that may contain option fonts, macros, forms, etc. The printer reads the contents of the card into its internal memory when printer is turned on.

  • Page 205: Appendix B Host Computer Interface

    Host Computer Appendix B Interface This appendix explains the signals used in the printer’s parallel and RS-232C interfaces. It also lists pin assignments, signal functions, timings, connector specifications, and voltage levels. The RS-232C protocols are also covered. Finally, it explains how to use the printer in a multi-computer environment.

  • Page 206: Parallel Interface

    Parallel Interface Parallel Interface Parallel Interface Communication Modes The printer features fast data transmission with the parallel interface. The parallel interface mode can be activated from the operator panel. Parallel Interface Mode on page 1-74. Use a parallel printer cable that complies with the IEEE1284 standard. You can choose from four communication modes: Note Communication...
  • Page 207 Parallel Interface In/out Description Strobe* [nStrobe] In/Out Data 0 [Data 1] In/Out Data 1 [Data 2] In/Out Data 2 [Data 3] In/Out Data 3 [Data 4] In/Out Data 4 [Data 5] In/Out Data 5 [Data 6] In/Out Data 6 [Data 7] In/Out Data 7 [Data 8] Acknowledge* [nAck]...
  • Page 208 Parallel Interface Detailed descriptions of the signals follow. Strobe* [nStrobe] (Pin 1) A negative-going Strobe* pulse causes the printer to read and latch the data on the Data 0 [1] to Data 7 [8] signal lines. Data 0 [1] to Data 7 [8] (Pins 2 to 9) These eight signals form the data byte sent from the host computer to the printer.

  • Page 209: Usb Interface

    USB Interface USB Interface This printer supports the Hi-Speed USB 2.0/Full-Speed USB 2.0 interface specifications and interface signals are as follows. Specifications Basic specification Complies with the Hi-Speed USB 2.0/Full-Speed USB 2.0. Connectors Printer: B-type receptacle (female) with upstream port Cable: B-type plug (male) Cable Use shielded cable that complies with the Hi-Speed USB 2.0 standards and...

  • Page 210: Serial Interface (Option

    Serial Interface (Option) Serial Interface (Option) Installing the option serial interface board kit (IB-11) in the printer enables connection to a computer with an RS-232C standard serial interface. RS-232C Interface Interface Signals The pins of the printer’s RS-232C interface connector carry the signals listed in table below.

  • Page 211: Rs-232C Protocol

    RS-232C Protocol SG - Signal Ground - (Pin 7) All signals can transmit between the printer and the host computer to send each signal with a signal ground. DTR - Data Terminal Ready - (Pin 20) This output is used as a buffer nearly-full handshake line. It is held high (above 3 volts) when the buffer can accept more data.
  • Page 212 RS-232C Protocol H4: Parity Parameter value Meaning None Even Ignore Table B-6 The factory setting is “None” (0 on the status printout). H5: Protocol logic Parameter value Meaning Combination of 1 and 3 below DTR/DSR, positive logic DTR/DSR, negative logic XON/XOFF ETX/ACK XON/XOFF recognized only as protocol...

  • Page 213: Prescribe Frpo D0 Command

    RS-232C Protocol PRESCRIBE FRPO D0 Command The PRESCRIBE FRPO D0 command provides control over XON/XOFF operation when an error occurs on the serial interface. The following table summarizes the error status corresponding to different D0 values. Timing of XON transfer to Serial interface error host while Ready or Waiting Error not handled...

  • Page 214: Rs-232C Cable Connection

    RS-232C Cable Connection RS-232C Cable Connection Obtain a Suitable RS-232C Cable Make sure that the RS-232C cable is wired correctly. The cable must be a null modem cable; that is, one in which pin 2 on either end of the cable is connected to pin 3 on the other end.
  • Page 215 RS-232C Cable Connection With Windows XP , make settings as follows: Click on the Start button in the Windows XP task bar and align the cursor with Settings, then click on Control Panel from among the items displayed. The Control Panel window opens. Double click on System. System Properties window opens.
  • Page 216 RS-232C Cable Connection With Windows 95/98/Me, make settings as follows: Click on Start button in the Windows 95/98/Me Task Bar and align the cursor with Settings, then click on Control Panel from among the items displayed. The control panel folder opens. Double click on System. System Properties opens.
  • Page 217 RS-232C Cable Connection In DOS, enter the following commands: C:\>MODE COM1:96,N,8,1,P C:\>MODE LPT1:=COM1 To test the interface, enter the following: CTRL P C:\>DIR CTRL P The software settings made using the above procedures are temporary. On most computers, permanent settings must be made with DIP switches. B-13...

  • Page 218: Appendix C Specifications

    Specifications Appendix C...

  • Page 219: Printing Method

    Specifications Specifications Item Description FS-3820N FS-3830N Printing method Electrophotography, laser scan Printing speed 28 pages/minute (A4 size) when 33 pages/minute (A4 size) when printing multiple copies of the same printing multiple copies of the same page page Resolution Fast 1200 mode with KIR (Kyocera Image Refinement) Fine 1200 mode 600 dpi with KIR (Kyocera Image Refinement) 300 dpi with KIR (Kyocera Image Refinement)
  • Page 220 Specifications Item Description FS-3820N FS-3830N Ambient conditions Temperature: 10 to 32.5 °C (50 to 90.5 °F) Humidity: 20 to 80 % RH Optimum conditions: 23 °C (73.4 °F), 60 % RH Altitude: Max. 2,000 m (6,500 feet) Illumination: Max. 1,500 lux Power requirements 120 V , 60 Hz, max.

  • Page 221: Glossary

    Glossary Glossary-1...

  • Page 222: Expansion Memory

    Glossary Cassette mode IEEE1284 This is an operation mode for the MP tray. When This is a standard used when connecting a this mode is used, approximately 100 sheets of printer to a computer, and was established by the plain paper can be fed continuously, the same as Institute of Electrical and Electronic Engineers for the cassette.

  • Page 223: Operator Panel

    Glossary Operator panel Simple Network Management Protocol (SNMP) This is located on the top of the printer. The panel consists of the message display three This is a protocol for the management of indicators and eight keys. The message display networks that use TCP/IP (Transmission Control shows the printer’s status.

  • Page 224: Index

    Index Index-1...
  • Page 225 Adhesive label 2-8 Keys 1-5 Alarm (Buzzer) setting 1-104 KIR 1-17, 1-52 Amorphous silicon drum x KM-NET VIEWER xii, Glossary-2 Auto continue 1-105 Left cover 3-6, 3-9 Cassette size 1-24 Charger unit 3-10 Cleaning 3-9 charger wire 3-9 Main circuit board A-4, A-28 grid cleaner 3-10 Maintenance messages 4-7 paper transfer unit 3-13...
  • Page 226 preprinted paper 2-11 Sleep mode x, 1-2, 1-100, Glossary-3 recycled paper 2-11 Sleep timer 1-2, 1-100 size 2-4 Sorter (SO-60) 4-18, A-15 special paper 2-7 Specifications C-1 specifications 2-2 Status page 1-14 thick paper 2-10 thickness 2-5 type 2-7 weight 2-4 Toner container 3-2 Paper cassette 1-3, A-9 dispose 3-3...
  • Page 227 ©2003, 2004 is a trademark of Kyocera Corporation 2004.1...

Table of Contents
