Observint NVR4020 Quick Setup Manual page 4

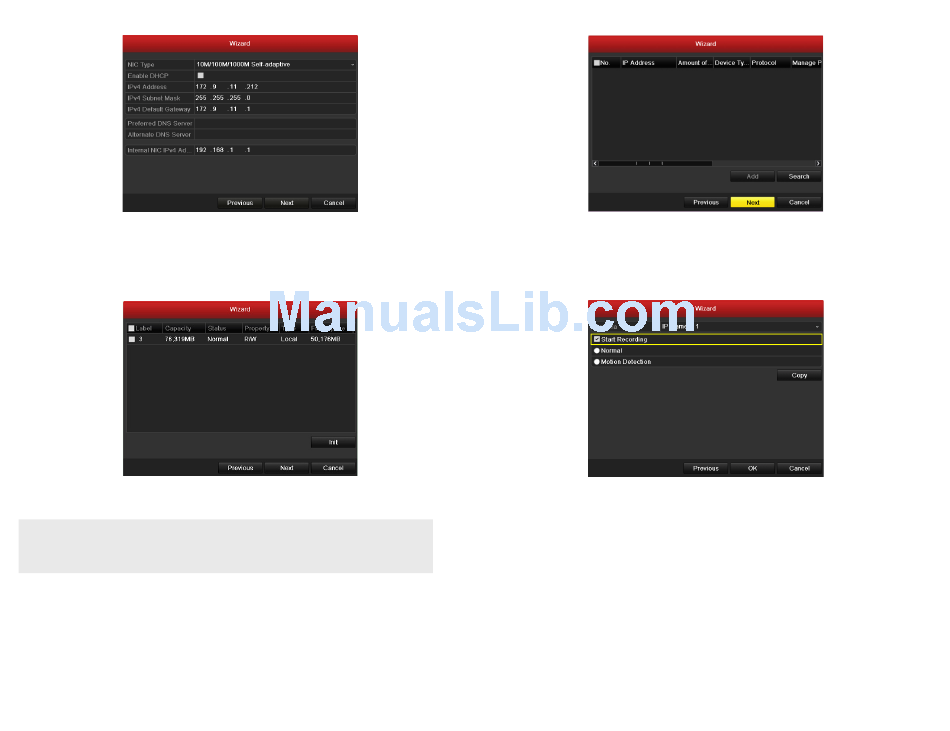

6. Click Next after you configured the network parameters. The HDD management Wizard window will open.
7. To initialize an HDD, click the checkbox for the device you want to initialize, click the Init button, then follow the on-screen
instructions to complete the process. NOTE: Initialization removes all the data saved on the HDD. Click Next to continue.
8. In the add IP Camera Wizard, click Next.
You can add additional IP cameras compatible with the NVR that are active on the local LAN the NVR is networked to. However,
these additional cameras, plus the cameras in use by the NVR that are attached to the RJ45 connectors on the backpanel, cannot
NOTE
exceed the channel capacity of your system: 4 channels with the NVR4020 or 8 channels with the NVR8040. See "APPENDIX C
Adding Cameras on the LAN to the NVR" on page <?> for procedural guidelines on adding these cameras.
4 www.Observint.com
9. Use the camera record mode Wizard as follows:
a. On the Cameras line at the top of the window, open the drop-down list and select the camera you want to configure for
recording.
b. Select one of the recording modes: click Start Recording, then select either Normal (continuous) or Motion Detection
mode.
c. Repeat "a" and "b" above for each camera, and/or click Copy to copy the recording mode of the selected camera to other
cameras in the system.
© 2013 Observint Technologies. All rights reserved.
