Item Name Function
12 DIRECTION/ENTER DIRECTION: These buttons are used to navigate between different fields and items in menus.
buttons In the Playback mode, the Up and Down buttons are used to speed up and slow down recorded video. The Left and Right
button select the next and previous record files.
In Live View mode, these buttons can be used to cycle through channels.
In PTZ control mode, they can control the movement of the PTZ camera.
ENTER: The ENTER button is used to confirm selection in any of the menu modes.
It can also be used to tick checkbox fields.
In Playback mode, it can be used to play or pause the video.
In single-frame Playback mode, pressing the button will advance the video by a single frame.
In Auto-switch mode, it can be used to stop /start auto switch.
13 PTZ button Enter the PTZ Control mode (if applicable).
In the PTZ Control mode, it is used to adjust the iris of the PTZ camera.
14 ESC button Return to the previous menu.
Press for Arming/disarming the device in Live View mode.
15 RESERVED Reserved for future usage.
16 F1 button Select all items on the list when used in a list field.
In PTZ Control mode, it will turn on/off PTZ light (if applicable).
In Playback mode, it is used to switch between play and reverse play.
17 PTZ Control buttons Buttons to adjust the iris, focus and zoom of a PTZ camera.
18 F2 button Cycle through tab pages.
In synchronous playback mode, use to switch between channels.

Mouse Control

A standard 3-button (left/right/scroll-wheel) USB mouse can also be used with this NVR. When the mouse is plugged into the NVR, it is
automatically detected. If the mouse is not detected, the mouse may not be compatible with the NVR. Please refer to the recommended
device list from your provider. The buttons on the mouse function as shown in the table below.
Action Effect
Live view: Show menu.
Right click
Menu: Exit current menu to upper level menu.
Single click: Live view: Select channel and show the quick set menu.
Menu: Select and enter.
Double click: Live view: Switch between single-screen and multi-screen.
Left click
Click and drag: PTZ control: pan, tilt and zoom.
Tamper-proof, privacy mask and motion detection: Select target area.
Digital zoom-in: Drag and select target area.
Live view: Drag channel/time bar
Scroll up: Live view: Previous screen.
Menu: Previous item.
Scroll wheel
Scroll down: Live view: Next screen.
Menu: Next item.

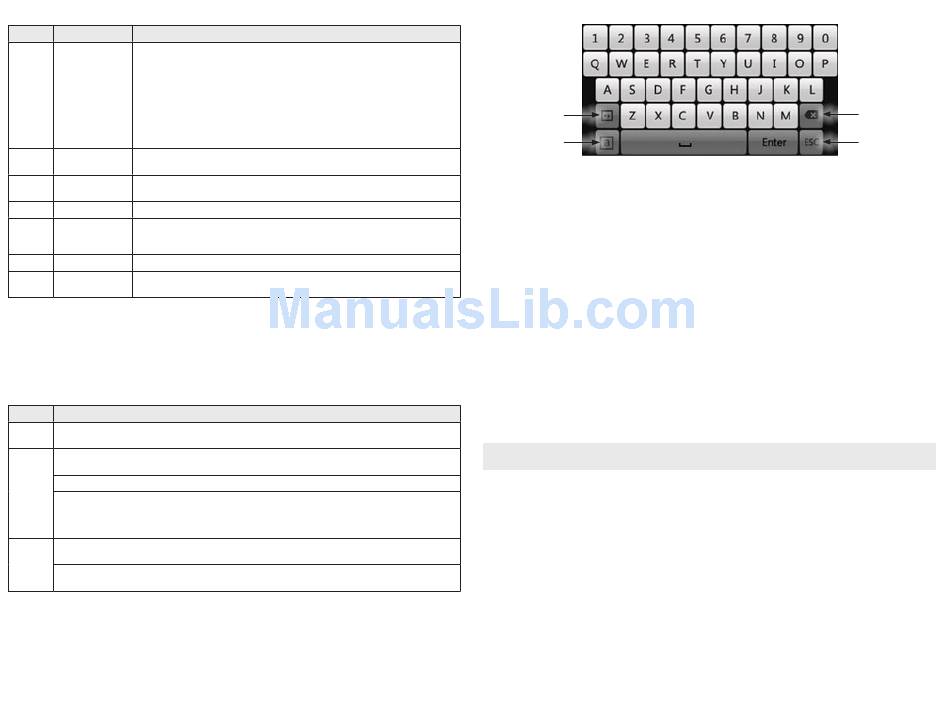

1.1.1 Soft keyboard

An on-screen QUERTY keyboard appears when you click in a field that accepts a text entry, such as a password or name. The keyboard is
shown in the following picture. Some control keys toggle their function when they are clicked.
2 www.Observint.com
Symbols /
Numbers
Uppercase /
Lowercase

Step 1. Install the NVR and monitor

For the following steps, refer to the back panel photo above for the location of connectors.
1. Place the NVR in a location that is secure, well ventilated and clean. The NVR should be positioned such that the back panel connectors
are accessible and the ventilation holes on the sides and top and the fan outlet on the back are not blocked.
2. Install and setup your monitor in accordance with the instructions provided with the monitor. Do not power it on at this time.
3. Cable the HDMI or VGA connector to your monitor's VGA or HDMI input. The HDMI interface provides the best performance.
4. Plug the mouse into the USB connector on the front or back of the NVR.
5. To access your NVR remotely, or configure your NVR to transmit alerts, email, etc. to external servers, plug a drop cable from your local
area network (LAN) into the RJ45 LAN connector on the back of the NVR.
6. Connect the power cord to the power connector on the back panel of the NVR, and then into a UPS (preferred) or surge protector.
NOTE
Do not power on the NVR at this time.

Step 2. Install cameras

The camera channel (RJ45) connectors on the back of the NVR support 3SVision brand IP cameras only. If the cameras you attach to the back
panel were used on another system, they should first be reset to the factory default configuration before connecting them to the NVR. These
cameras can be automatically added to and configured by the NVR system when the NVR is configured.
To prepare your cameras for use with the NVR, do the following:
1. Install your 3SVision IP cameras as needed to support your security requirements. Always refer to the documentation provided with
the camera for installation instructions.
2. Connect an Ethernet drop cable between each camera and an RJ45 camera channel connector on the back of the NVR.
3. Apply power to the cameras and allow at least 3 minutes for them to fully initialize.
Backspace
Escape / Exit
Soft keyboard
