H.264 4/8/16-channel Networkable DVRs
Installation and Setup Guide
Products: DVR9004N, DVR9008N, DVR9016N

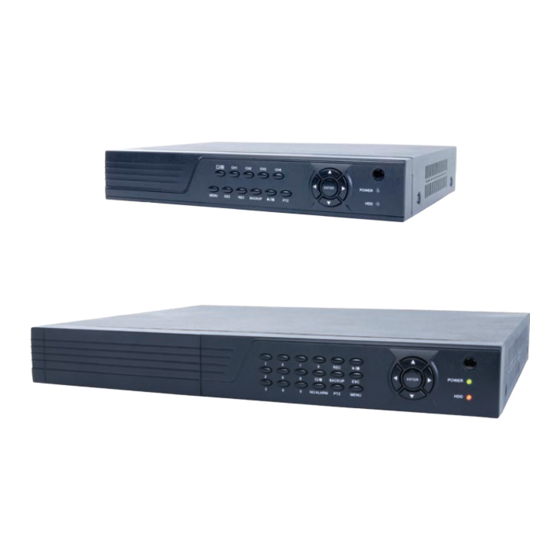

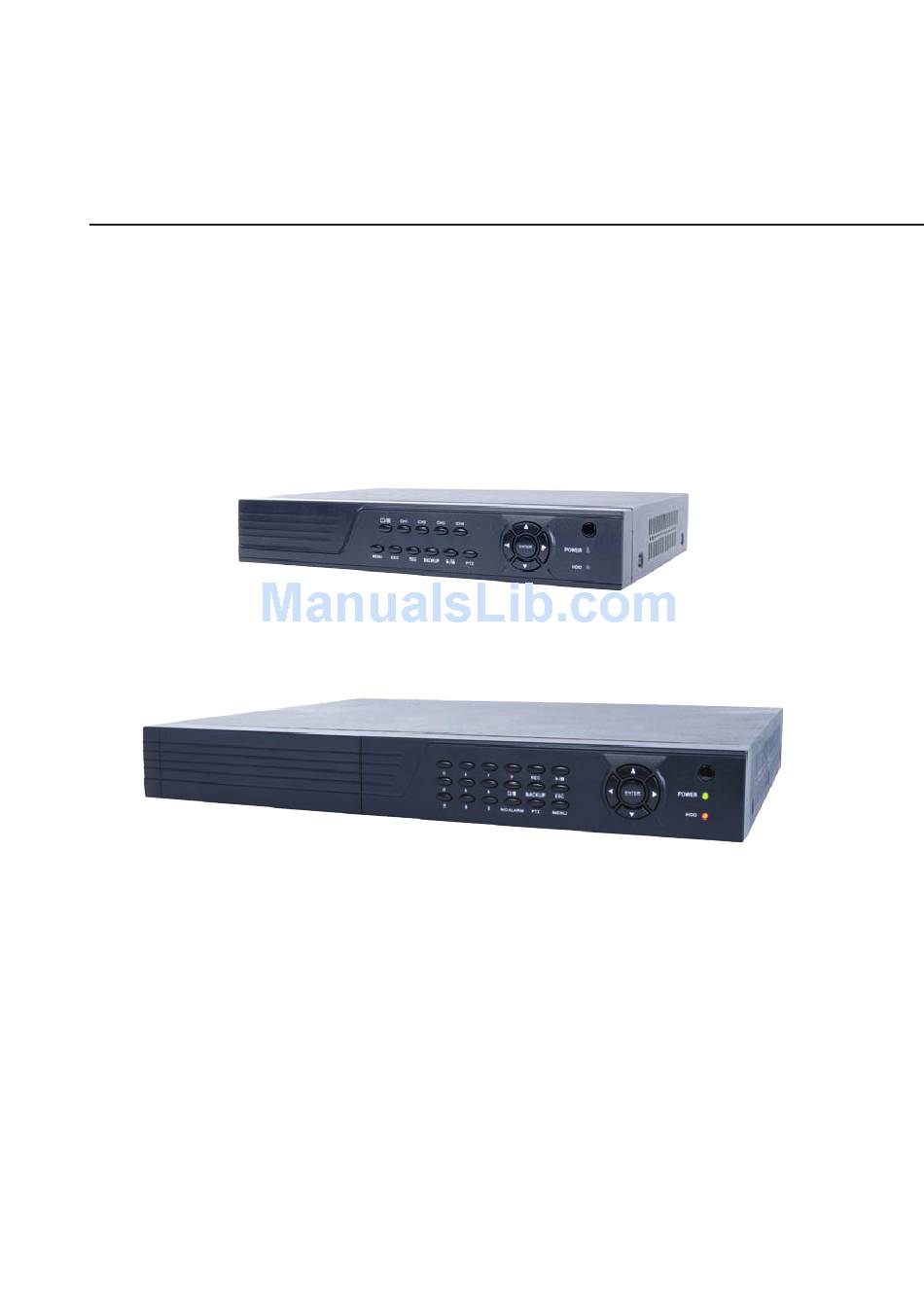

DVR9004N (4-channel) DVR
DVR9008N (8-channel) DVR and DVR9016N (16-channel) DVR
PLEASE READ THIS MANUAL BEFORE USING YOUR SYSTEM, and always follow the
instructions for safety and proper use. Save this manual for future reference.
DVR90xxN_RM
11/27/12
