Gold Note M-7 Owner's Manual

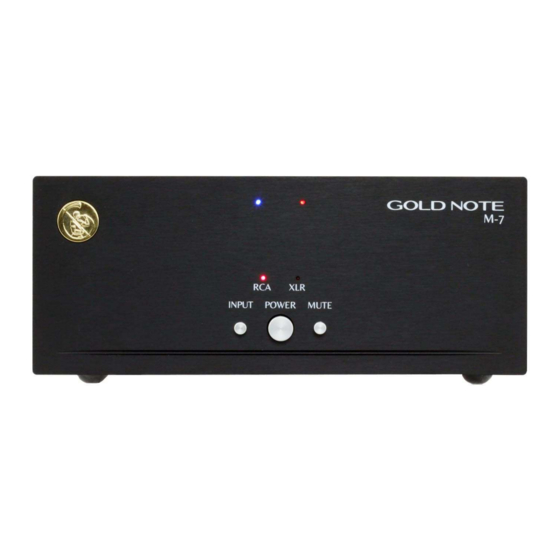

Italian mono block amplifier
Hide thumbs Also See for M-7:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

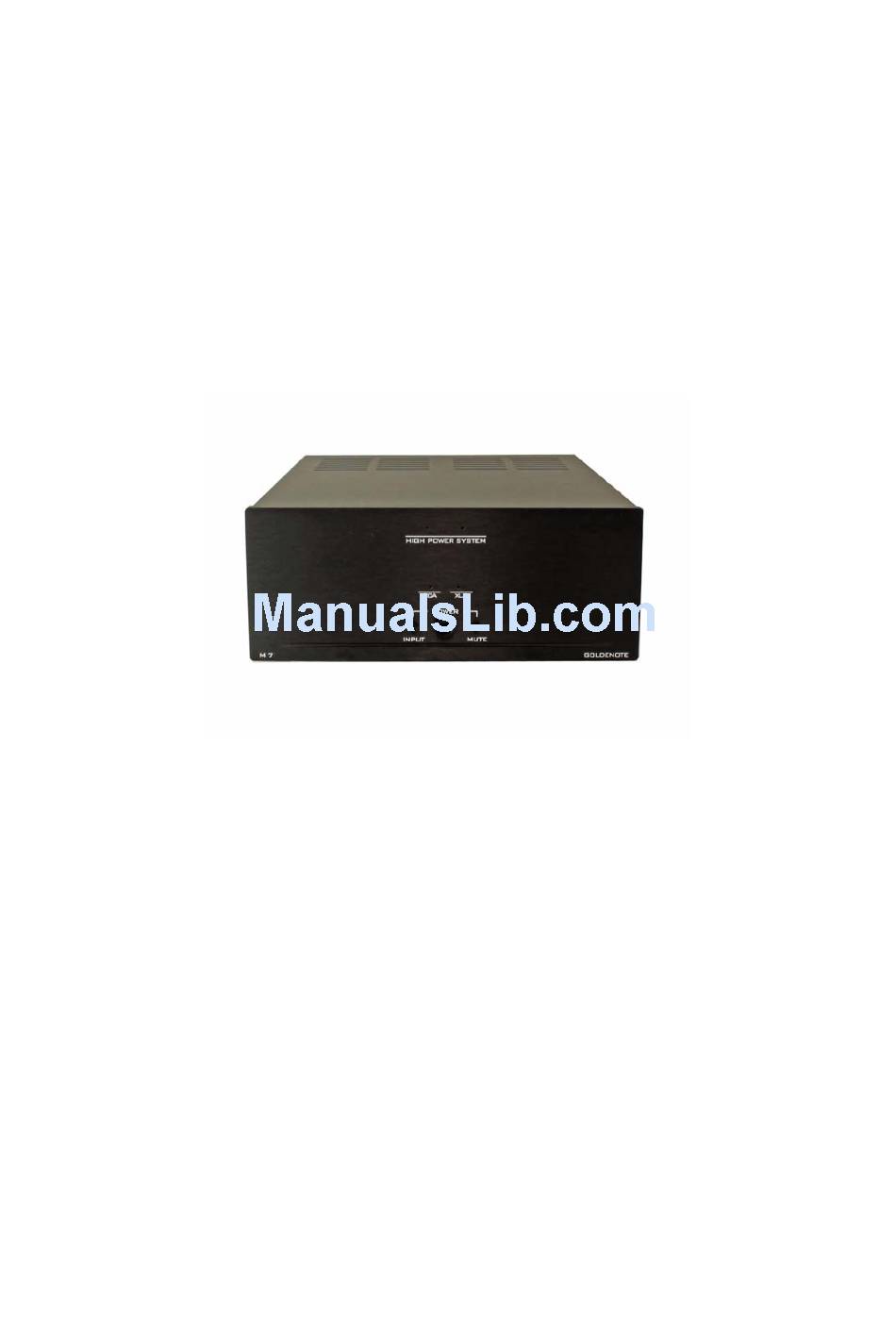

Gold Note®
M-7
ITALIAN MONO BLOCK AMPLIFIER
Owner's Manual
MANUFACTURED IN ITALY
TEL.+39.0571.675005
FAX.+39.0571.675013
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-7 and is the answer not in the manual?

Questions and answers

Related Manuals for Gold Note M-7

Summary of Contents for Gold Note M-7

  • Page 1 Gold Note® ITALIAN MONO BLOCK AMPLIFIER Owner’s Manual MANUFACTURED IN ITALY TEL.+39.0571.675005 FAX.+39.0571.675013...

  • Page 2: Table Of Contents

    - Contents of Packaging - Back Panel Features - Operating Conditions & Front Panel - Technical Specifications - Warranty, Customer Service, Warnings & F.A.Q. - Troubleshooting - F.A.Q. VERY IMPORTANT: Please read the following instructions carefully before installing your Gold Note® unit...

  • Page 3: Congratulations & Introduction

    Thank you for having purchased a Gold Note® Introduction The Gold Note M-7 is a top quality Mono Block amplifier featuring 100 watt RMS power. The M-7 is mono amplifier conveniently shaped in a super compact elegant chassis. Powered by a proprietary hybrid linear power supply, designed around innovative micro components, the M-7 is able to drive any kind of loudspeakers with ease and naturalness.

  • Page 4: Contents Of Packaging

    Open all the cartons inside the main box and look that all the components listed are present. Carefully remove the M-7 Mono Block Amplifier chassis from the shipping box and foam. Connect the audio cable (not supplied) and the AC Power Chord supplied.

  • Page 5: Operating Conditions

    Once the M-7 has been correctly wired and positioned on a solid shelf it is ready to play. The M-7 has been designed for use in Hi-Fi systems in sheltered locations. It ought therefore to be protected from any eventual variations in temperature and humidity. Avoid to use the unit close to radiators or other strong heat sources, electrical and electronic motors, switched on mobile phones etc.

  • Page 6: Technical Specifications

    M-7 Italian Mono Block Amplifier Technical Specifications MAIN DETAILS POWER OUTPUT 100w @ 20-20000Hz FREQUENCY RESPONSE 20Hz – 20KHz @ +/- 3dB THD (Total Harmonic Distortion) <0.2% THD @ 20Hz-20KHz RATIO SIGNAL TO NOISE -90dB DYNAMIC RANGE 120dB DAMPING FACTOR >400...

  • Page 7: Warranty Registration

    M-7 Italian Mono Block Amplifier (Warranty Registration) To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase: http://www.Gold Note.com/index.php?option=com_content&view=article&id=14&Itemid=31&lang=en If the unit is not registered correctly or is been purchased from a different country of the purchaser origin/home the unit will not be covered by any warranty and the eventual registration refused.

  • Page 8: Troubleshooting

    M-7 Italian Mono Block Amplifier Troubleshooting SYNPTOM DESCRIPTION CAUSE REMEDY SPEAKER HUMMING speakers   The unit is correctly coupled Be sure your area and PROBLEMS when the Stage with the Ground on DC. personal environment are connected well grounded eventually...
