Summary of Contents for Gold Note HP-7

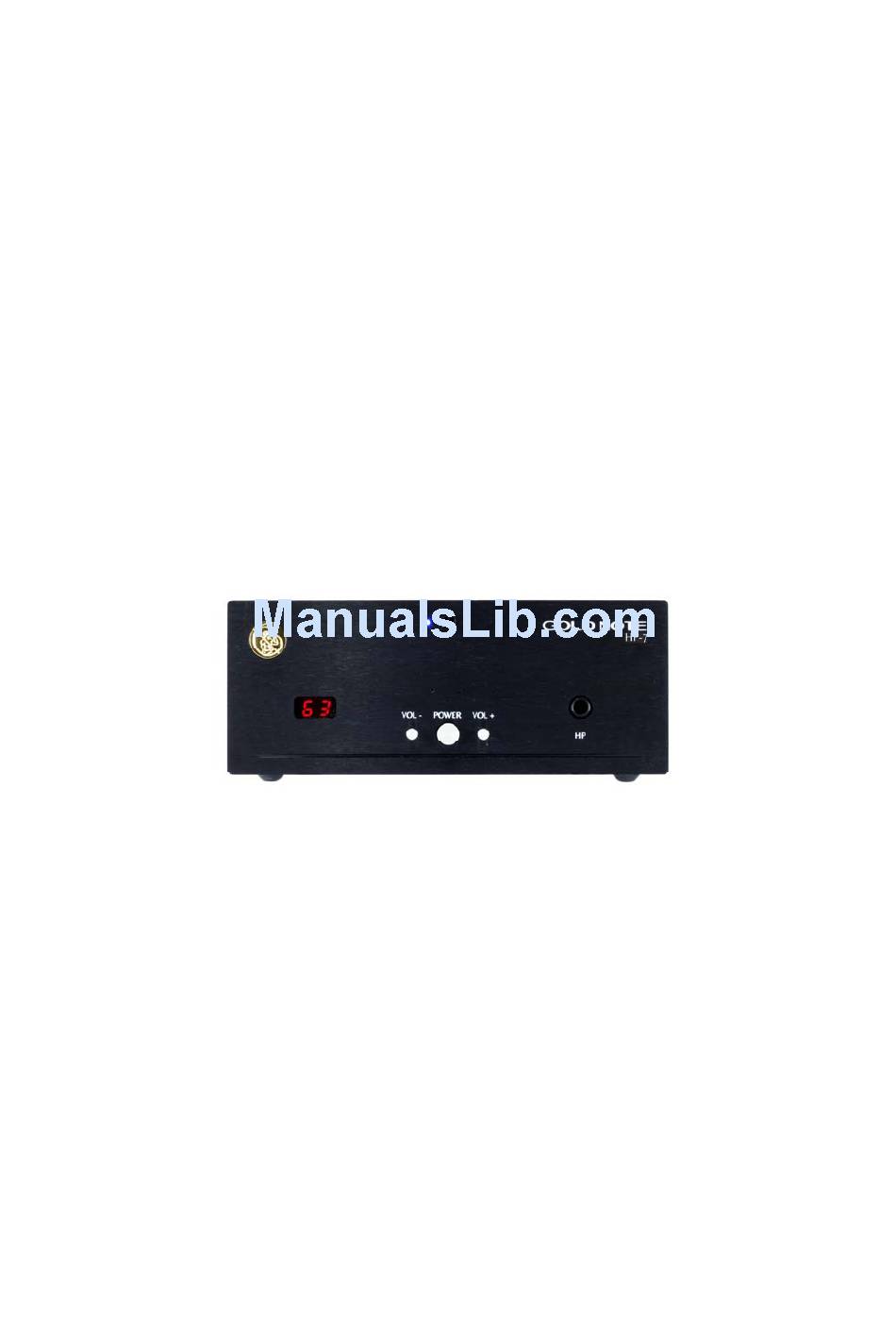

- Page 1 GOLD NOTE® HP-7 ITALIAN PREAMPLIFIER WITH HEADHPONE AMPLIFIER Owner’s Manual MANUFACTURED IN ITALY TEL.+39.0571.675005 FAX.+39.0571.675013...
-
Page 2: Table Of Contents
Operating Conditions & Front Panel HP 7 Main Functions – Upgrade with PSU 7 Remote Control Technical Specifications Warranty, Customer Service, Warnings & F.A.Q. Troubleshooting F.A.Q. VERY IMPORTANT: Please read the following instructions carefully before installing your Gold Note® unit... -
Page 3: Congratulations & Introduction
Congratulations Thank you for having purchased a Gold Note® product. Introduction The Gold Note HP-7 is a top quality headphone amplifier featuring a high class preamplifier stage with high end audio active volume control. The Double Mono Active Volume control is designed around a 200 step 0.5dB top class 1% single resistors per channel... -
Page 4: Contents Of Packaging
Open all the cartons inside the main box and look that all the components listed are present. Carefully remove the HP-7 Preamplifier with Headphone Amplifier chassis from the shipping box and foam. Connect the audio cable (not supplied) and the AC Power Chord supplied. -
Page 5: Operating Conditions & Front Panel
(Operating Conditions) The HP-7 has been designed for use in Hi-Fi systems in sheltered locations. It ought therefore to be protected from any eventual variations in temperature and humidity. Avoid to use the unit close to radiators or other strong heat sources, electrical and electronic motors, switched on mobile phones etc. -
Page 6: Hp 7 Main Functions - Upgrade With Psu 7
EXTERNAL POWER SUPPLY UNIT (Optional) The HP-7 maybe set up even with an optional external Power Supply Unit, the PSU7 AC powered or the PSU-9 double battery powered via the professional Tyco connector (7) present on the back panel. The PSU-7 is a large inductive power supply decouple the HP-7 from the AC completely for superior sound performance. -
Page 7: Remote Control
HP-7 Italian Preamplifier with Headphone Amplifier (REMOTE CONTROL) The standard remote control is here below: The Optional deluxe aluminum remote mod.2257 (SWITCHING THE REMOTE HANDSET MODEL) From the unit Off turn it on holding pressed the button (11) VOL +. The display will flash T1 to confirm the “STANDARD”... -
Page 8: Technical Specifications
POWER CONSUMPTION 50watt Max UPGRADES EXTERNAL PSU Plug & Play Power Supply Unit EXTERNAL AC FILTER Dumbo AC Other Gold Note Lucca Power Chord PHYSICAL DIMENSIONS 200mm L x 80mm H x 260mm D TOTAL WEIGHT 4Kilos (9Lbs.) FINISHES FRONT PANEL... -
Page 9: Warranty, Customer Service, Warnings & F.a
HP-7 Italian Preamplifier with Headphone Amplifier (Warranty Registration) To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: http://www.goldnote.it/ If the unit is not registered correctly or is been purchased from a different country of the purchaser origin/home the unit will not be covered by any warranty and the eventual registration refused. -
Page 10: Troubleshooting
HP-7 Italian Preamplifier with Headphone Amplifier Troubleshooting SYNPTOM DESCRIPTION CAUSE REMEDY SPEAKER HUMMING The speakers hum when the The unit is correctly coupled with Be sure your area and personal PROBLEMS unit is connected to the the Ground on DC. - Page 11 Note:…………………………………………………………………………………………………………………………………………………………………………......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 12 GOLD NOTE Via della Gora, 6 Montespertoli (Florence) Italy 50025 Tel. + 39 0571 675005 Fax. + 39 0571 675013 www.goldnote.it...
